Additional Galvanised Steel Steps 900mm Wide

About this product

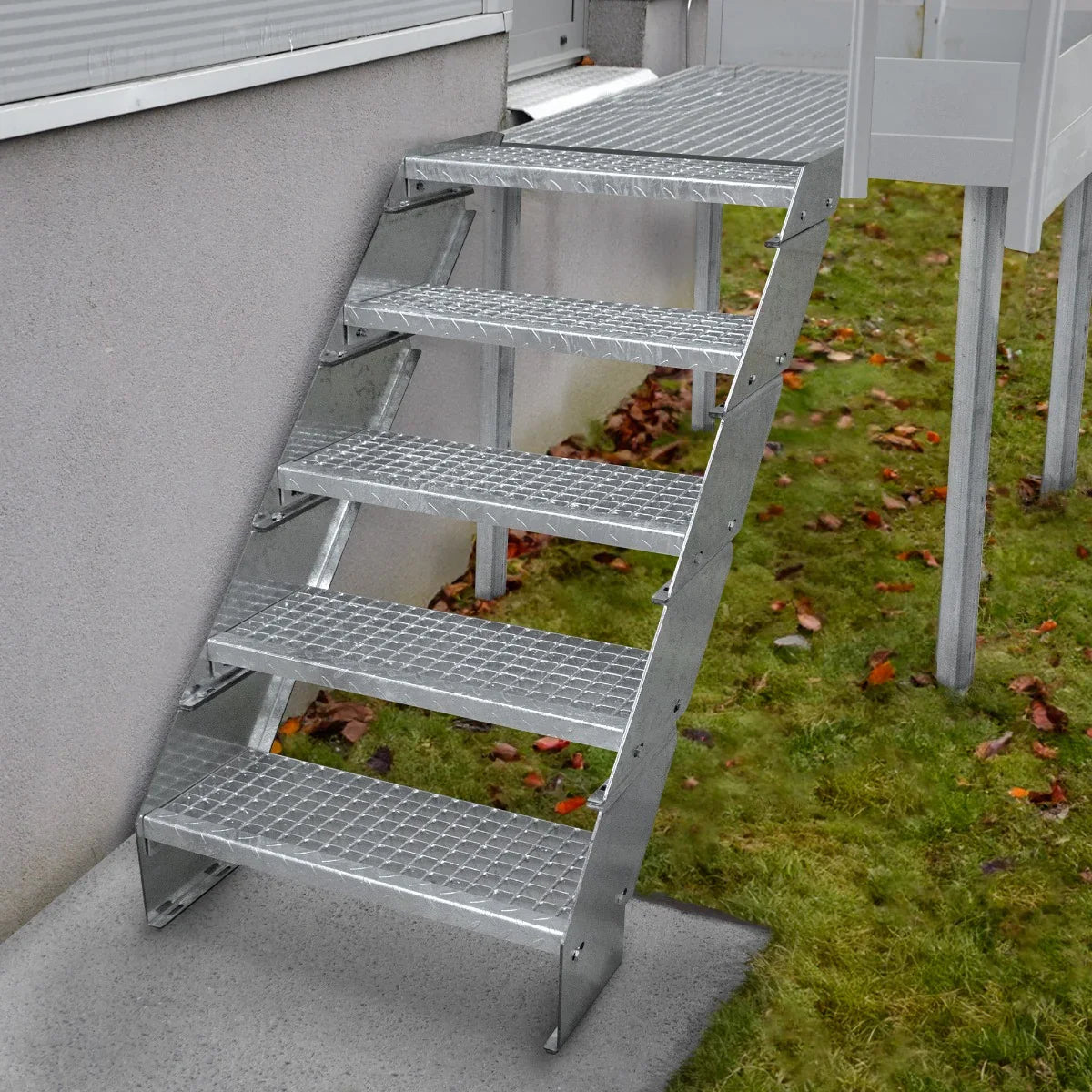

This additional galvanised steel step section is for extending a modular staircase. It can be used in businesses, garages, warehouses and other indoor or outdoor spaces. Adding sections allows the staircase to reach a maximum configuration of 12 steps.

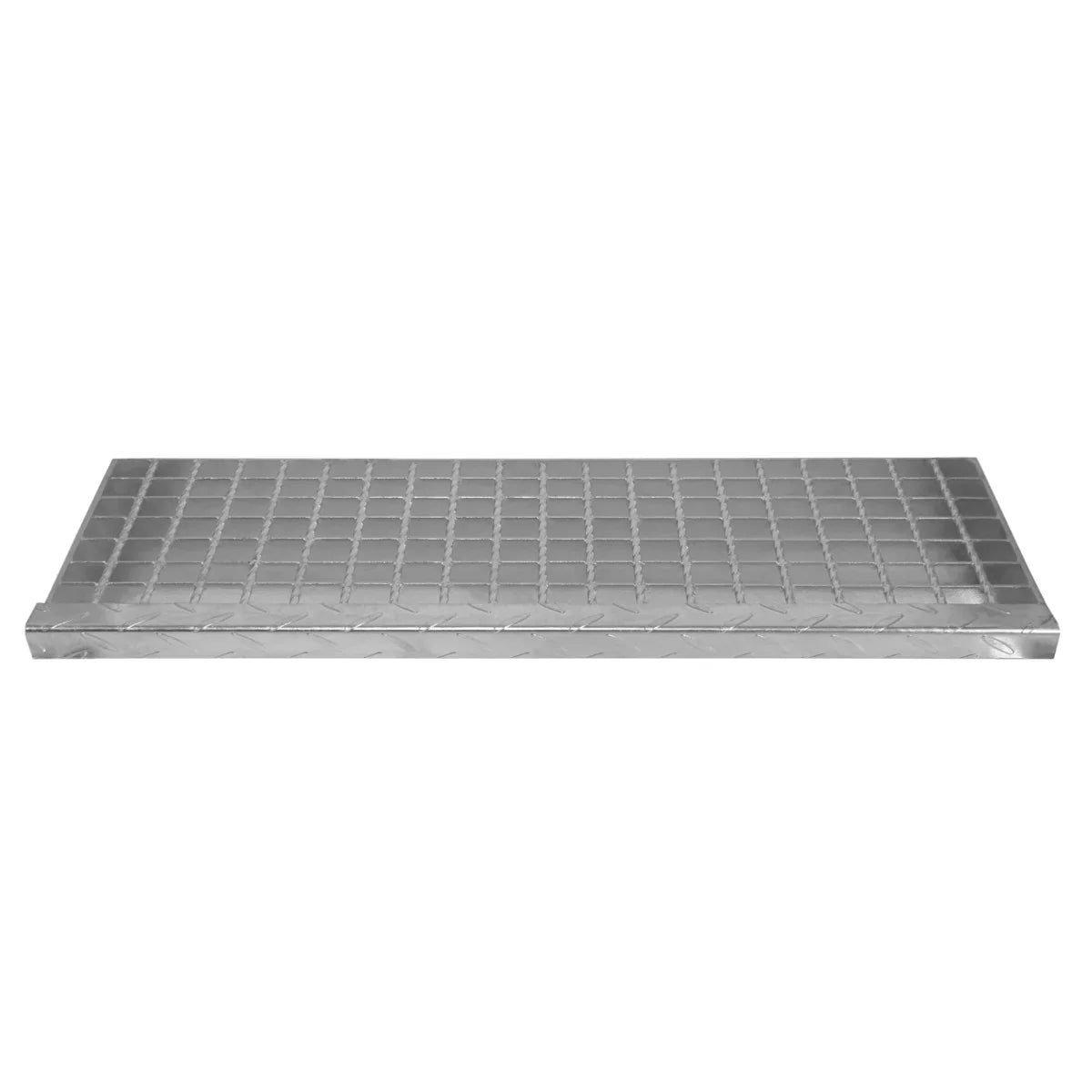

The step is 900mm wide with a 240mm tread depth and 170mm spacing between steps. Its galvanised steel construction has hot dip galvanised corrosion protection to EN ISO 1461. The non-slip tread has a 3mm tread bar and 5mm supporting rods, with a 20mm x 25mm mesh size.

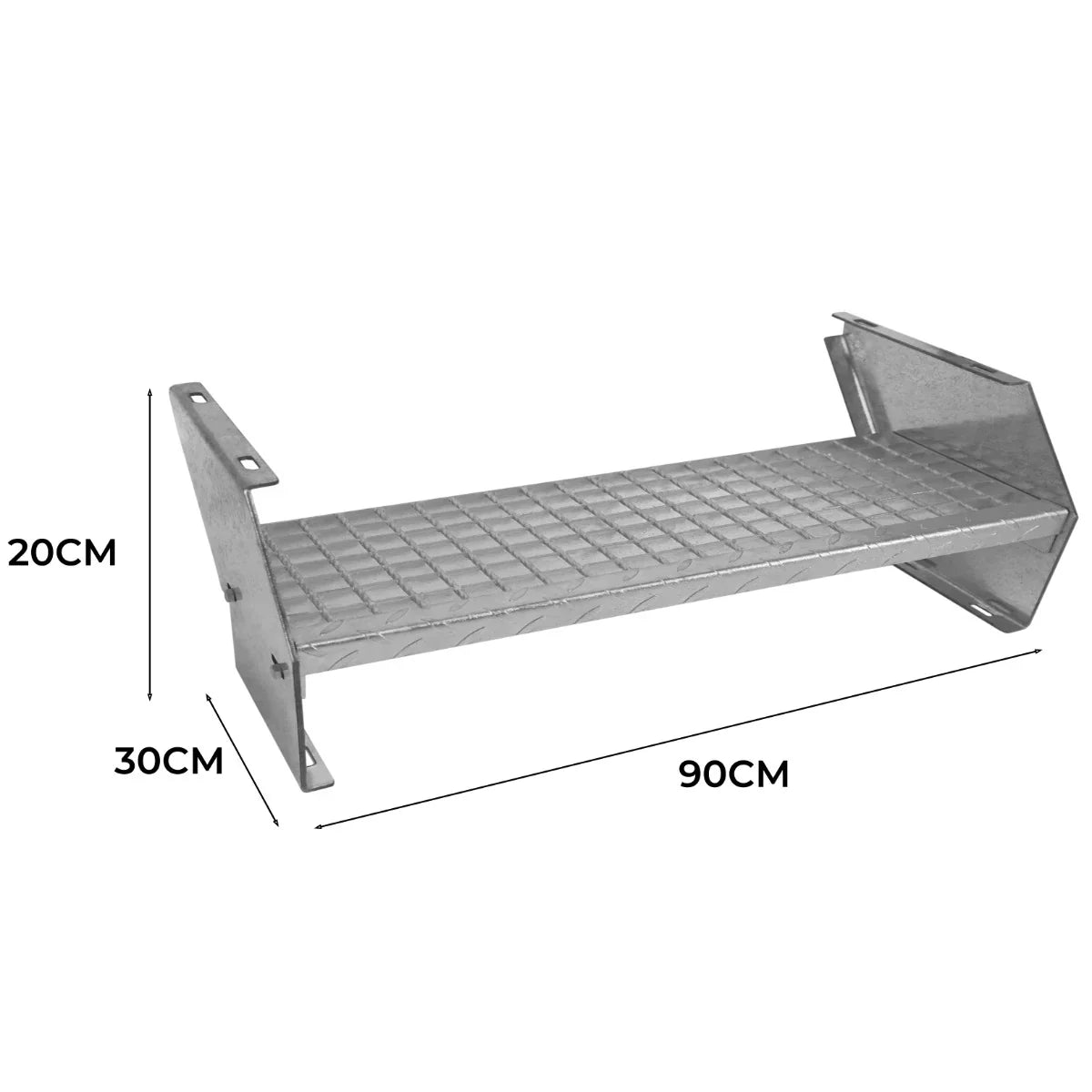

The section includes two holding plates and an essential fixings kit for assembly. The holding plates are 4mm thick and 200mm high. It has a 30mm overall height and 300mm total depth.

Specifications
- Material: Galvanised steel
- Colour: Silver
- Weight: 11.5kg
- Width: 900mm
- Step depth: 240mm
- Total depth: 300mm
- Step spacing: 170mm
- Tread bar thickness: 3mm
- Tread rod thickness: 5mm
- Maximum number of steps: 12
- Grating standard: DIN 24537

Box contents
- 1 x 900mm wide x 240mm deep tread
- 2 x 200mm holding plates
- 1 x essential fixings kit
