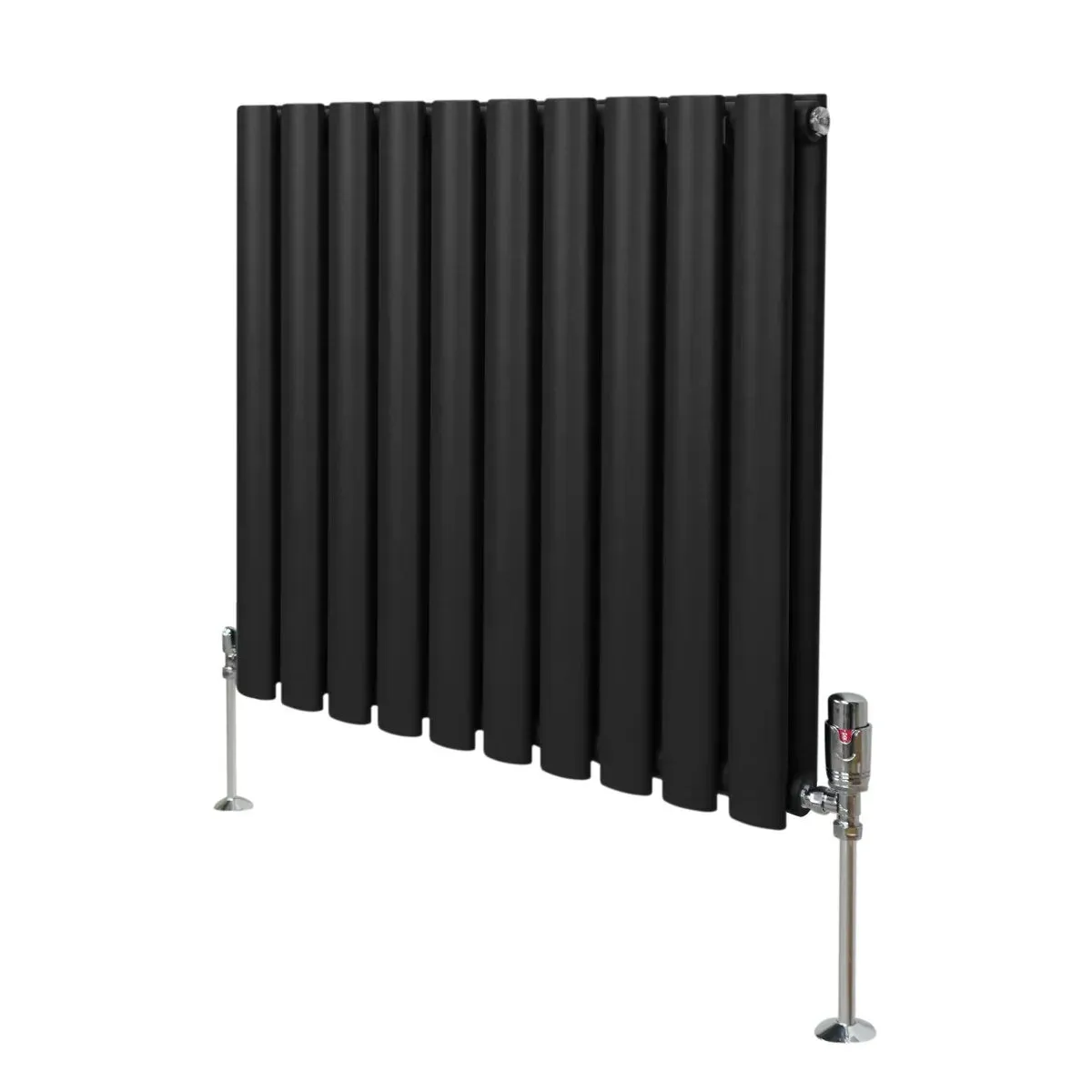

Black Oval Column Radiator 600mm With Thermostatic Valves

About this product

This black oval column radiator is 600cm high and 600cm wide, with a 10-column design for UK and EU heating systems. It comes with an angled thermostatic chrome valve set, brackets, fixing kit and a flexible cleaning brush.

The radiator is made from 1.5mm carbon steel and finished with triple-layered powder coating. It has a radiator depth of 7.8cm, or 10.4cm including the brackets. The gap between the tubes is 1cm, and the standard 0.5-inch BSP bore suits the stated heating system compatibility. Heat output is 2113 BTU at 50 and 2684 BTU at 60.

The included valves have a brass construction, polished chrome finish, rotary knob control and a temperature range of 6 to 28 degrees. They are rated to a maximum bar pressure of 12, a maximum flow temperature of 100 degrees and a nominal flow rate of 2.8 L. The valve connection is 1/2 inch x 15mm.

Specifications

• Colour: Black
• Weight: 19kg
• Dimensions: 60cm high x 60cm wide
• Material: 1.5mm carbon steel
• Finish: Triple-layered powder coating
• Number of columns: 10
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA

Box contents

• 1 x oval column radiator
• 4 x brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set
