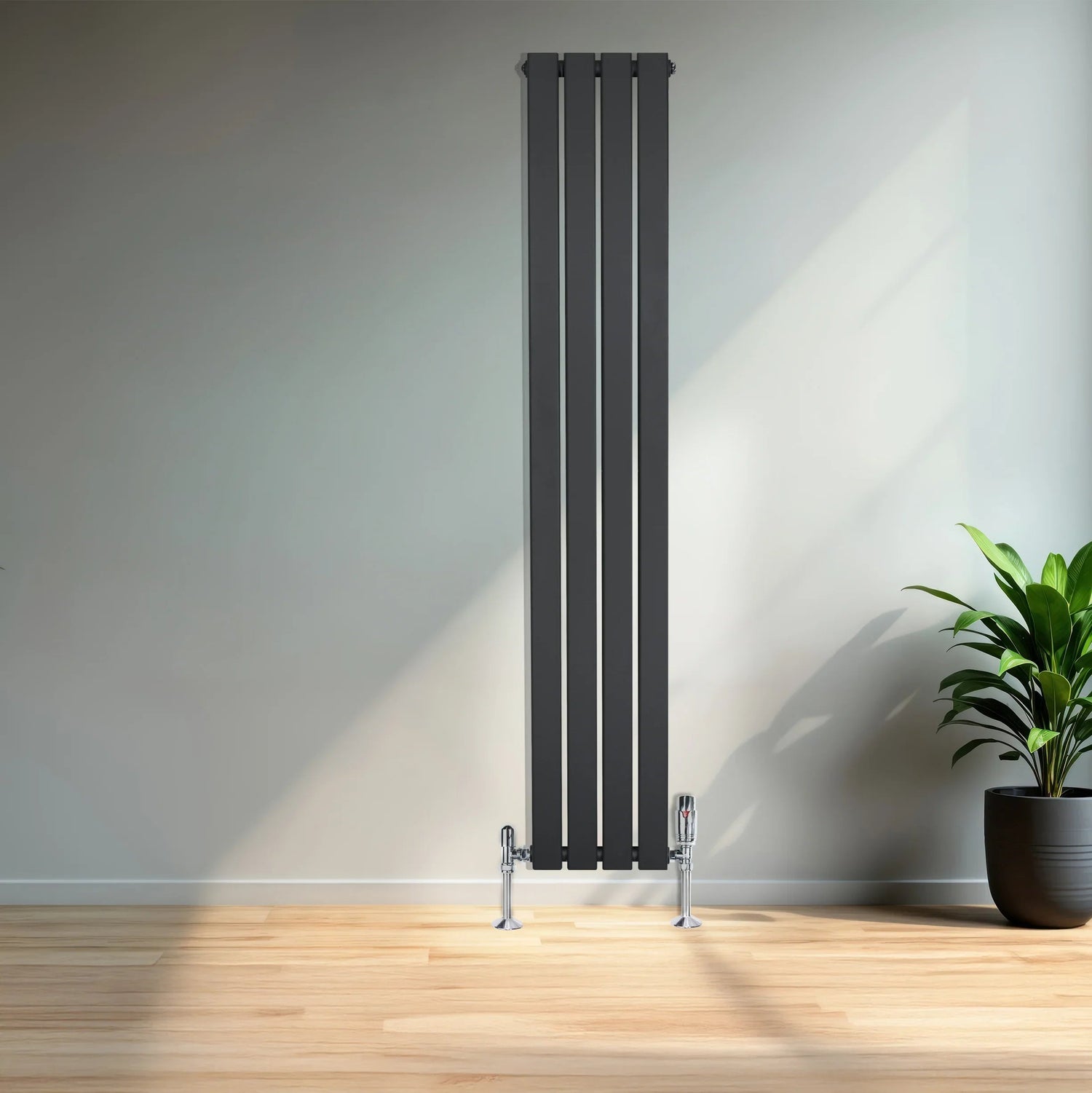

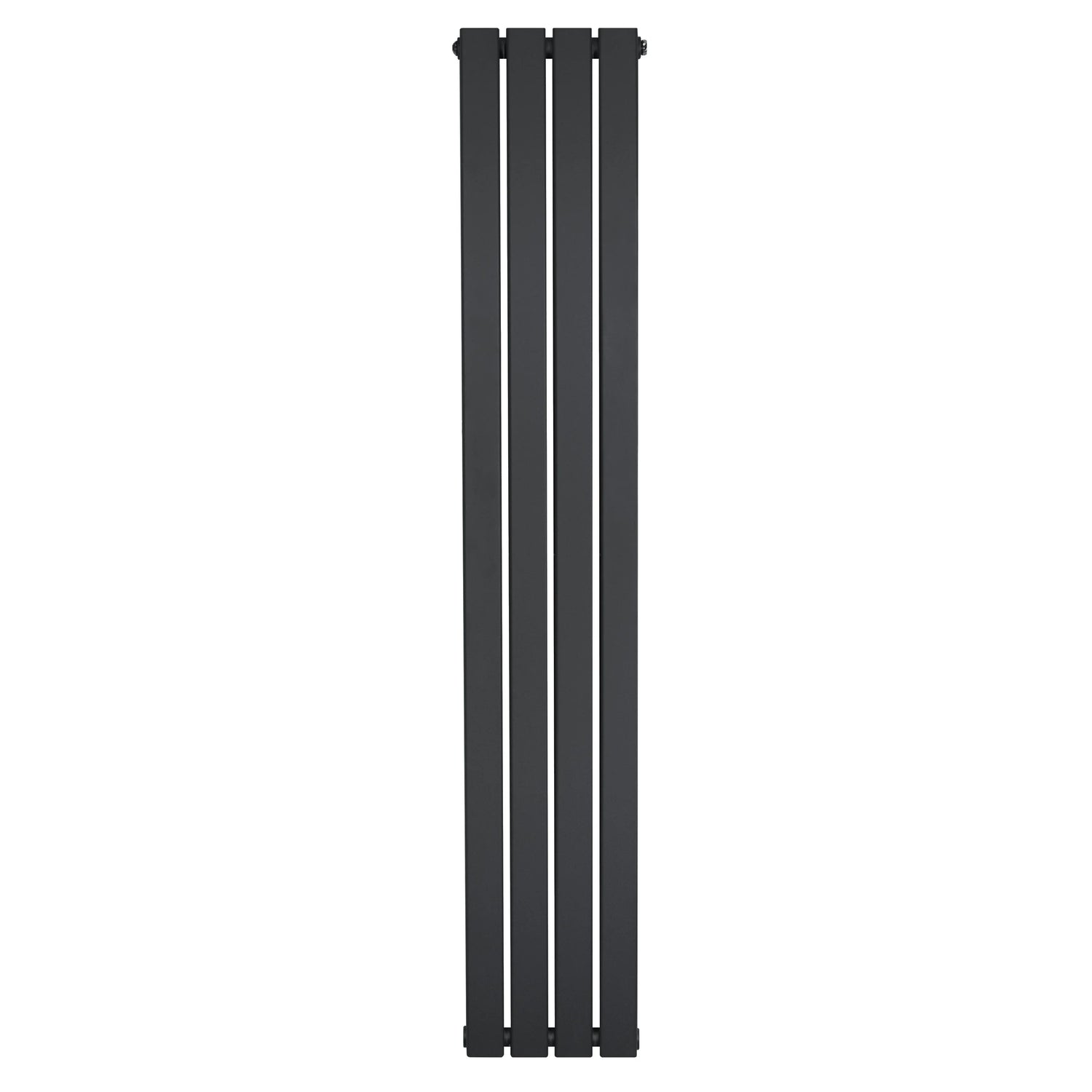

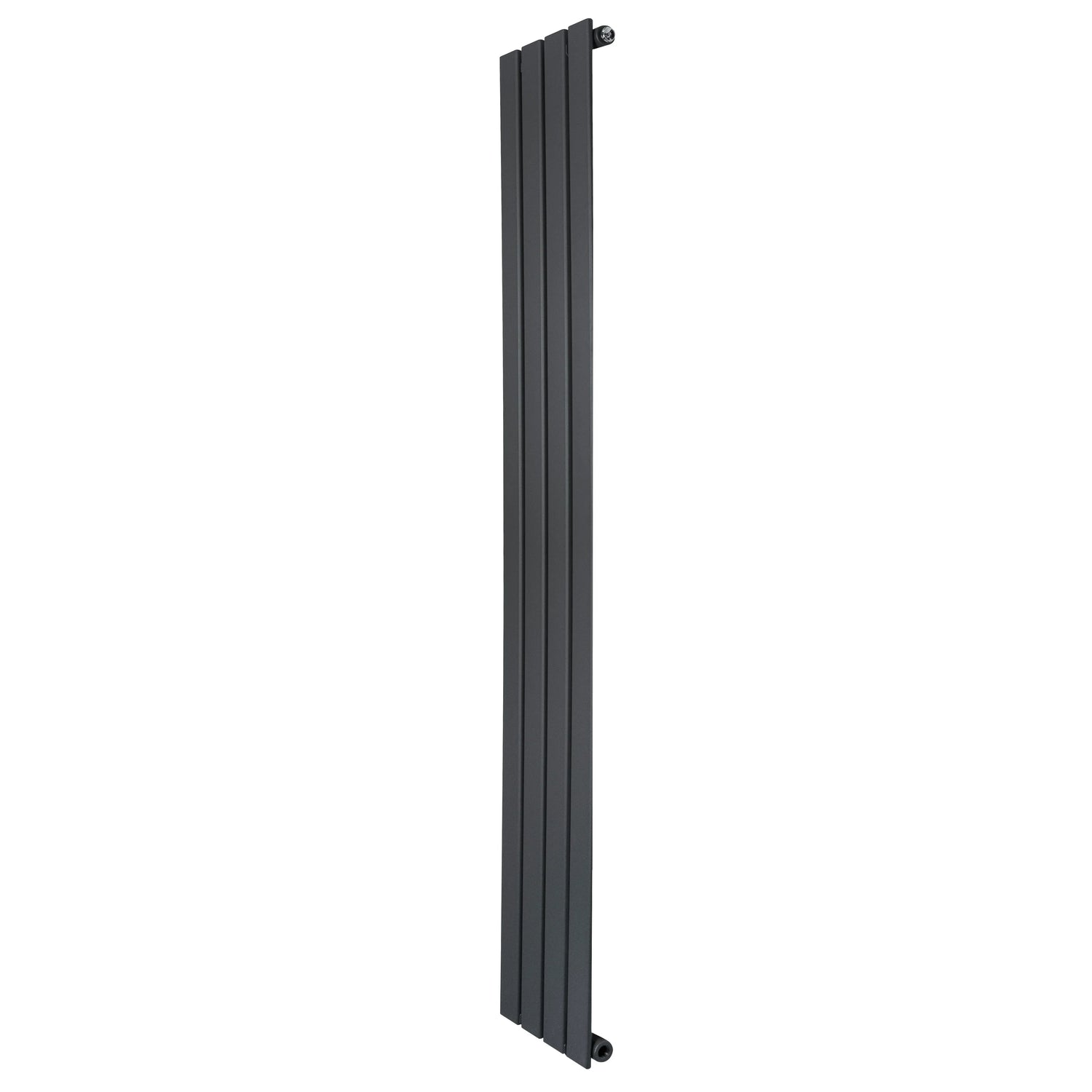

Flat Single Column Radiator 1600 x 280mm Anthracite Grey

About this product

This flat single column radiator is made from 1.5mm carbon steel and finished with triple layered powder coating in anthracite grey. At 160cm high and 28cm wide, it suits rooms that need a tall, narrow radiator.

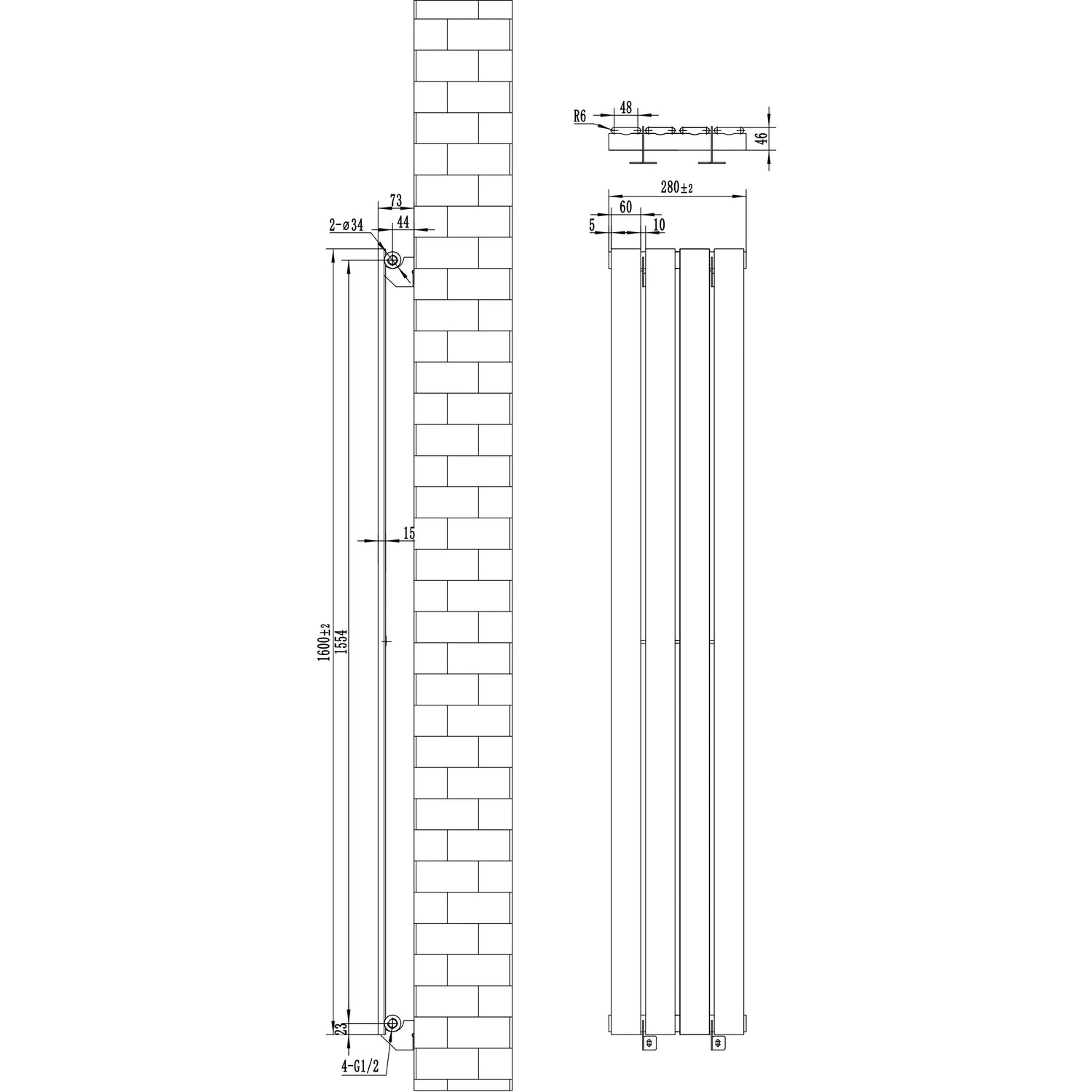

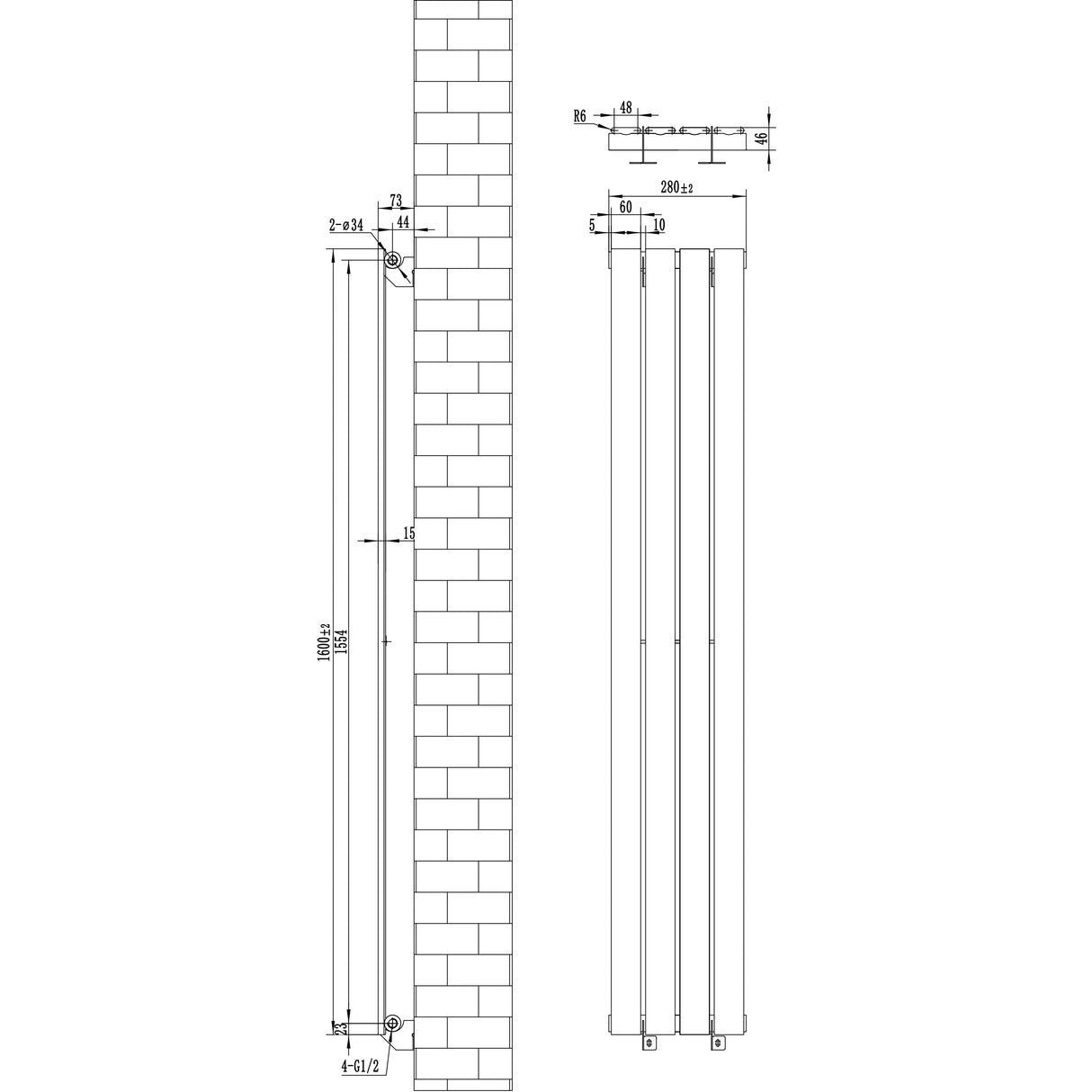

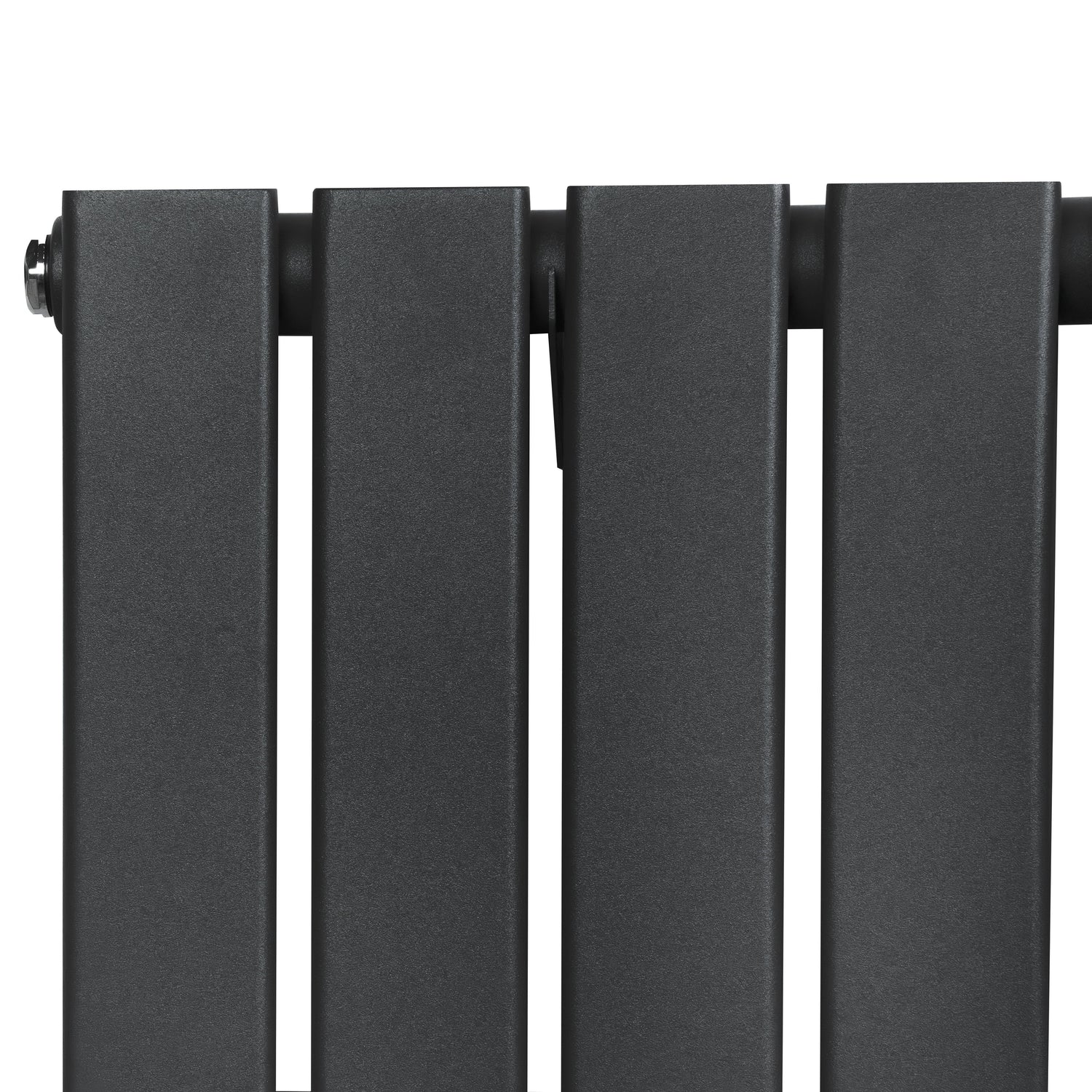

The radiator has 60mm x 15mm flat tubes with a 1cm gap between tubes. Its depth is 4.6cm, increasing to 7.3cm with the brackets fitted. Heat output is 494 watts and 1686 BTU at 50, or 627 watts and 2141 BTU at 60. The recommended application area is 6m².

It has standard 0.5-inch BSP inlet and outlet bores and a valve-to-valve height of 155.4cm. The distance from the wall to the centre of the inlet is 4.4cm. It is compatible with all UK and EU heating systems, with a maximum working temperature of 95°C, maximum working pressure of 5 bar and test pressure of 6.5 bar.

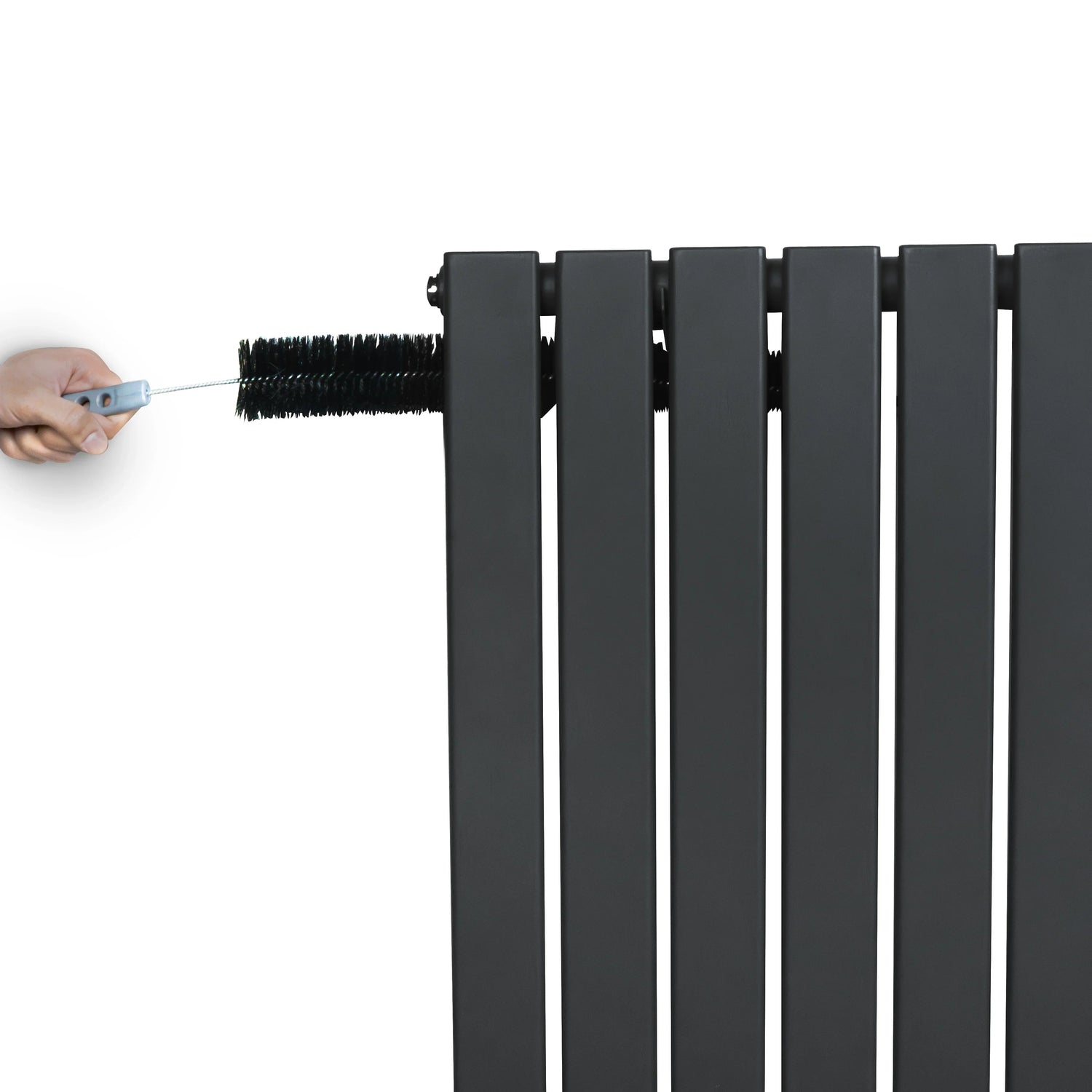

Four secure brackets, a fixing kit and a flexible cleaning brush are included. The radiator has CE and UKCA certification, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee.

Specifications

• Weight: 11.2kg
• Height: 160cm
• Width: 28cm
• Recommended application area: 6m²
• Heat output: 494W at 50, 627W at 60
• Heat output: 1686 BTU at 50, 2141 BTU at 60
• Maximum working temperature: 95°C
• Maximum working pressure: 5 bar
• Test pressure: 6.5 bar

Box contents

• 1 x flat single column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
