Flat Single Column Radiator 1600 x 280mm White

About this product

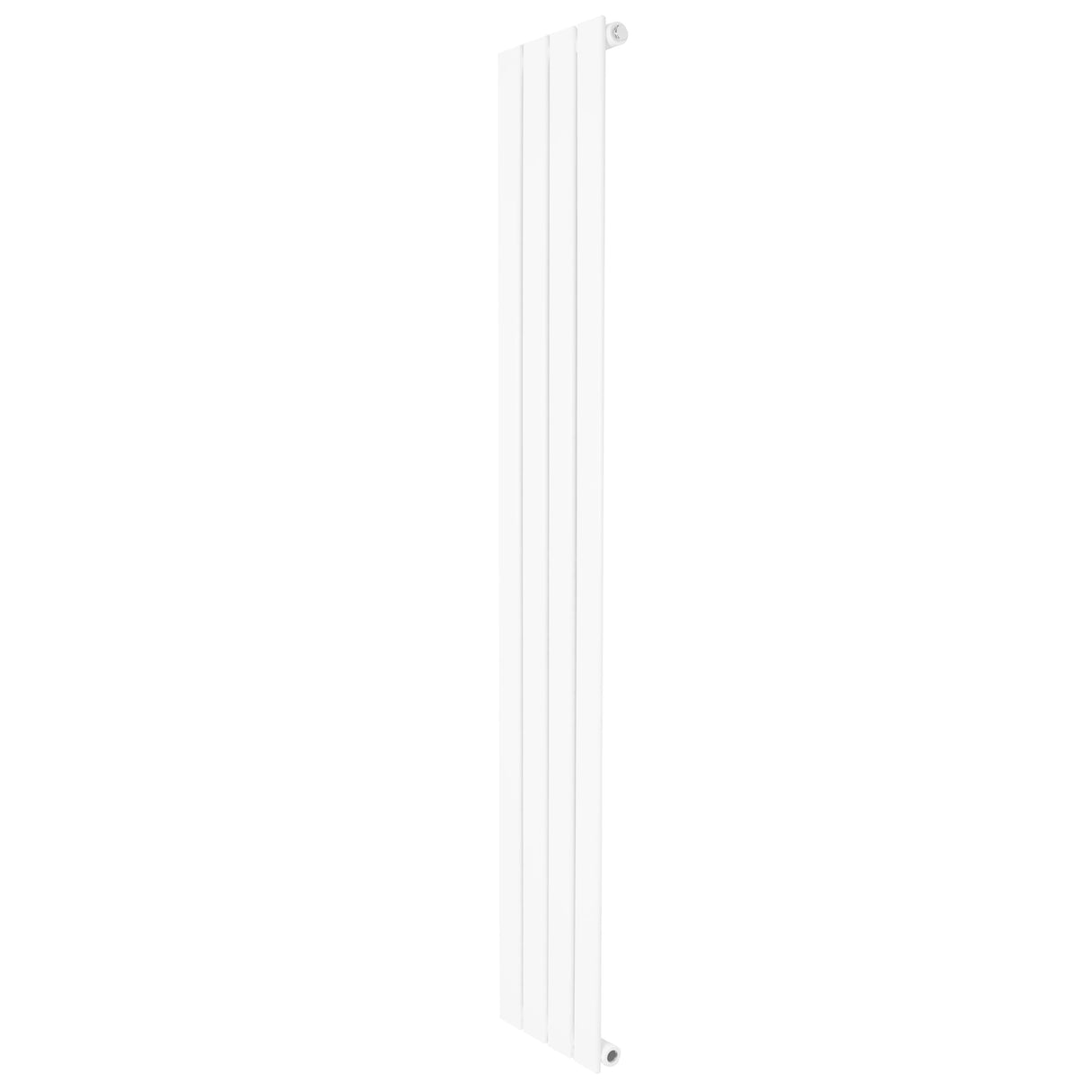

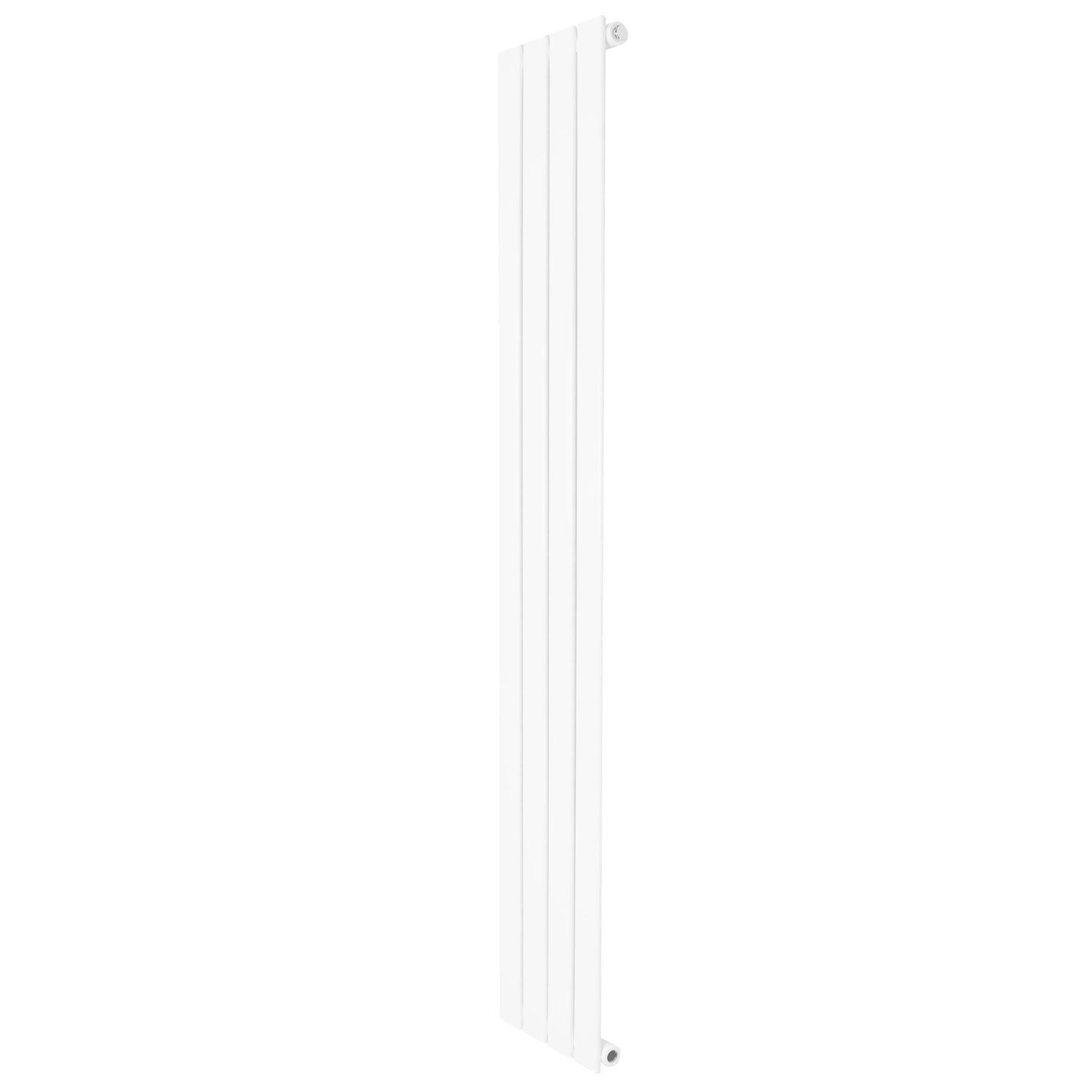

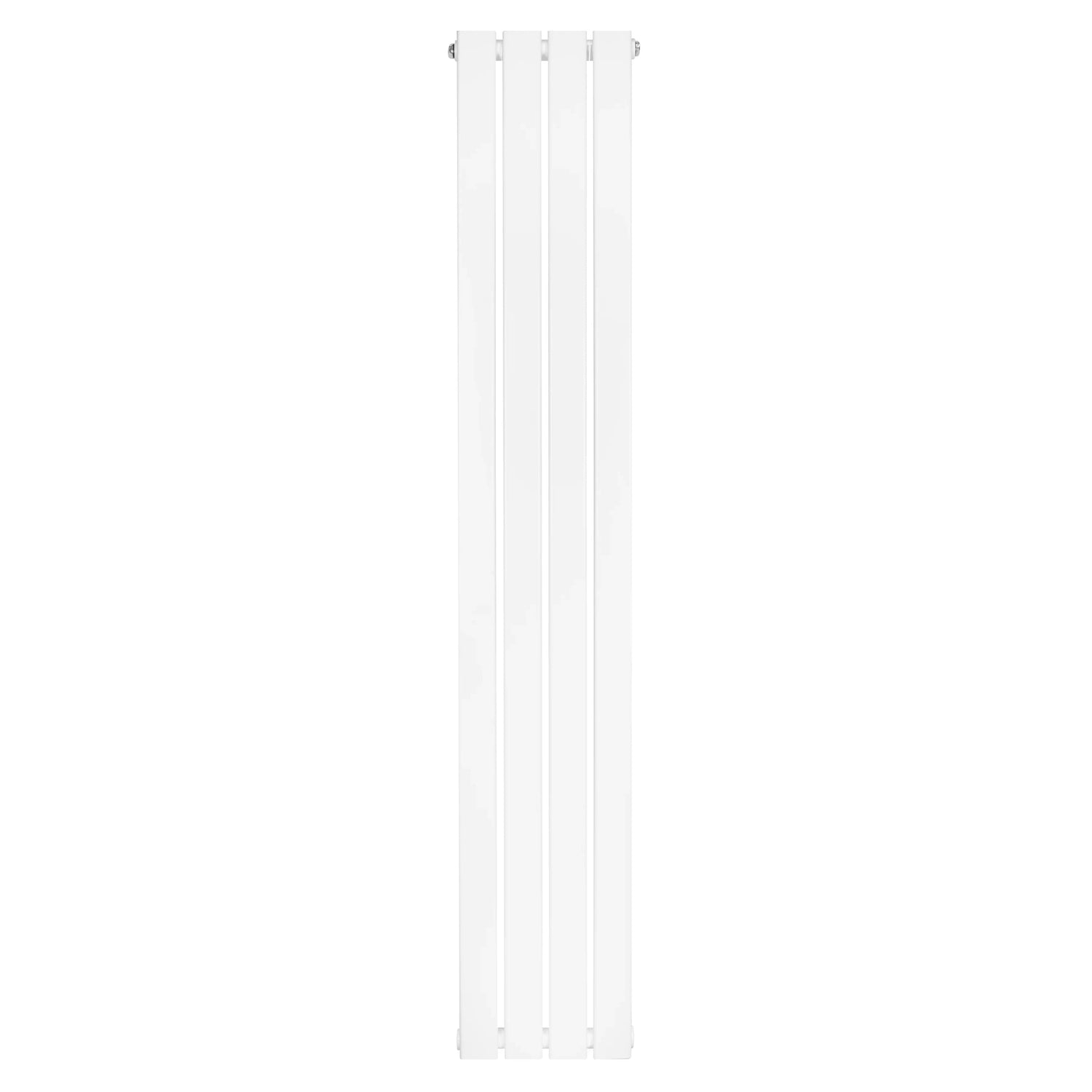

This flat single column radiator is designed for UK and EU heating systems. It measures 160cm high and 28cm wide, making it suitable for spaces with a recommended application area of 6m².

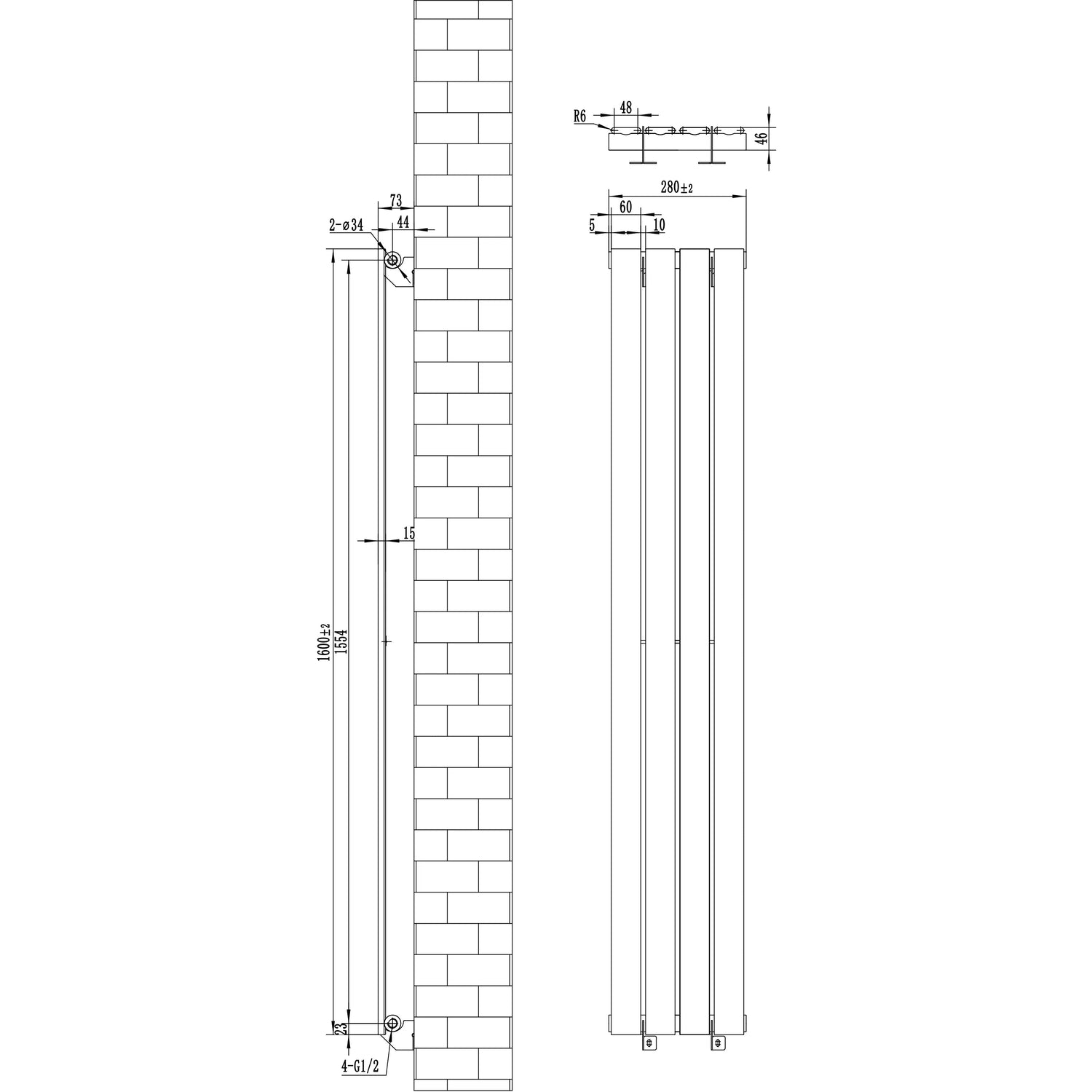

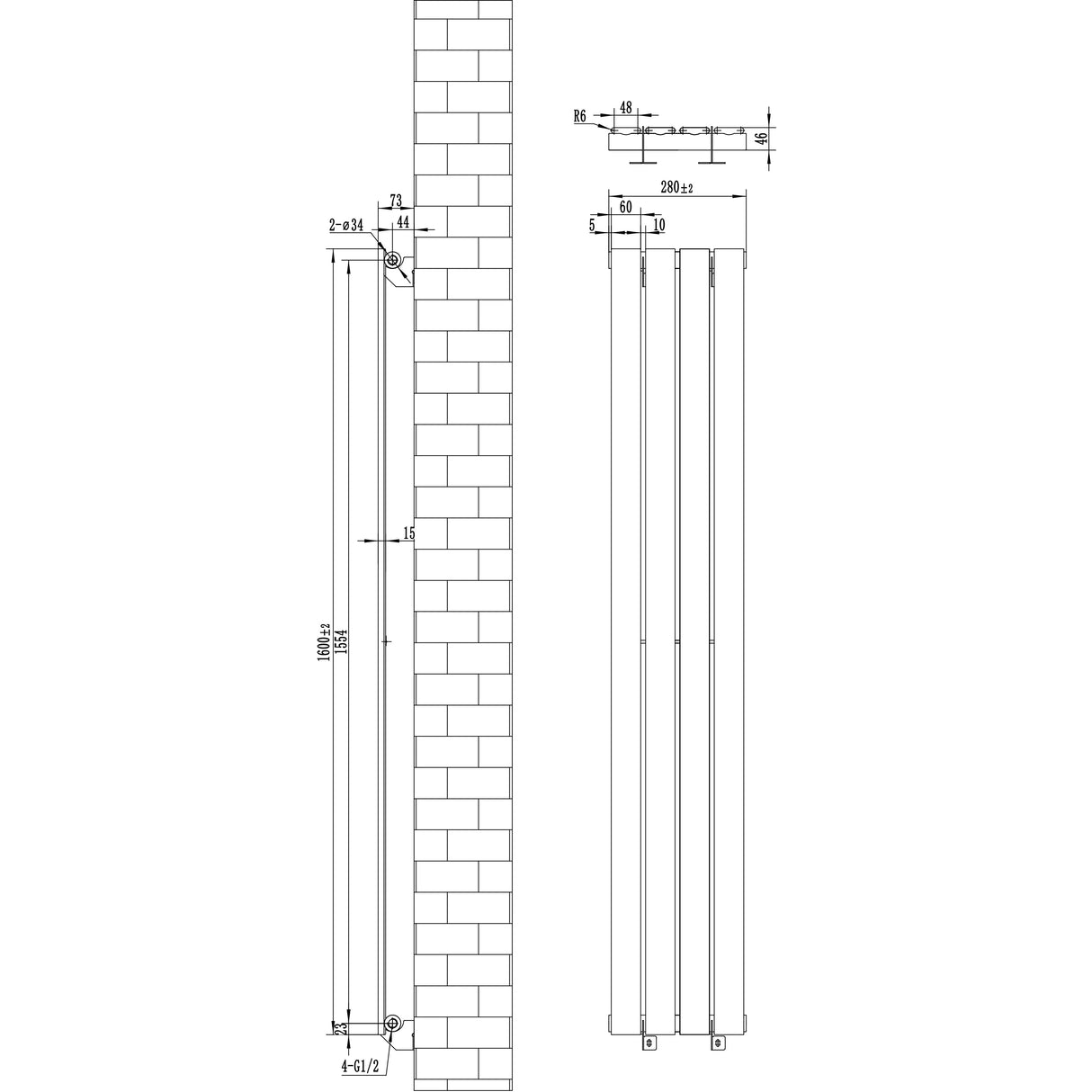

The radiator is made from 1.5mm carbon steel and has a triple layered powder coated finish in white. It has a 4.6cm radiator depth, extending to 7.3cm with the brackets fitted. The flat tubes measure 60mm x 15mm, with a 1cm gap between tubes. Standard 0.5 inch BSP inlets and outlets allow you to select compatible valves.

It has a maximum working temperature of 95°C, a maximum working pressure of 5 Bar and a test pressure of 6.5 Bar. The valve-to-valve height is 155.4cm, while the distance from the wall to the centre of the inlet is 4.4cm.

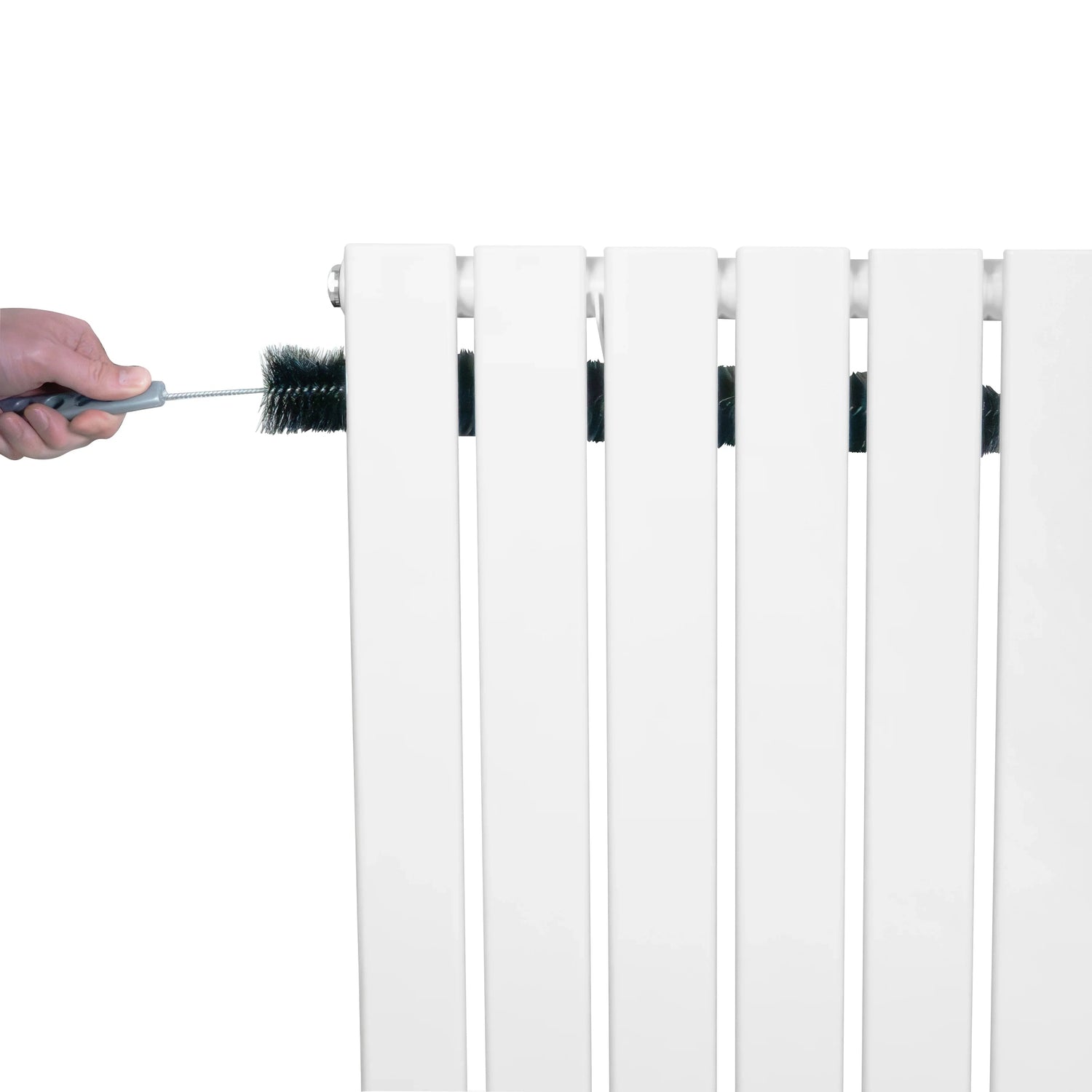

The box includes four secure brackets, a fixing kit and a flexible cleaning brush. It has CE and UKCA approval and is tested to BS EN 442 and ISO9001:2015 standards.

Specifications

• Colour: White
• Weight: 11.2kg
• Material: 1.5mm carbon steel
• Height: 160cm
• Width: 28cm
• Radiator depth: 4.6cm
• Depth with bracket: 7.3cm
• Recommended application area: 6m²
• Valve-to-valve height: 155.4cm
• Compatibility: All UK and EU heating systems

Box contents

• 1 x flat single column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
