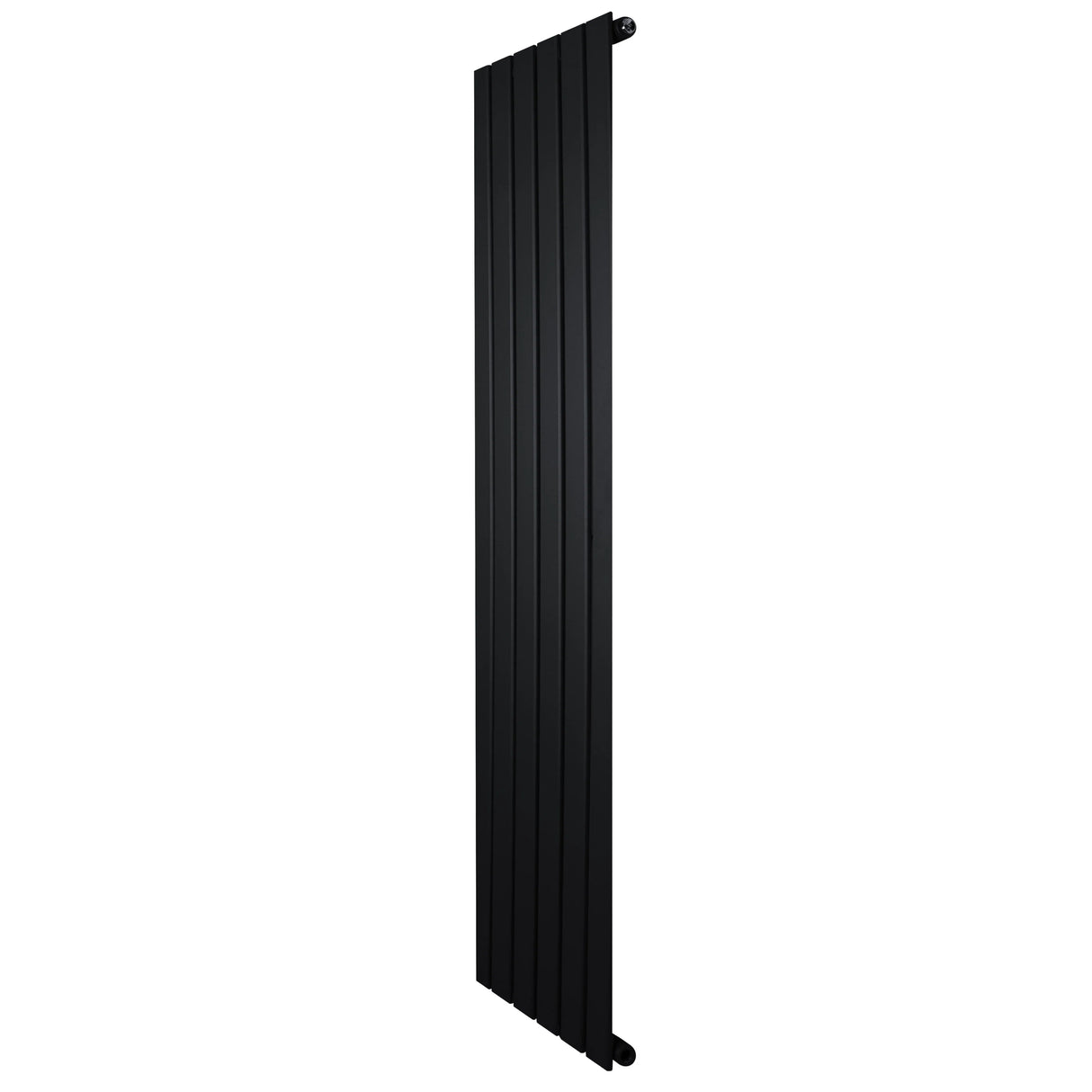

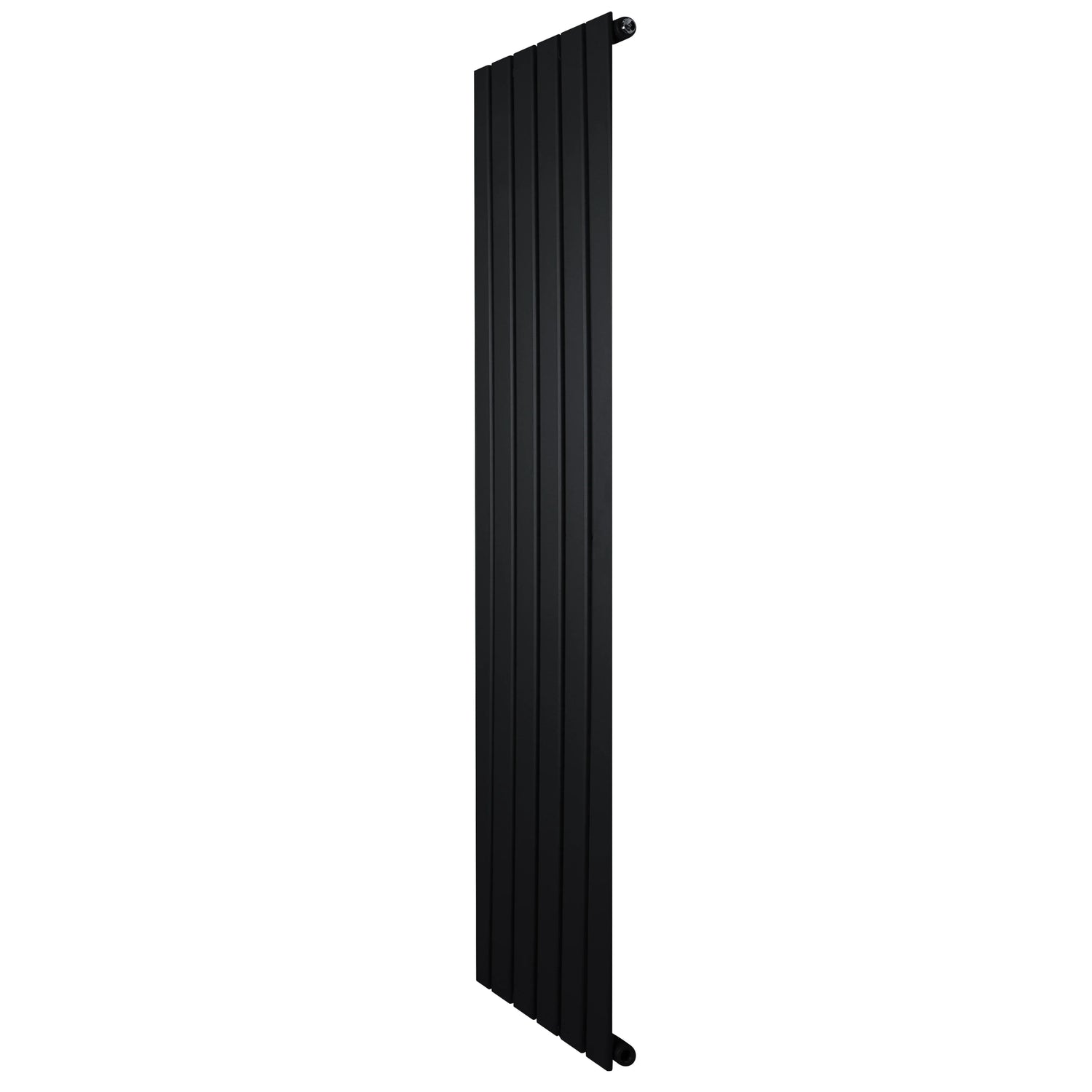

Flat Single Column Radiator 1600 x 420mm Black

About this product

This flat single column radiator is designed for UK and EU heating systems. It has a black finish, a 160cm height and a 42cm width, making it suitable where a tall radiator is needed without a wide footprint.

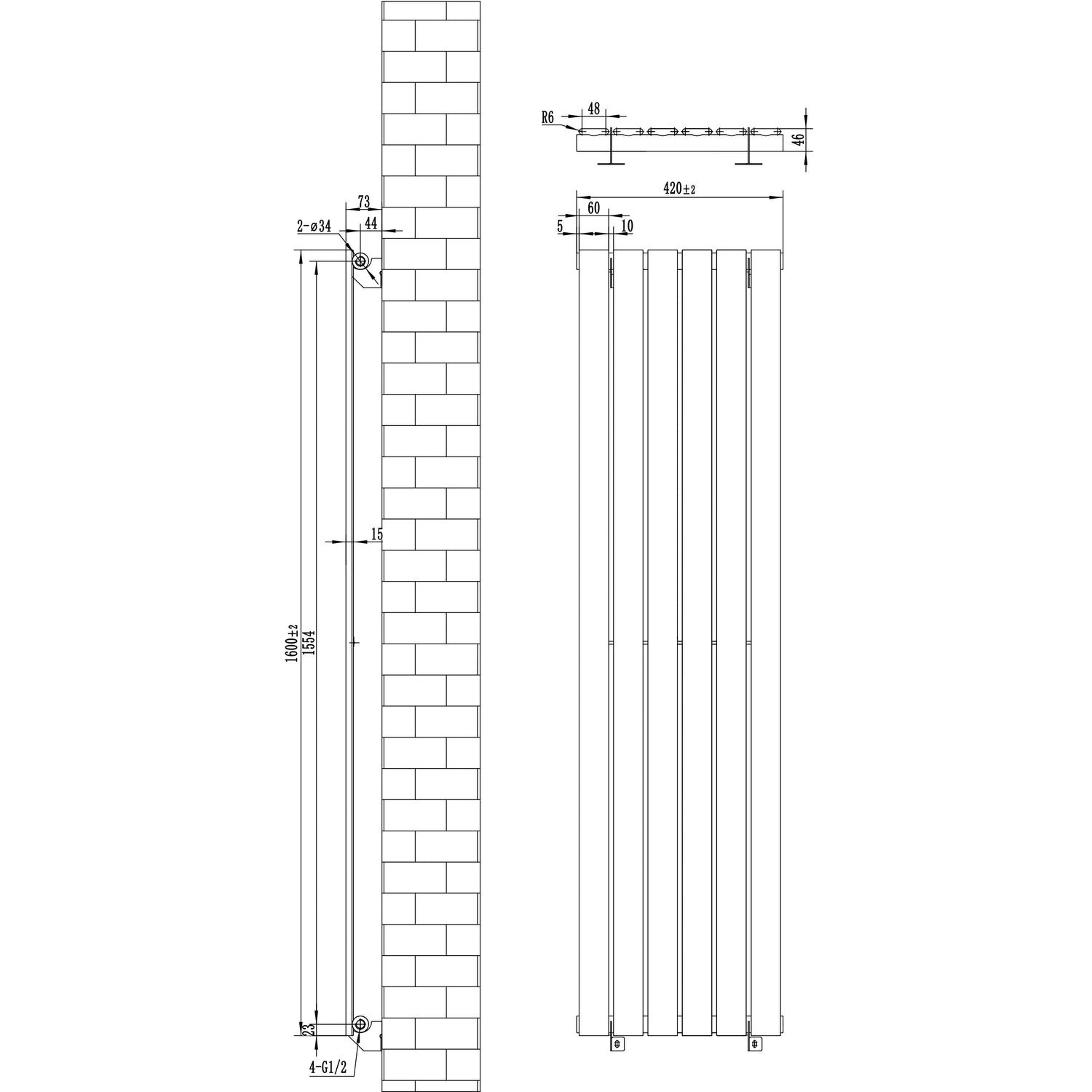

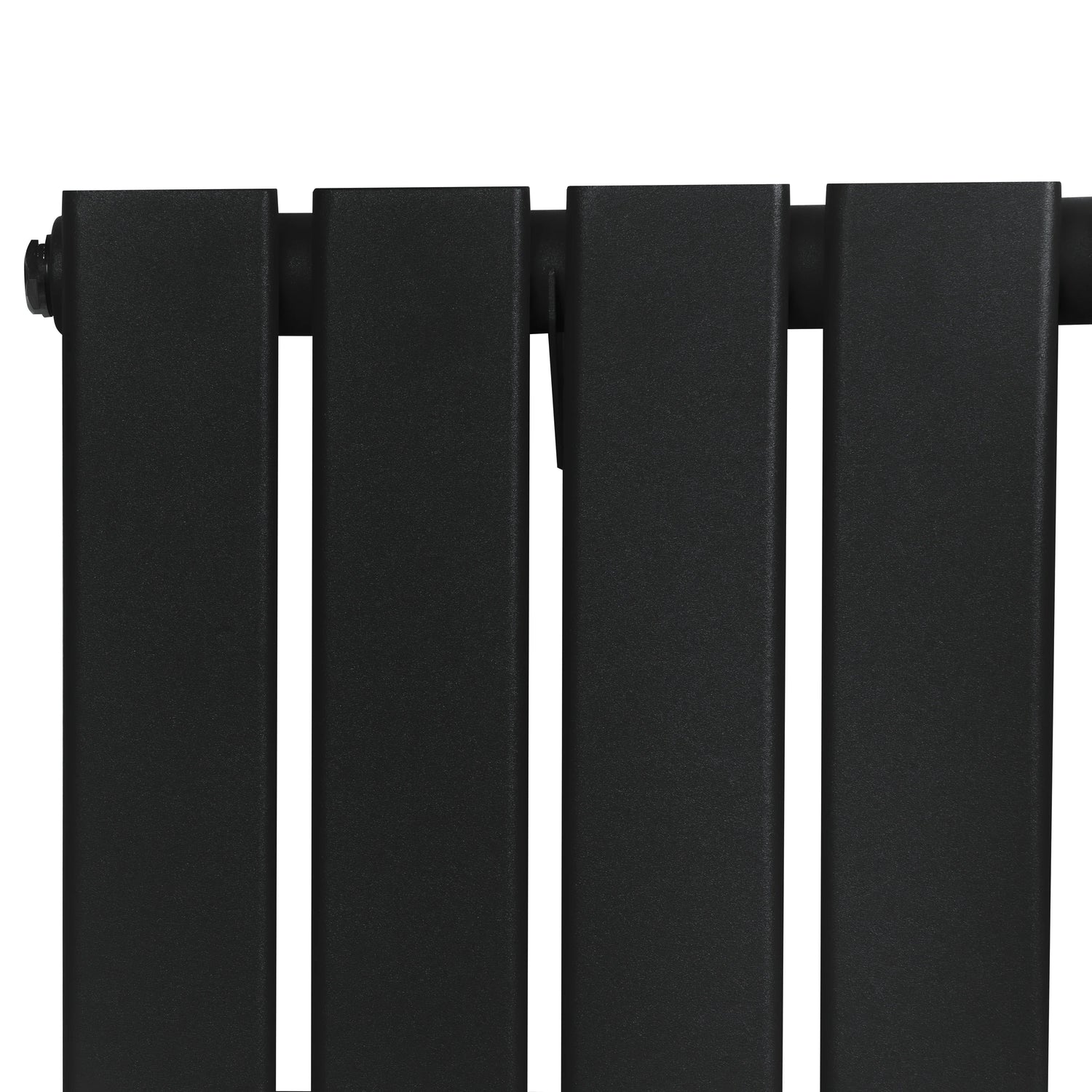

Made from 1.5mm carbon steel, the radiator has a triple layered powder coated finish. It has a radiator depth of 4.6cm, increasing to 7.3cm with the brackets fitted. The tubes are 60mm x 15mm, with a 1cm gap between them.

The stated heat output is 2529 BTU at 50 and 3211 BTU at 60, with watt ratings of 741W at 50 and 941W at 60. It has a maximum working temperature of 95°C, a maximum working pressure of 5 Bar and a test pressure of 6.5 Bar. The recommended application area is 9m².

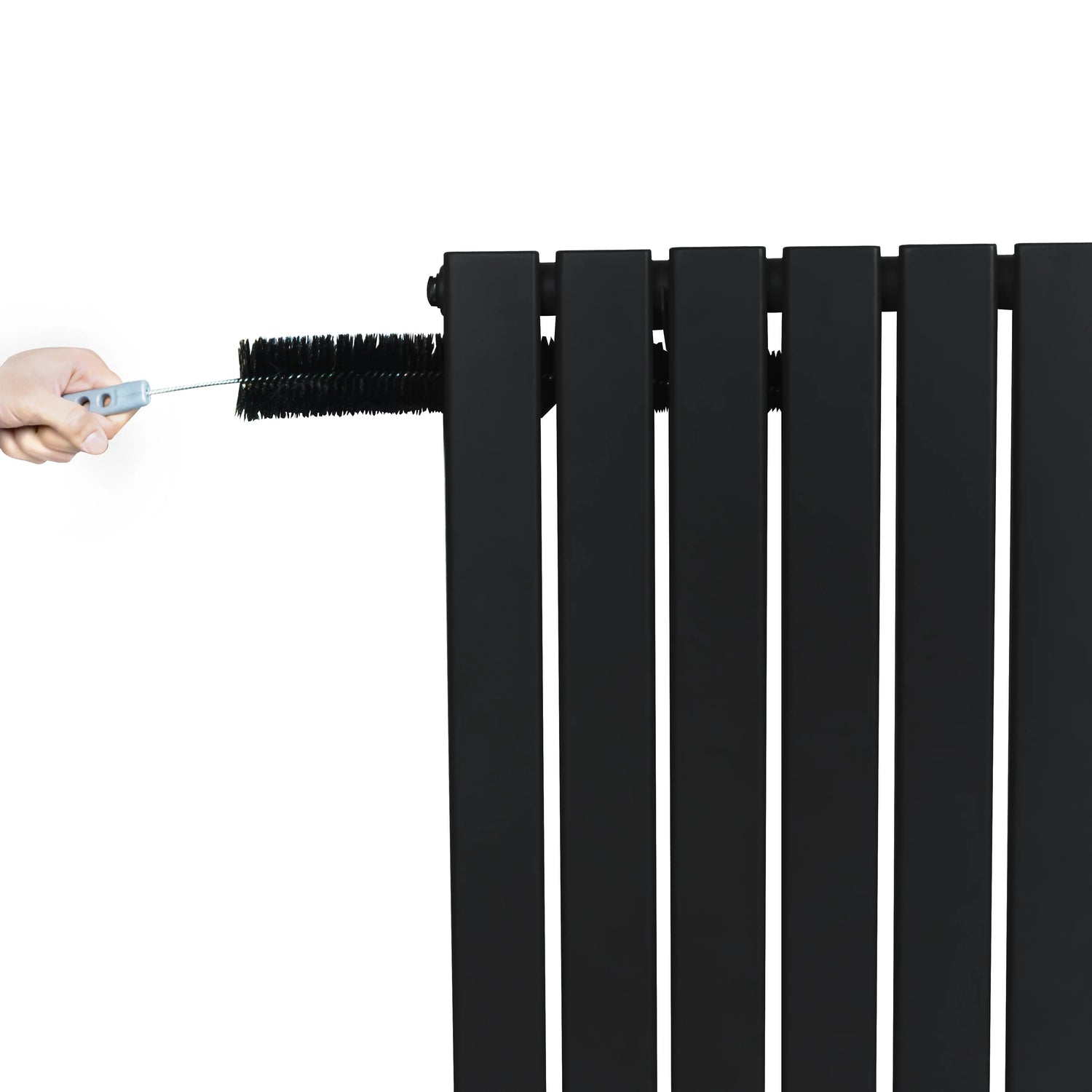

Standard 0.5 inch BSP inlet and outlet bores are compatible with all UK and EU heating systems. The valve-to-valve height is 155.4cm, and the distance from the wall to the centre of the inlet is 4.4cm. Brackets, a fixing kit and a flexible cleaning brush are included.

Specifications
- Colour: Black
- Weight: 16.9kg
- Number of columns: 6
- Testing: BS EN 442 and ISO9001:2015 Standards
- Certification: CE and UKCA
- Guarantee: 15 years

Box contents
- 1 x Flat Single Column Radiator
- 4 x Secure Brackets
- 1 x Fixing Kit
- 1 x Flexible Cleaning Brush
