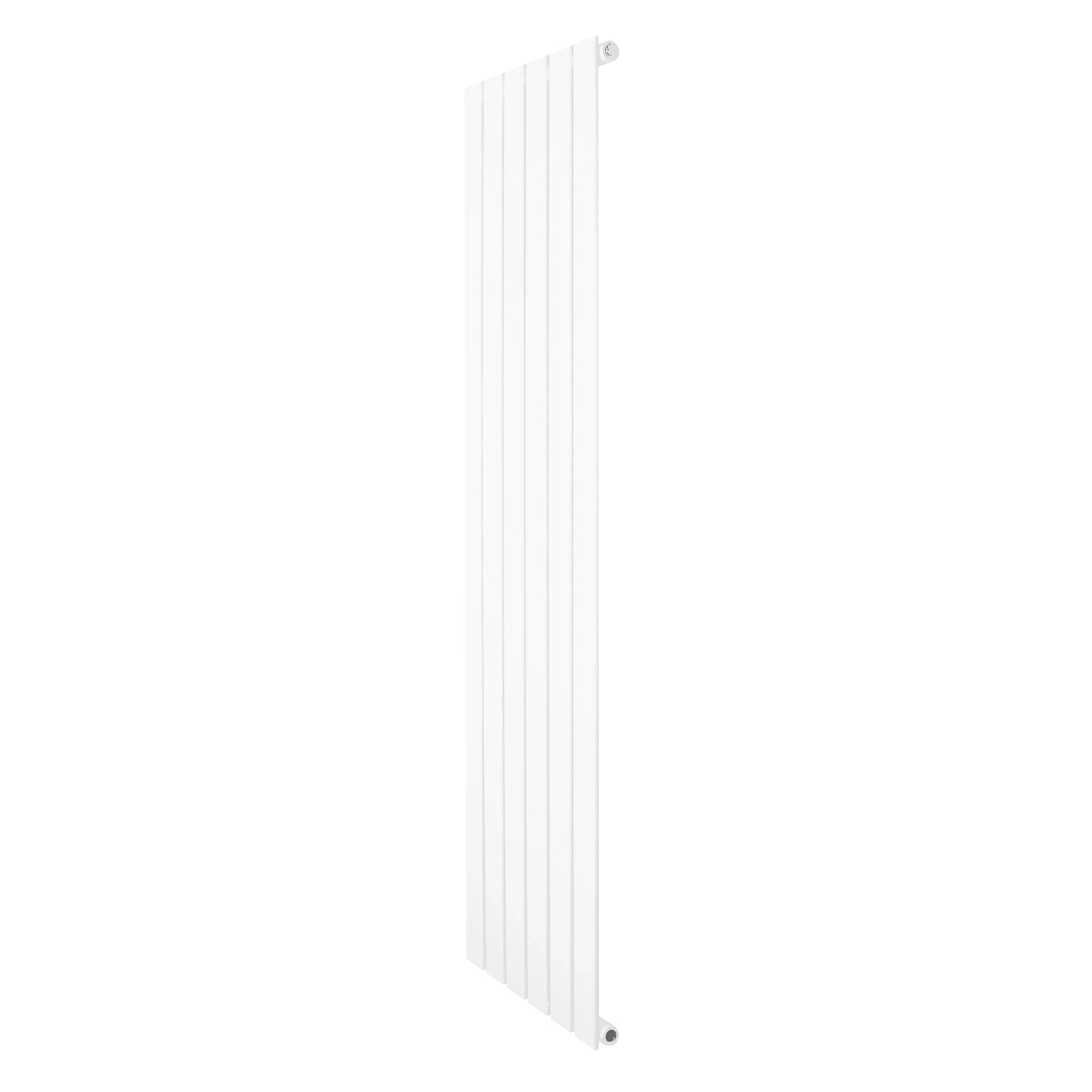

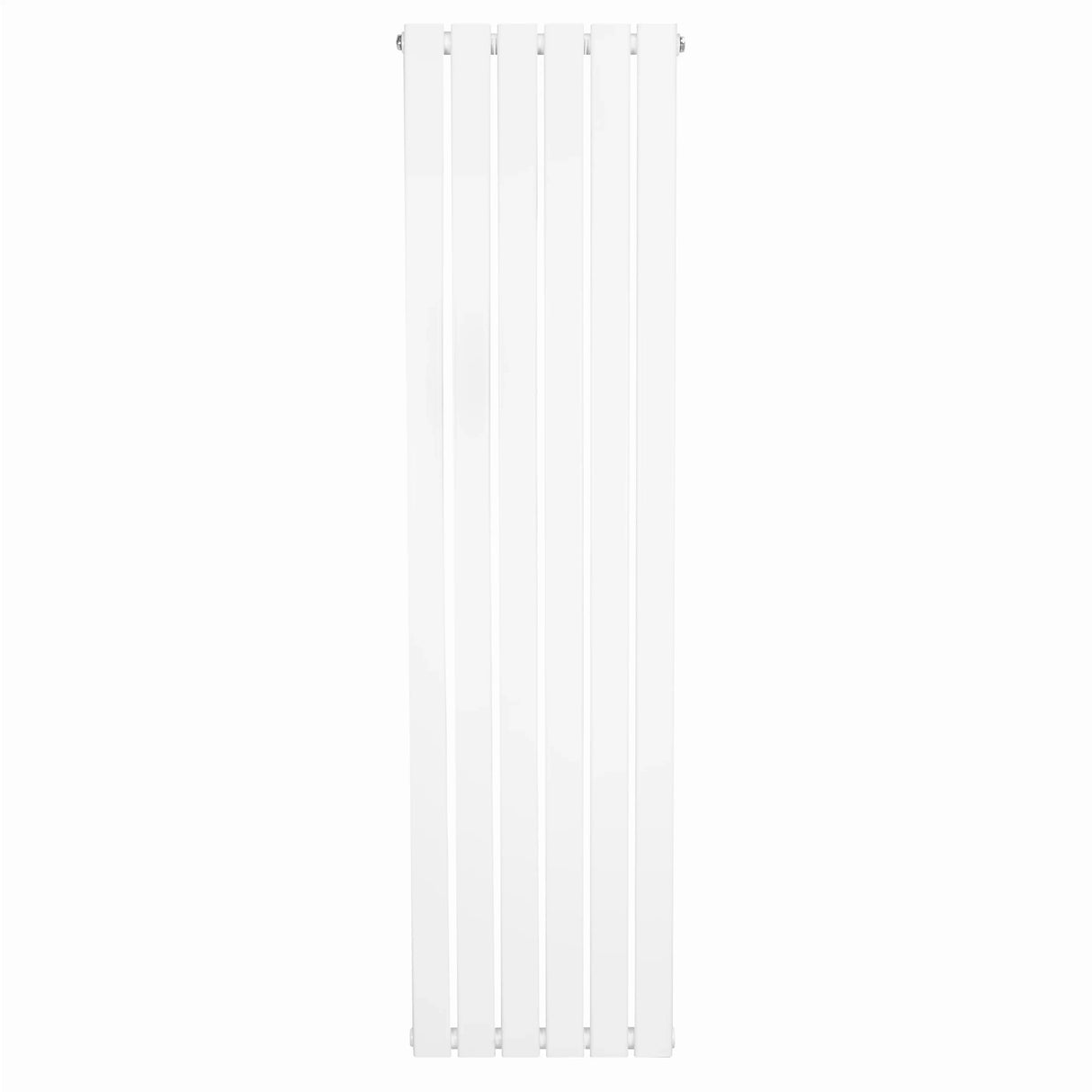

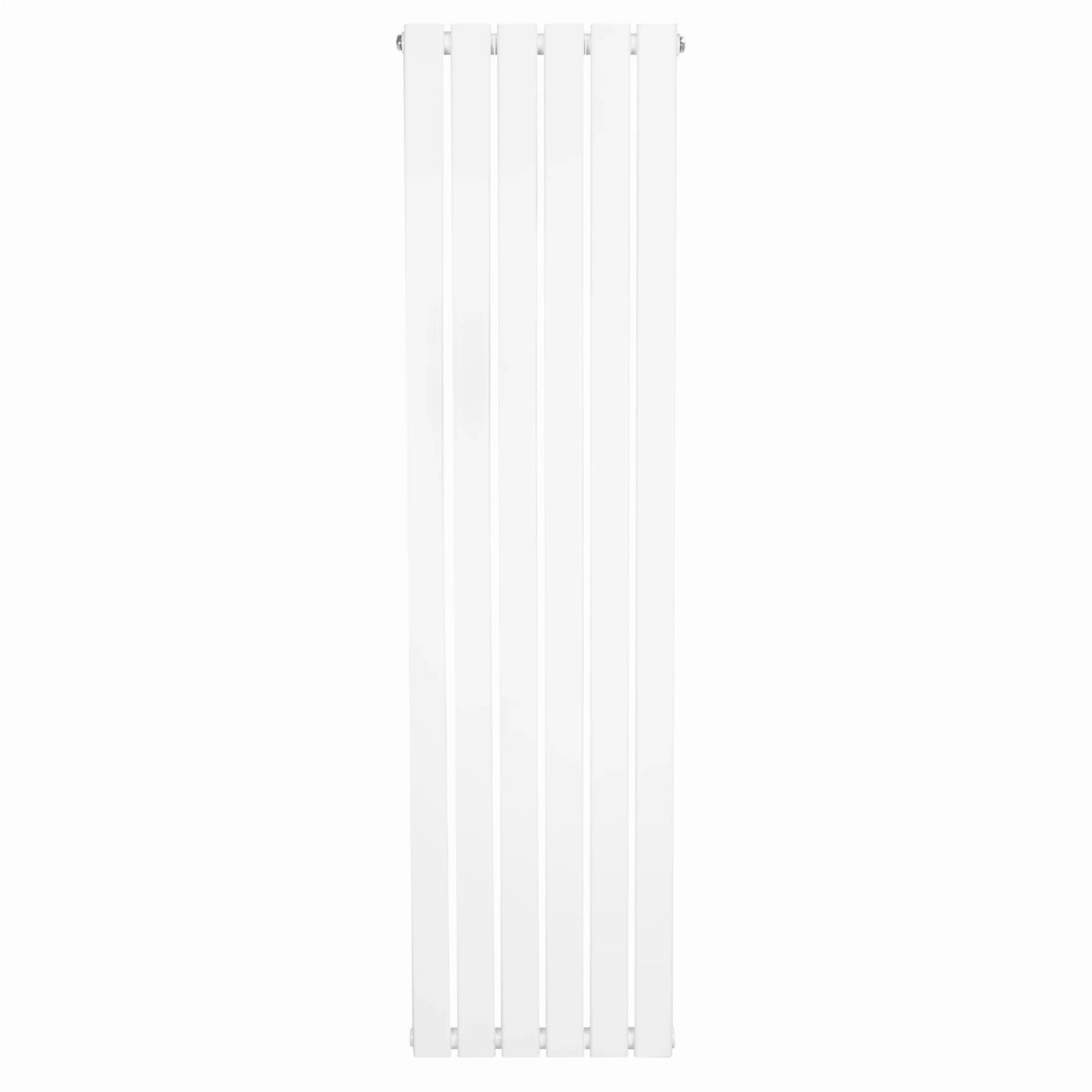

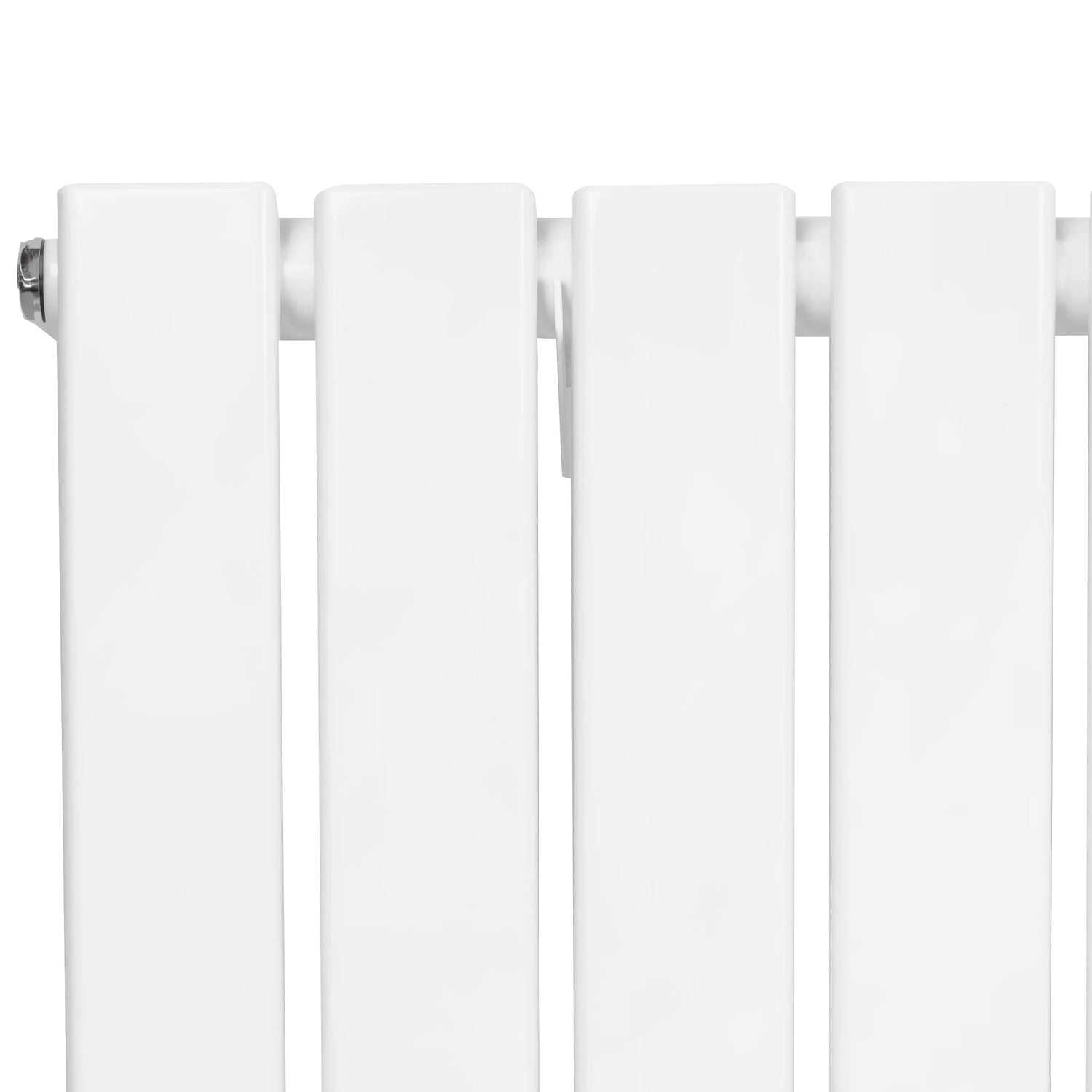

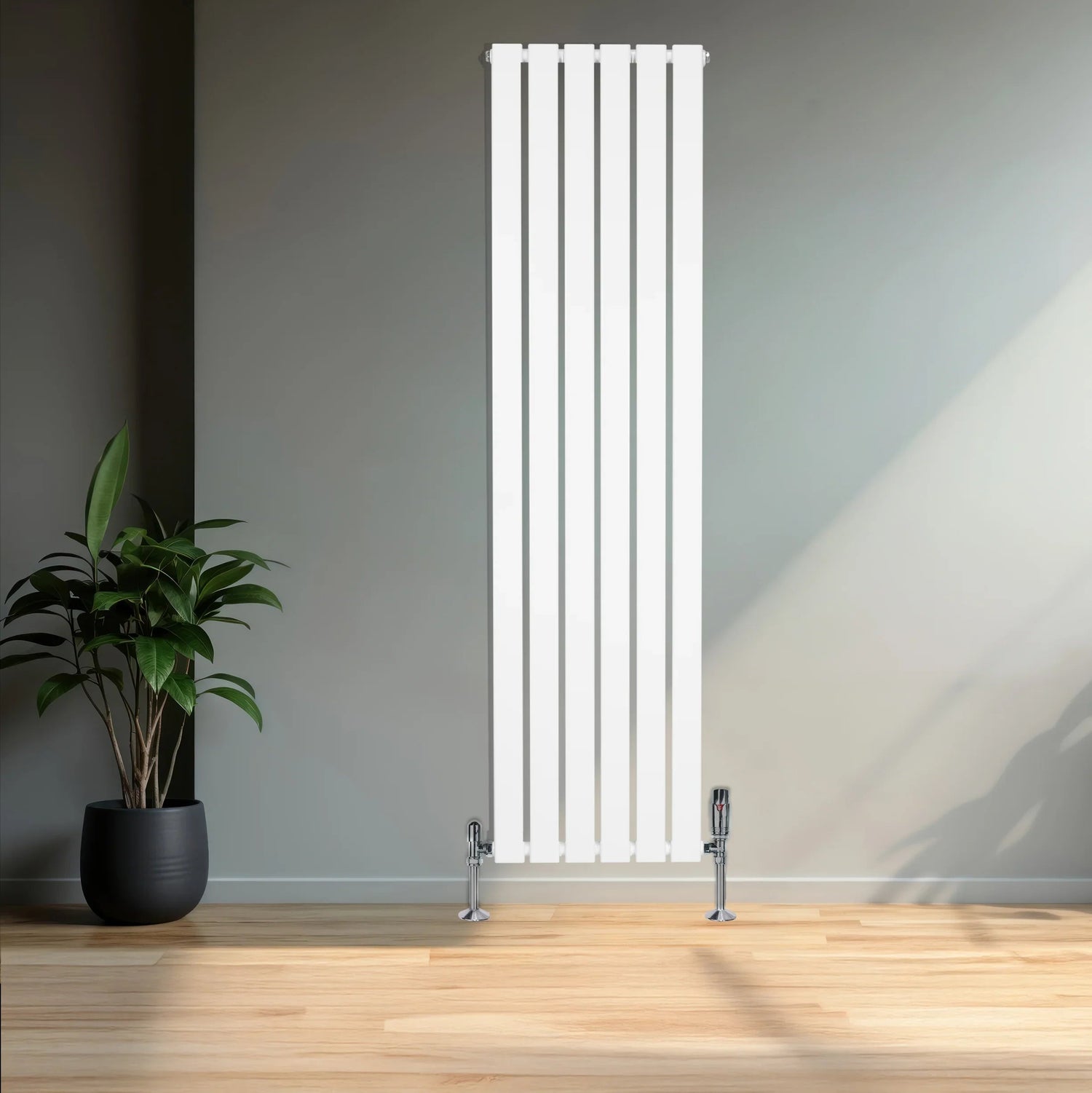

Flat Single Column Radiator 1600 x 420mm White
- Order updates by email
- Secure checkout · sold by NEXTDAYUK LTD
About this product

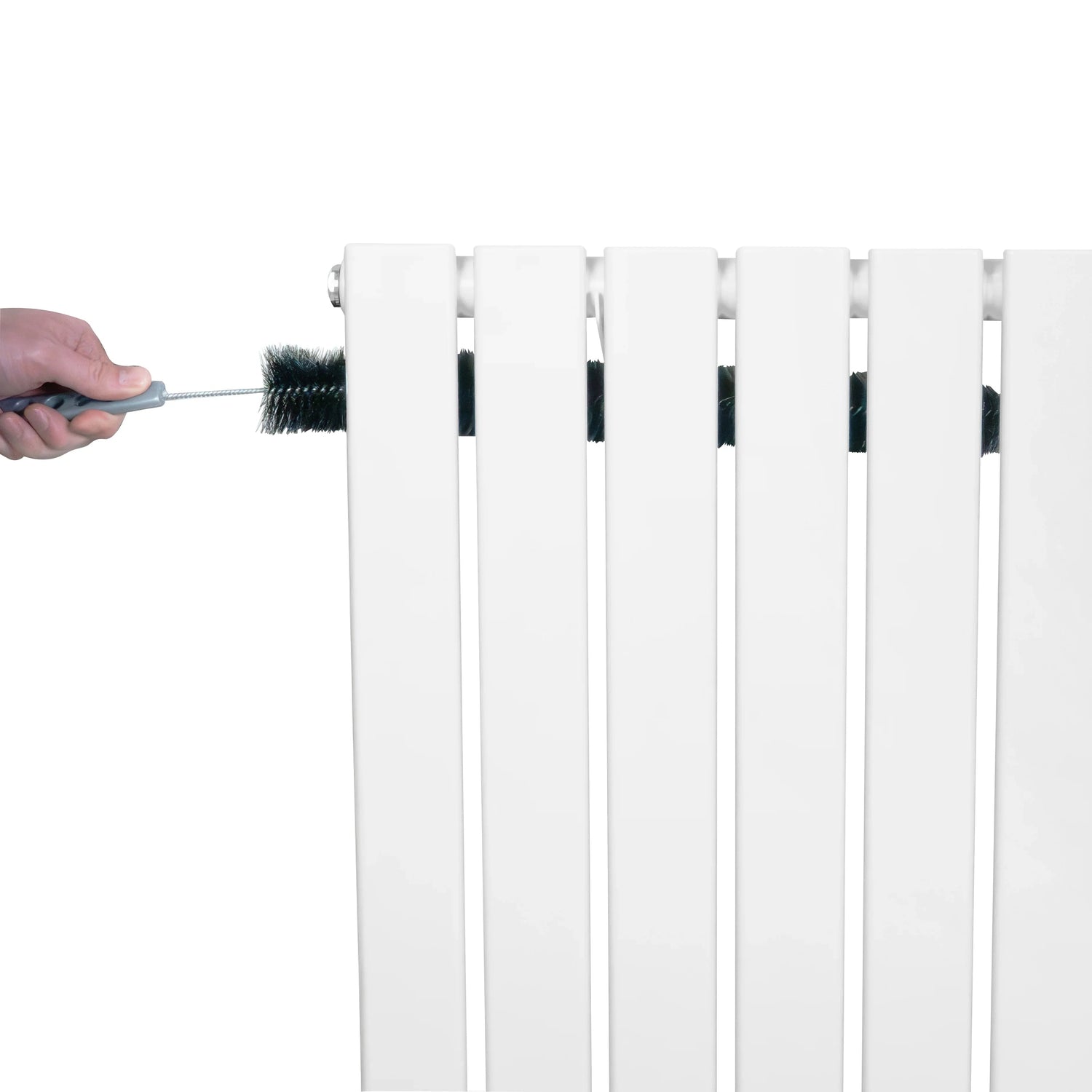

This flat single column radiator is supplied in white for UK and EU heating systems. It is made from 1.5mm carbon steel with a triple layered powder-coated finish and is supplied with brackets, a fixing kit and a flexible cleaning brush.

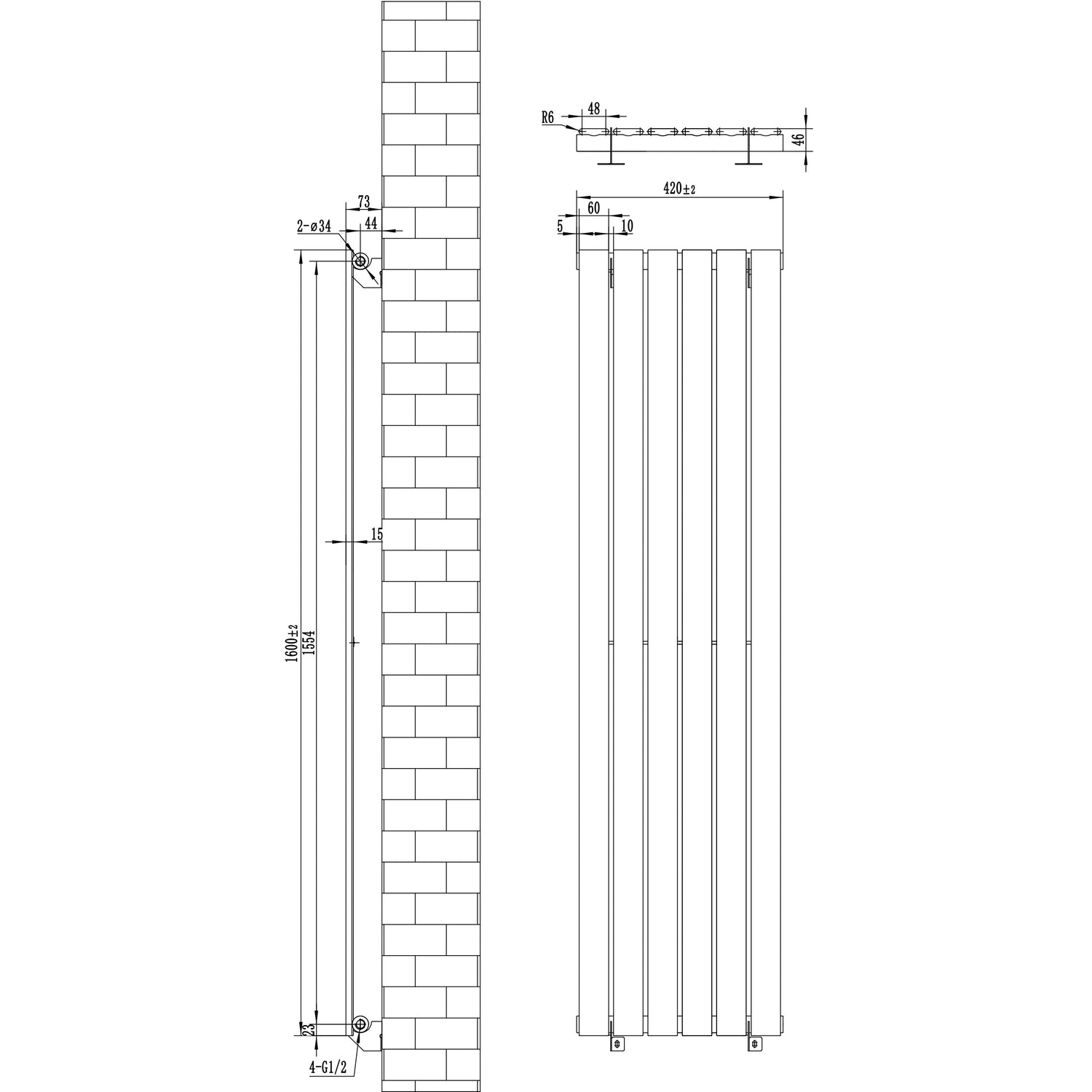

The radiator measures 160cm high, 42cm wide and 4.6cm deep. With the bracket fitted, the depth is 7.3cm. It has a standard 0.5" BSP inlet and outlet bore, with a valve-to-valve height of 155.4cm and a 4.4cm distance from the wall to the centre of the inlet.
The listed output is 2,529 BTU at 50 and 3,211 BTU at 60, with watt ratings of 741W at 50 and 941W at 60. The recommended application area is 9m². Maximum working temperature is 95°C, maximum working pressure is 5 Bar and test pressure is 6.5 Bar.
The radiator is listed as CE and UKCA certified, with BS EN 442 and ISO9001:2015 testing. It comes with a 15-year guarantee.
Specifications
- Weight: 16.9kg
- Gap between tubes: 1cm
- Individual flat tube size: 60mm x 15mm
- Number of columns: 6
- Compatibility: All UK and EU heating systems
Box contents
- 1 x Flat single column radiator
- 4 x Secure brackets
- 1 x Fixing kit
- 1 x Flexible cleaning brush
Specification
- Colour
- White
- Certification
- CE
- Finish
- Powder Coated
- Height
- 160 cm
- Material
- Carbon Steel
- Number Of Columns
- 6
