Flat Single Column Radiator 1600 x 560mm Anthracite Grey

About this product

This flat single column radiator is made from 1.5mm carbon steel and finished in anthracite grey. It is 160cm high and 56cm wide, making it suitable for heating rooms with a recommended area of 12m². It is compatible with all UK and EU heating systems.

The radiator has a triple layered powder-coated finish, an 8-column design and flat tubes measuring 60mm x 15mm. It has a maximum working temperature of 95°C, a maximum working pressure of 5 Bar and a test pressure of 6.5 Bar. Heat output is listed as 3304 BTU at 50 and 4195 BTU at 60, with power ratings of 968W and 1229W respectively.

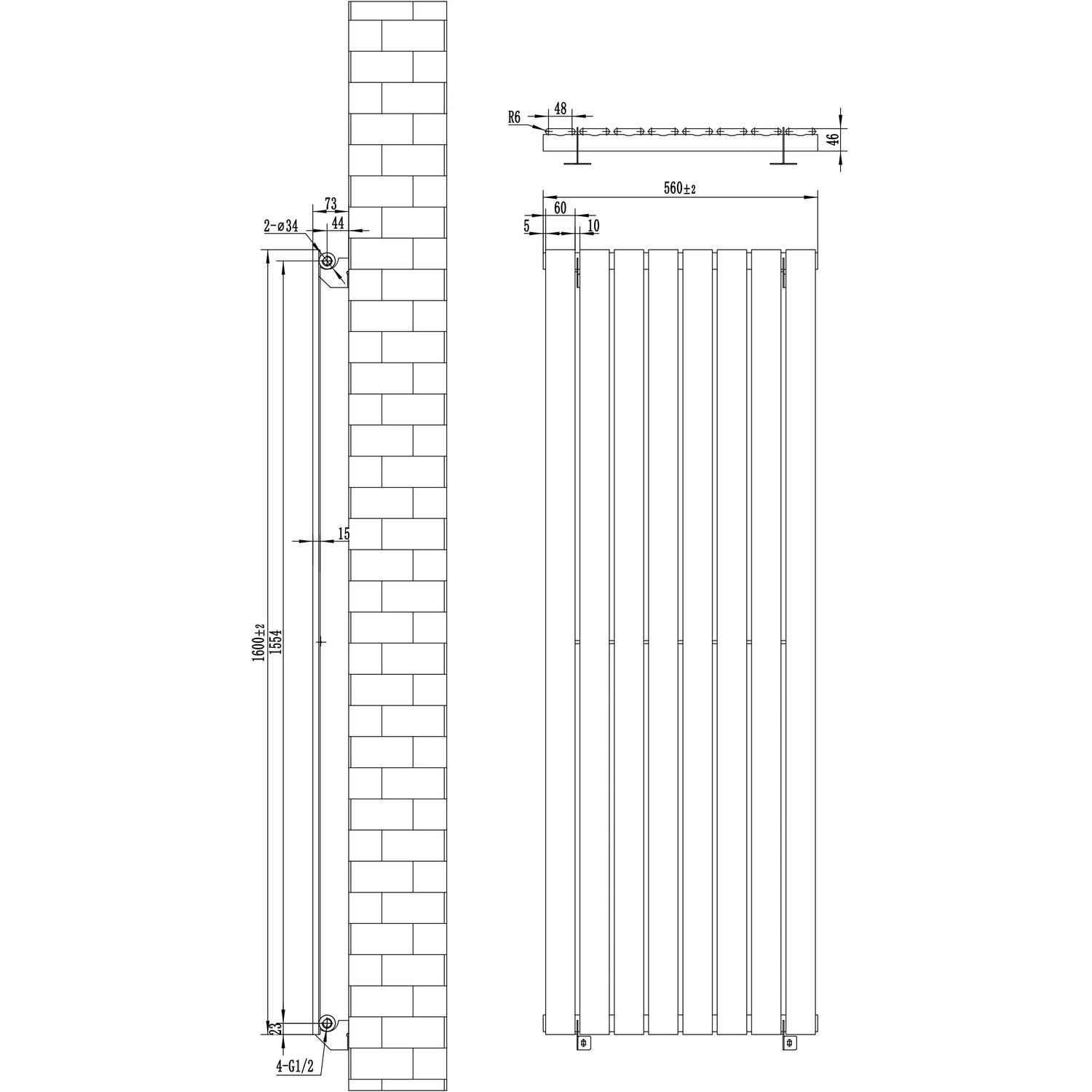

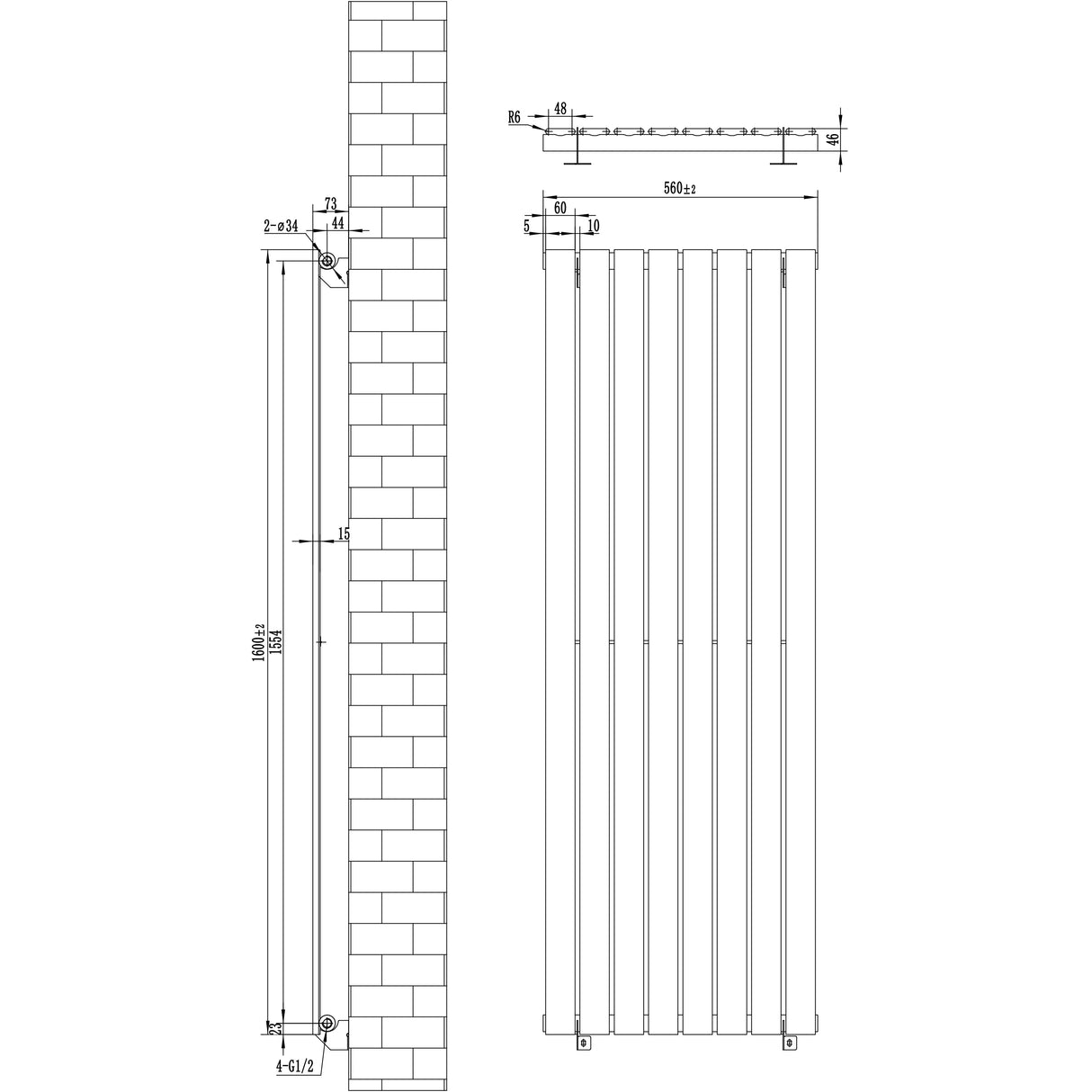

Standard 0.5" BSP inlet and outlet bores allow you to select suitable valves. The valve-to-valve height is 155.4cm, while the distance from the wall to the centre of the inlet is 4.4cm. The radiator is 4.6cm deep, or 7.3cm deep with the bracket fitted.

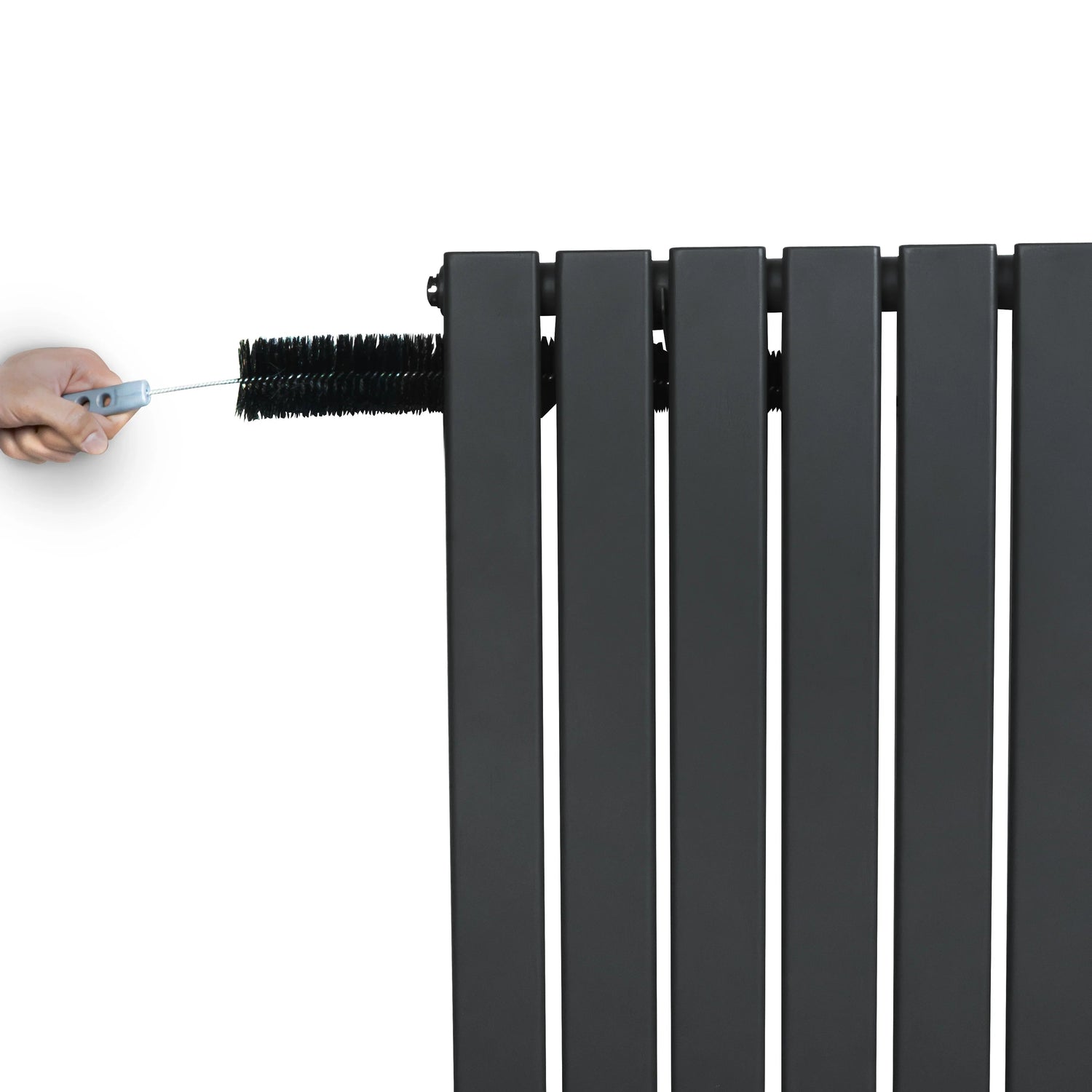

It comes with four brackets, a fixing kit and a flexible cleaning brush. Testing is listed to BS EN 442 and ISO9001:2015 standards, with CE and UKCA certification.

Specifications
- Weight: 22.5kg
- Gap between tubes: 1cm
- Maximum working temperature: 95°C
- Maximum working pressure: 5 Bar
- Test pressure: 6.5 Bar
- Guarantee: 15 years
