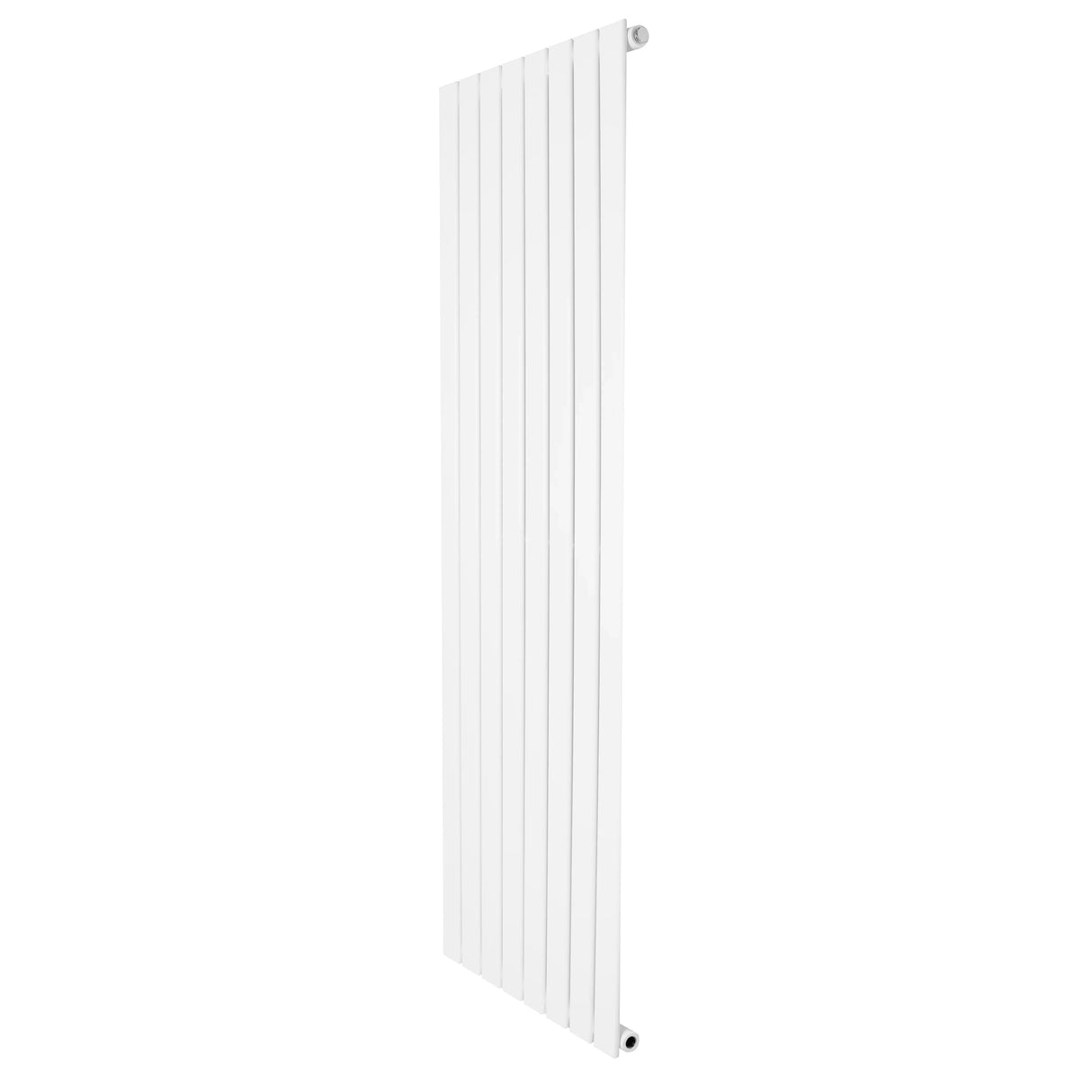

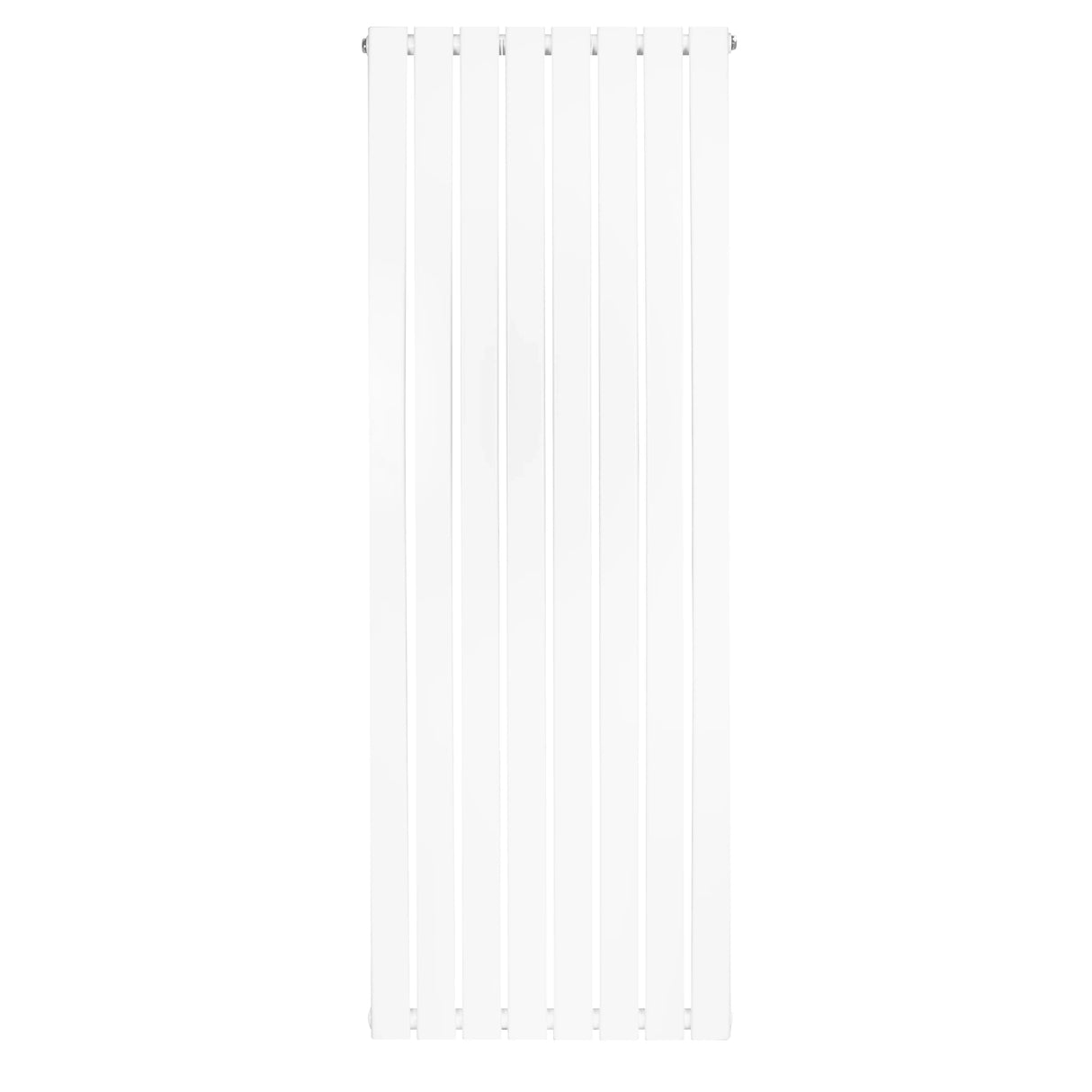

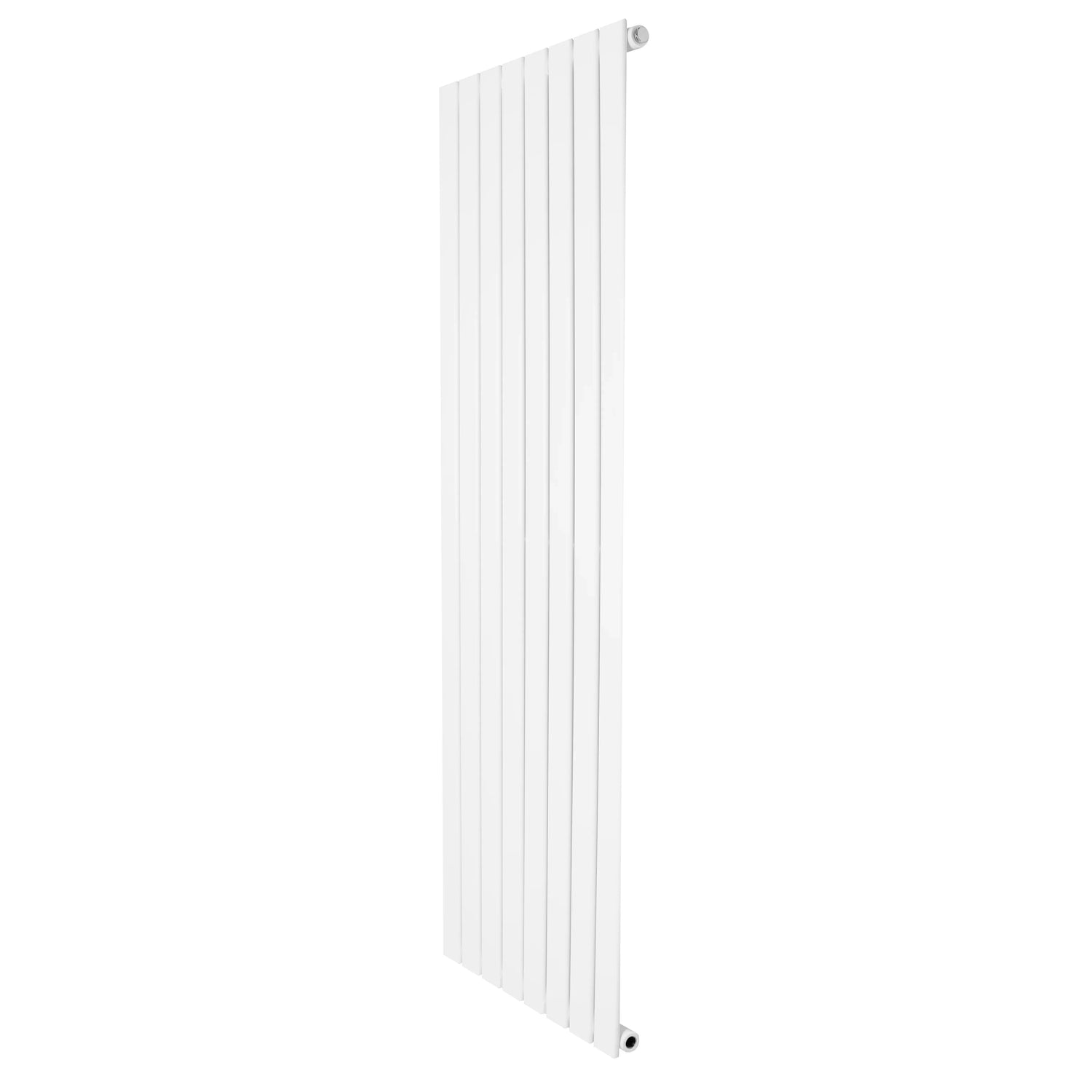

Flat Single Column Radiator 1600 x 560mm White
- Order updates by email
- Secure checkout · sold by NEXTDAYUK LTD
About this product
This flat single column radiator is made from 1.5mm carbon steel and finished in white with triple layered powder coating. It measures 160cm high by 56cm wide, with a radiator depth of 4.6cm and a depth of 7.3cm including the brackets.
The radiator has eight columns and a recommended application area of 12m². Its stated heat output is 3304 BTU at 50 and 4195 BTU at 60. It has a maximum working temperature of 95°C, a maximum working pressure of 5 bar and a 6.5 bar test pressure.

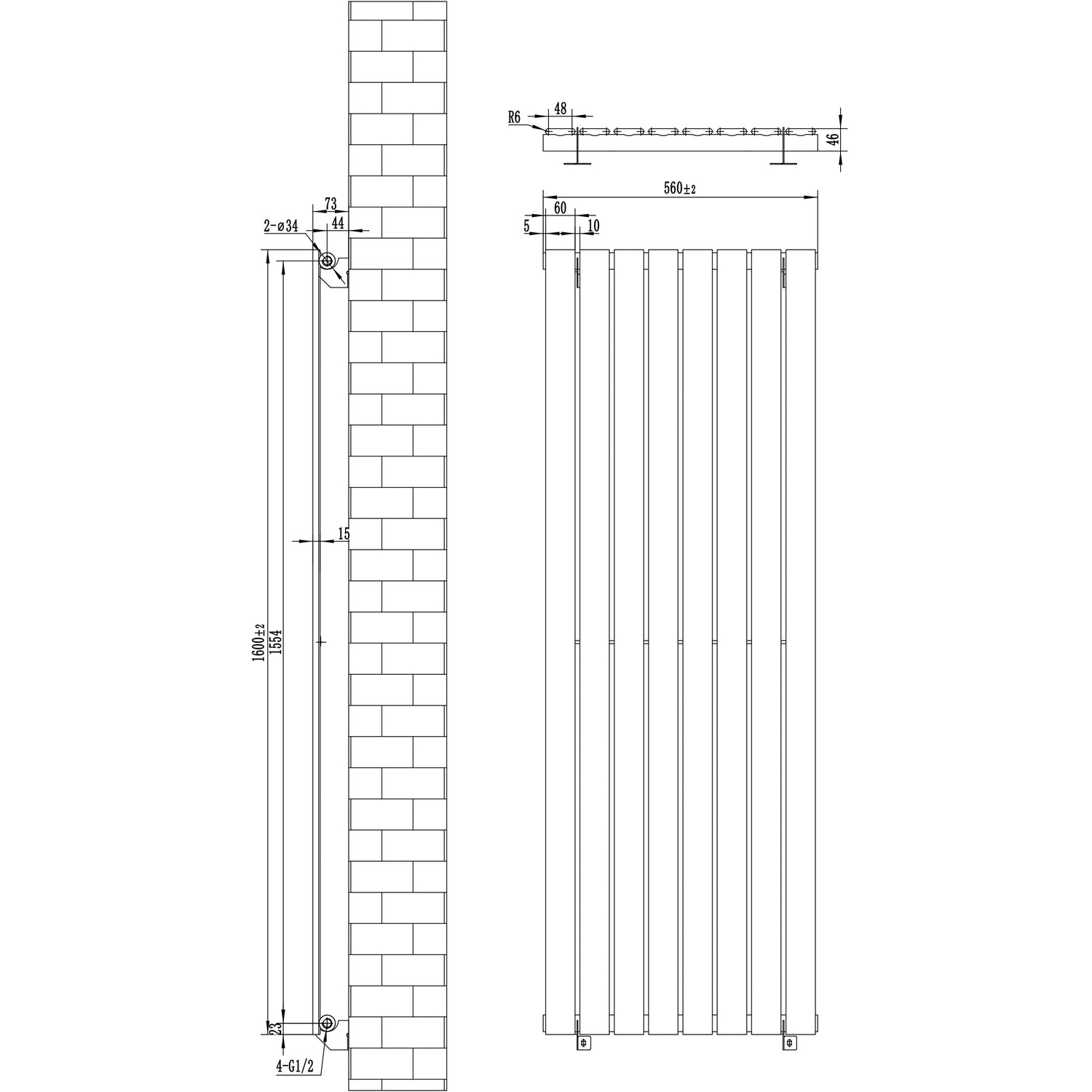

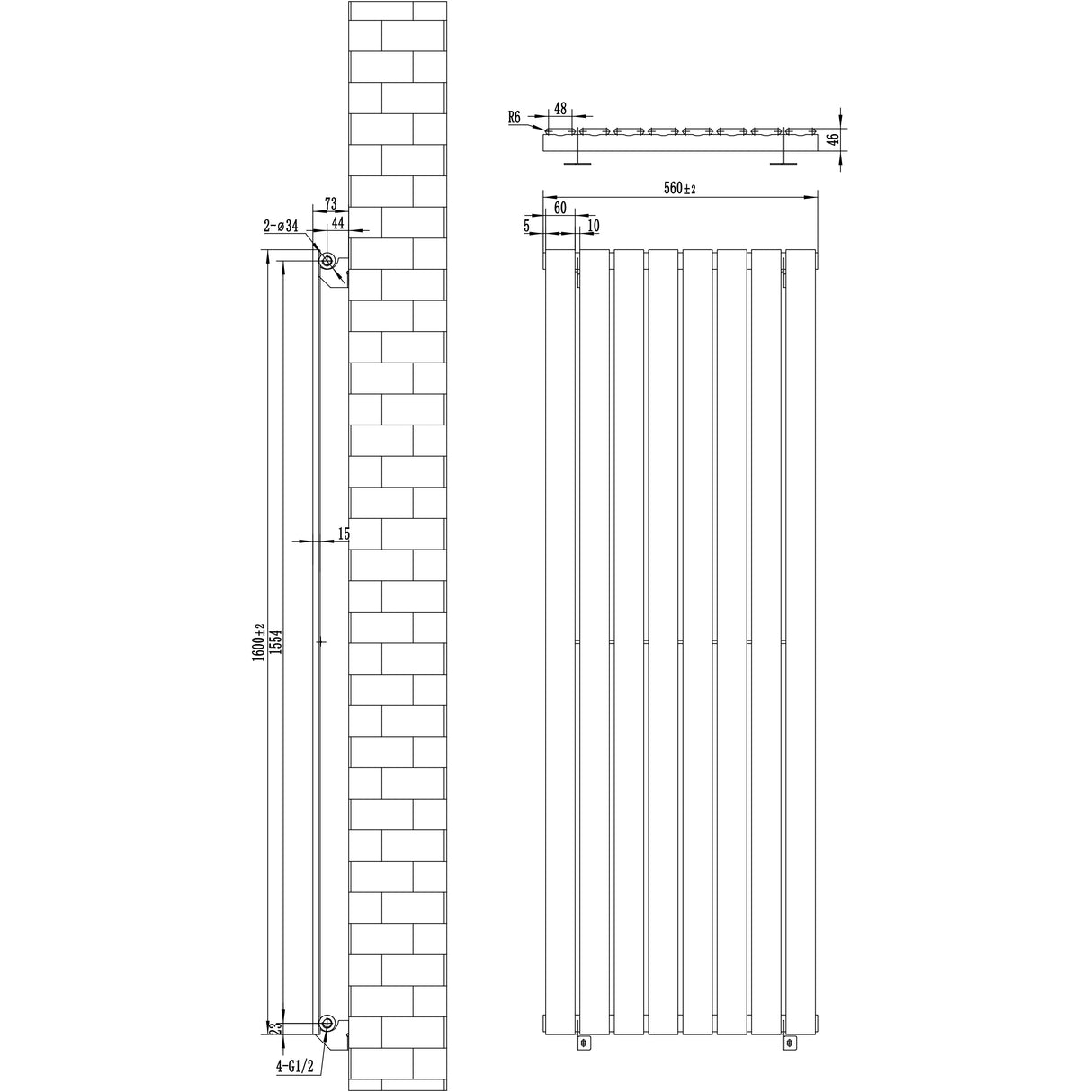

Standard 0.5-inch BSP inlets and outlets suit all UK and EU heating systems. The valve-to-valve height is 155.4cm, and the distance from the wall to the centre of the inlet is 4.4cm. A 15-year guarantee is included.
Specifications
- Colour: White
- Material: 1.5mm carbon steel
- Finish: Triple layered powder coating
- Weight: 22.5kg
- Gap between tubes: 1cm
- Individual flat tube size: 60mm x 15mm
- Testing: BS EN 442 and ISO9001:2015 Standards
- Certification: CE and UKCA
Box contents
- 1 x flat single column radiator
- 4 x secure brackets
- 1 x fixing kit

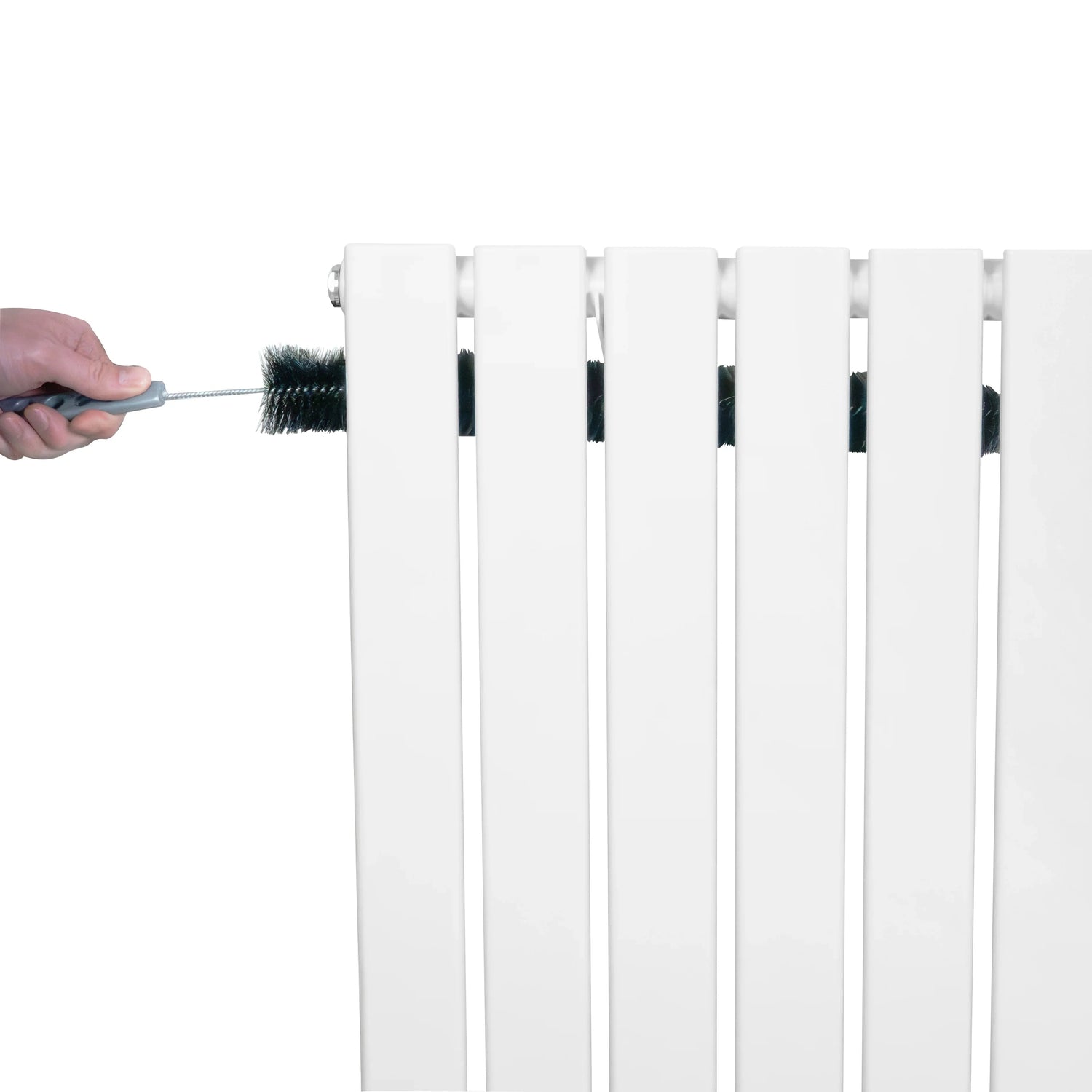

- 1 x flexible cleaning brush
Specification
- Certification
- BS EN 442 & CE
- Colour
- White
- Finish
- Powder Coated & Powder Coated (Triple Layered Powder Coating)
- Heats Area (m²)
- 12 m²
- Height
- 160 cm
- Material
- Carbon Steel & Carbon Steel (1.5mm Carbon Steel)
- Number Of Columns
- 8
- Valve-To-Valve Height
- 155.4 cm
- Width
- 56 cm
