Flat Single Column Radiator 1600 x 700mm Anthracite Grey

About this product

This flat single column radiator is 160cm high and 70cm wide, making it suitable for UK and EU heating systems. It has an anthracite grey finish and a 10-column design made from 1.5mm carbon steel.

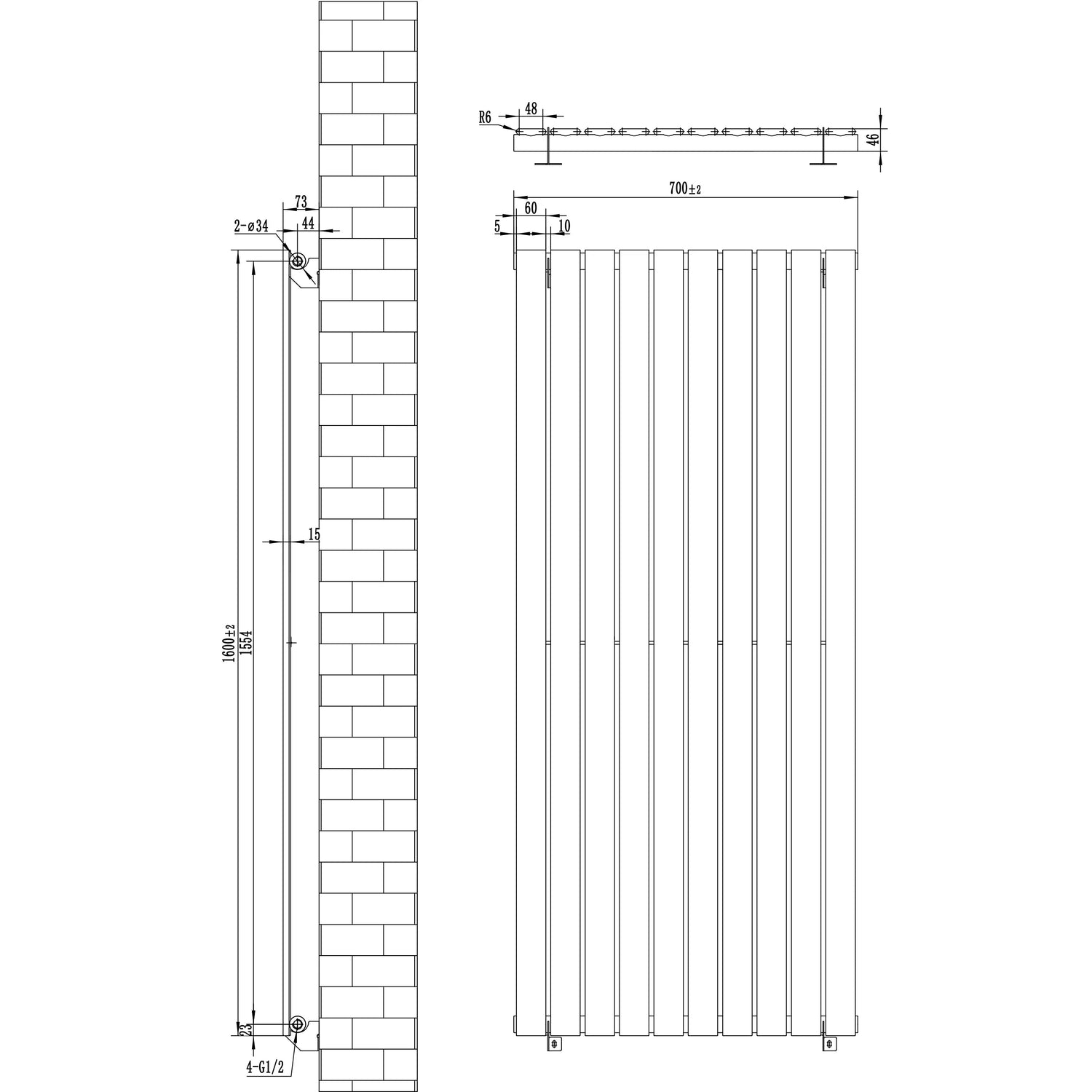

The radiator has a 4.6cm depth, increasing to 7.3cm with the brackets fitted. Its flat tubes measure 60mm x 15mm, with a 1cm gap between tubes. Heat output is rated at 4215 BTU at 50 and 5352 BTU at 60, equivalent to 1235W and 1568W respectively.

It has a triple layered powder-coated finish, a maximum working temperature of 95°C, a maximum working pressure of 5 bar and a test pressure of 6.5 bar. The recommended application area is 16m². Standard 0.5" BSP inlet and outlet connections are compatible with all UK and EU heating systems.

The radiator comes with four brackets, a fixing kit and a flexible cleaning brush. It has CE and UKCA certification, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee.

Specifications

• Weight: 28.1kg
• Valve-to-valve height: 155.4cm
• Distance from wall to centre of inlet: 4.4cm
• Maximum working temperature: 95°C
• Inlet and outlet size: Standard 0.5" BSP bore

Box contents

• 1 x Flat single column radiator
• 4 x Secure brackets
• 1 x Fixing kit

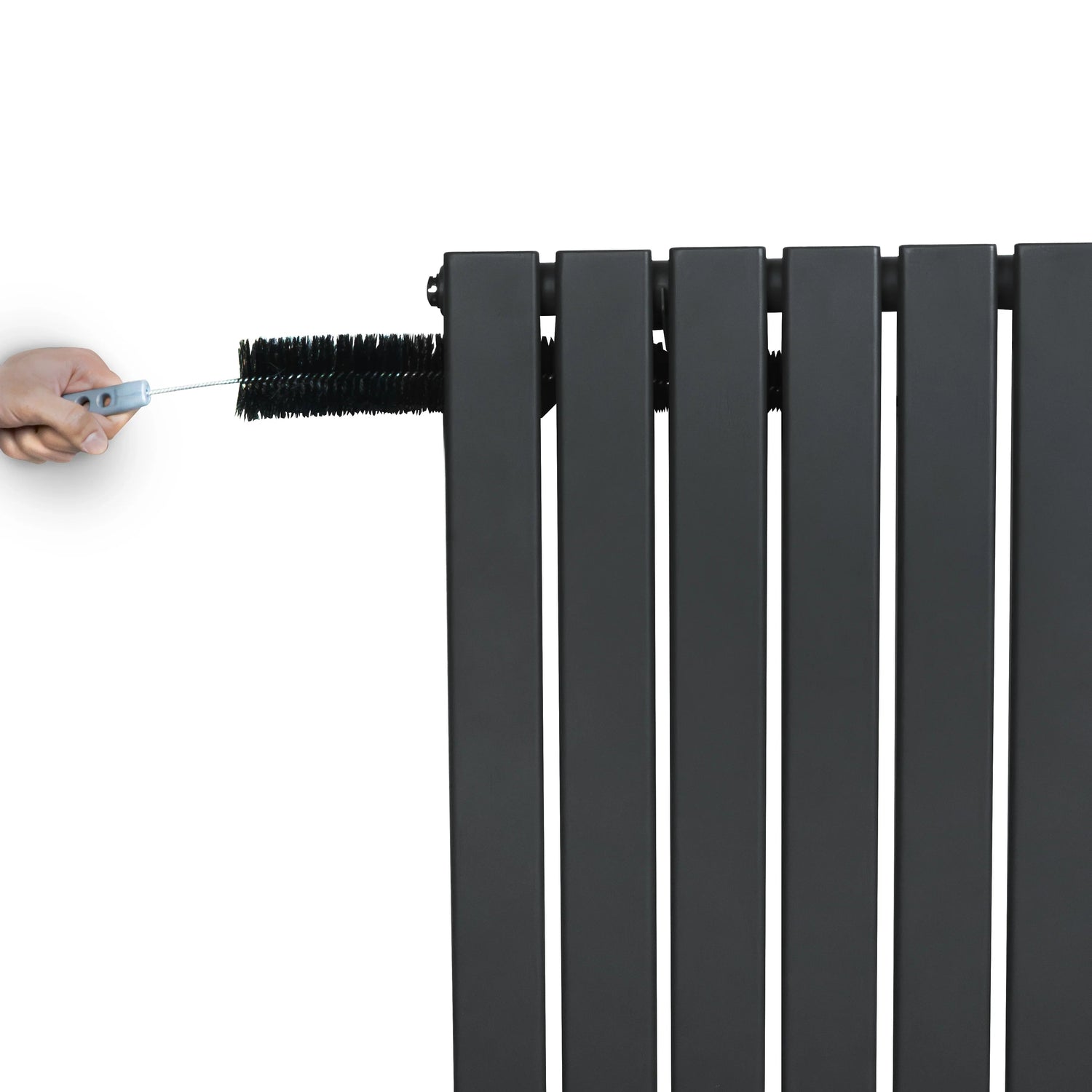

• 1 x Flexible cleaning brush
