Flat Single Column Radiator 1600 x 700mm, Black

About this product

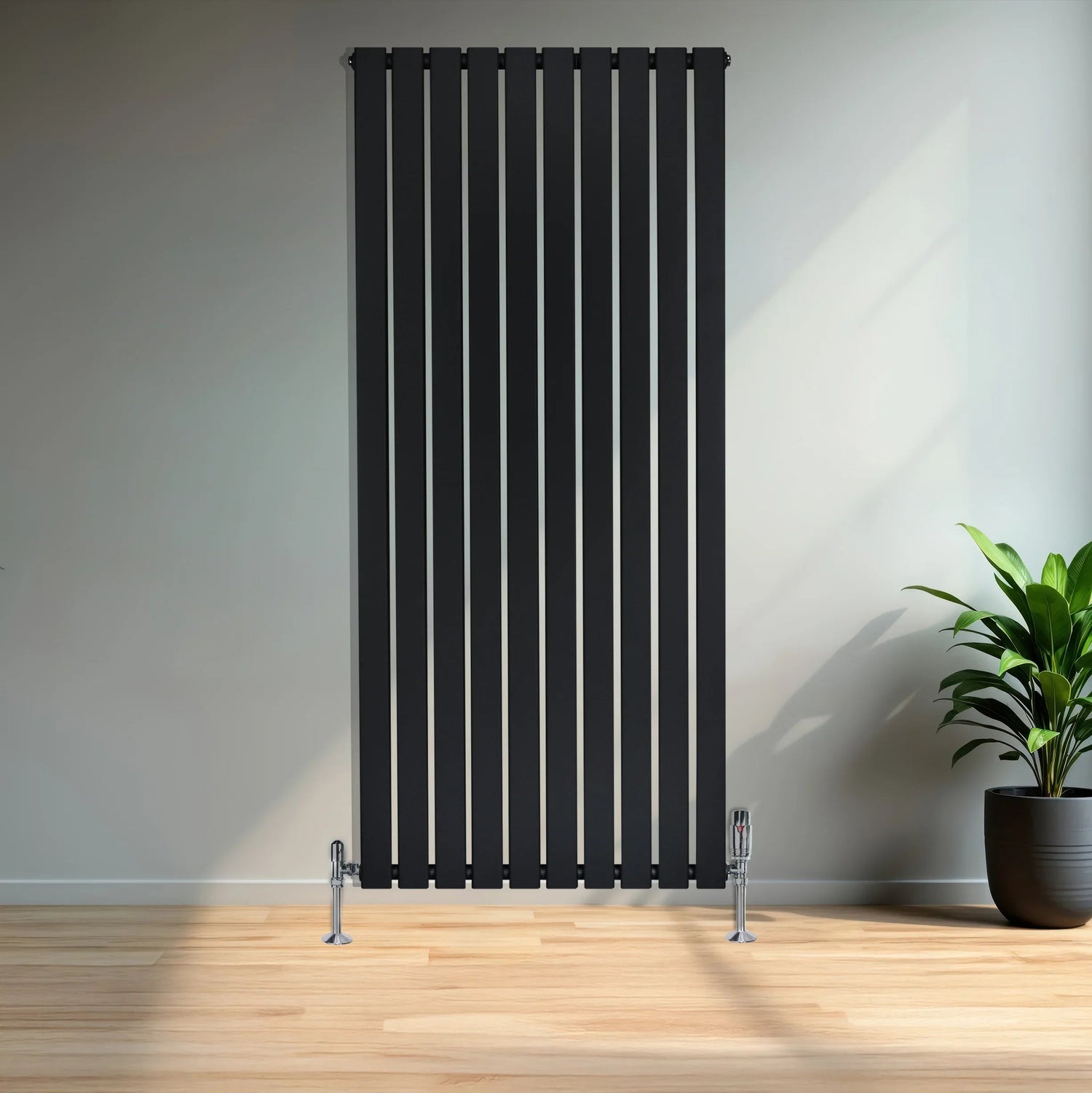

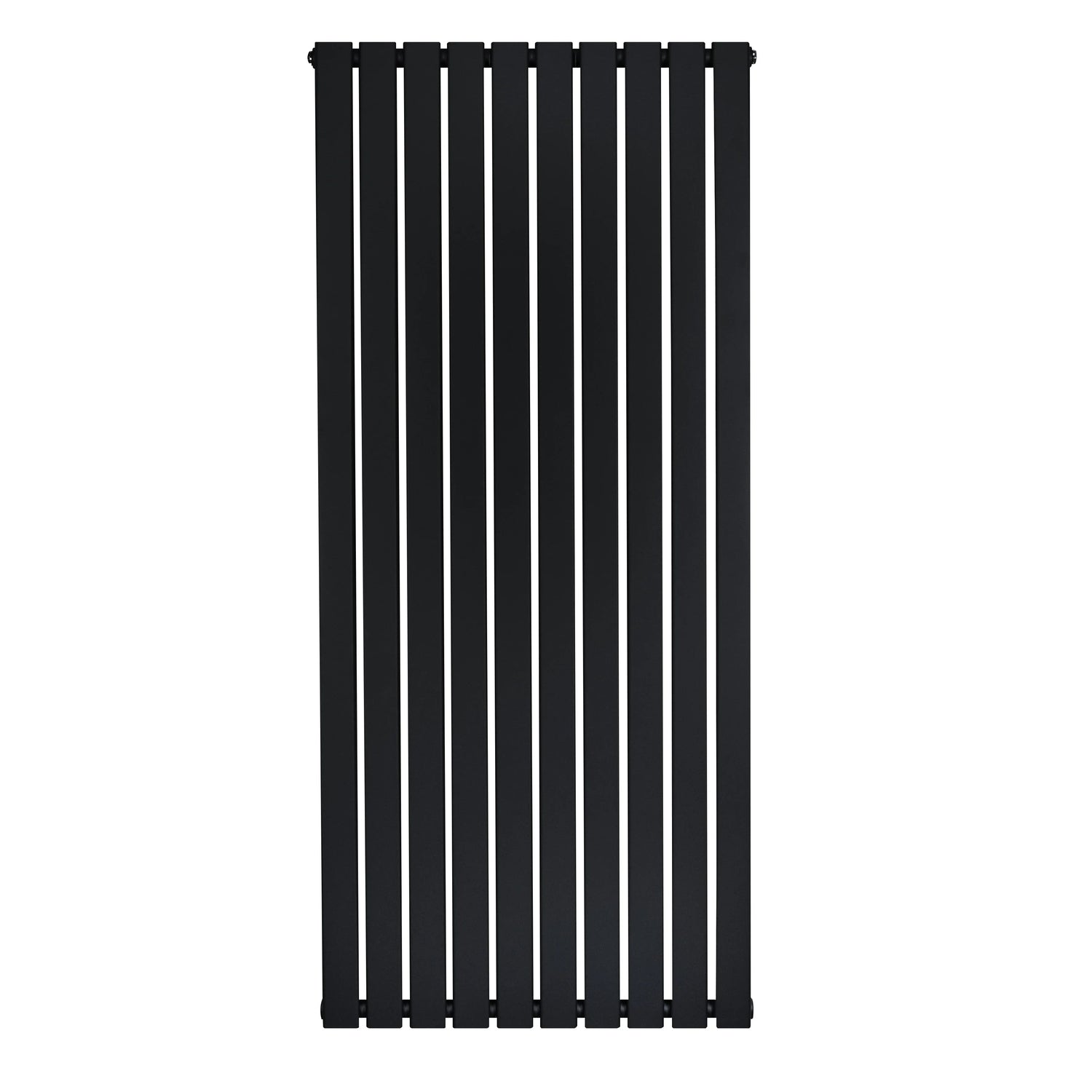

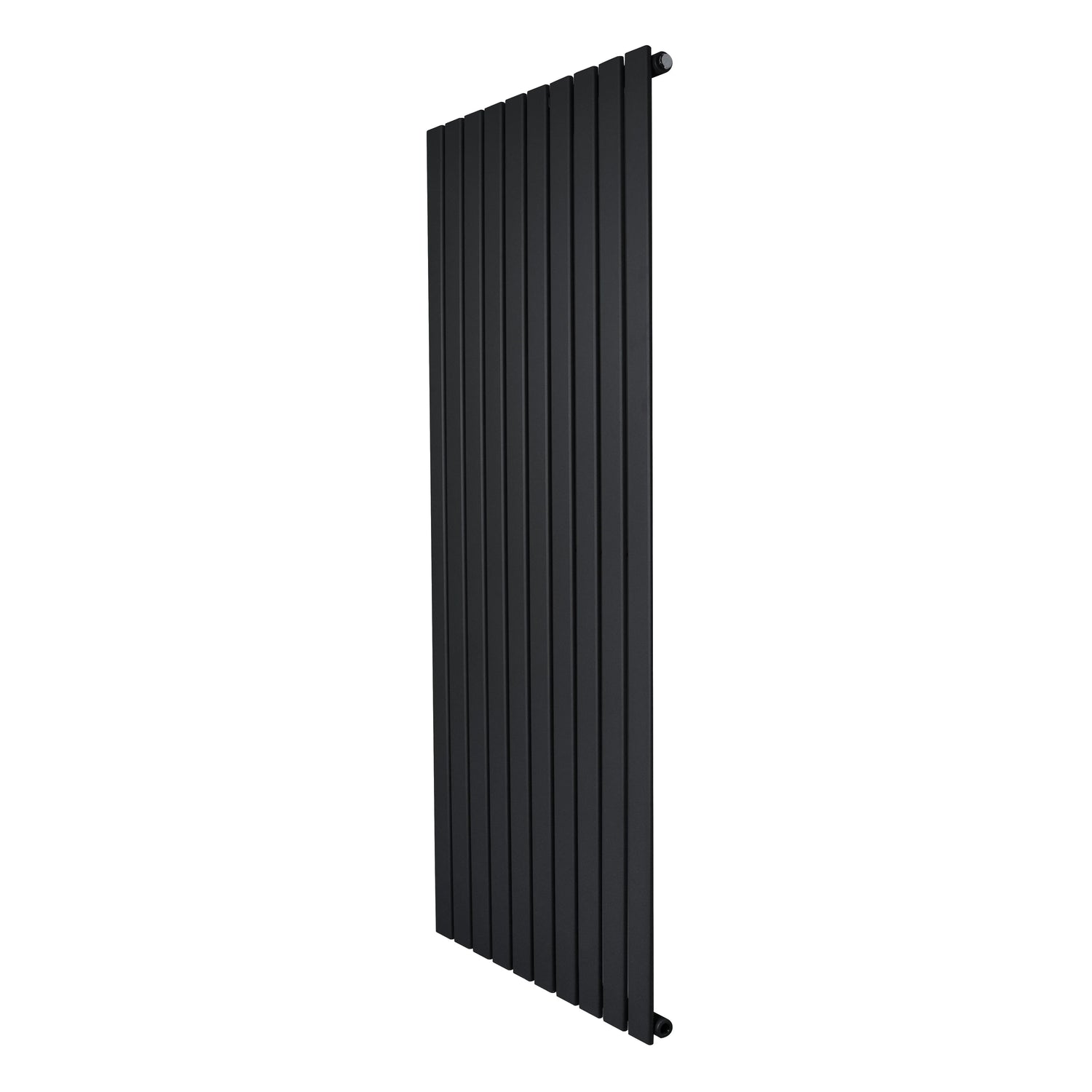

This flat single column radiator is made from 1.5mm carbon steel and finished in black with triple-layered powder coating. It measures 160cm high and 70cm wide, making it suitable for heating spaces with a recommended application area of 16m².

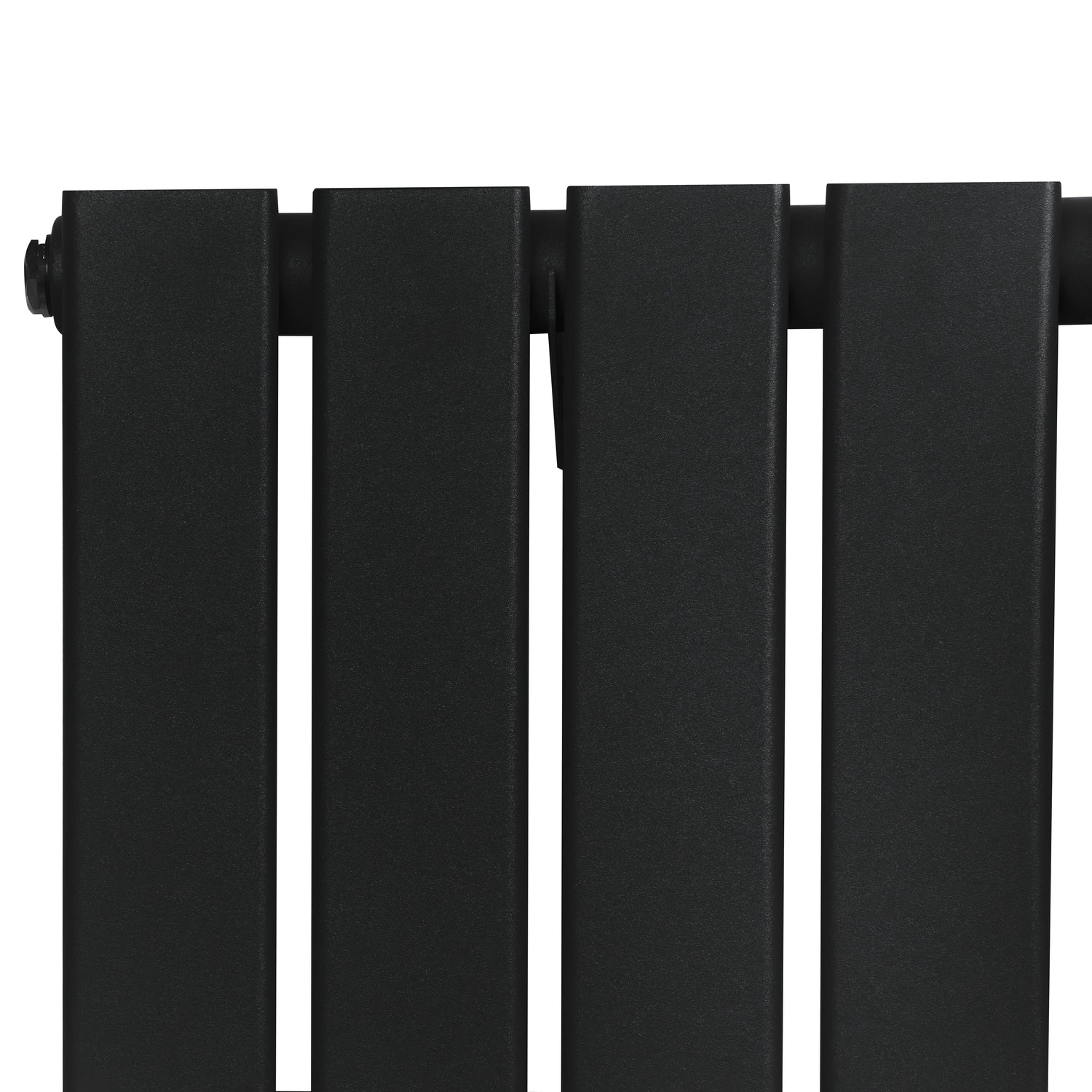

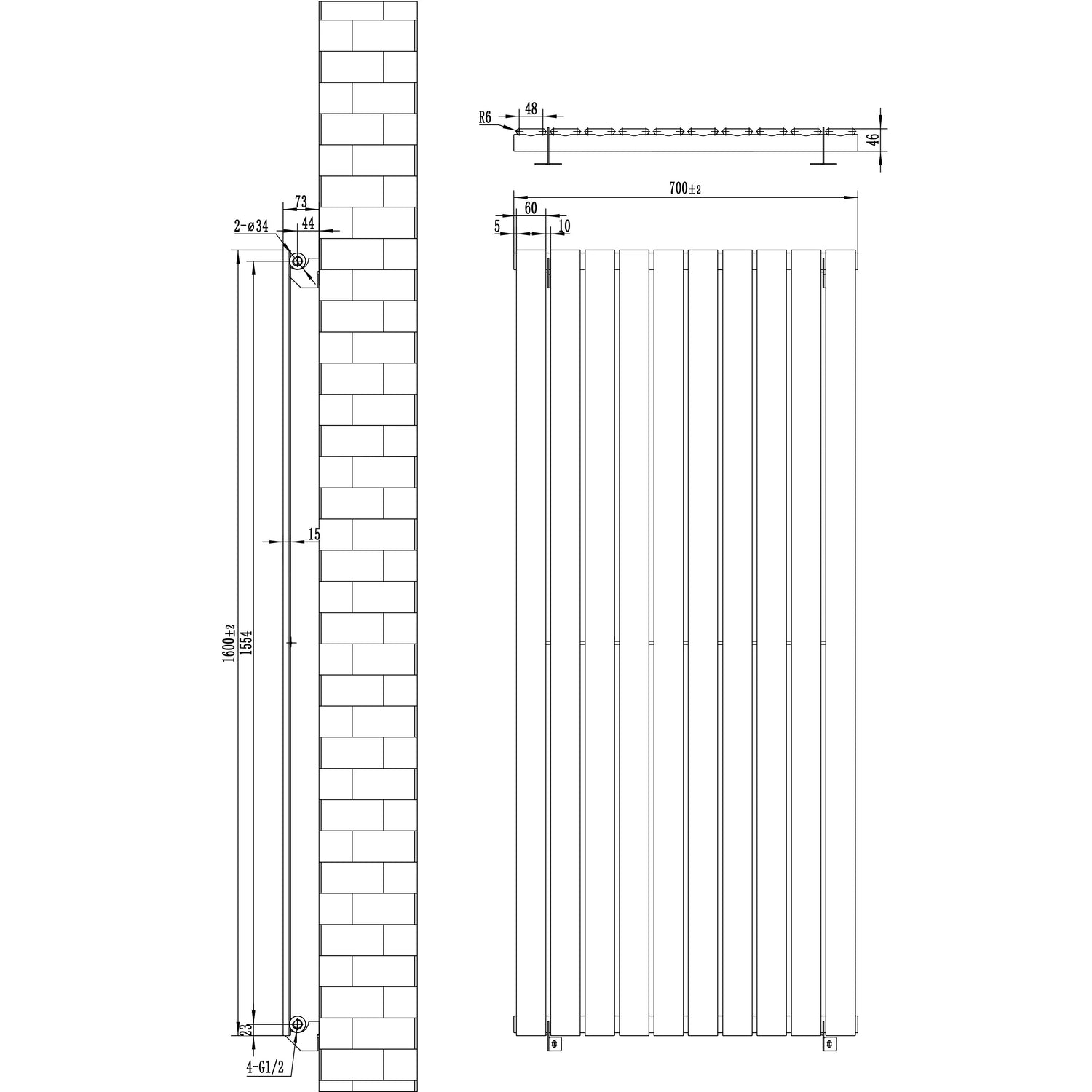

The radiator has 10 columns made from flat steel tubes measuring 60mm x 15mm, with a 1cm gap between the tubes. It has a radiator depth of 4.6cm, or 7.3cm including the brackets. The standard 0.5-inch BSP inlets and outlets are compatible with all UK and EU heating systems.

Maximum working temperature is 95°C. Maximum working pressure is 5 Bar, with a test pressure of 6.5 Bar. The valve-to-valve height is 155.4cm, and the distance from the wall to the centre of the inlet is 4.4cm.

The radiator weighs 28.1kg and comes with four brackets, a fixing kit and a flexible cleaning brush. It has CE and UKCA certification, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee.

Specifications

• Colour: Black
• Finish: Triple-layered powder coating
• Heat output: 4215 BTU at 50, 5352 BTU at 60
• Power output: 1235W at 50, 1568W at 60
• Maximum working temperature: 95°C
• Maximum working pressure: 5 Bar
• Test pressure: 6.5 Bar

Box contents

• 1 x flat single column radiator
• 4 x secure brackets
• 1 x fixing kit

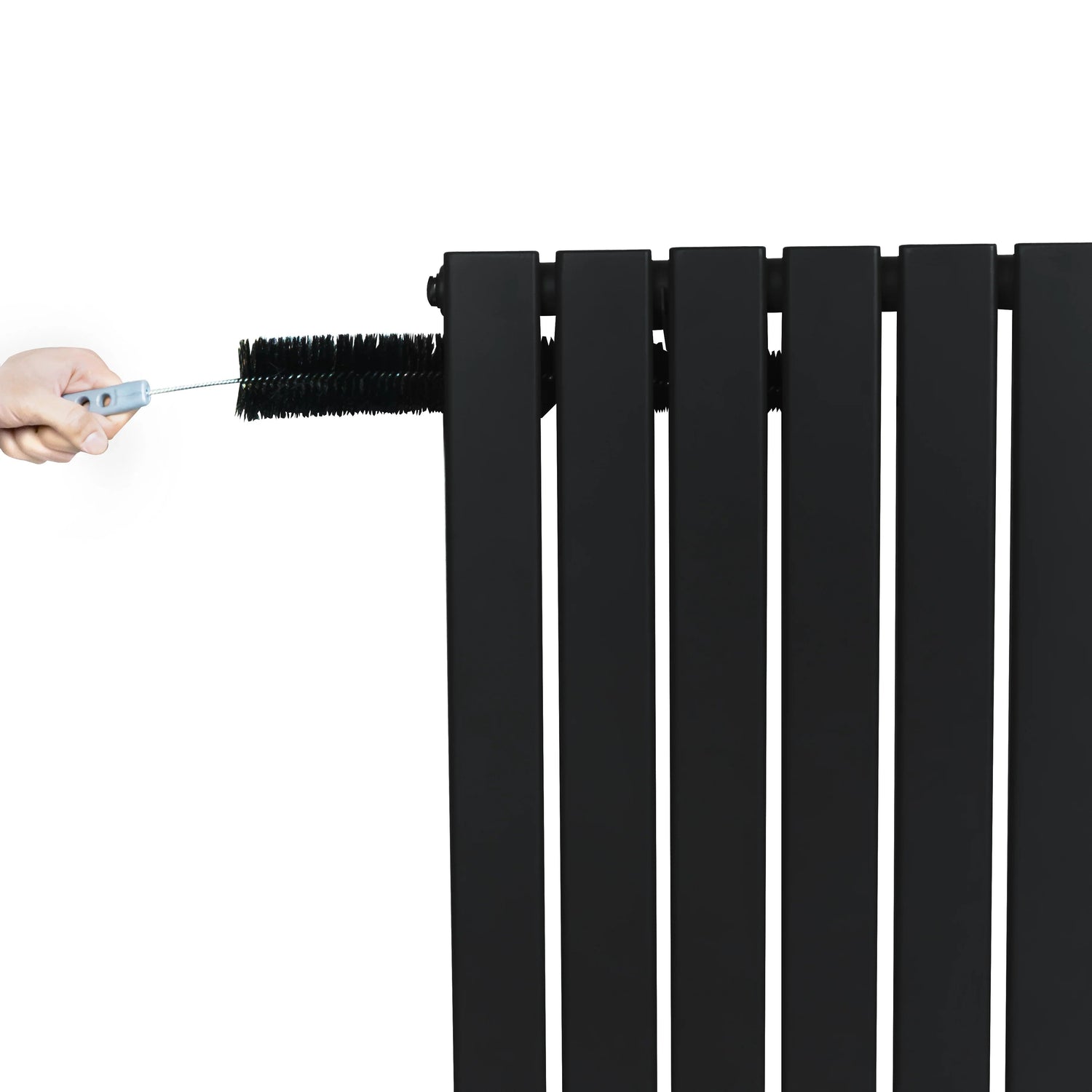

• 1 x flexible cleaning brush
