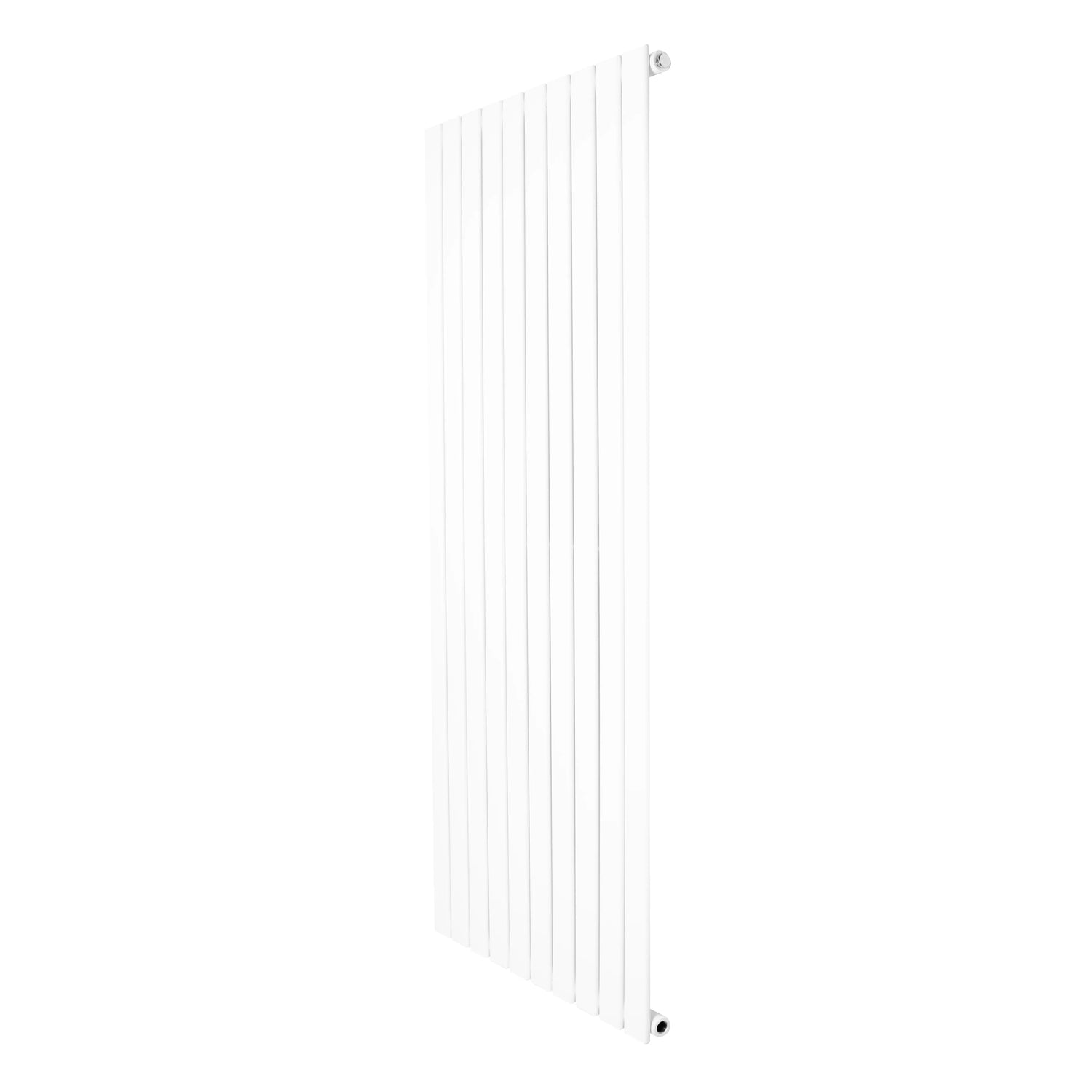

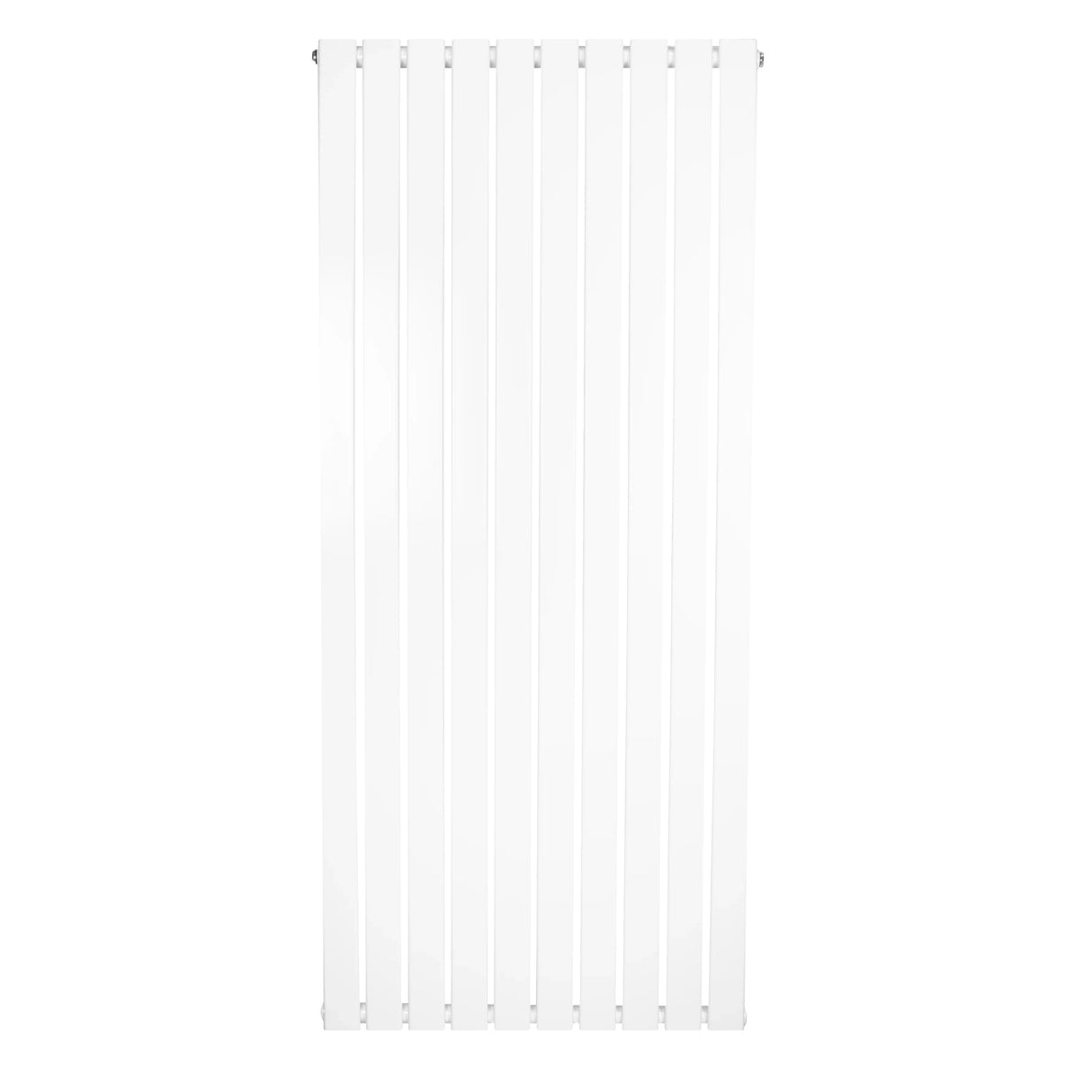

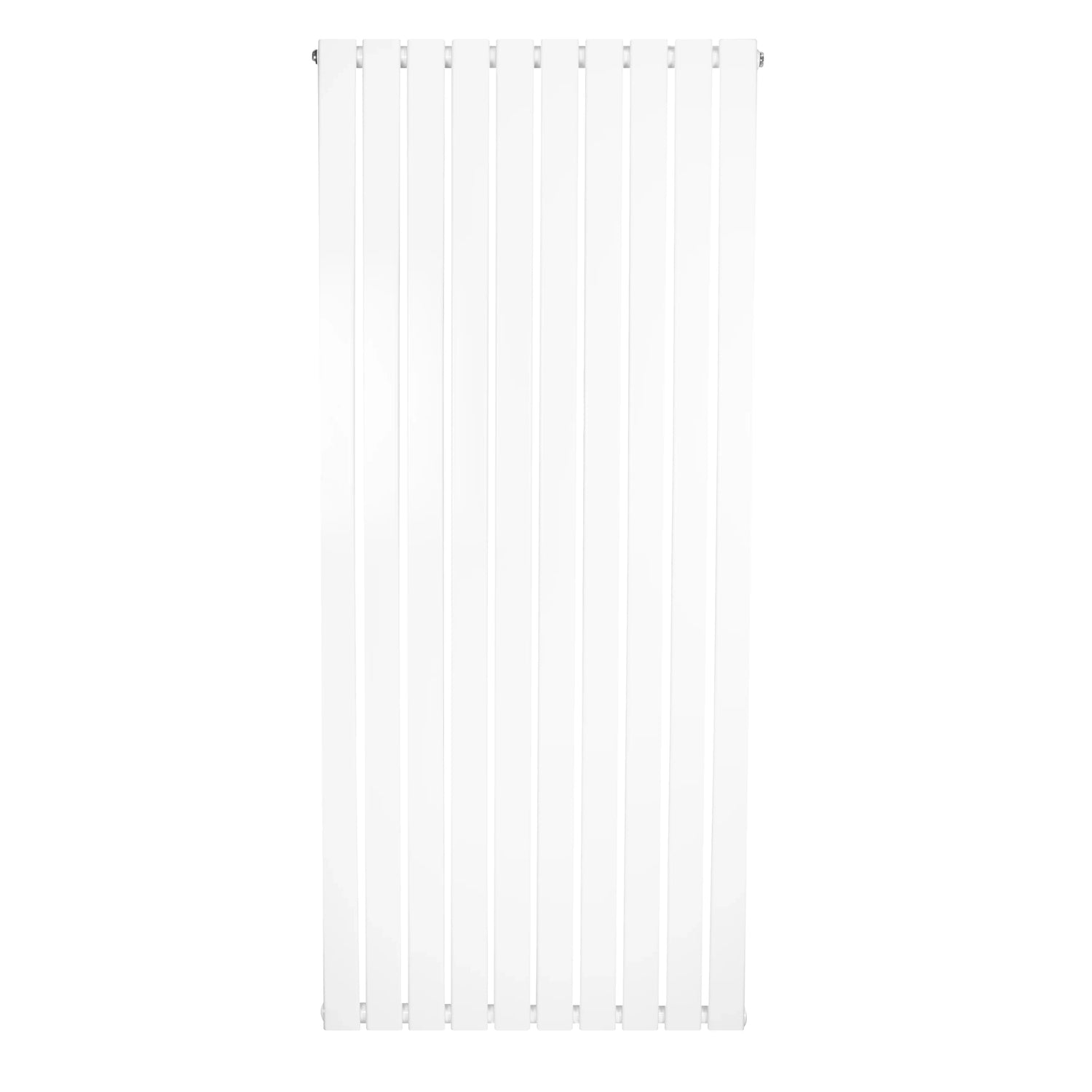

Flat Single Column Radiator 1600 x 700mm White

About this product

This white flat single column radiator is 160cm high and 70cm wide, making it suitable for homes using UK or EU heating systems. It is made from 1.5mm carbon steel with a triple layered powder-coated finish.

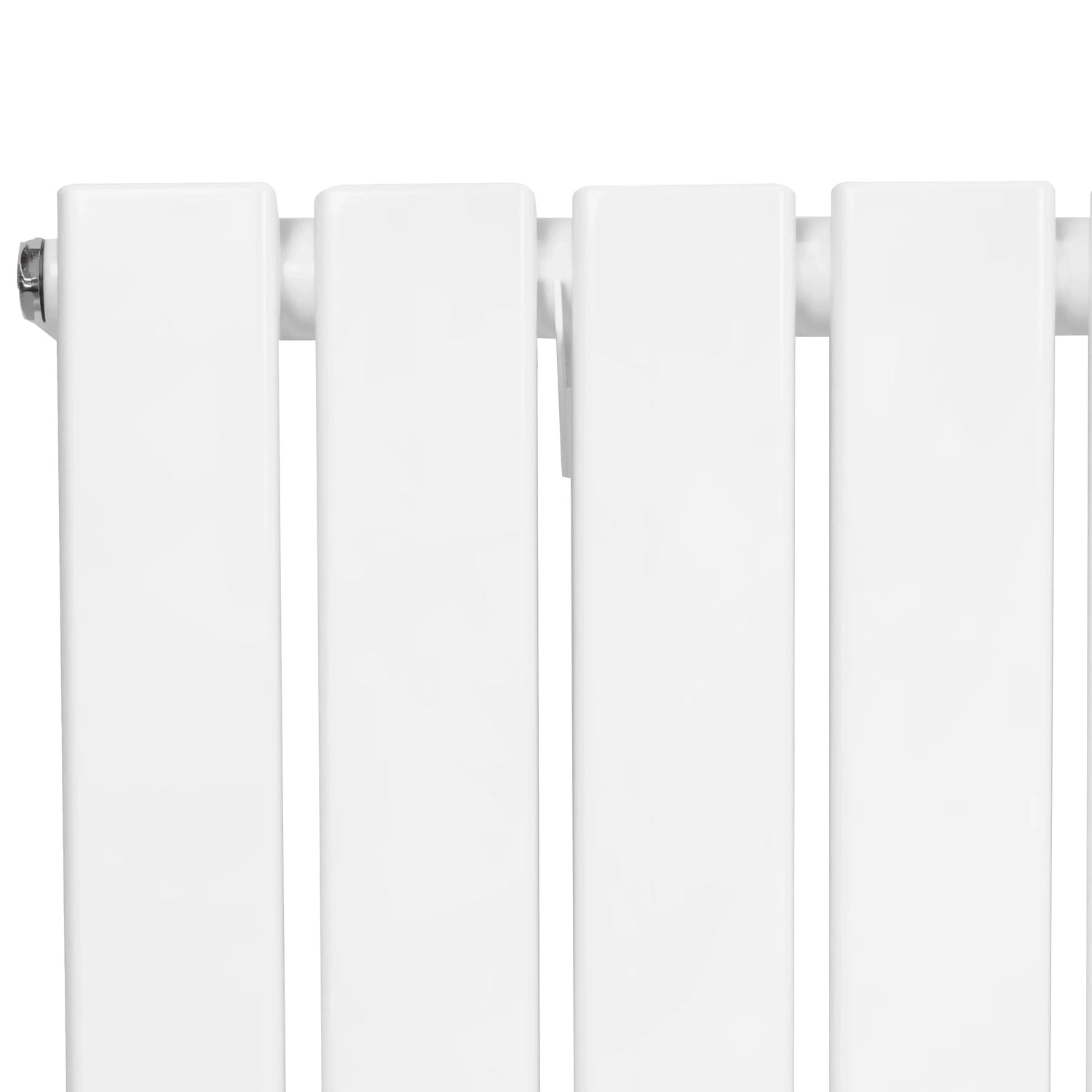

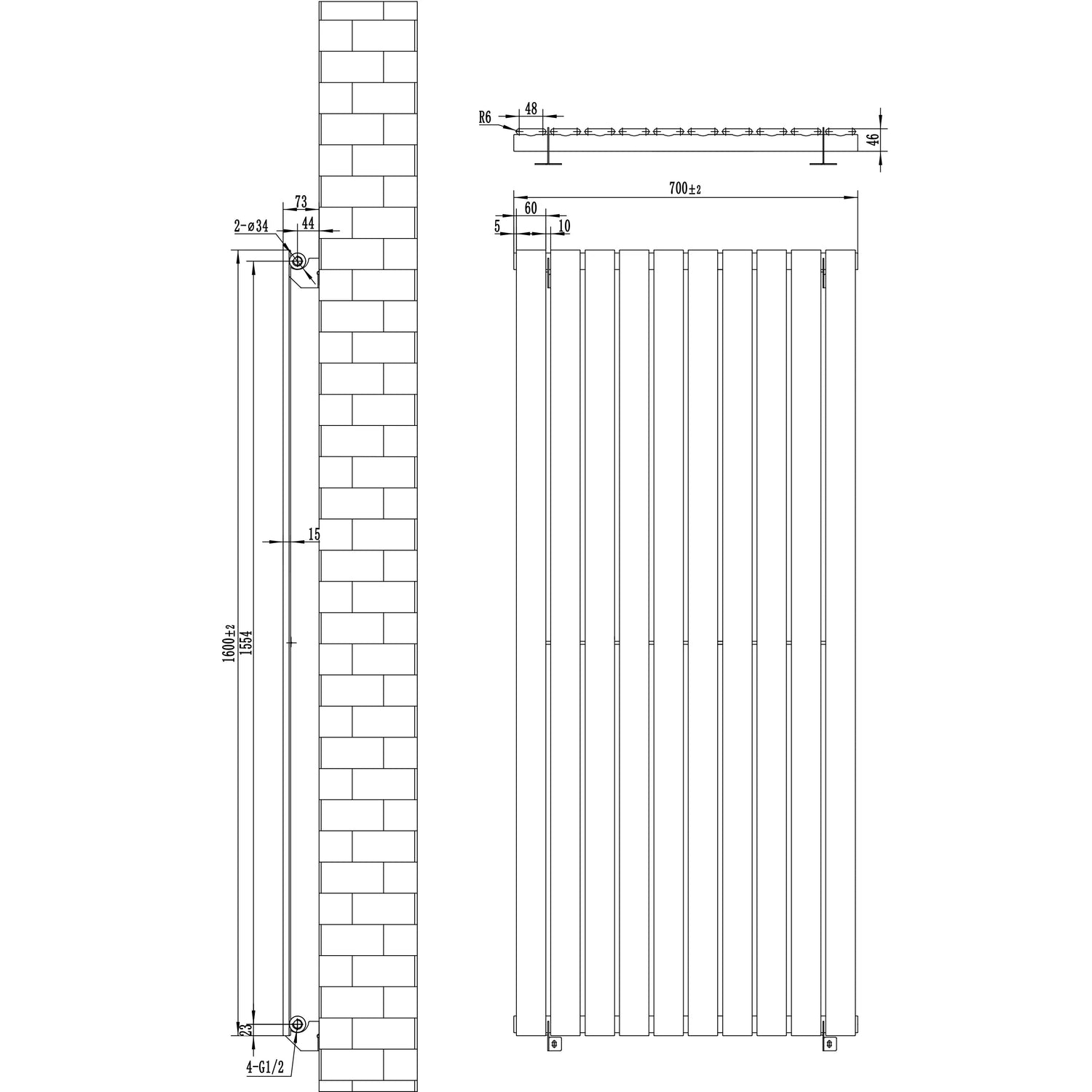

The radiator has 10 columns made from 60mm x 15mm flat steel tubes. It has a radiator depth of 4.6cm and measures 7.3cm from the wall when fitted with the brackets. The gap between tubes is 1cm.

It has standard 0.5-inch BSP inlet and outlet bores, with a valve-to-valve height of 155.4cm. The recommended application area is 16m². Maximum working temperature is 95°C, maximum working pressure is 5 Bar and test pressure is 6.5 Bar.

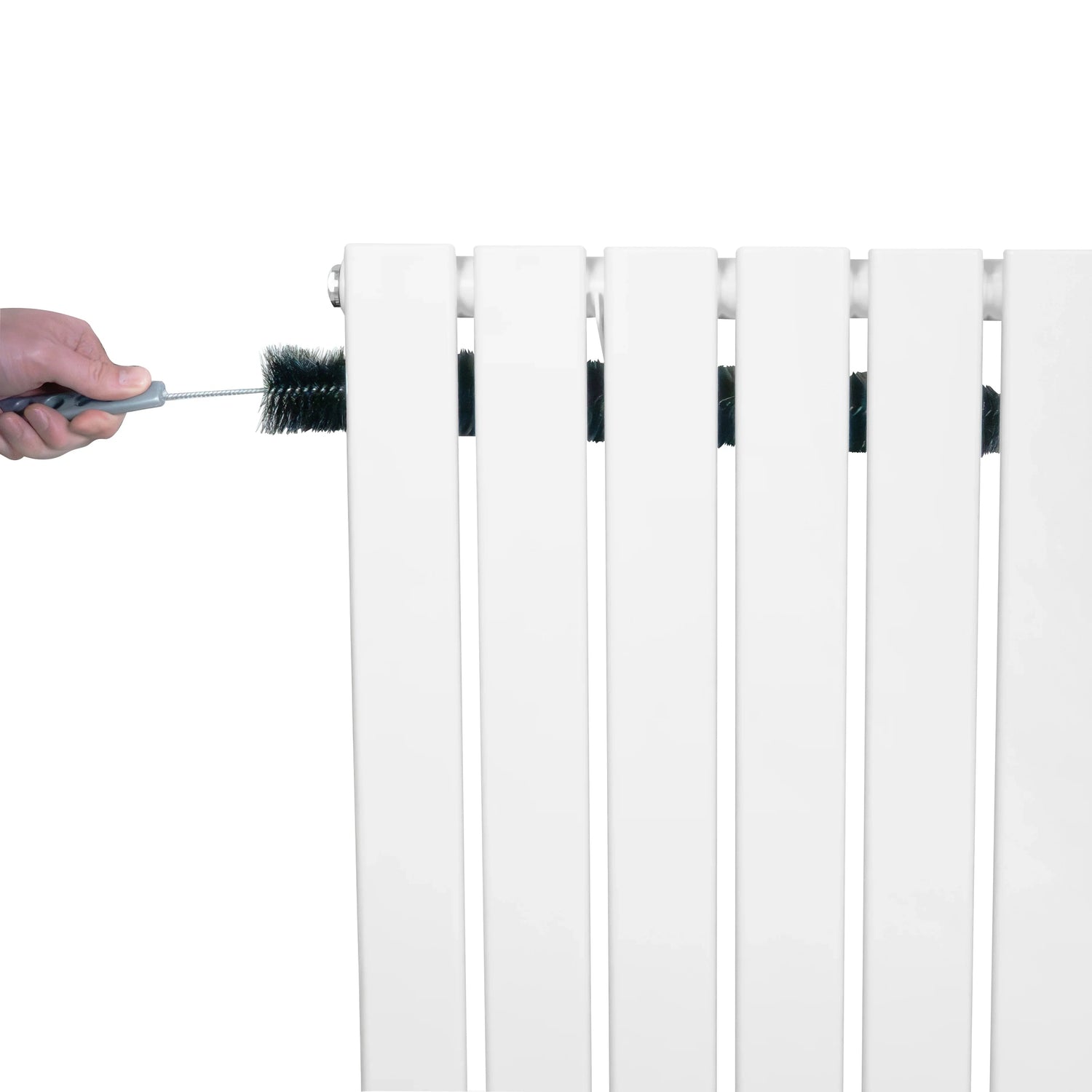

A 15-year guarantee is included. The radiator is tested to BS EN 442 and ISO9001:2015 standards, with CE and UKCA certification. Fixtures and fittings are supplied, along with a flexible cleaning brush.

Specifications
- Colour: White
- Weight: 28.1kg
- Material: 1.5mm carbon steel
- Height: 160cm
- Width: 70cm
- Depth: 4.6cm, or 7.3cm with bracket
- Distance from wall to centre of inlet: 4.4cm
- Maximum working temperature: 95°C
- Maximum working pressure: 5 Bar
- Test pressure: 6.5 Bar

Box contents
- 1 x flat single column radiator
- 4 x brackets
- 1 x fixing kit
- 1 x flexible cleaning brush
