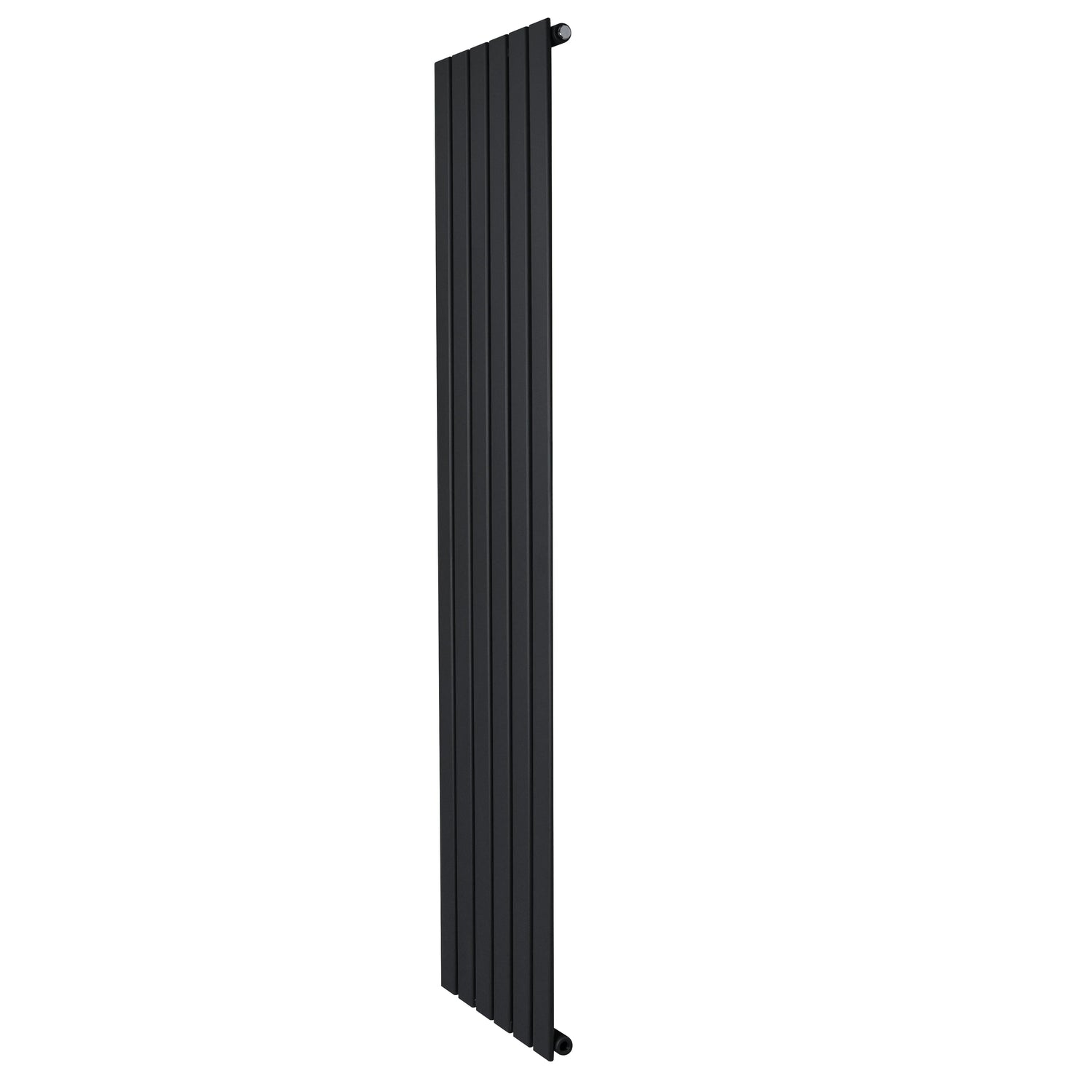

Flat Single Column Radiator 1800 x 420mm Black
- Order updates by email
- Secure checkout · sold by NEXTDAYUK LTD
About this product

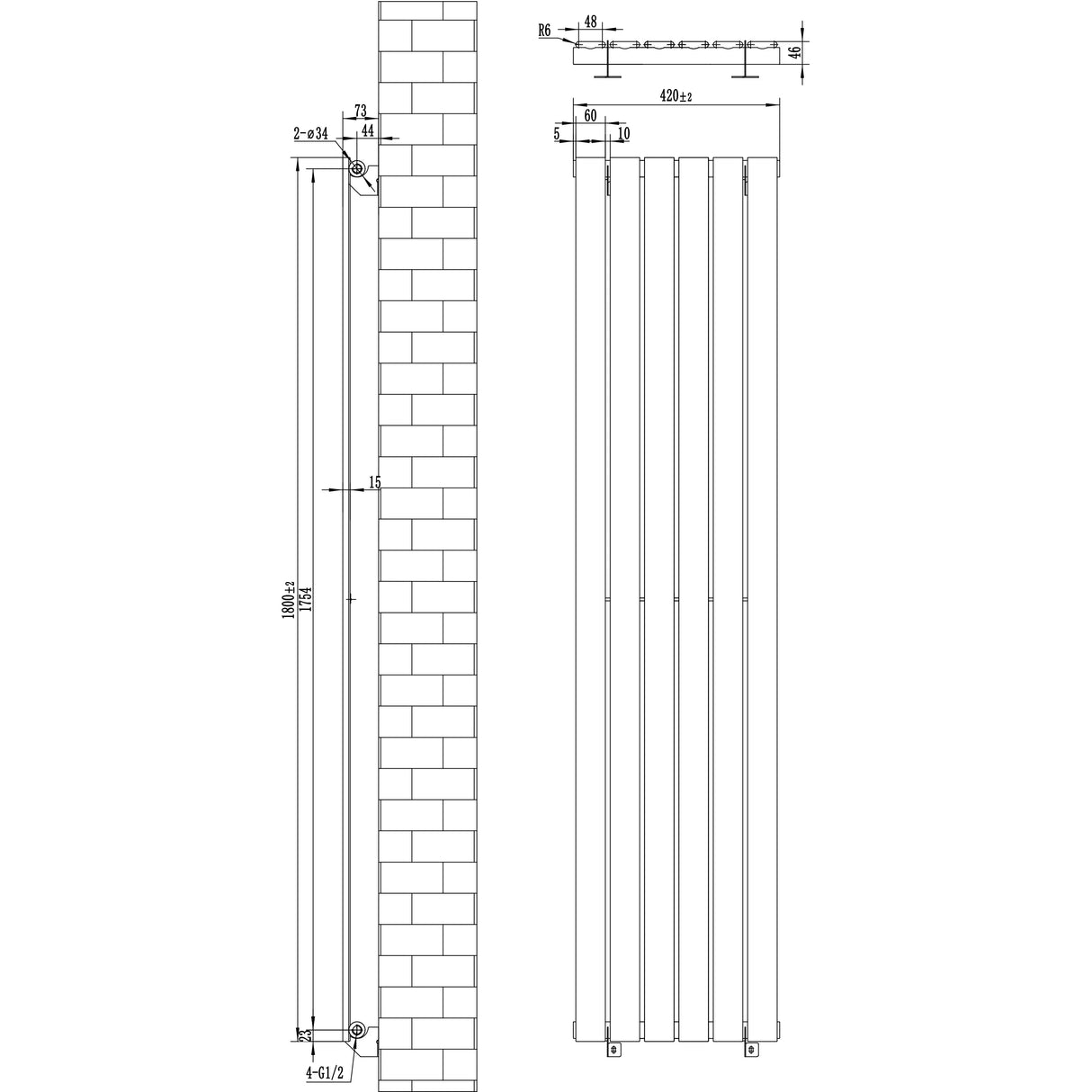

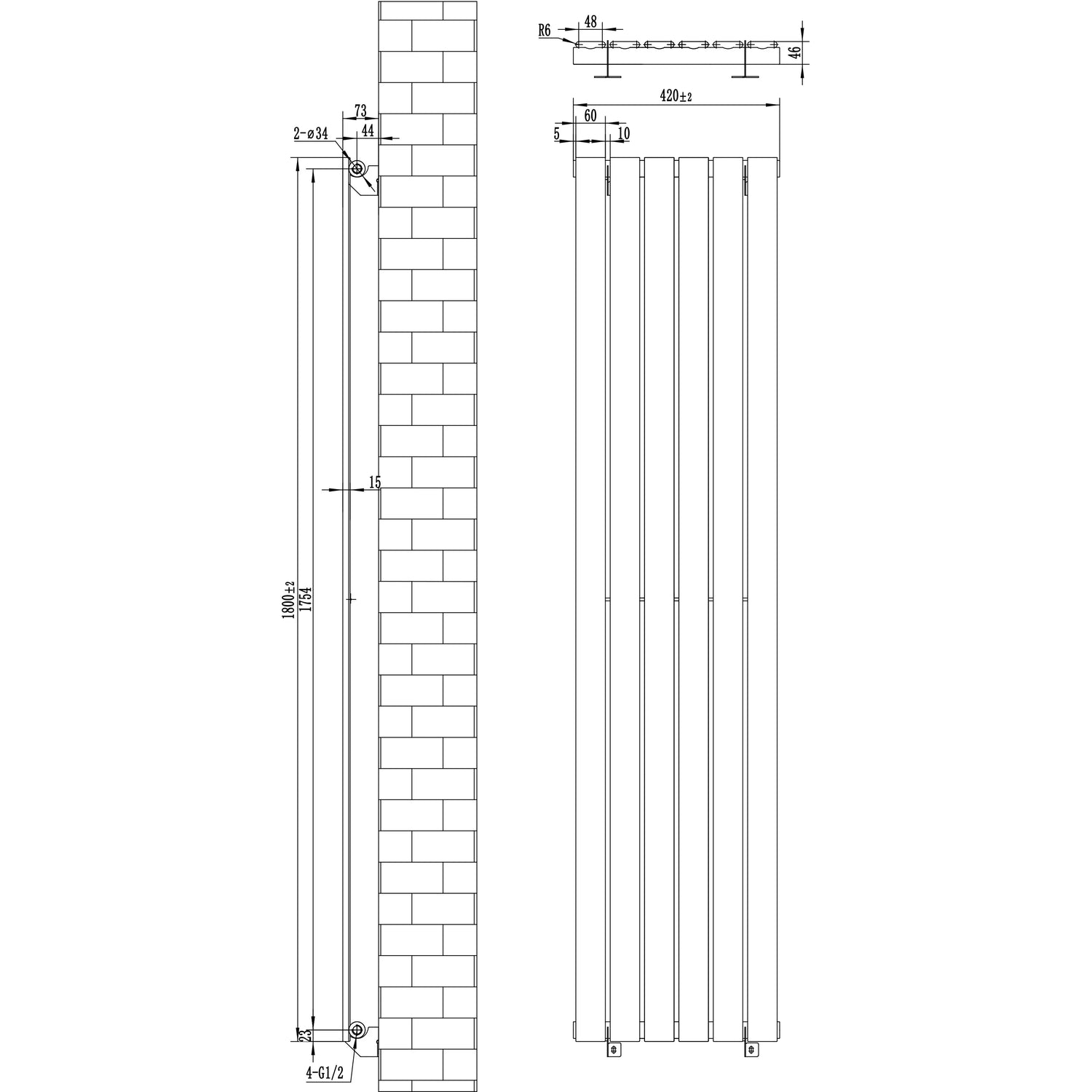

This black flat single column radiator is made from 1.5mm carbon steel and is suitable for UK and EU heating systems. It measures 180cm high, 42cm wide and 4.6cm deep, or 7.3cm deep with the brackets fitted.
The triple layered powder-coated finish is black. The radiator has a stated recommended application area of 11m², a maximum working temperature of 95°C, a maximum working pressure of 5 Bar and a test pressure of 6.5 Bar. Heat output is 2843 BTU at 50 and 3614 BTU at 60, with watt ratings of 833 at 50 and 1059 at 60.

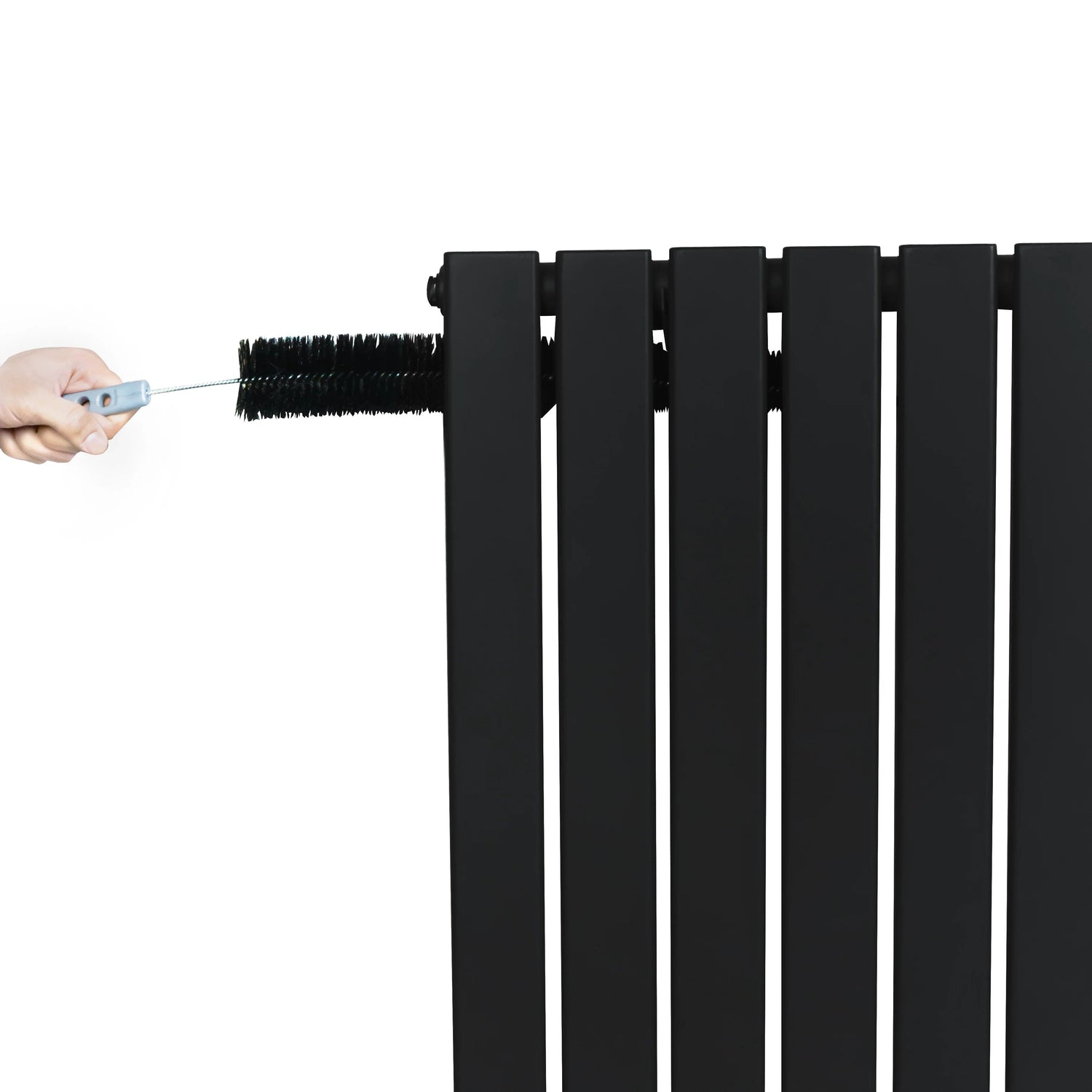

It has standard 0.5" BSP inlet and outlet bores. The valve-to-valve height is 175.4cm, and the distance from the wall to the centre of the inlet is 4.4cm. Four brackets, a fixing kit and a flexible cleaning brush are included.
Specifications
- Weight: 19.2kg
- Gap between tubes: 1cm
- Individual flat tube size: 60mm x 15mm
- Number of columns: 6
- 15-year guarantee
- Tested to BS EN 442 and ISO9001:2015 standards
- CE and UKCA certification
Box contents
- 1 x Flat single column radiator
- 4 x Secure brackets
- 1 x Fixing kit
- 1 x Flexible cleaning brush
Specification
- Certification
- BS EN 442 & CE
- Colour
- Black
- Finish
- Powder Coated & Powder Coated (Triple Layered Powder Coating)
- Heats Area (m²)
- 11 m²
- Height
- 180 cm
- Material
- Carbon Steel & Carbon Steel (1.5mm Carbon Steel)
- Number Of Columns
- 6
- Valve-To-Valve Height
- 175.4 cm
- Weight
- 19.2 kg
- Guarantee
- 15 Years
