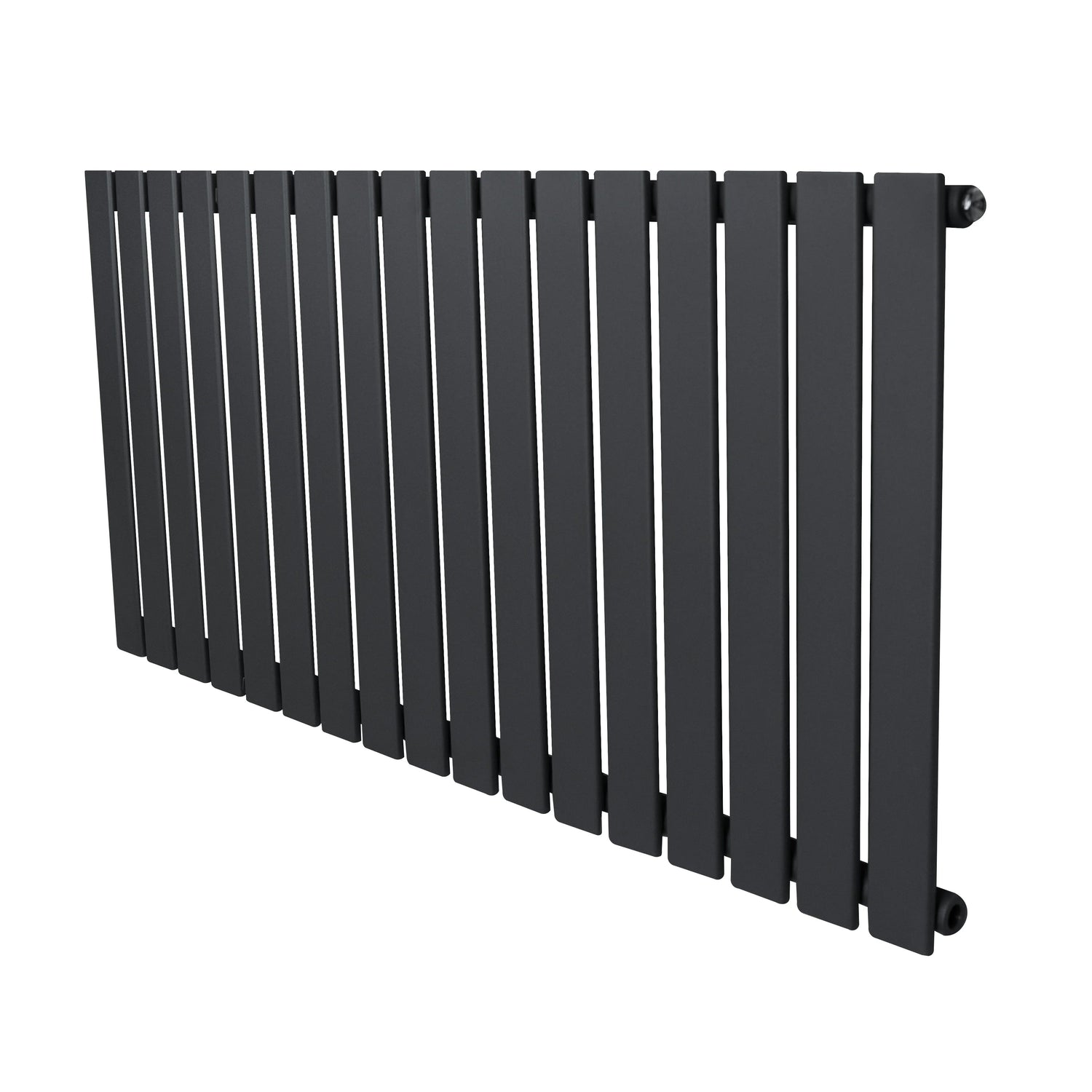

Flat Single Column Radiator 600 x 1190mm Anthracite Grey

About this product

This flat single column radiator is 60cm high and 119cm wide, with an anthracite grey finish and a chrome thermostatic valve set. It suits UK and EU heating systems and connects through standard 0.5 inch BSP inlets and outlets.

Made from 1.5mm carbon steel, it has a triple layered powder-coated finish, 17 columns and flat tubes measuring 60 x 15mm. The radiator is 4.6cm deep, increasing to 7.3cm with the brackets fitted. Its recommended application area is 11m².

Heat output is rated at 2,918 BTU and 855W at 50, or 3,685 BTU and 1,080W at 60. The maximum working temperature is 95°C, maximum working pressure is 5 bar and test pressure is 6.5 bar.

The angled thermostatic valves have a rotary knob and a 6 to 28°C temperature range. The valve set has a maximum pressure of 12 bar, maximum flow temperature of 100°C and nominal flow rate of 2.8L/m. Fixings, four brackets and a flexible cleaning brush are included.

Specifications
- Colour: Anthracite Grey
- Weight: 19.6kg

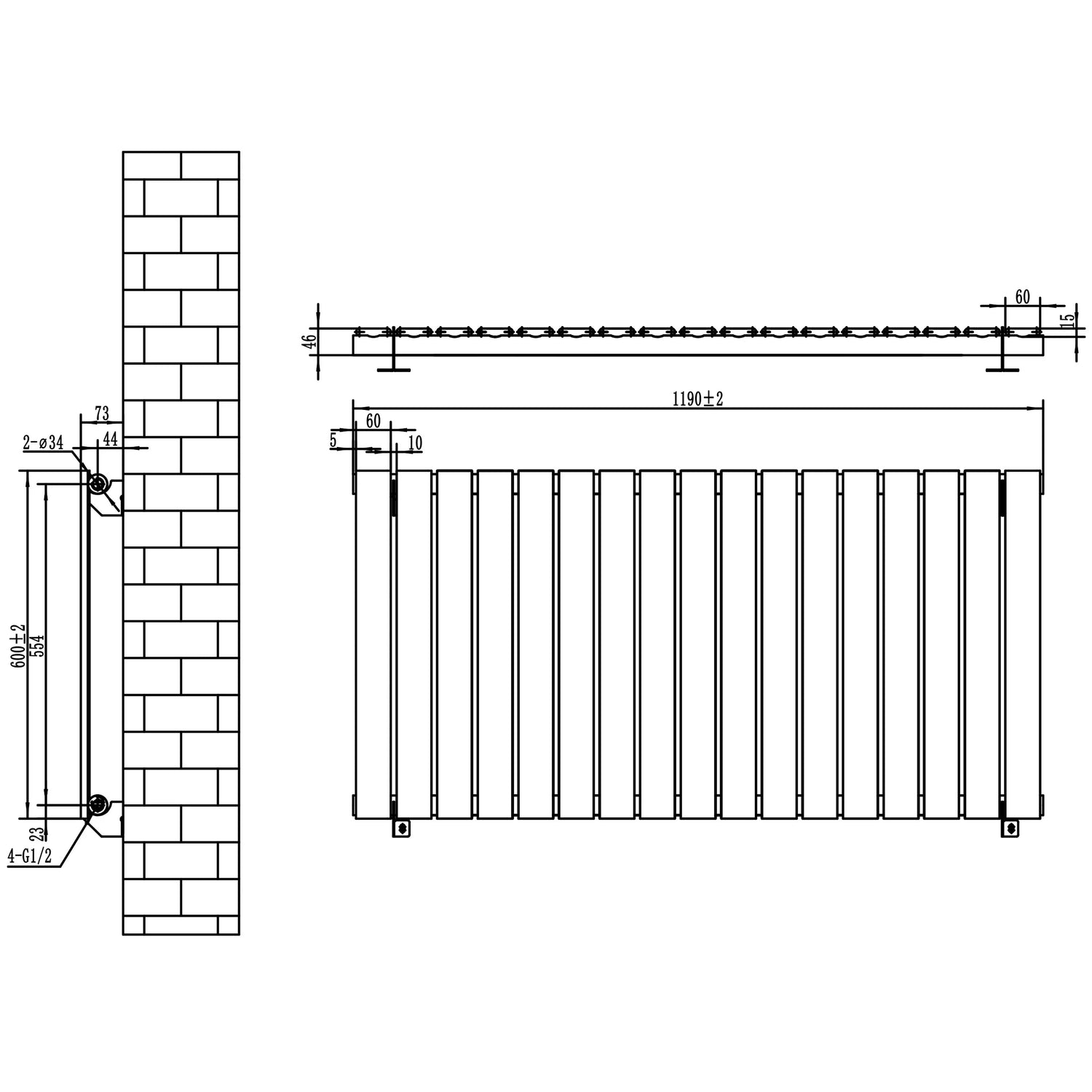

- Valve-to-valve height: 54.9cm
- Distance from wall to centre of inlet: 4.4cm
- Gap between tubes: 1cm
- Certification and testing: CE, UKCA, BS EN 442 and ISO9001:2015 standards

Box contents
- 1 x flat single column radiator
- 4 x secure brackets
- 1 x fixing kit

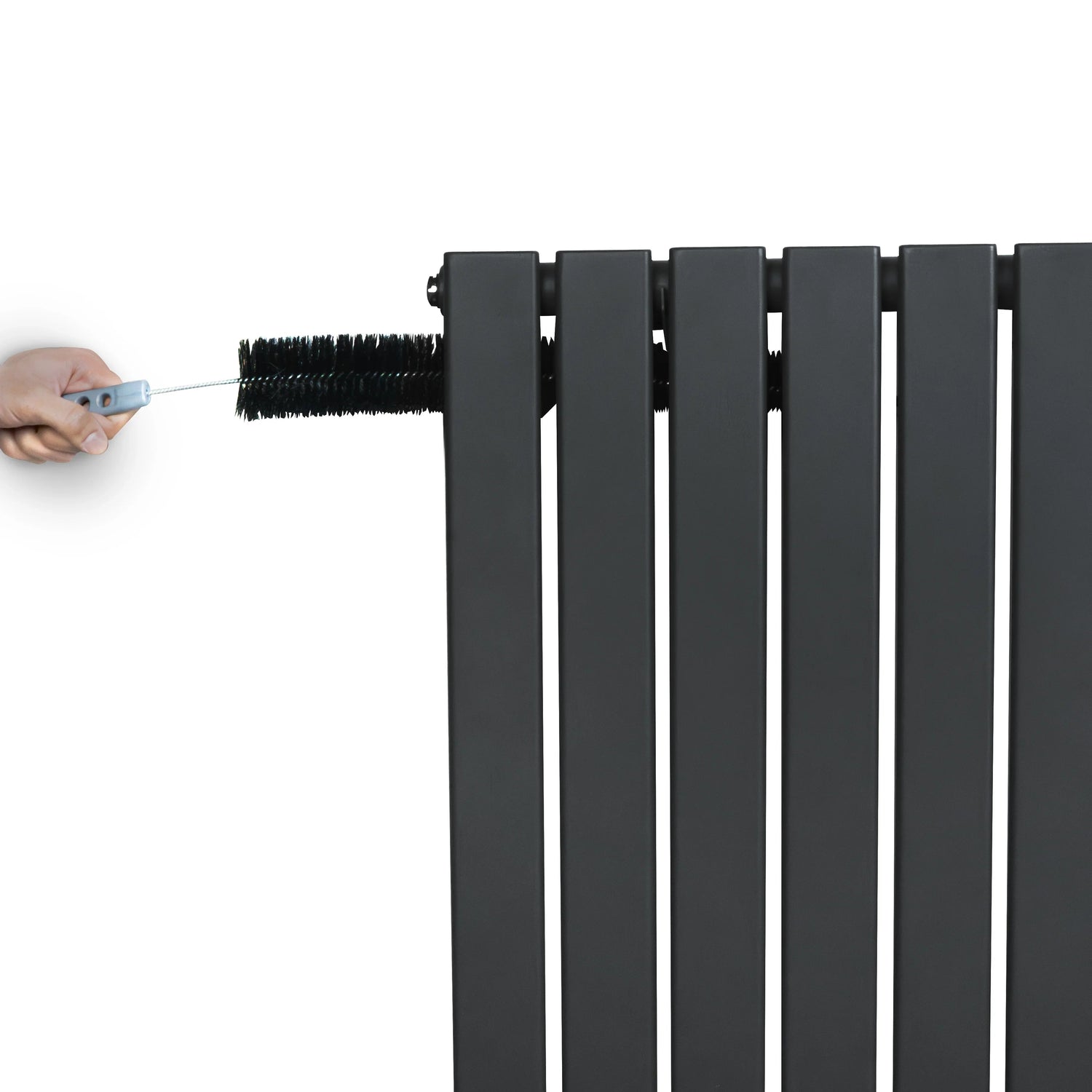

- 1 x flexible cleaning brush
- 1 x thermostatic valve set
