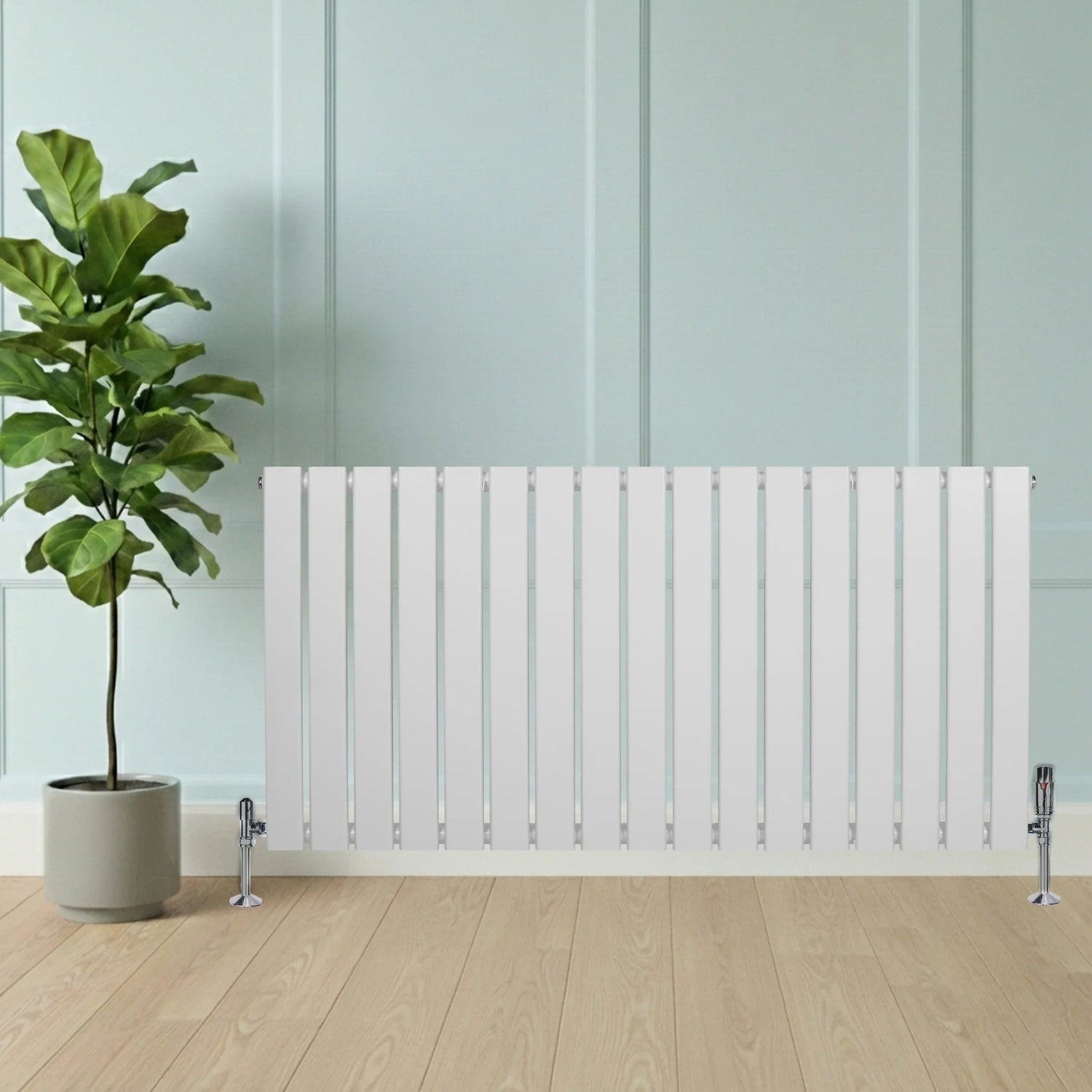

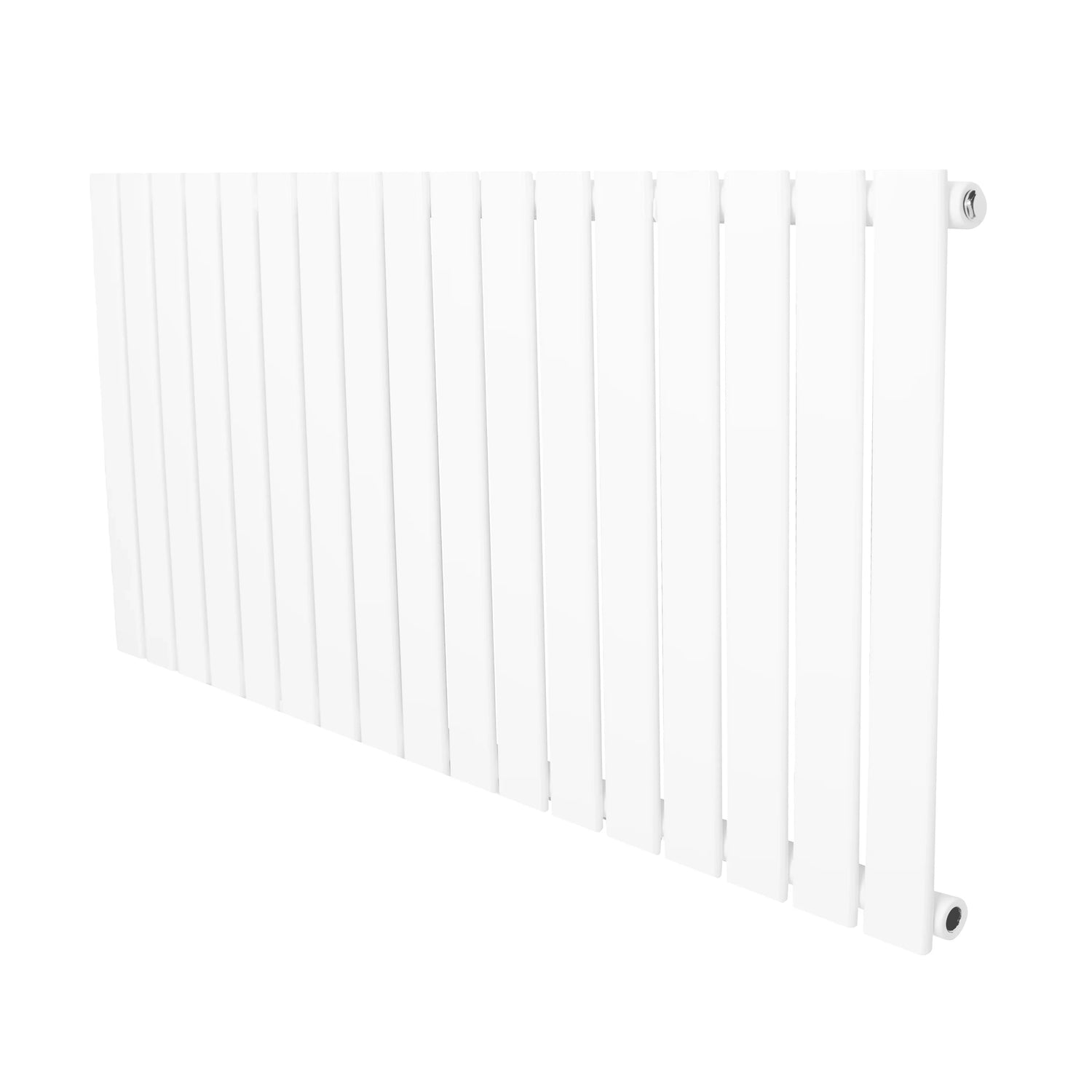

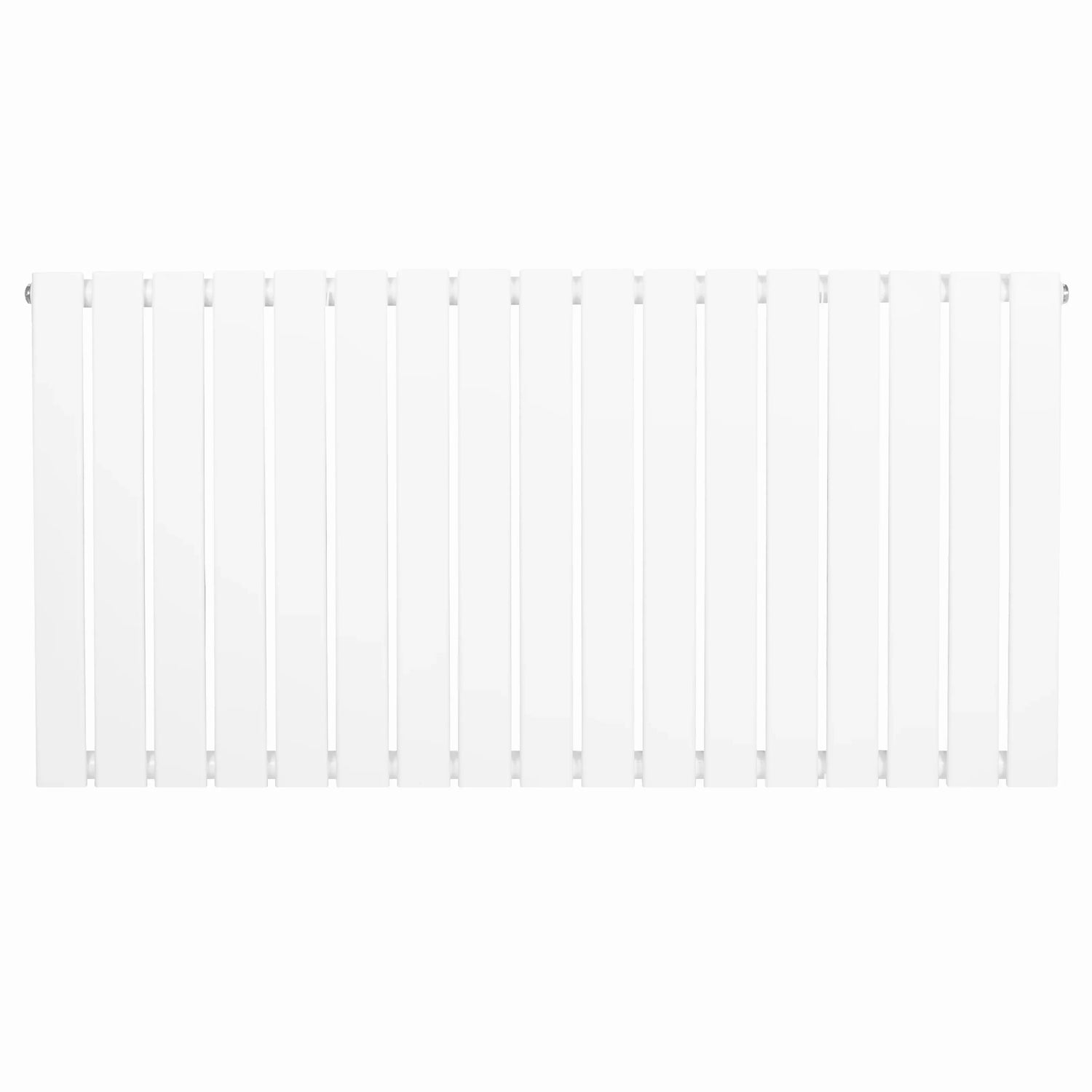

Flat Single Column Radiator 600 x 1190mm White

About this product

This flat single column radiator is made from 1.5mm carbon steel and supplied in white with an angled chrome thermostatic valve set. It suits UK and EU heating systems with a standard 0.5" BSP bore connection.

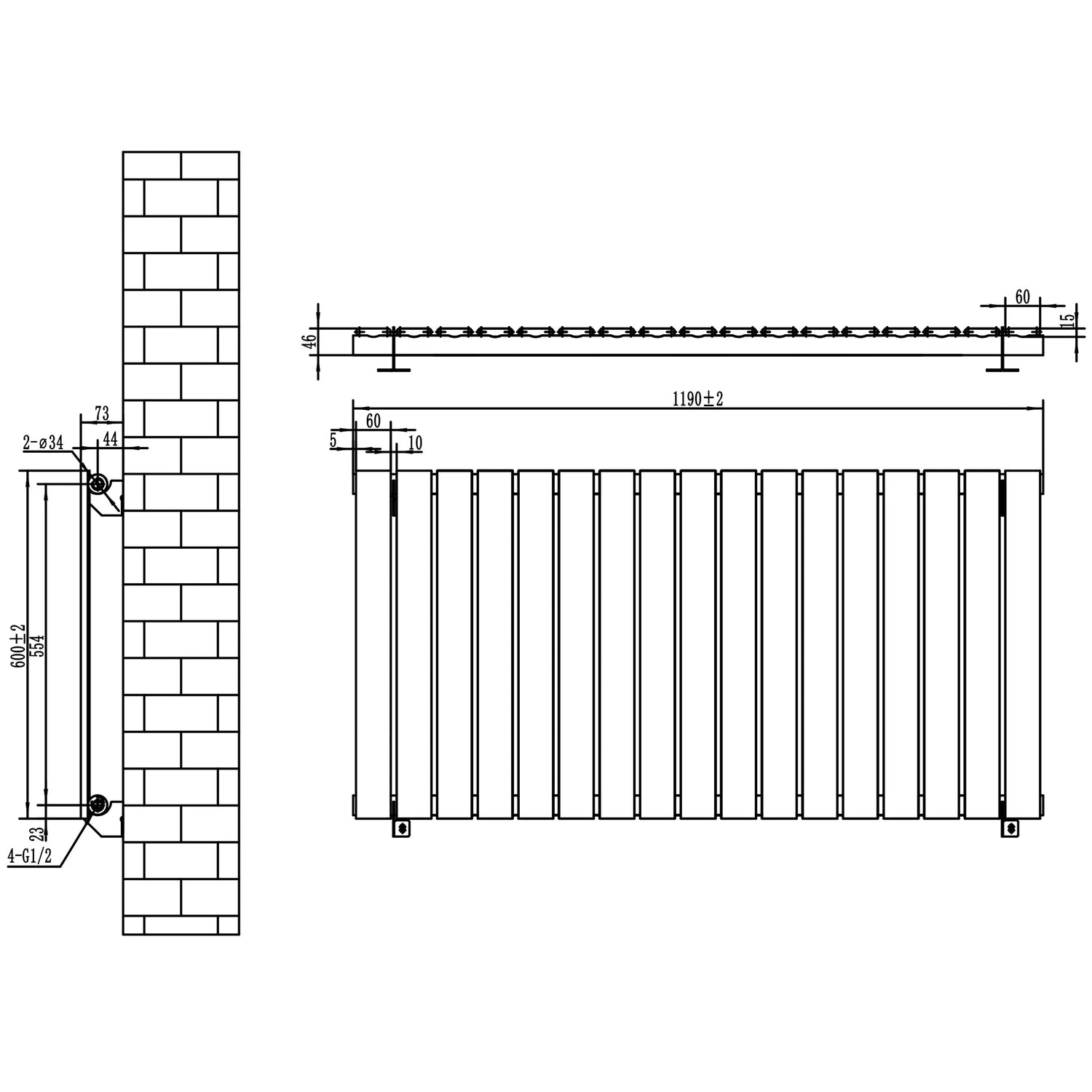

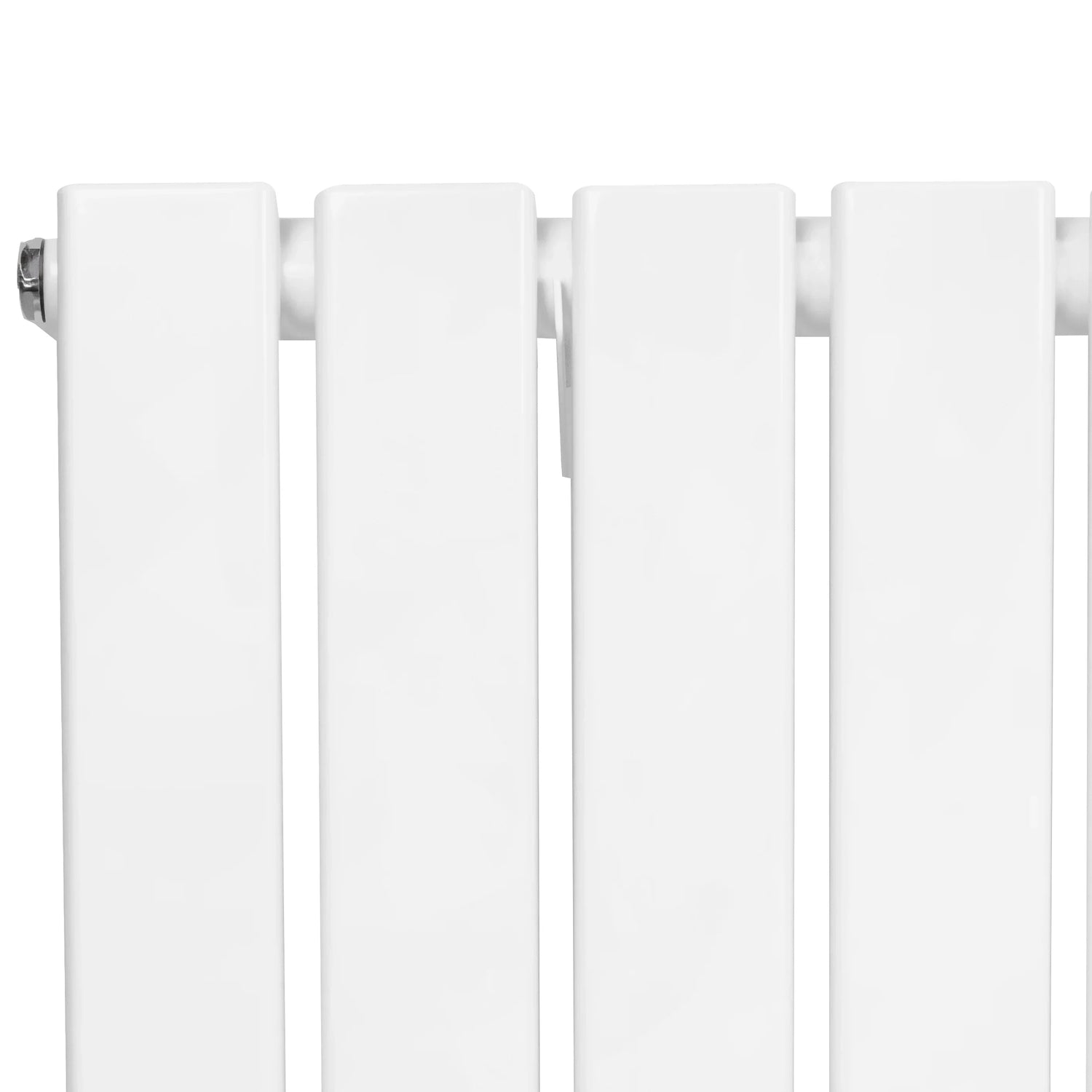

The radiator has 17 columns and a triple layered powder-coated finish. It measures 60cm high, 119cm wide and 4.6cm deep, or 7.3cm deep with the bracket fitted. The recommended application area is 11m². Maximum working temperature is 95°C, with a maximum working pressure of 5 bar and a 6.5 bar test pressure.

The included valves have a rotary knob, a thermostatic control range of 6 to 28 degrees, a maximum pressure of 12 bar and a maximum flow temperature of 100 degrees. Their nominal flow rate is 2.8 L, with a 5.08cm x 1.5cm connection.

Specifications
- Heat output: 2918 BTU at 50, 3685 BTU at 60
- Power rating: 855W at 50, 1080W at 60
- Weight: 19.6kg
- Gap between tubes: 1cm
- Distance from wall to centre of inlet: 4.4cm
- Valve-to-valve height: 54.9cm
- Individual flat tube size: 60mm x 15mm
- Standards: BS EN 442 and ISO9001:2015
- Certification: CE and UKCA

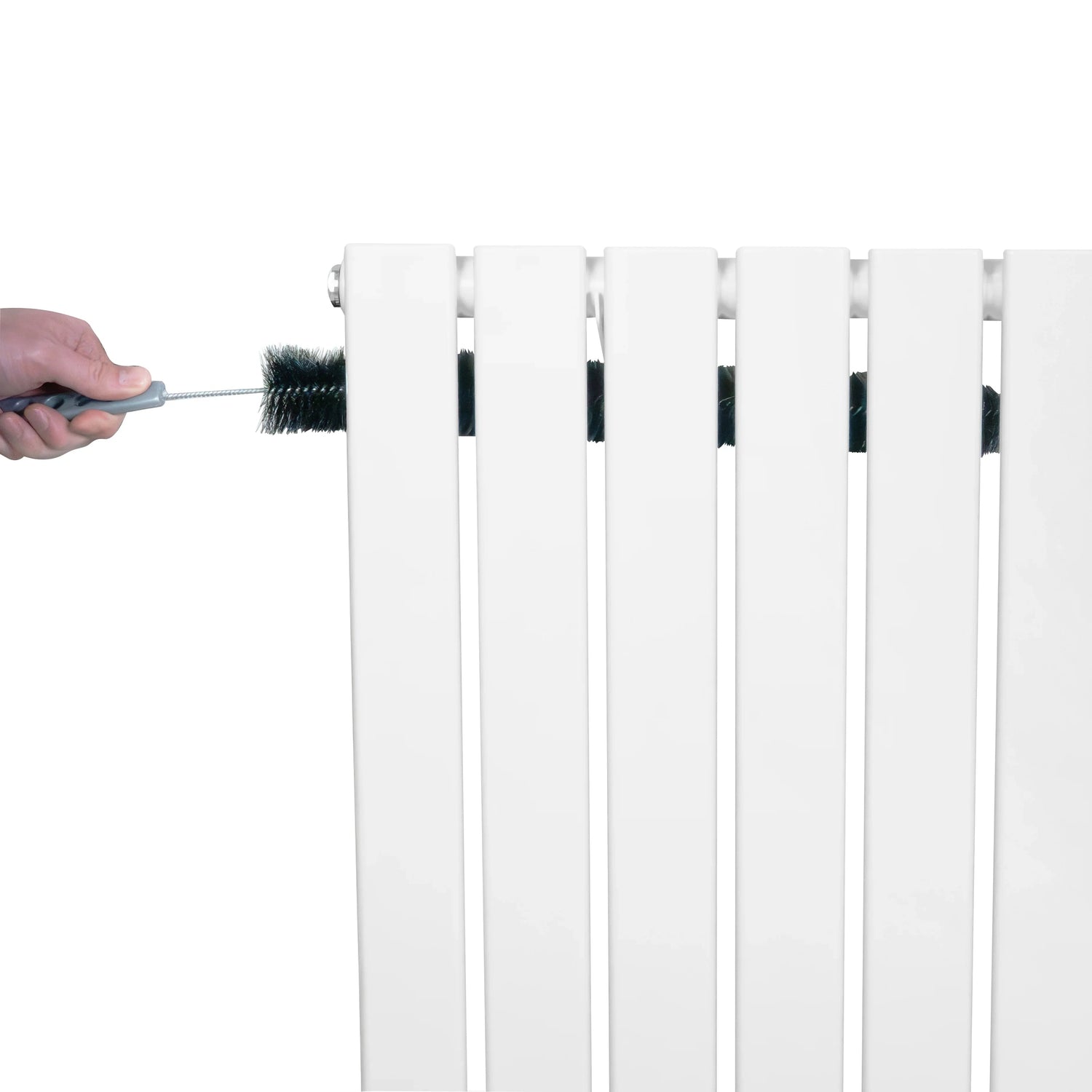

The box contains the radiator, four brackets, a fixing kit, a flexible cleaning brush and one thermostatic valve set.
