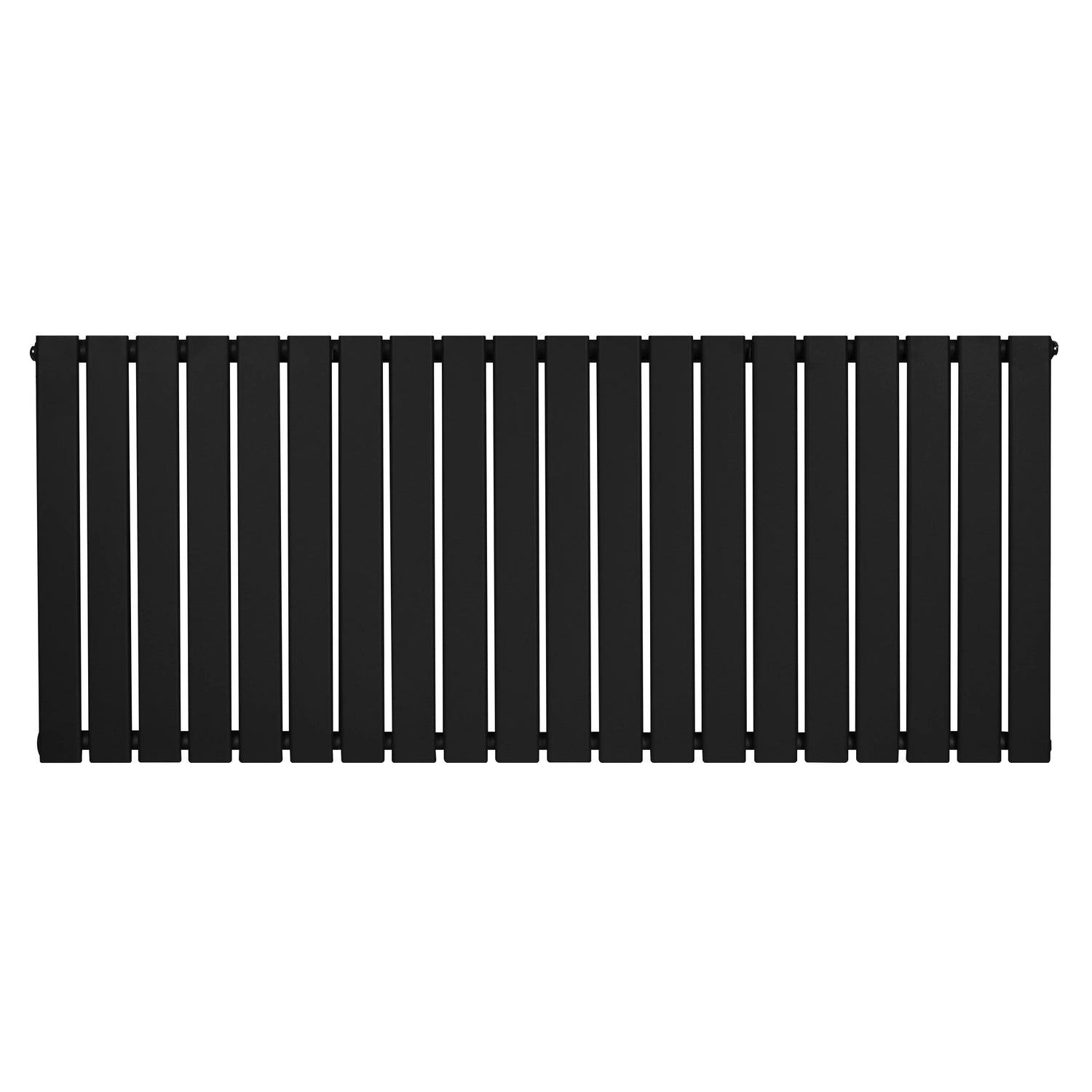

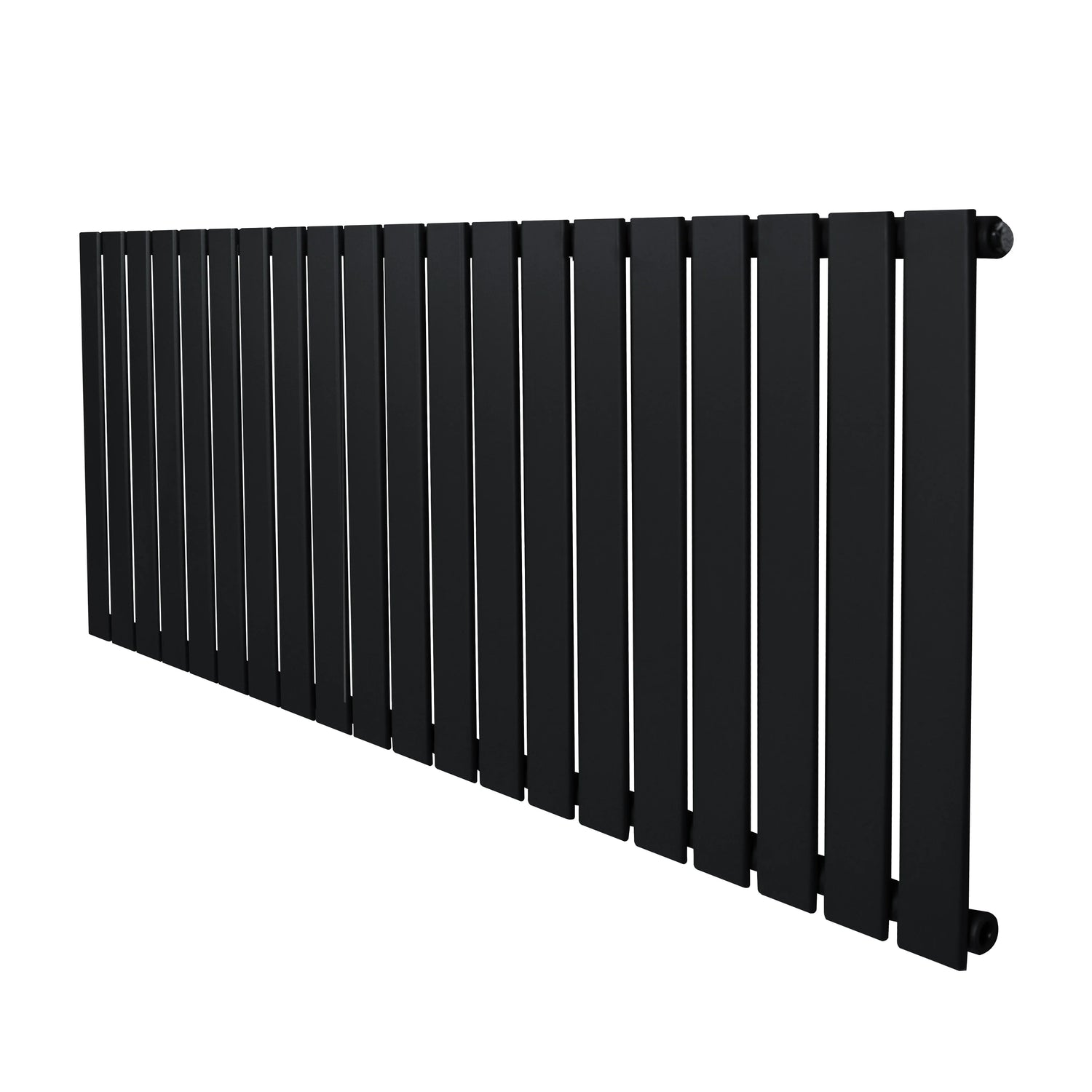

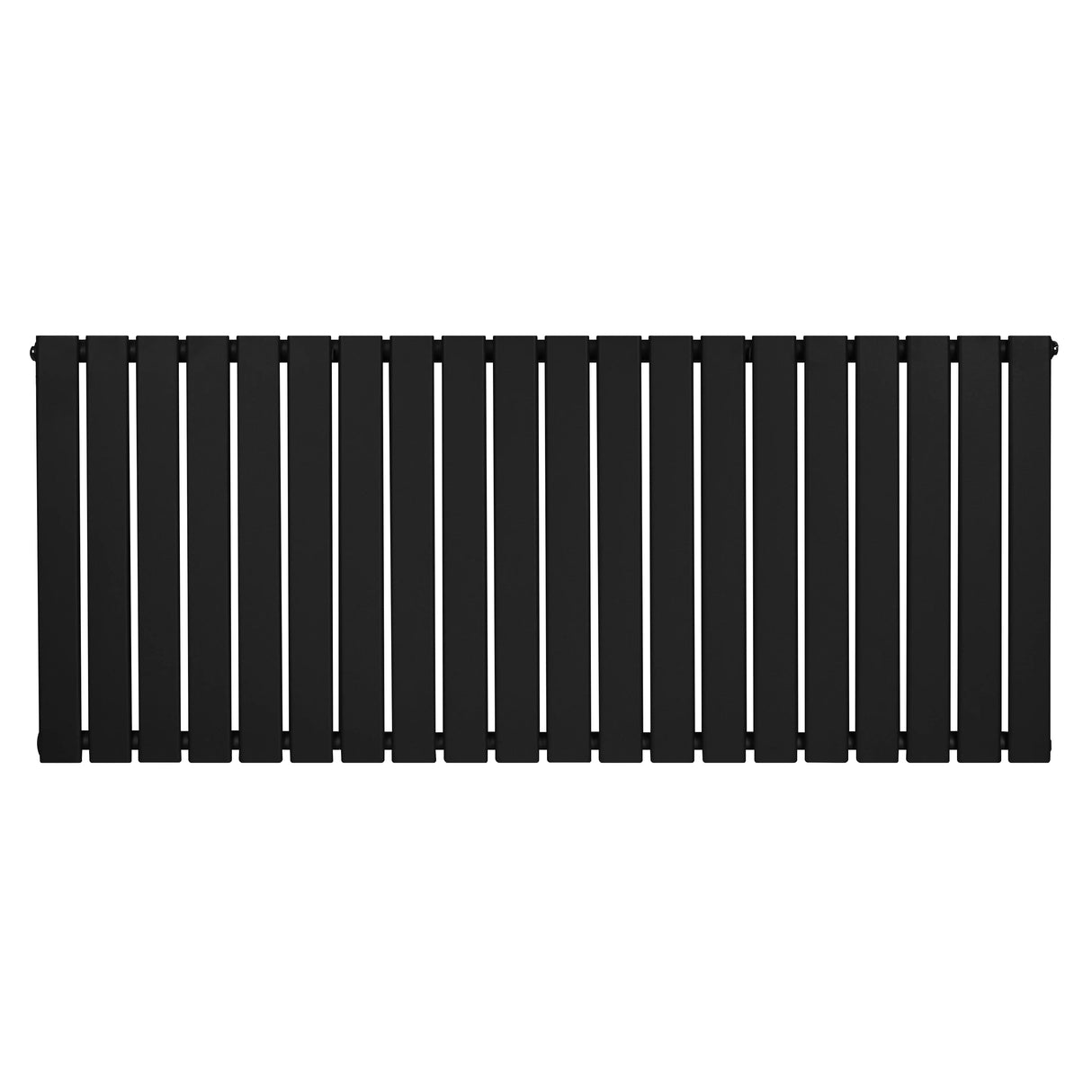

Flat Single Column Radiator 600 x 1400mm, Black

About this product

This black flat single column radiator is supplied with an angled thermostatic chrome valve set. It suits UK and EU heating systems and has a 20-column design with a triple layered powder-coated finish.

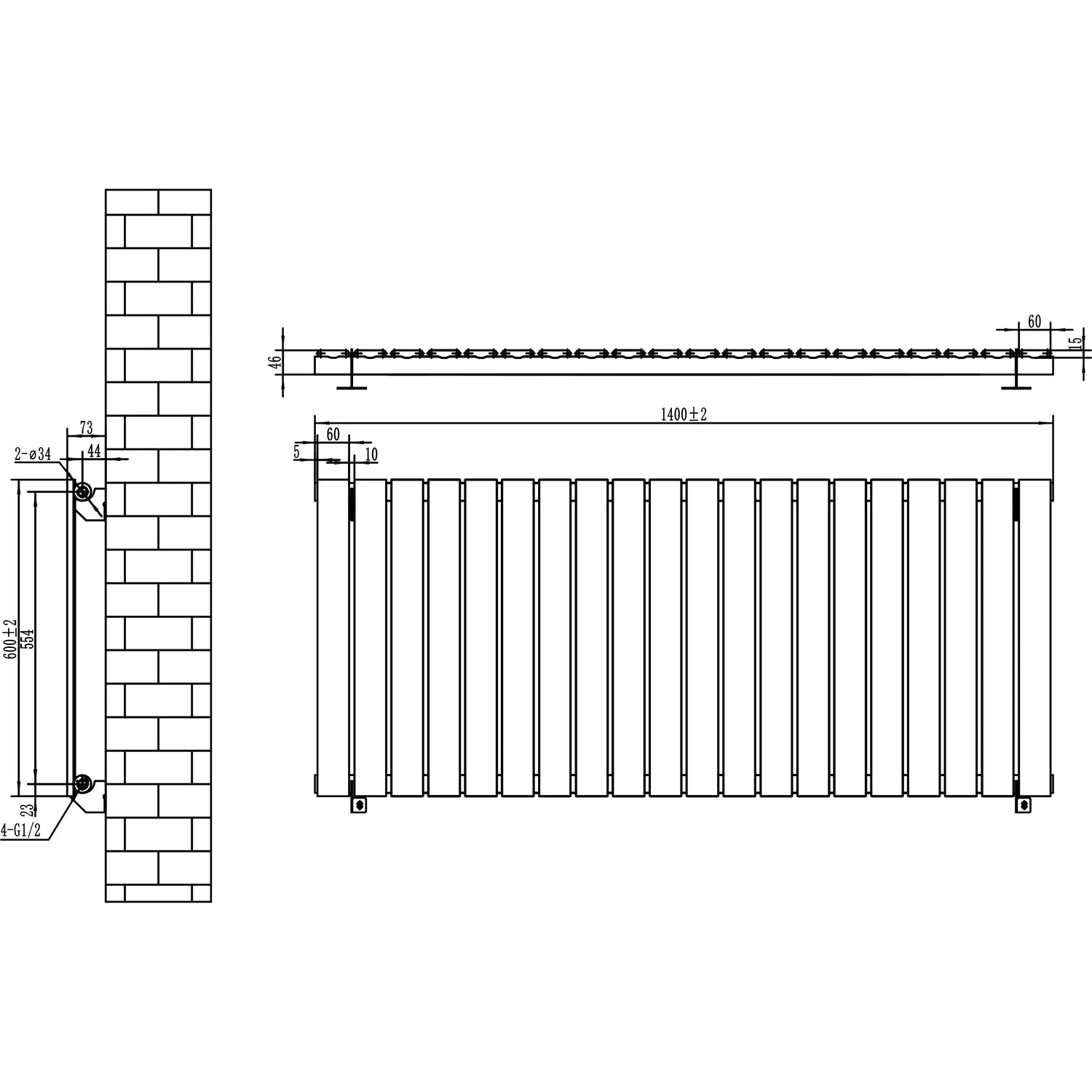

Made from 1.5mm carbon steel, the radiator measures 60cm high and 140cm wide. It has a radiator depth of 4.6cm, or 7.3cm including the brackets. The recommended application area is 13m². Heat output is rated at 3433 BTU at 50 and 4335 BTU at 60, with watt ratings of 1006 at 50 and 1270 at 60.

The radiator has standard 0.5 inch BSP inlets and outlets, with a 4.4cm distance from the wall to the centre of the inlet and a 54.9cm valve-to-valve height. It is tested to BS EN 442 and ISO9001:2015 standards, with CE and UKCA certification. The radiator has a 15-year guarantee.

The angled thermostatic valves have a rotary knob and a temperature range of 6 to 28 degrees. The valve set has a 10-year guarantee and connects at 5.08cm x 1.5cm.

Specifications

• Colour: Black
• Weight: 22.8kg
• Maximum working temperature: 95°C
• Maximum working pressure: 5 bar
• Test pressure: 6.5 bar
• Gap between tubes: 1cm
• Valve nominal flow rate: 2.8L/m

Box contents

• 1 x flat single column radiator
• 4 x secure brackets
• 1 x fixing kit

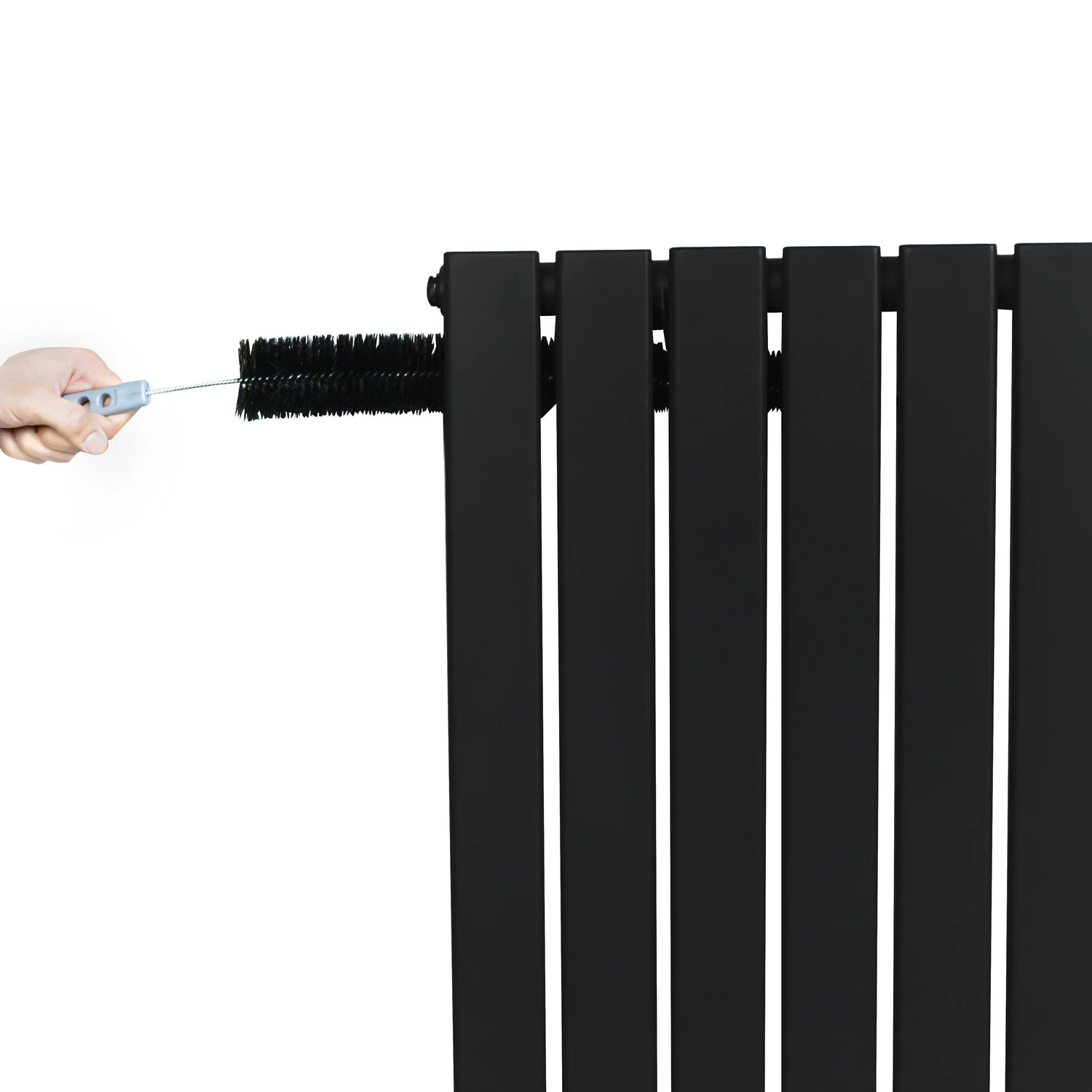

• 1 x flexible cleaning brush
• 1 x thermostatic valve set
