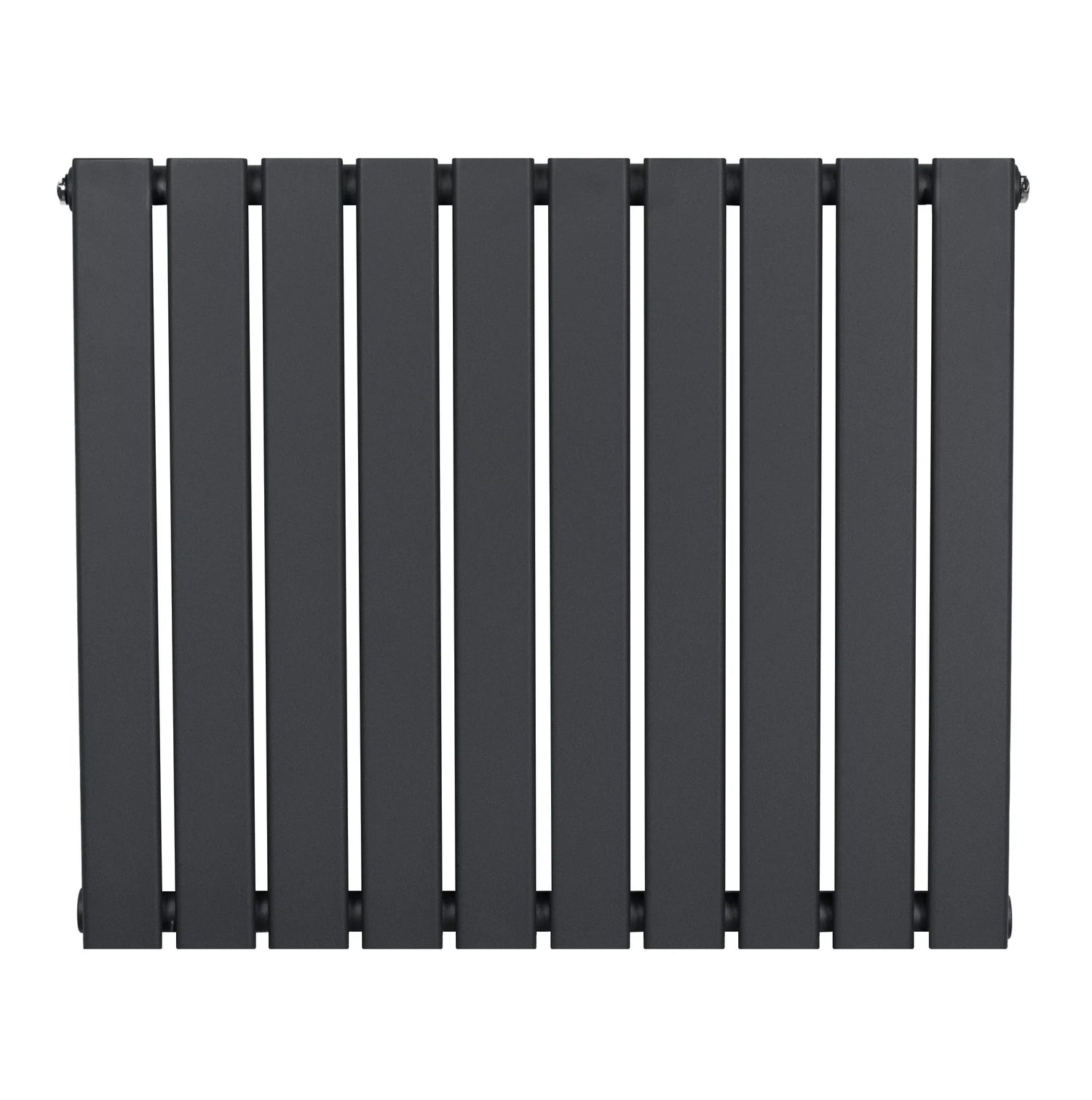

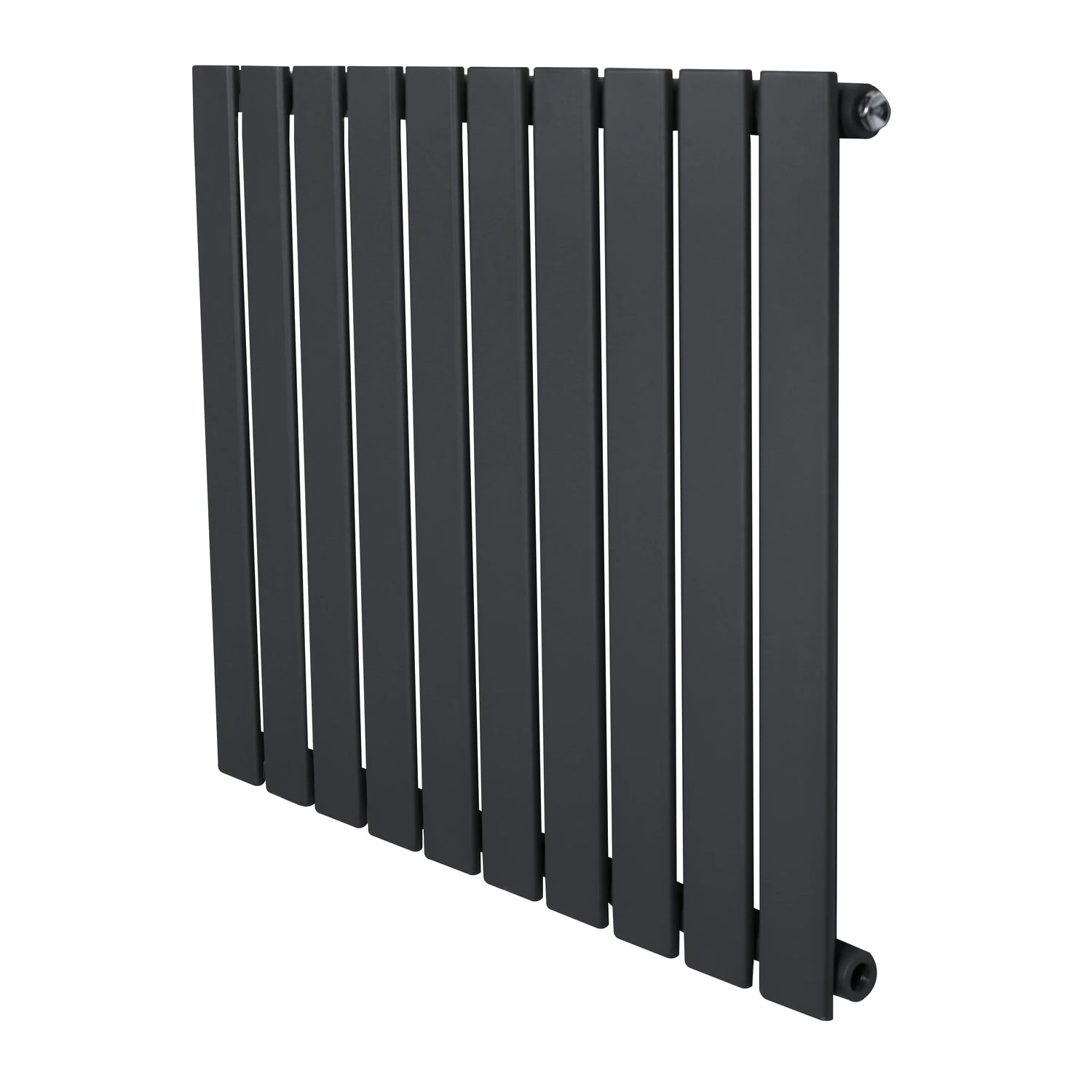

Flat Single Column Radiator 600 x 700mm Anthracite Grey

About this product

This flat single column radiator is 600mm high and 700mm wide, with an anthracite grey finish and a thermostatic chrome valve set. It suits UK and EU heating systems and is supplied with the fittings needed for installation.

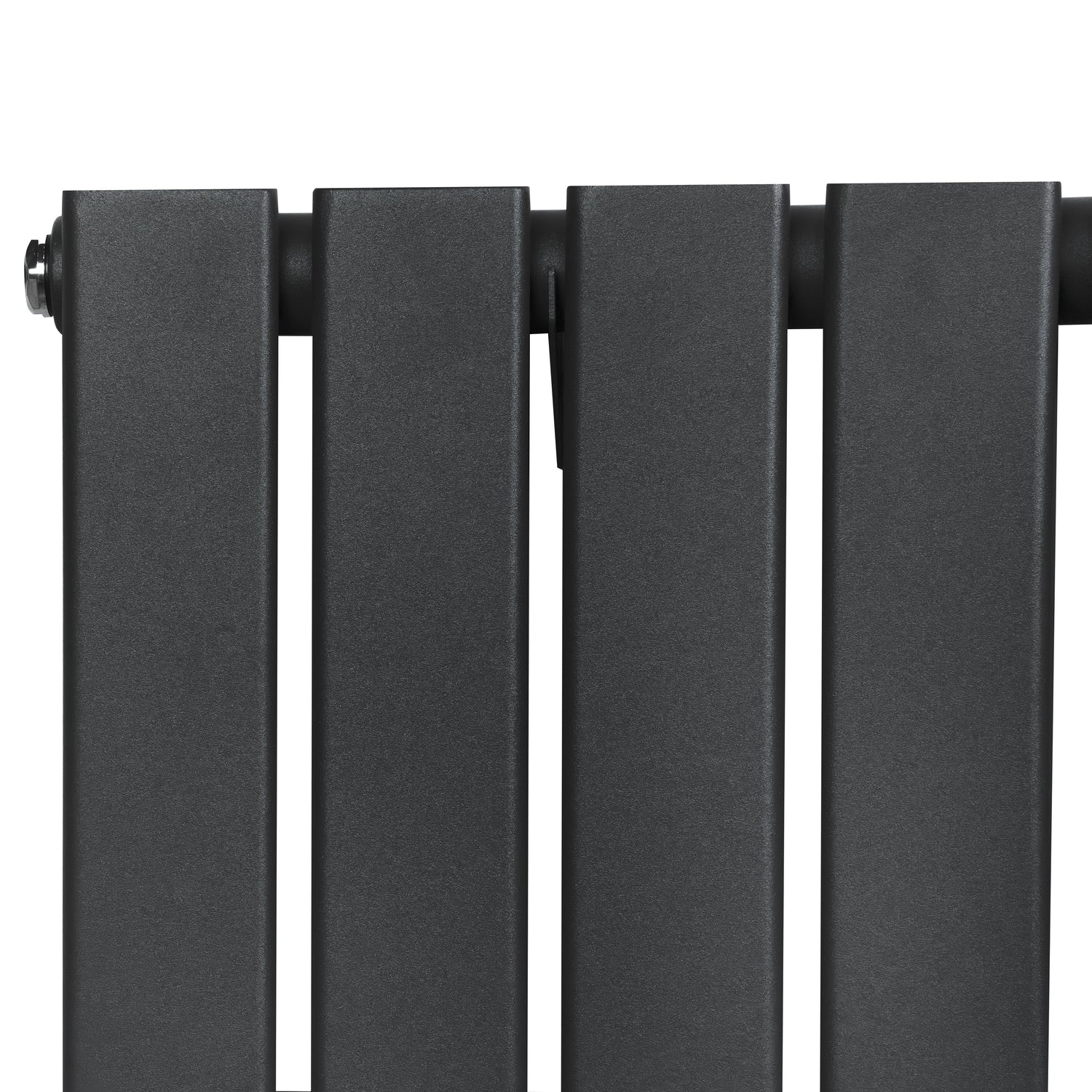

The radiator is made from 1.5mm carbon steel with a triple layered powder coated finish. It has 10 columns, a 4.6cm radiator depth and a 7.3cm depth with the brackets fitted. The tubes have a 1cm gap between them. Its recommended application area is 6m².

The angled thermostatic valves use a rotary knob and have a temperature range of 6 to 28 degrees. The set includes a thermostatic valve and lock shield valve, with a 10-year guarantee. The radiator has a 15-year guarantee.

Specifications
- Colour: Anthracite Grey
- Weight: 11.5kg
- Maximum working temperature: 95°C
- Maximum working pressure: 5 Bar
- Test pressure: 6.5 Bar
- Standard inlet and outlet: 0.5" BSP bore

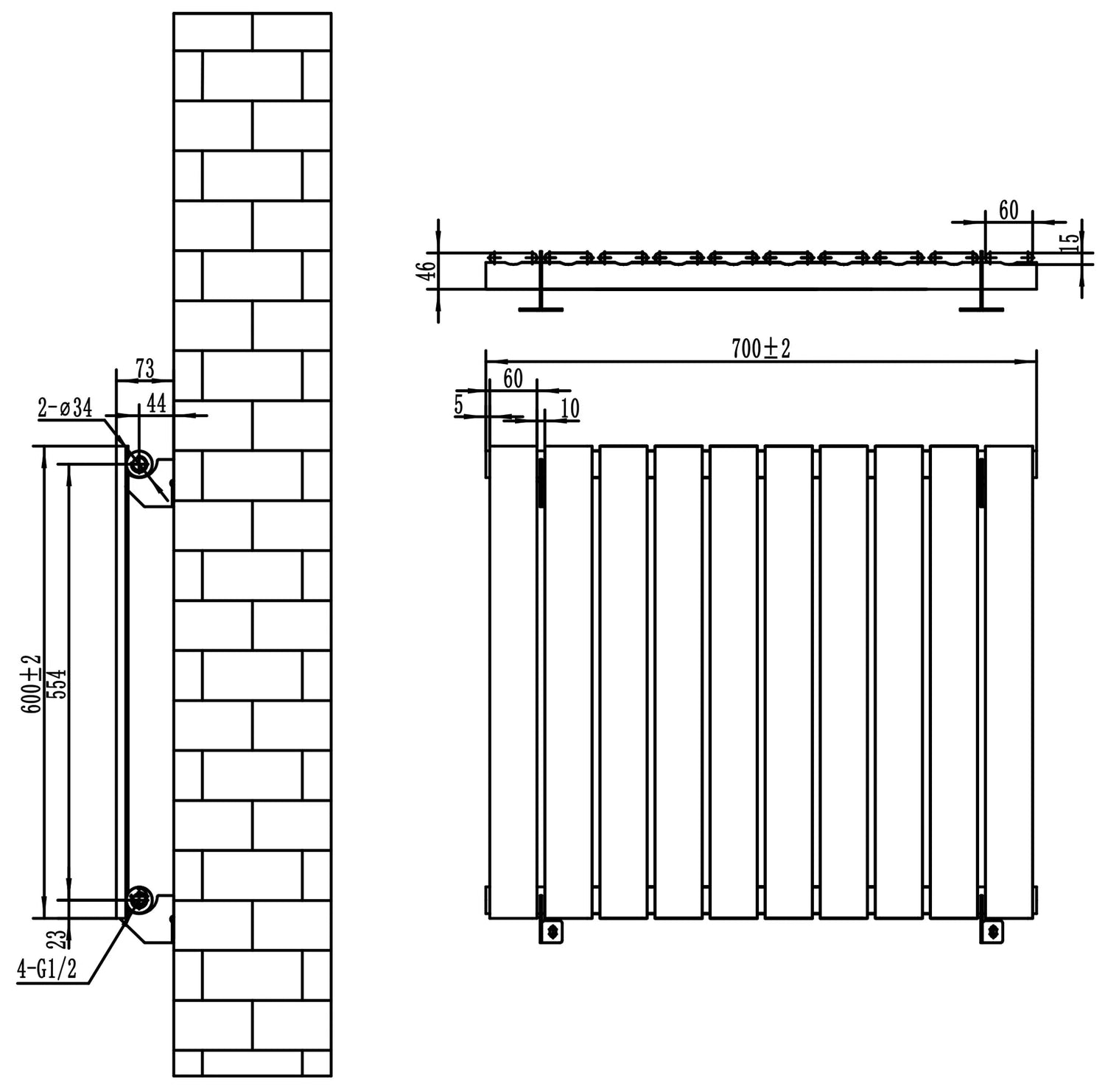

- Valve-to-valve height: 54.9cm
- Distance from wall to centre of inlet: 4.4cm
- Testing: BS EN 442 and ISO9001:2015 Standards
- Certification: CE and UKCA

Box contents
- 1 x flat single column radiator
- 4 x secure brackets
- 1 x fixing kit

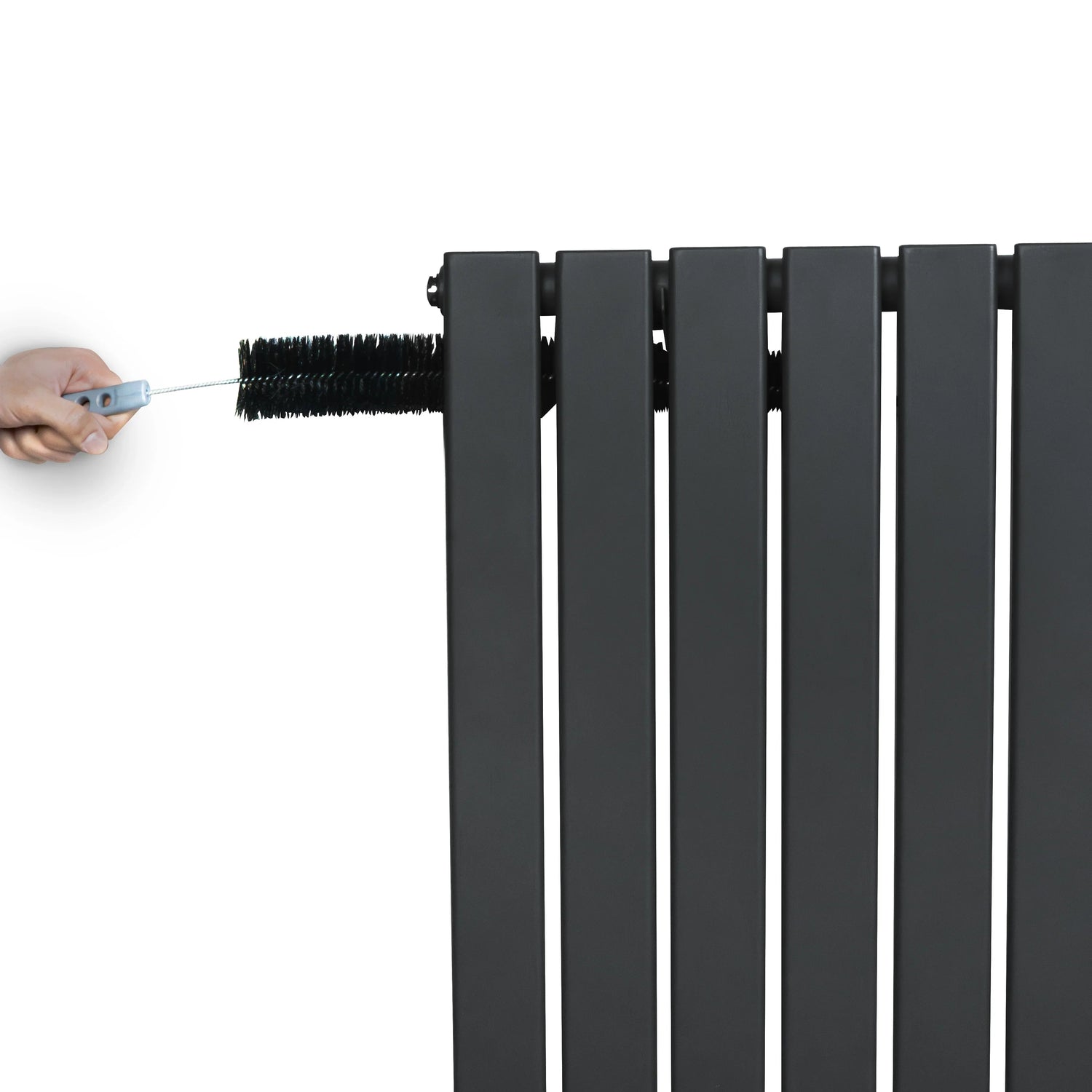

- 1 x flexible cleaning brush
- 1 x thermostatic valve set
