Flat Single Column Radiator 600 x 700mm Black

About this product

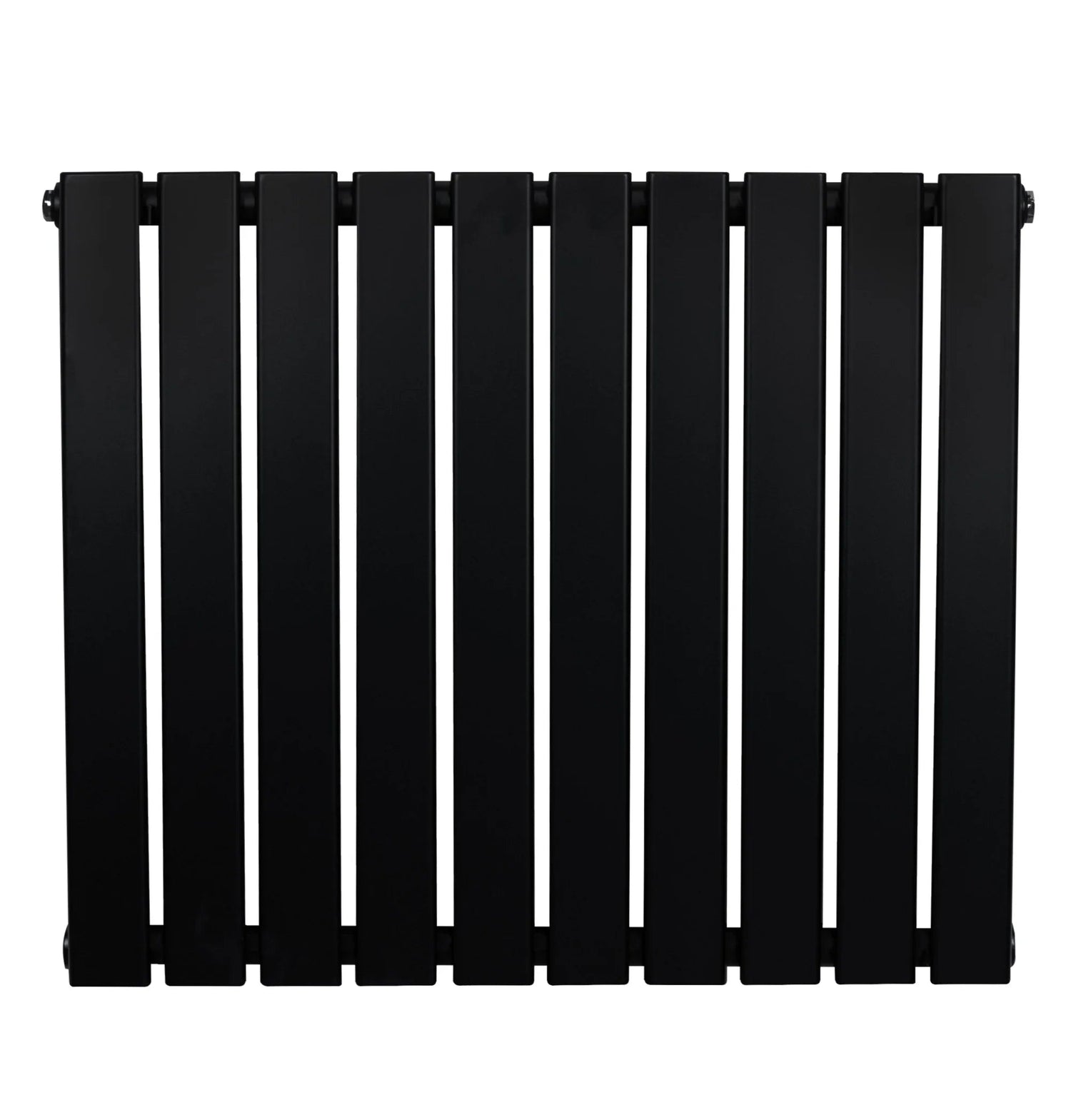

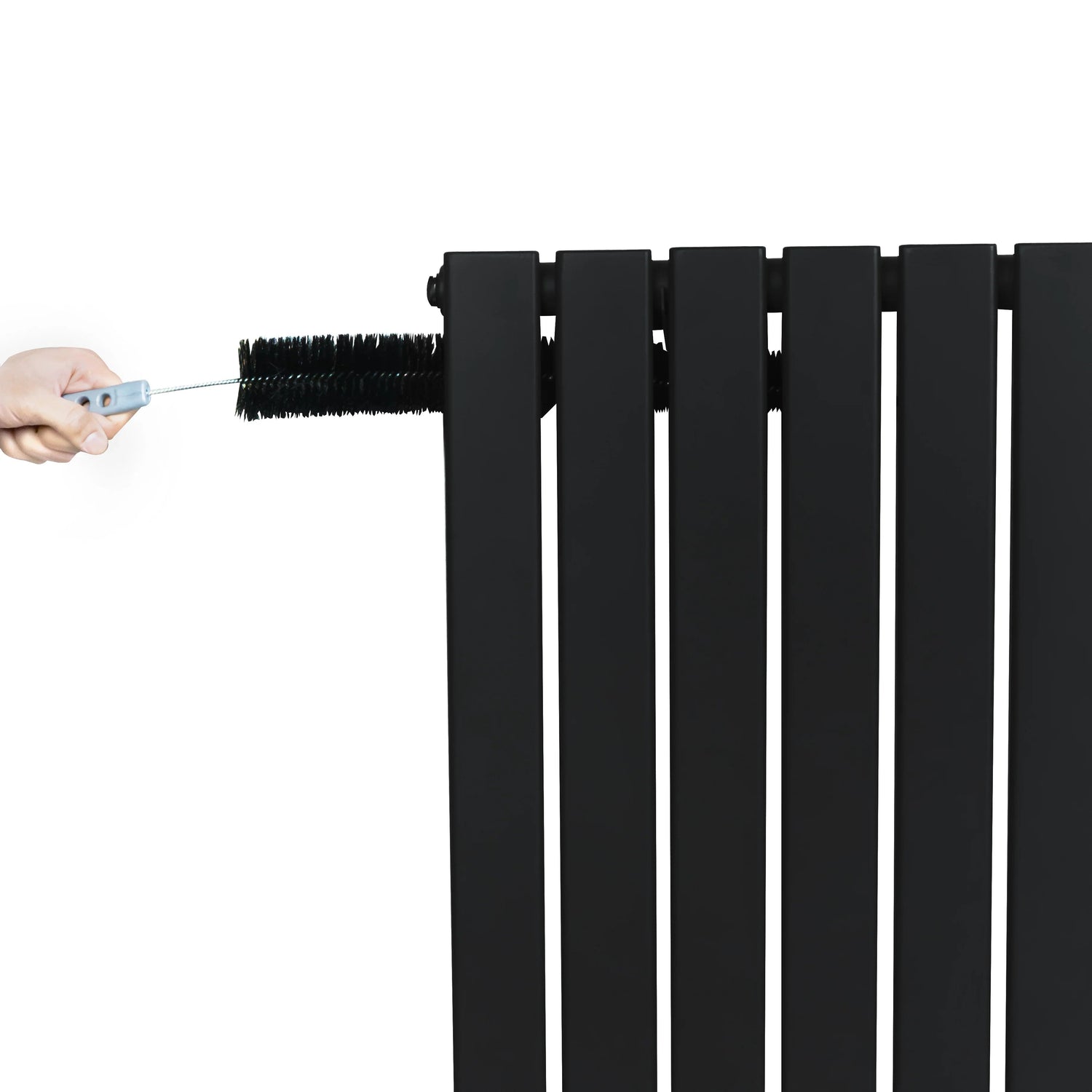

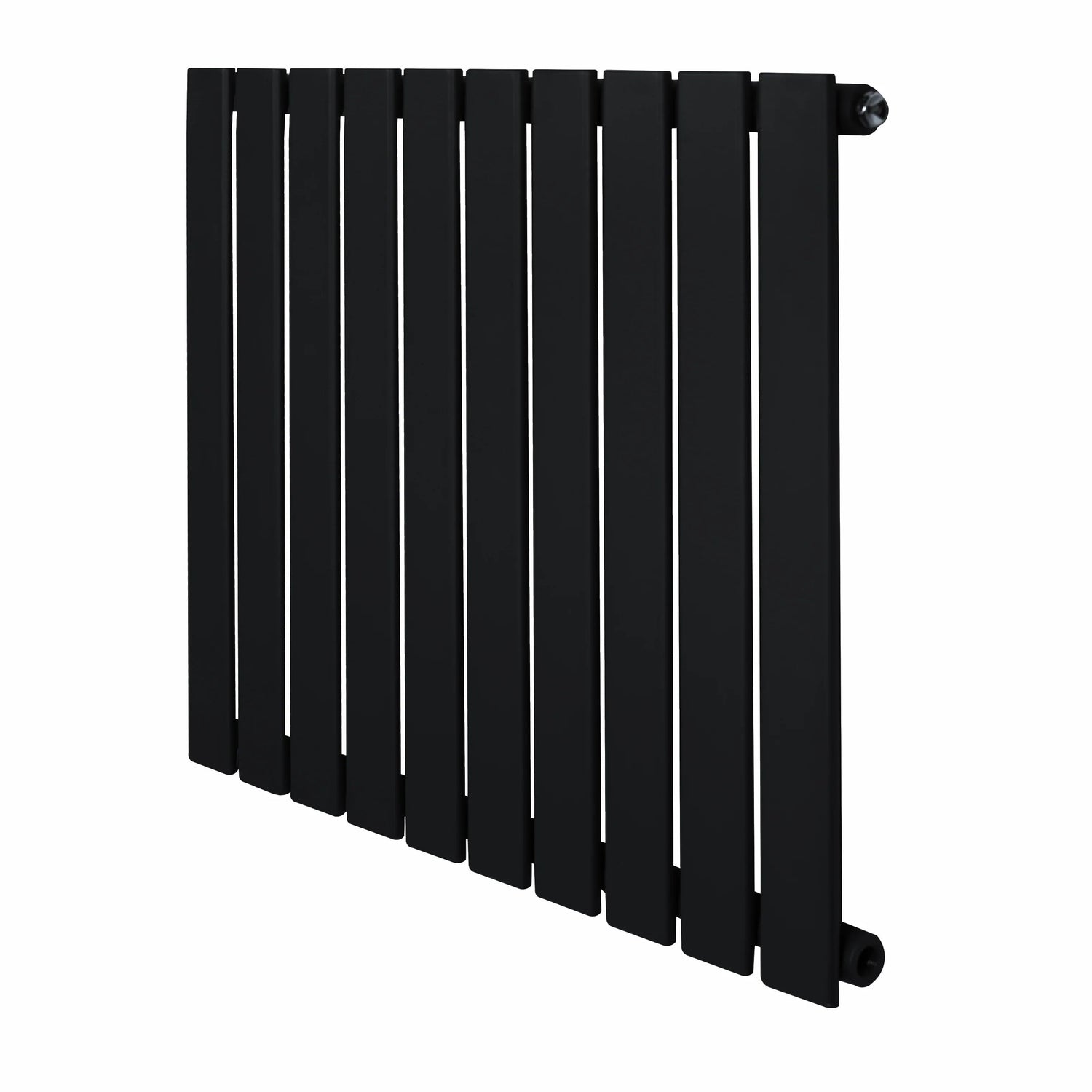

This black flat single column radiator is supplied with an angled thermostatic chrome valve set, brackets, fixings and a flexible cleaning brush. It suits UK and EU heating systems and connects through standard 0.5 inch BSP inlets and outlets.

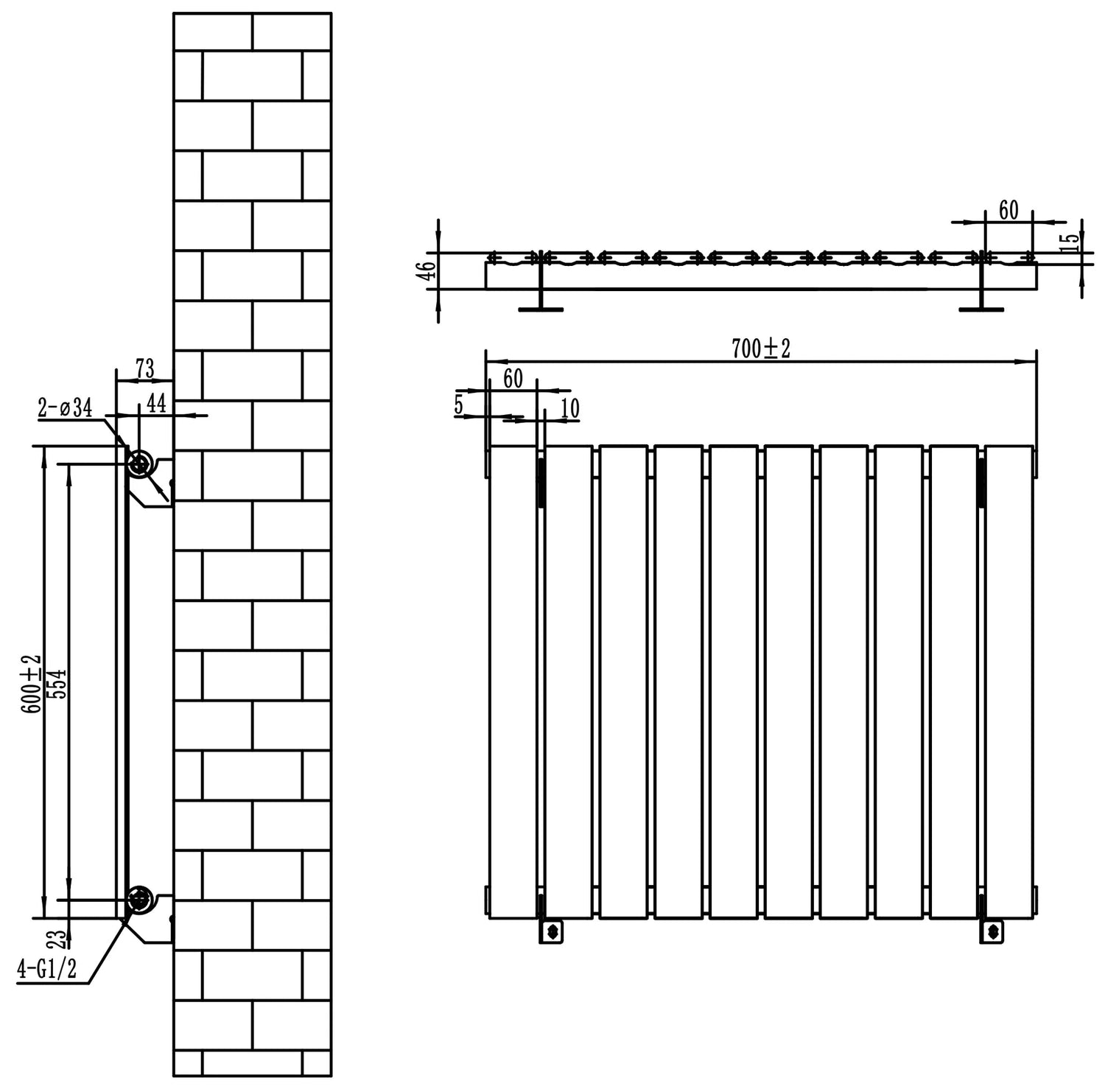

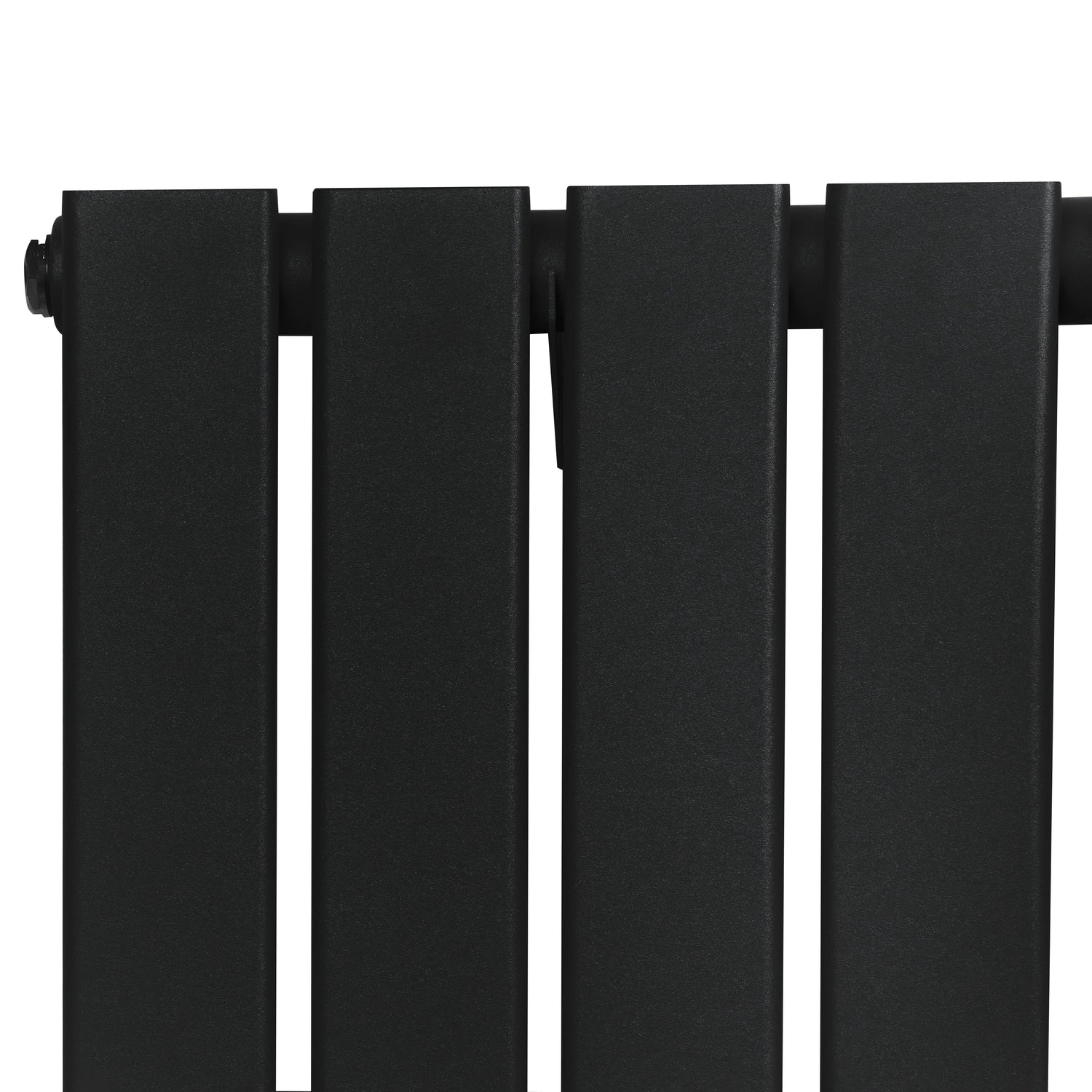

The radiator is made from 1.5mm carbon steel with a triple layered powder-coated finish. It has 10 columns, a 60cm height and a 70cm width. The radiator is 4.6cm deep, or 7.3cm deep with the bracket fitted. The gap between tubes is 1cm, and the distance from the wall to the centre of the inlet is 4.4cm.

The radiator has a recommended application area of 6m², a maximum working temperature of 95°C, a maximum working pressure of 5 bar and a 6.5 bar test pressure. Its stated output is 1717 BTU at 50 and 2168 BTU at 60, with watt ratings of 503 and 635 respectively.

The included thermostatic valves have an angled style, rotary control knob and a temperature range from 6 to 28 degrees. They use a 1/2 inch x 15mm connection and have a nominal flow rate of 2.8L/m.

Specifications
- Colour: Black
- Weight: 11.5kg
- Valve-to-valve height: 54.9cm
- Valve maximum pressure: 12 bar
- Valve maximum flow temperature: 100 degrees
- Box contents: radiator, 4 brackets, fixing kit, cleaning brush and thermostatic valve set
