Flat Single Column Radiator 600 x 700mm White

About this product

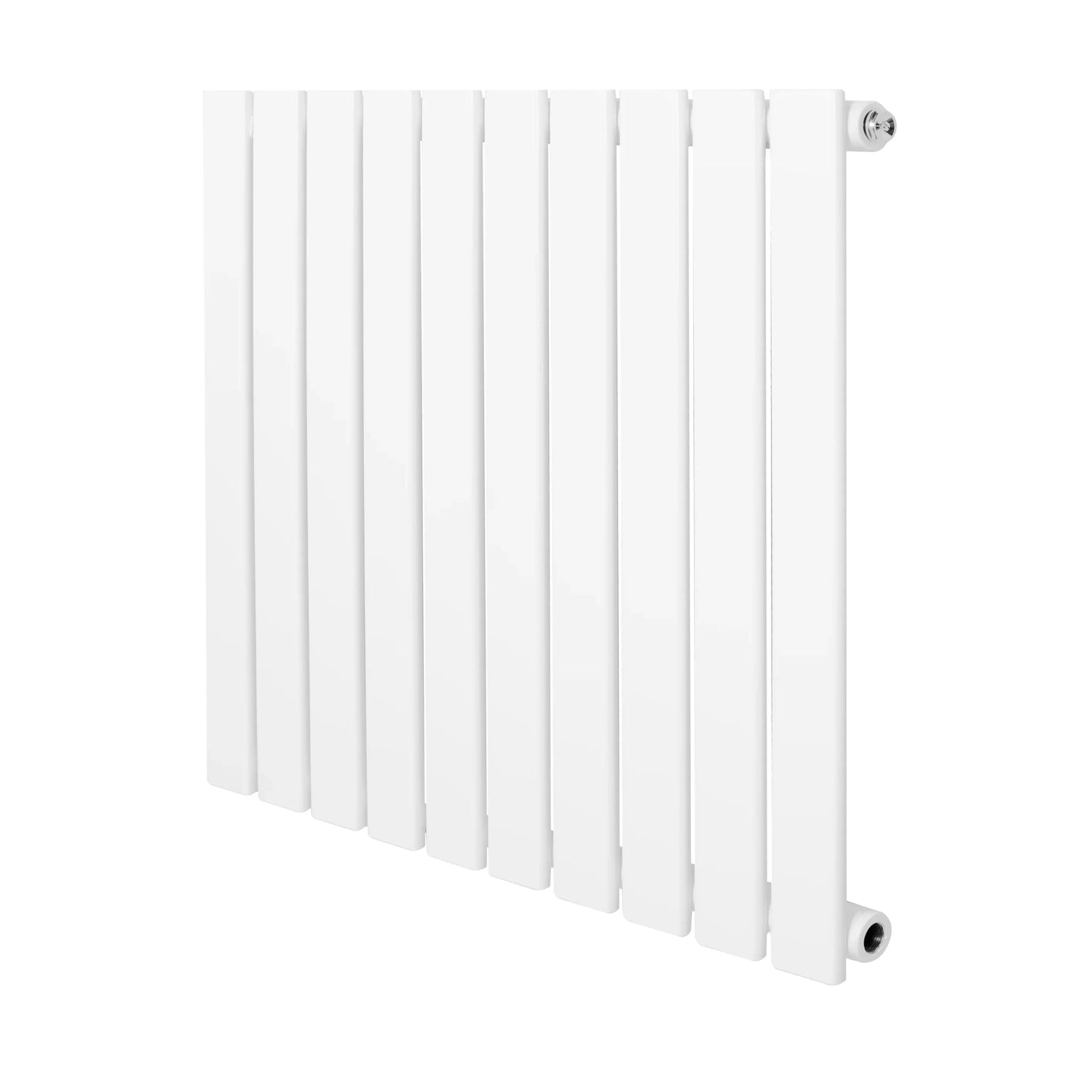

This white flat single column radiator is supplied with an angled thermostatic chrome valve set, brackets, fixings and a cleaning brush. It suits UK and EU heating systems and has standard 0.5 inch BSP inlet and outlet connections.

Made from 1.5mm carbon steel, the radiator has a triple layered powder-coated finish, 10 columns and flat tubes measuring 60mm x 15mm. It has a 1717 BTU output at 50 and 2168 BTU at 60, with a recommended application area of 6m².

The included thermostatic valves use a rotary knob and adjust from 6 to 28 degrees. The set has angled connections, a 12 bar maximum pressure, 100 degree maximum flow temperature and a nominal flow rate of 2.8 L/m. The valves connect at 1/2 inch x 15mm.

The radiator has a 15-year guarantee. The valve set has a 10-year guarantee.

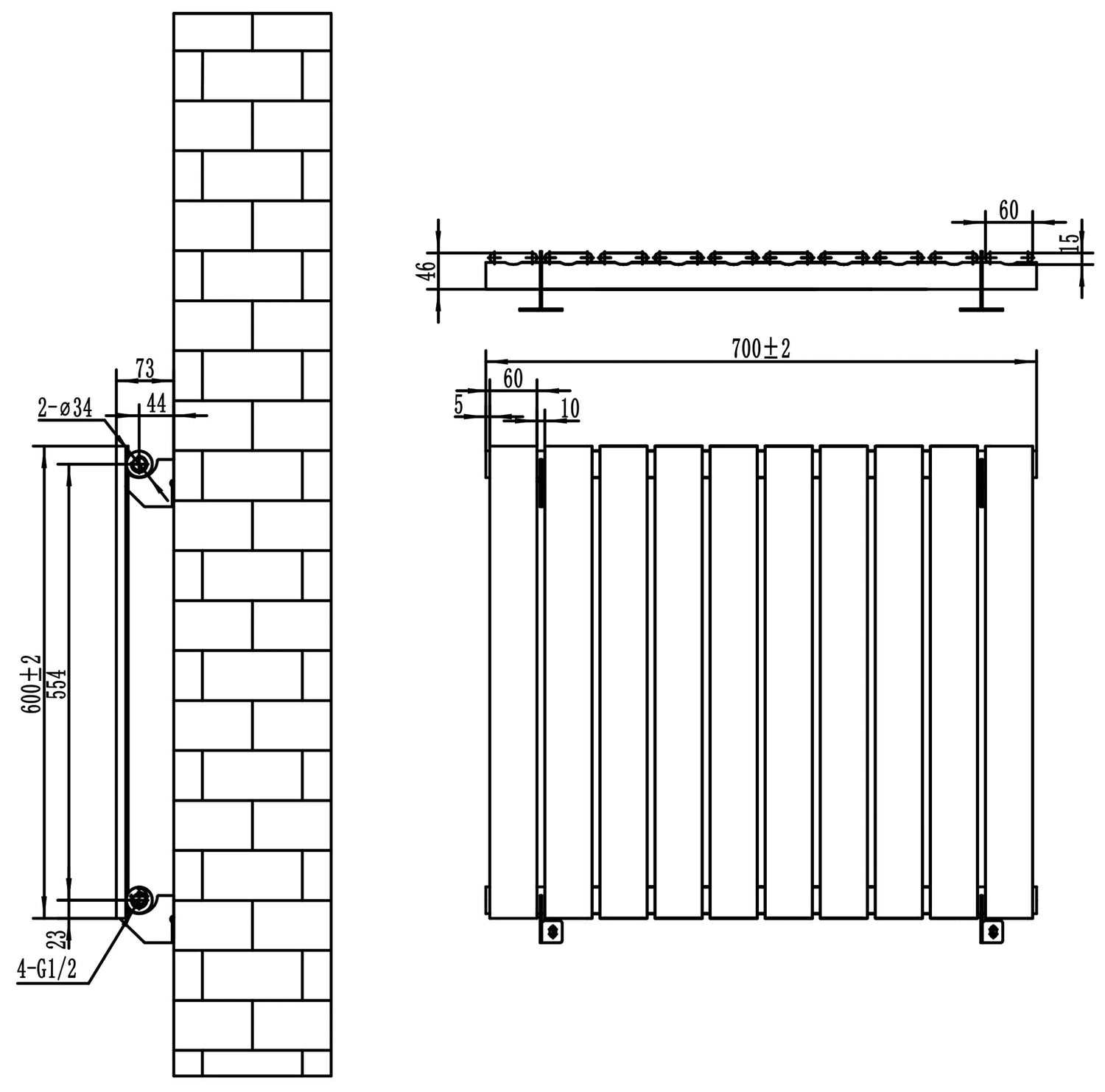

Specifications
- Colour: White
- Dimensions: 60cm high x 70cm wide
- Radiator depth: 4.6cm, or 7.3cm with bracket
- Weight: 11.5kg
- Gap between tubes: 1cm
- Maximum working temperature: 95°C
- Maximum working pressure: 5 bar
- Test pressure: 6.5 bar
- Valve-to-valve height: 54.9cm
- Distance from wall to inlet centre: 4.4cm
- Testing: BS EN 442 and ISO9001:2015 Standards
- Certification: CE and UKCA

Box contents
- 1 x flat single column radiator
- 4 x brackets
- 1 x fixing kit

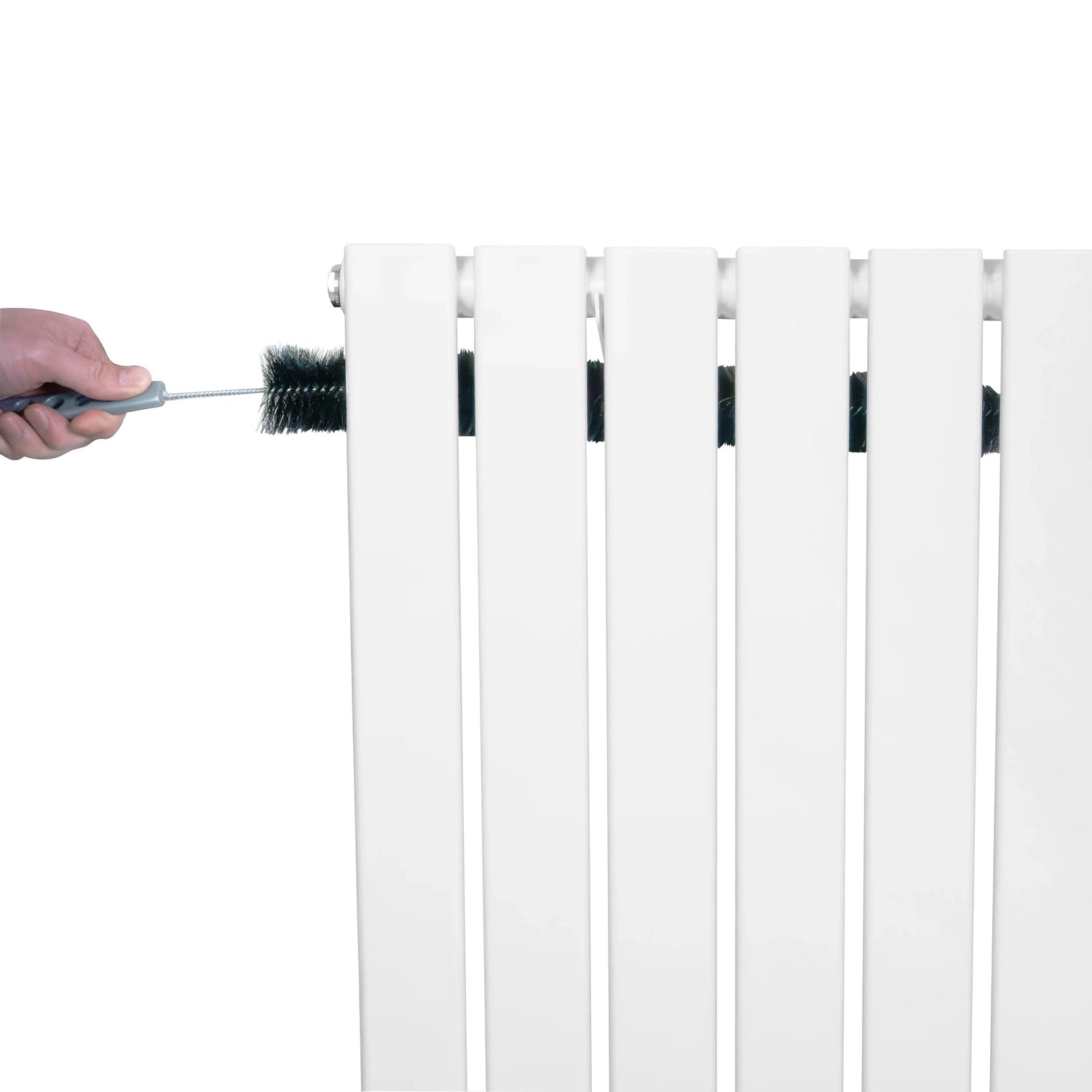

- 1 x flexible cleaning brush
- 1 x thermostatic valve set
