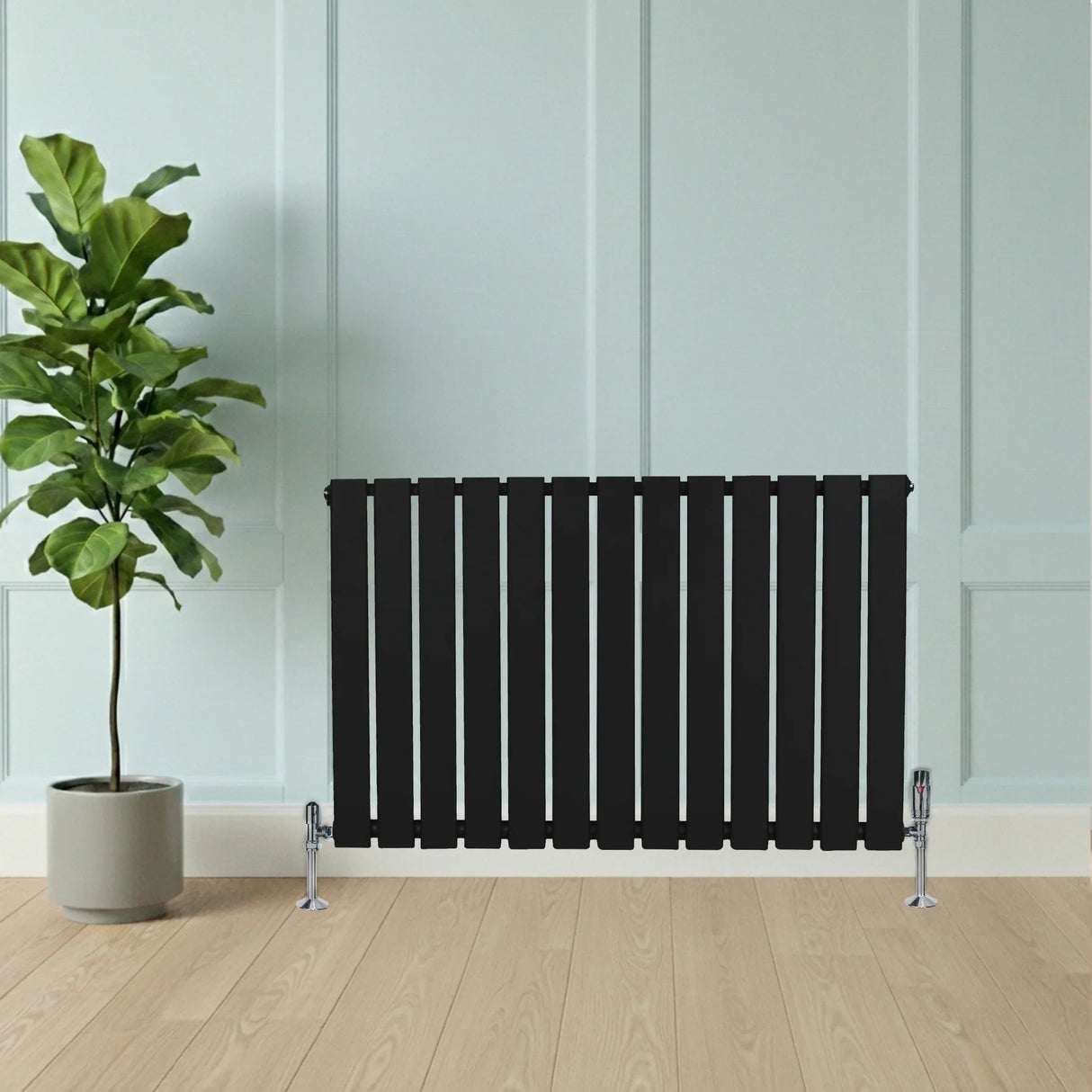

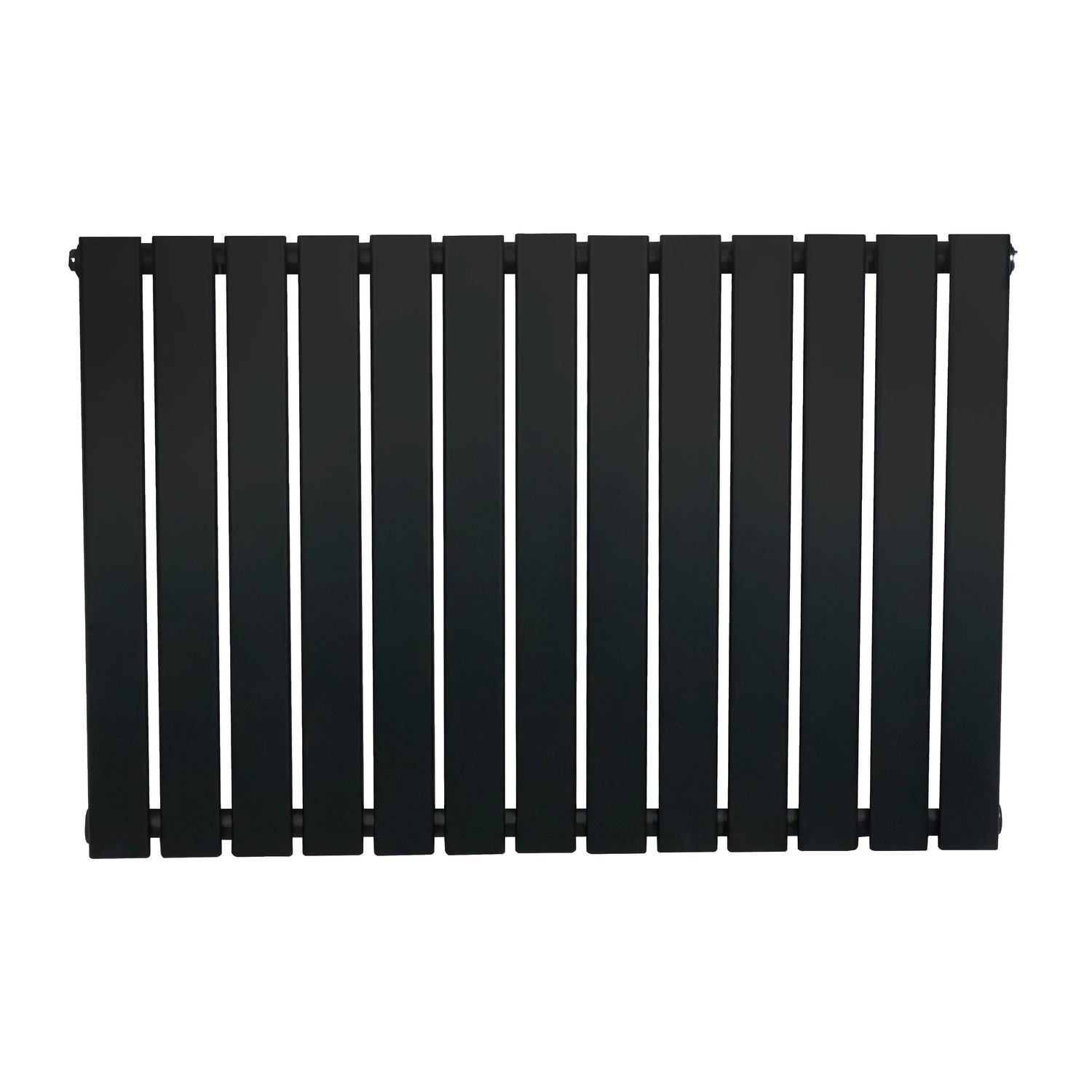

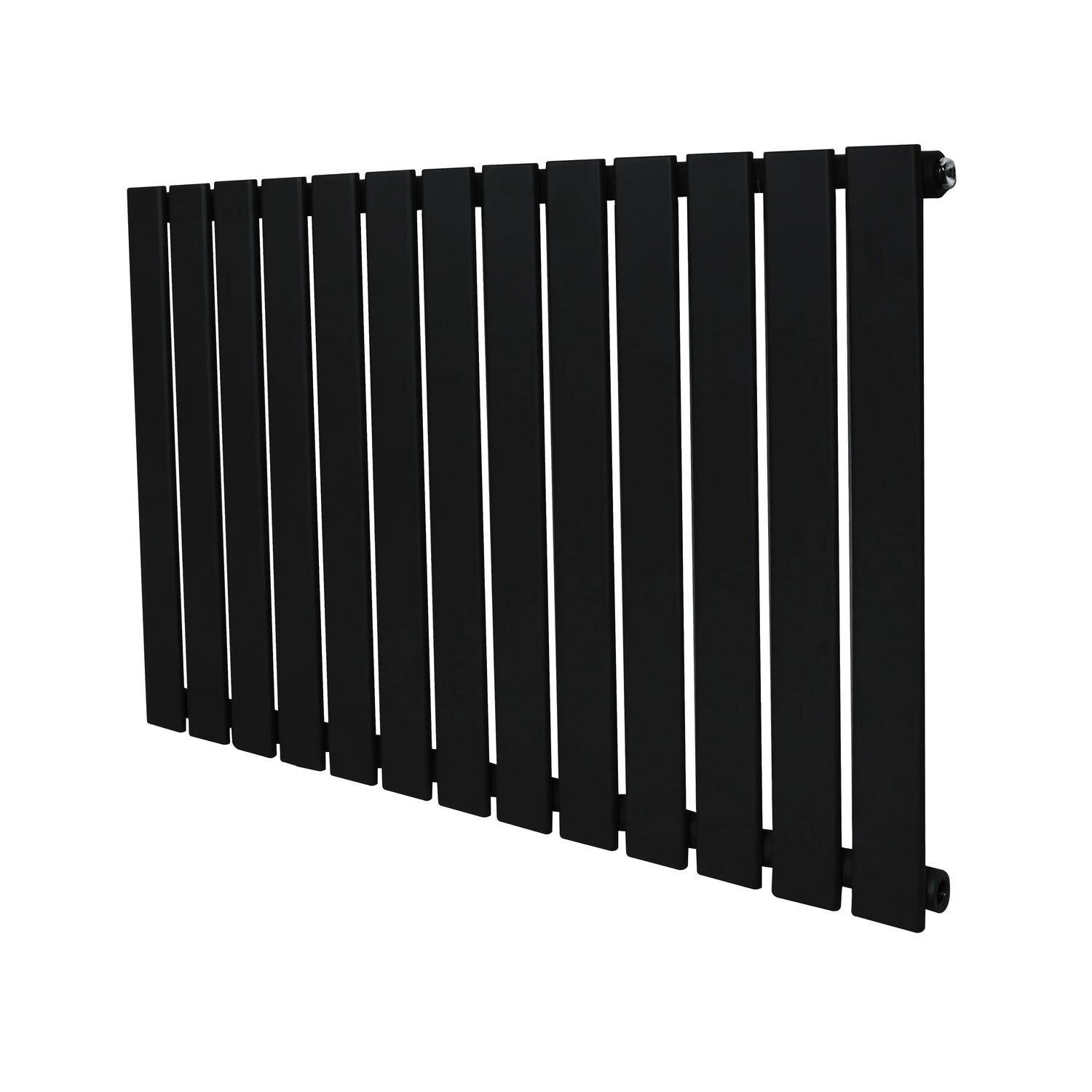

Flat Single Column Radiator 600 x 910mm Black

About this product

This flat single column radiator is a black carbon steel radiator for UK and EU heating systems. It measures 60cm high by 91cm wide and has a triple layered powder-coated finish.

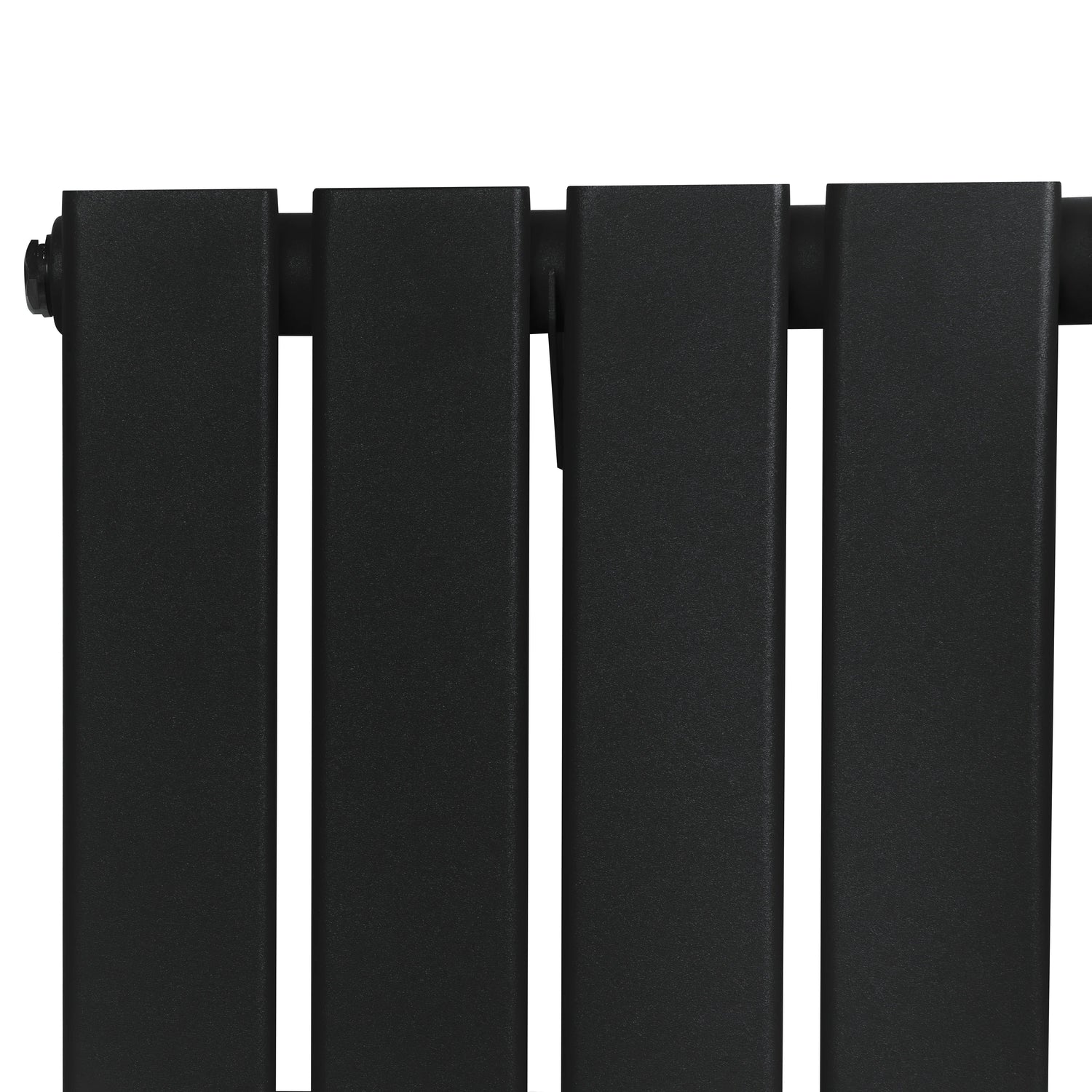

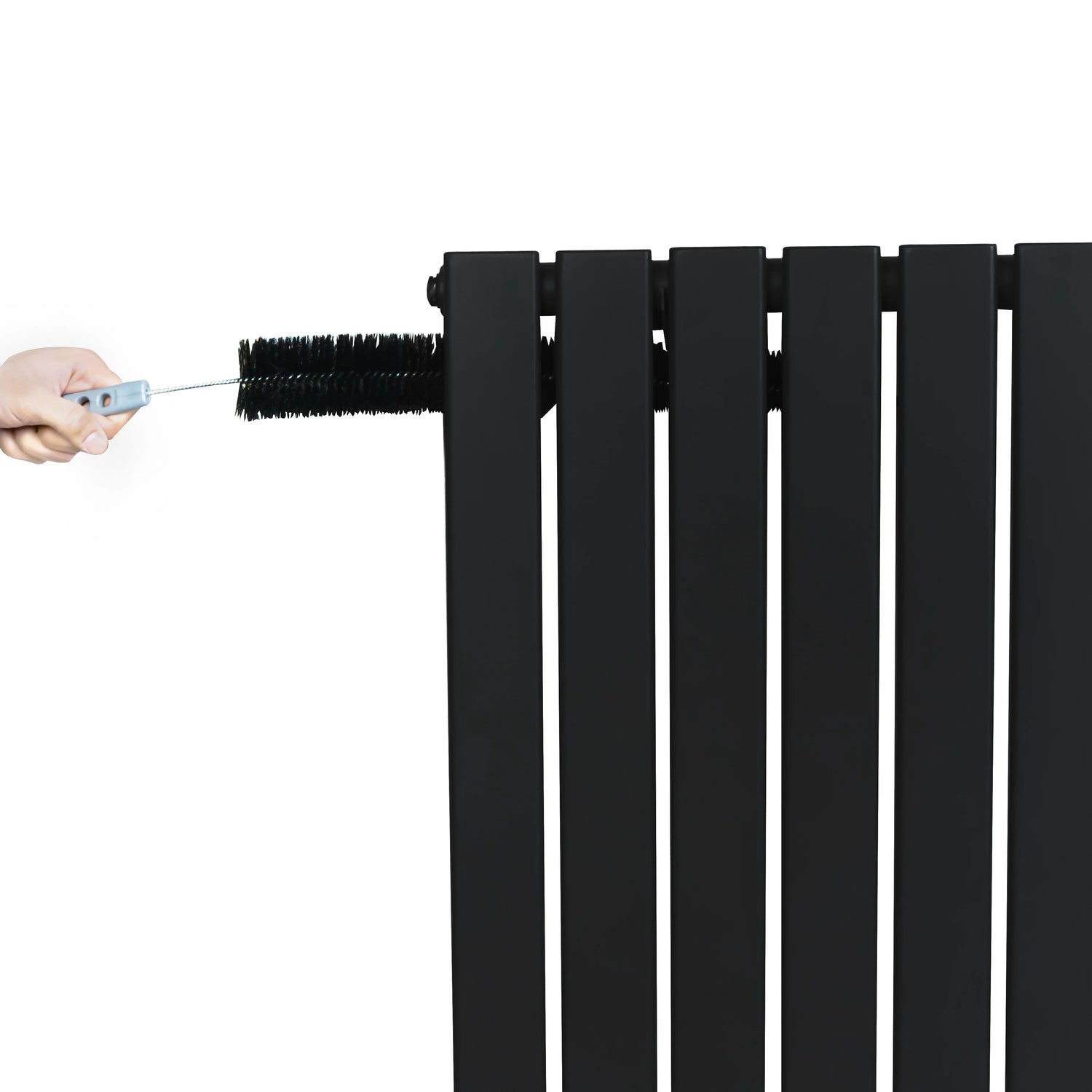

The radiator has 13 columns made from flat steel tubes measuring 60mm x 15mm. Its radiator depth is 4.6cm, or 7.3cm including the bracket. The 1cm gap between tubes and the included flexible cleaning brush make routine cleaning straightforward.

Heat output is rated at 2,232 BTU at 50 and 2,819 BTU at 60. The corresponding watt ratings are 654W at 50 and 826W at 60. It is recommended for areas up to 8m².

Standard 0.5-inch BSP inlet and outlet bores suit valves selected for your installation. The radiator includes four brackets, a fixing kit and a cleaning brush. It has a 15-year guarantee.

Specifications

• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Weight: 14.9kg
• Maximum working temperature: 95°C
• Maximum working pressure: 5 bar
• Test pressure: 6.5 bar

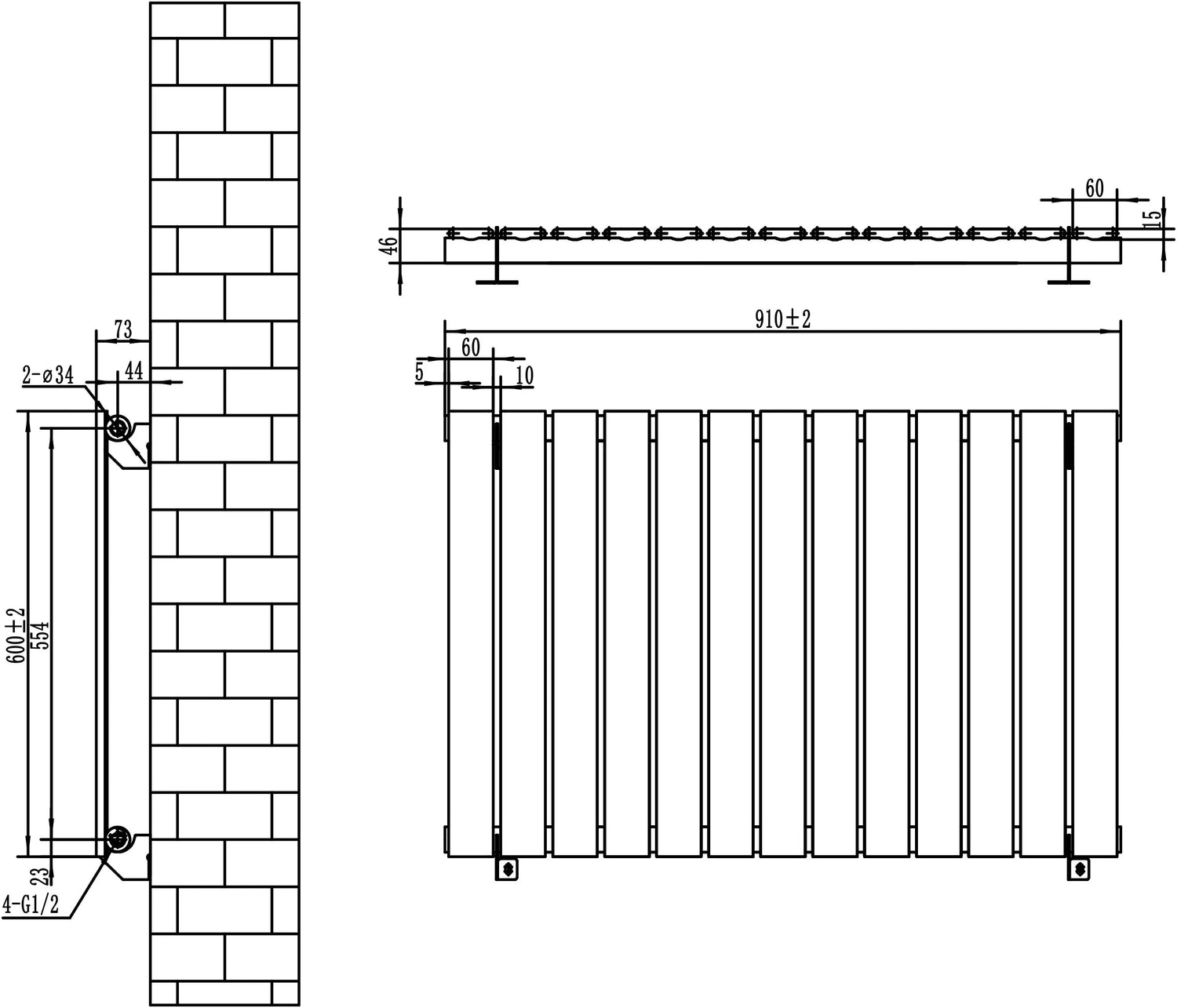

• Valve-to-valve height: 54.9cm
• Distance from wall to centre of inlet: 4.4cm
• Compatibility: All UK and EU heating systems
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA

Box contents

• 1 x flat single column radiator
• 4 x brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
