Hydraulic Shop Press with Gauge, 20 Tonne

About this product

This hydraulic shop press is for garage, workshop and factory pressing tasks, including installing or removing pressure-fitted components and bending or shaping metal parts. Its 2-speed hand pump applies controlled hydraulic pressure, while the pressure gauge lets you monitor the force during use.

The multi-position bed has nine working height levels at 12 cm increments, with a working area adjustable from 0 to 1015 mm. The open frame gives access to larger workpieces, and the pressure gauge and hand pump can be detached for more compact storage. Wide feet support the free-standing frame.

Eight interchangeable steel mandrels are supplied with an adaptor for the ram. A storage tray keeps the mandrels close to the press when they are not in use. The frame is made from powder coated steel and has an orange finish.

Specifications

• Capacity: 20 tonne / 20,000 kg

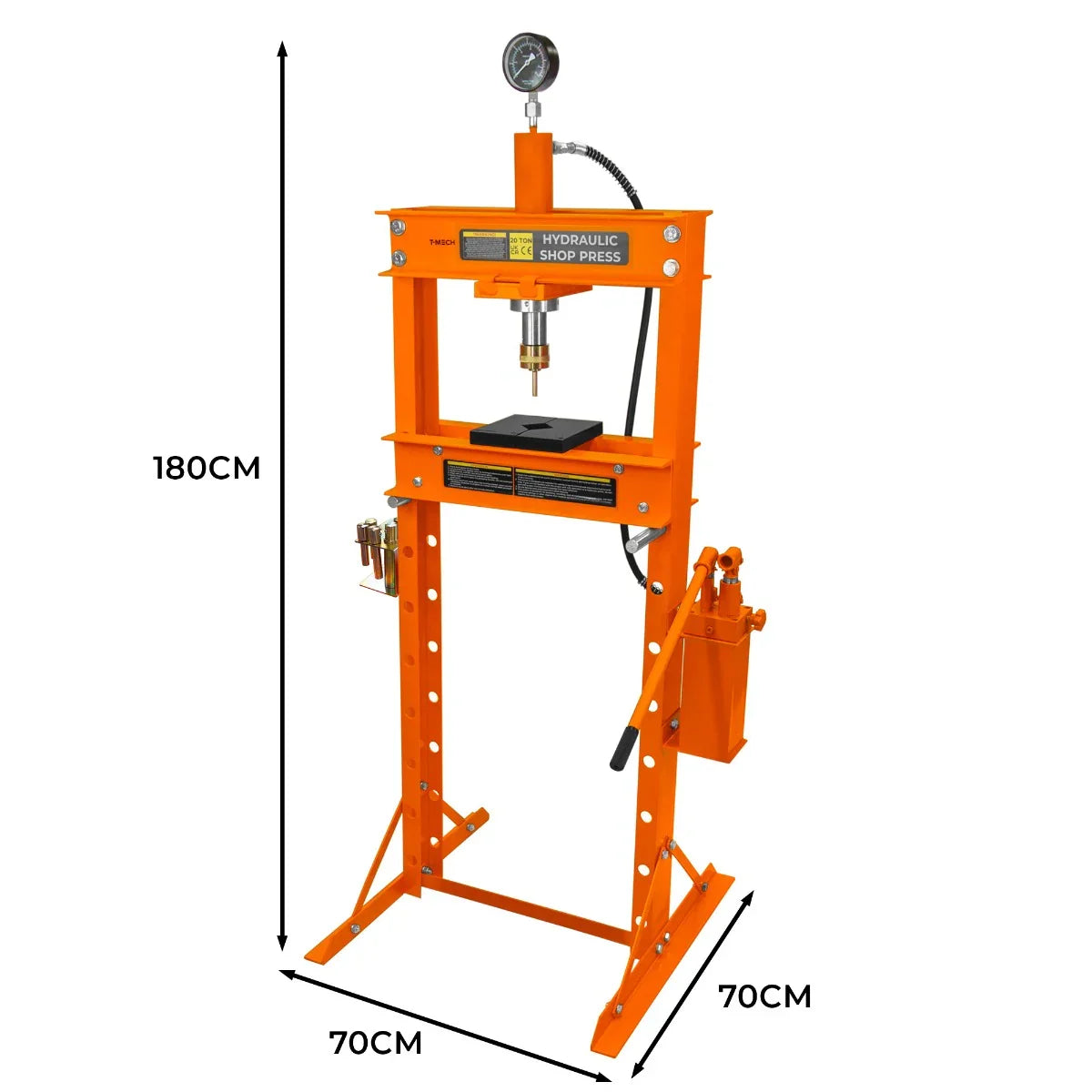

• Dimensions: 180 cm high x 70 cm wide x 70 cm deep
• Weight: 93 kg
• Working area: 0 to 1015 mm
• Lateral ram movement: 270 mm
• Working height increments: 9 x 12 cm levels
• Mandrel diameters: 10, 12, 16, 18, 20, 22, 25 and 30 mm
• Mandrel lengths: 50, 60, 60, 85, 85, 85, 110 and 110 mm
• Certification: CE and UKCA

Box contents

• 1 x hydraulic shop press
• 8 x steel mandrels
• 1 x mandrel adaptor
