Oval Single Column Radiator 1600 x 240mm Anthracite Grey

About this product

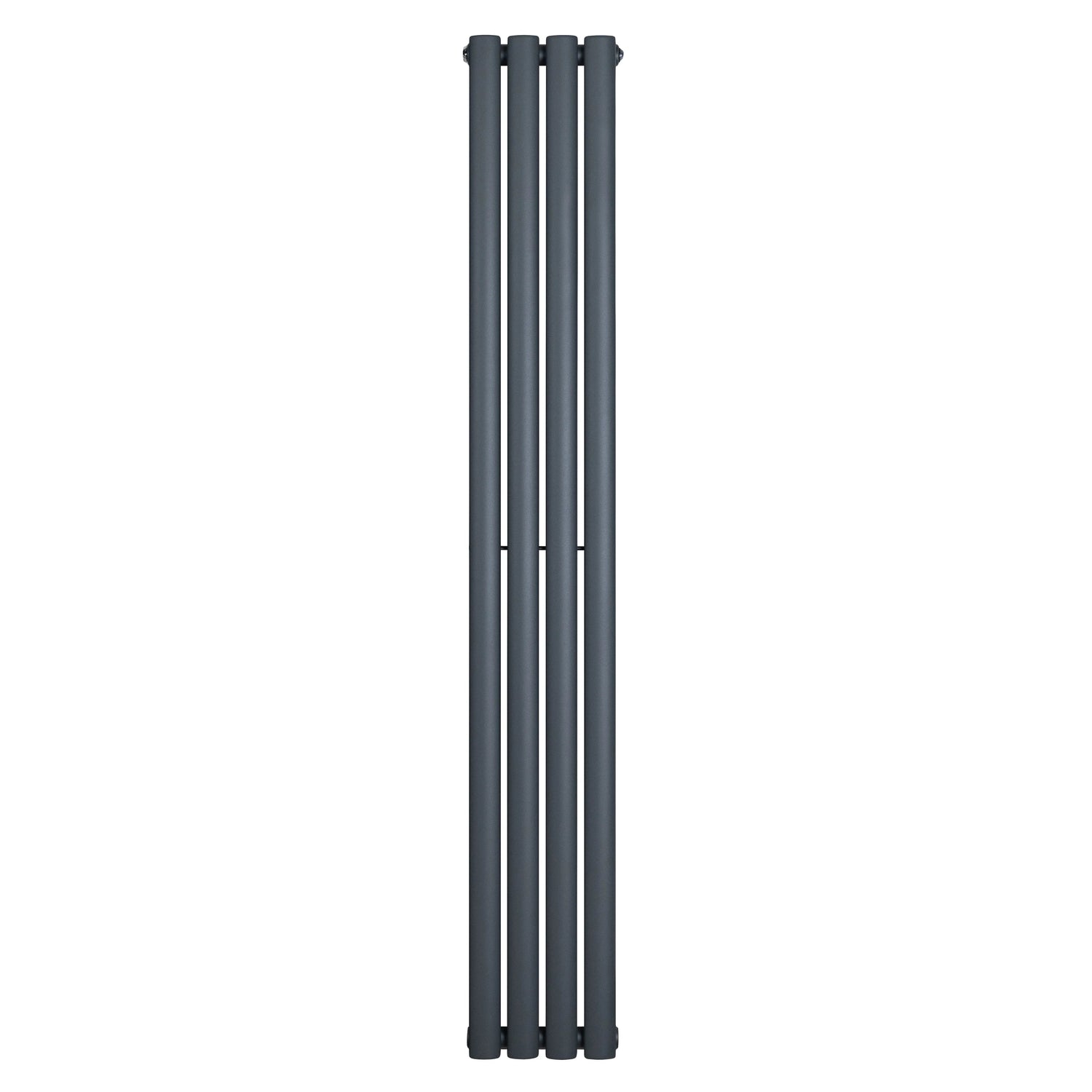

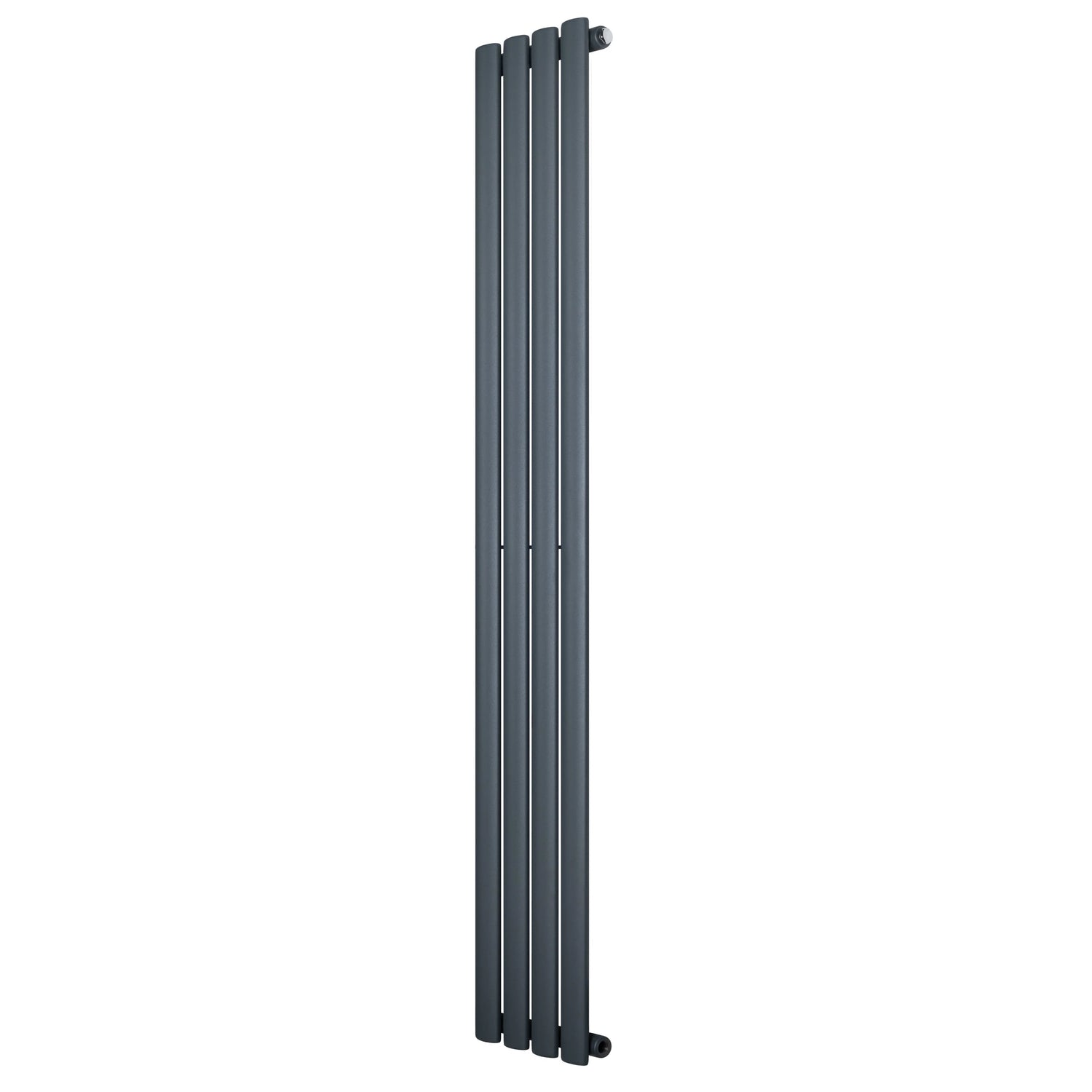

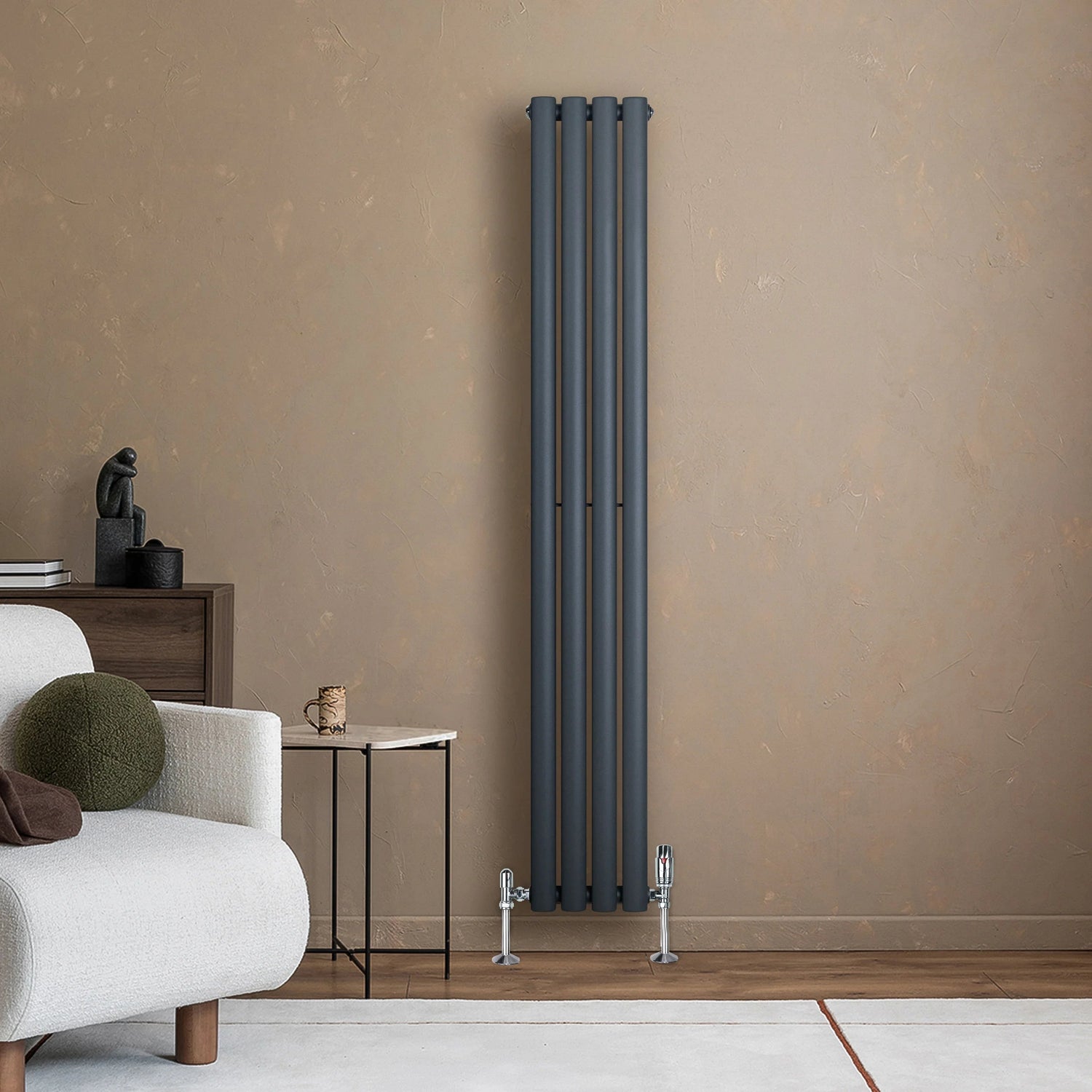

This oval column radiator is 160cm high and 24cm wide, making it suitable for heating rooms with a recommended application area of 6m². It is finished in anthracite grey and supplied with brackets, a fixing kit and a flexible cleaning brush.

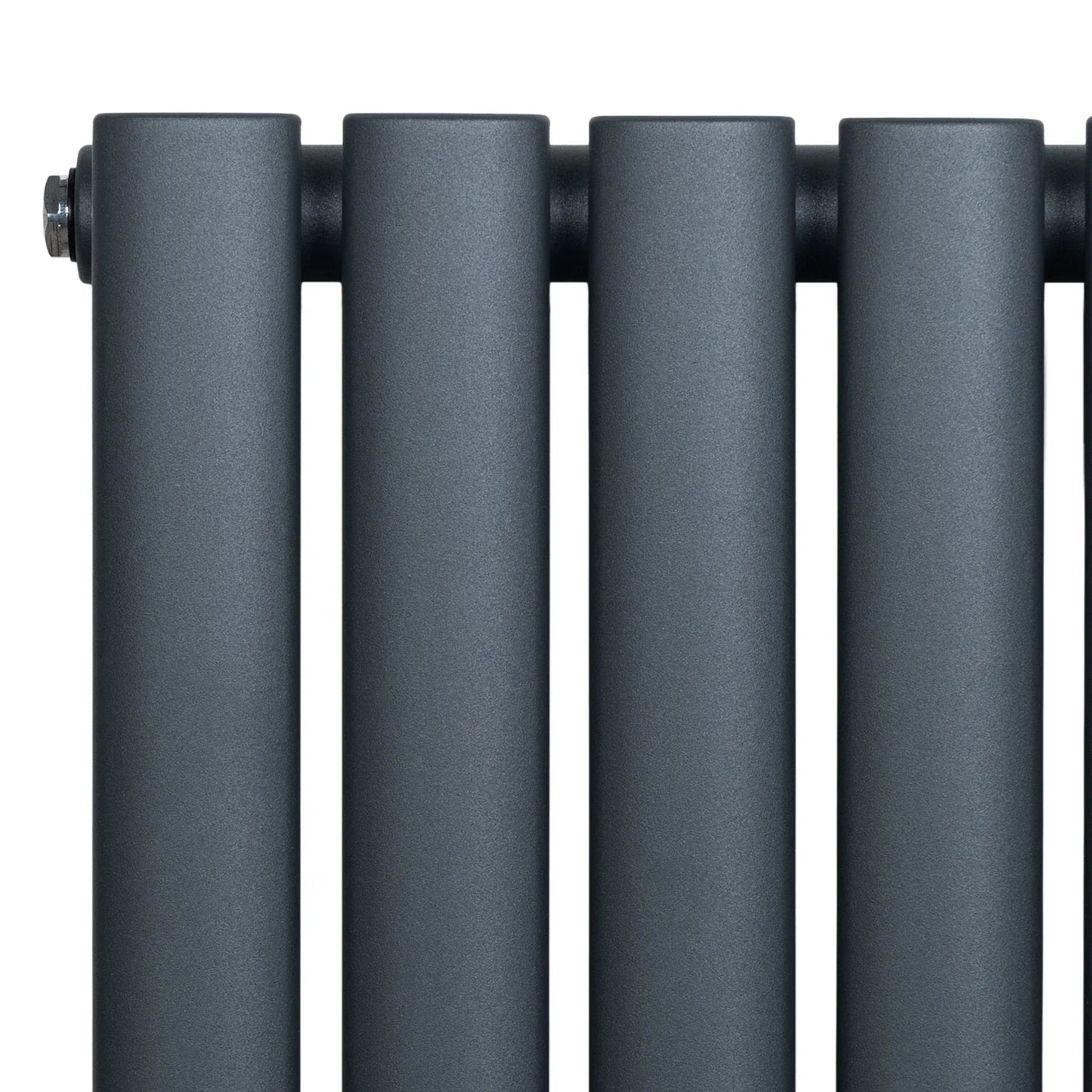

The radiator is made from 1.5mm carbon steel with a triple layered powder-coated finish. It has a 5.6cm radiator depth, or 8.3cm including the bracket, and a 1cm gap between tubes. The standard 0.5-inch BSP inlets and outlets are compatible with all UK and EU heating systems.

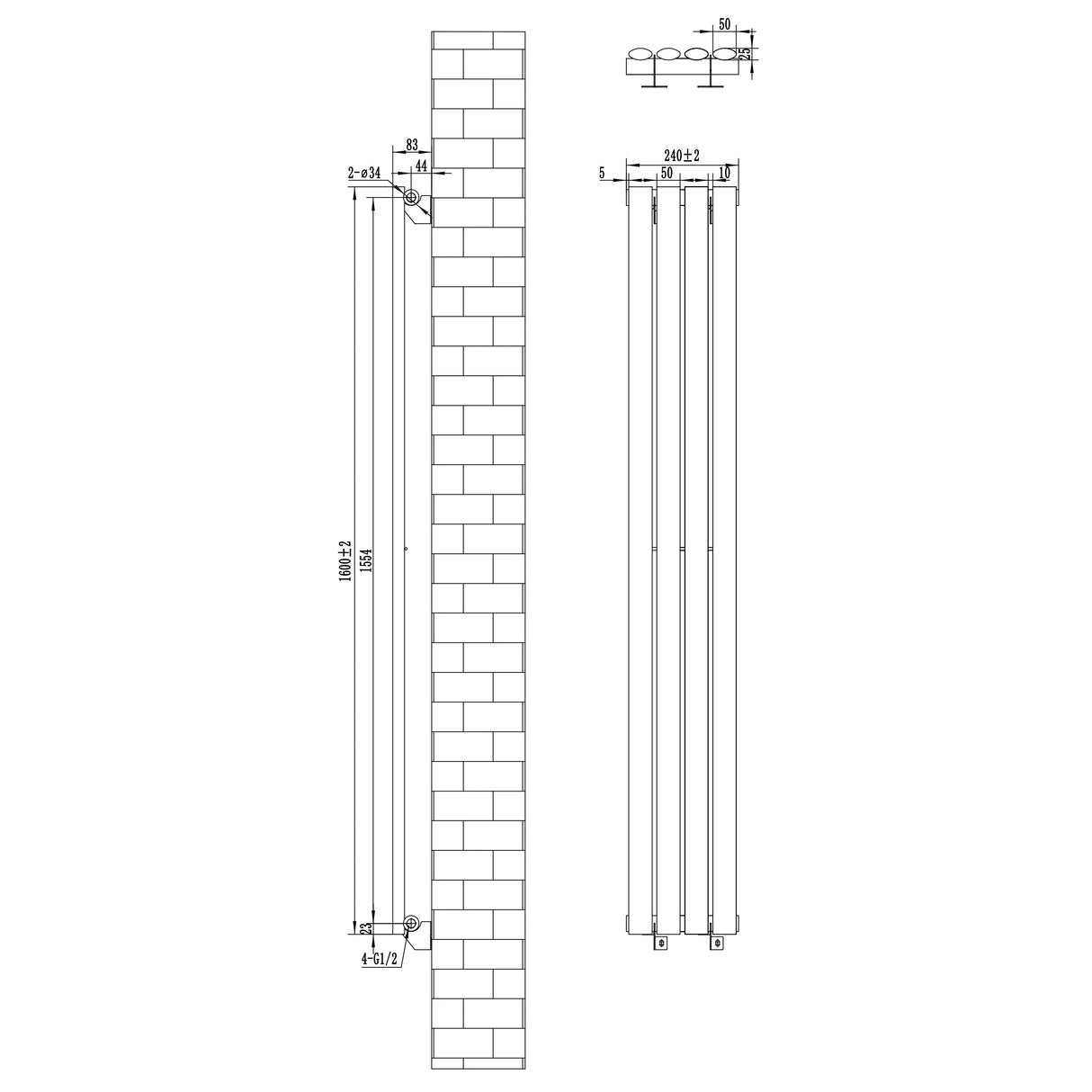

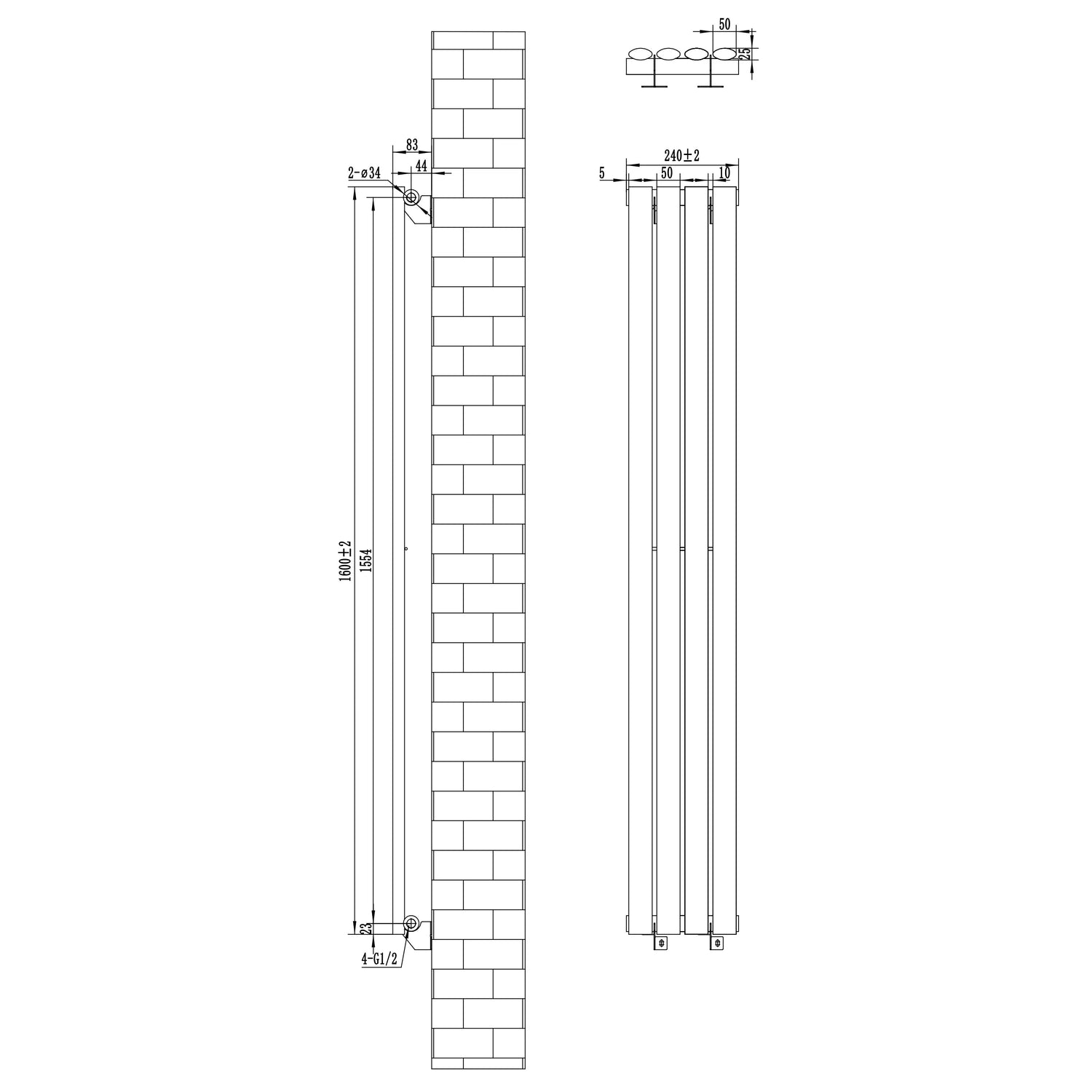

Maximum working temperature is 95°C and maximum working pressure is 10 bar. The test pressure is 13 bar. The valve-to-valve height is 155.4cm, while the distance from the wall to the centre of the inlet is 4.4cm.

Specifications

• Weight: 9.6kg
• Height: 160cm
• Width: 24cm
• Radiator depth: 5.6cm
• Depth with bracket: 8.3cm
• Gap between tubes: 1cm
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Max working temperature: 95°C
• Max working pressure: 10 bar
• Test pressure: 13 bar
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA
• Guarantee: 15 years

Box contents

• 1 x oval single column radiator
• 4 x brackets
• 1 x fixing kit

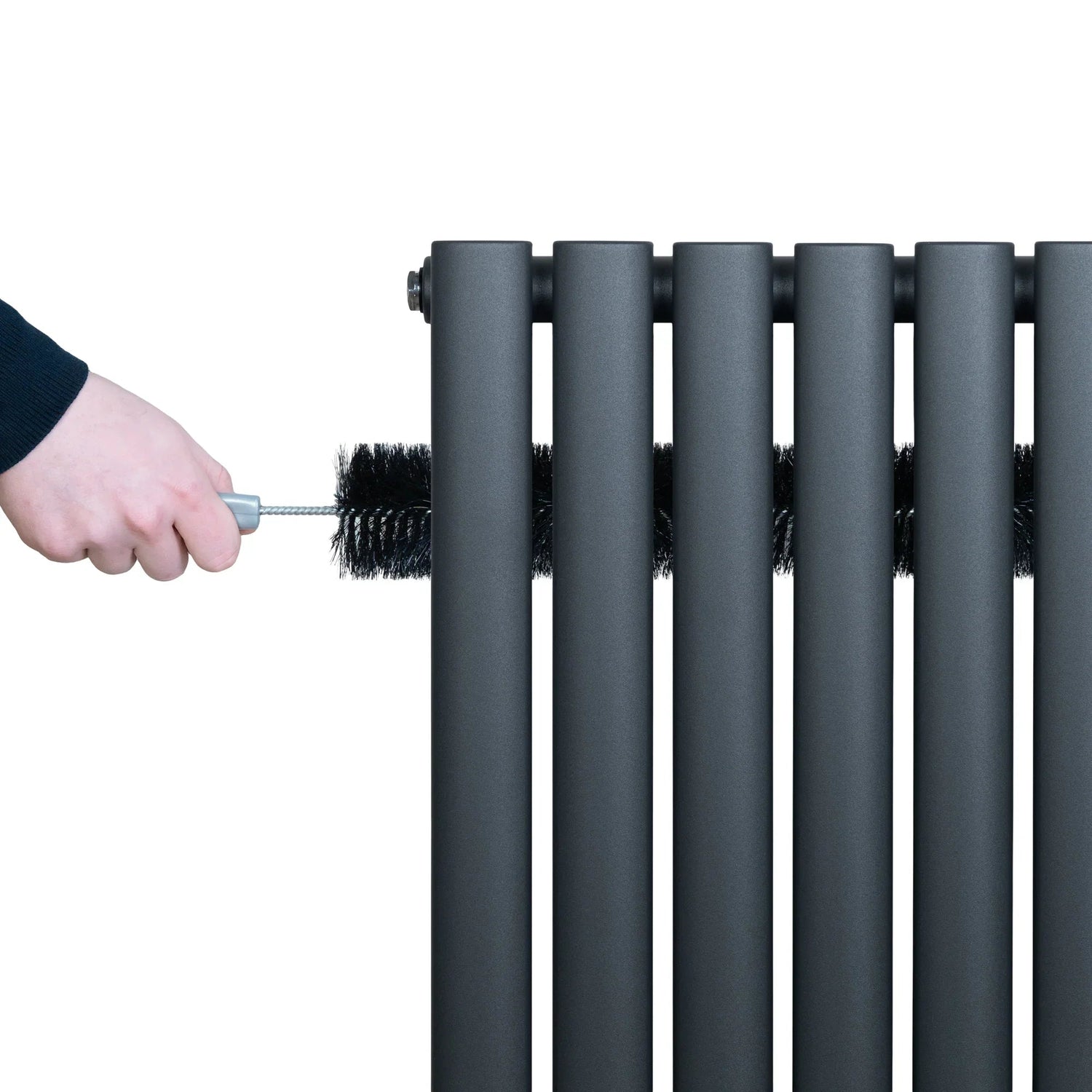

• 1 x flexible cleaning brush
