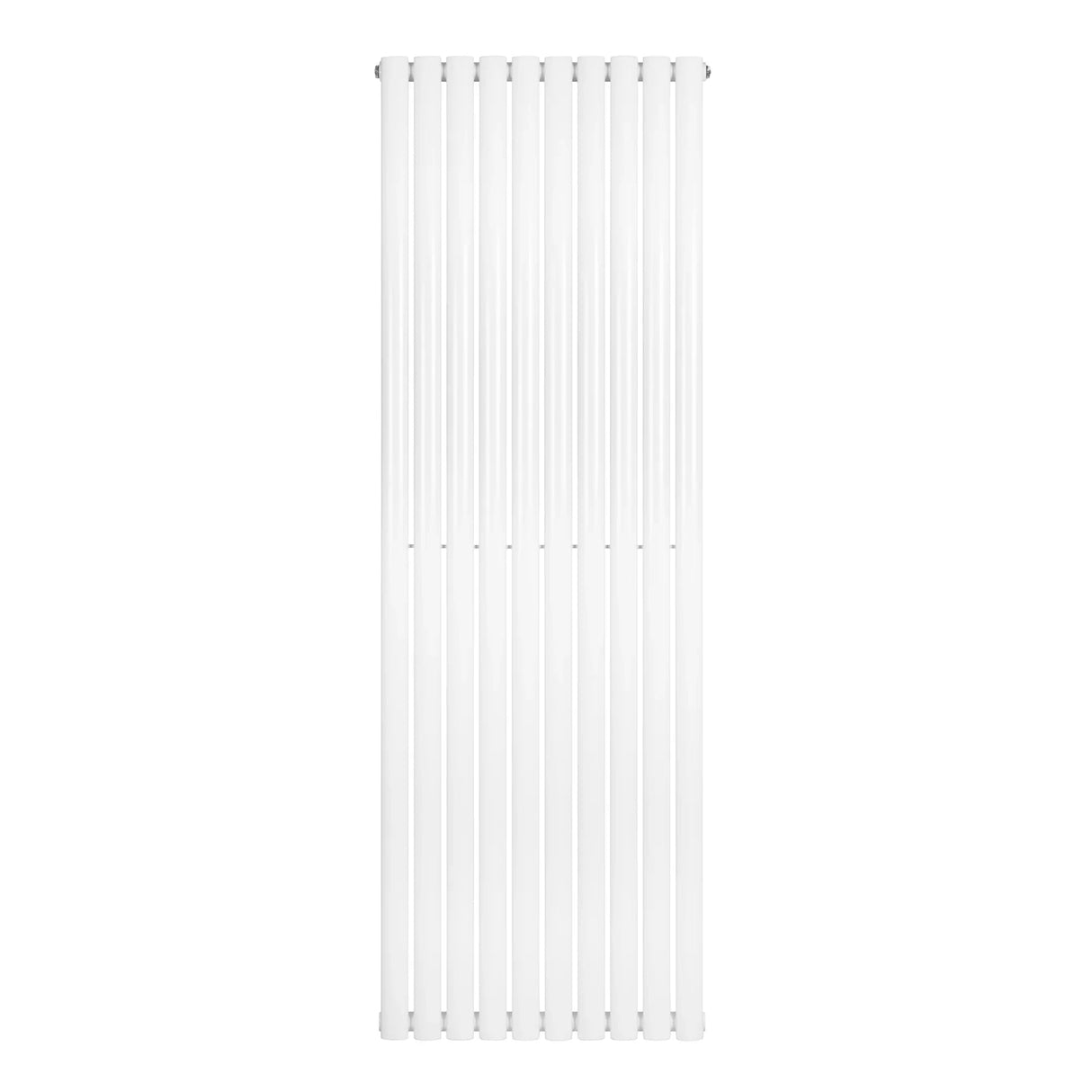

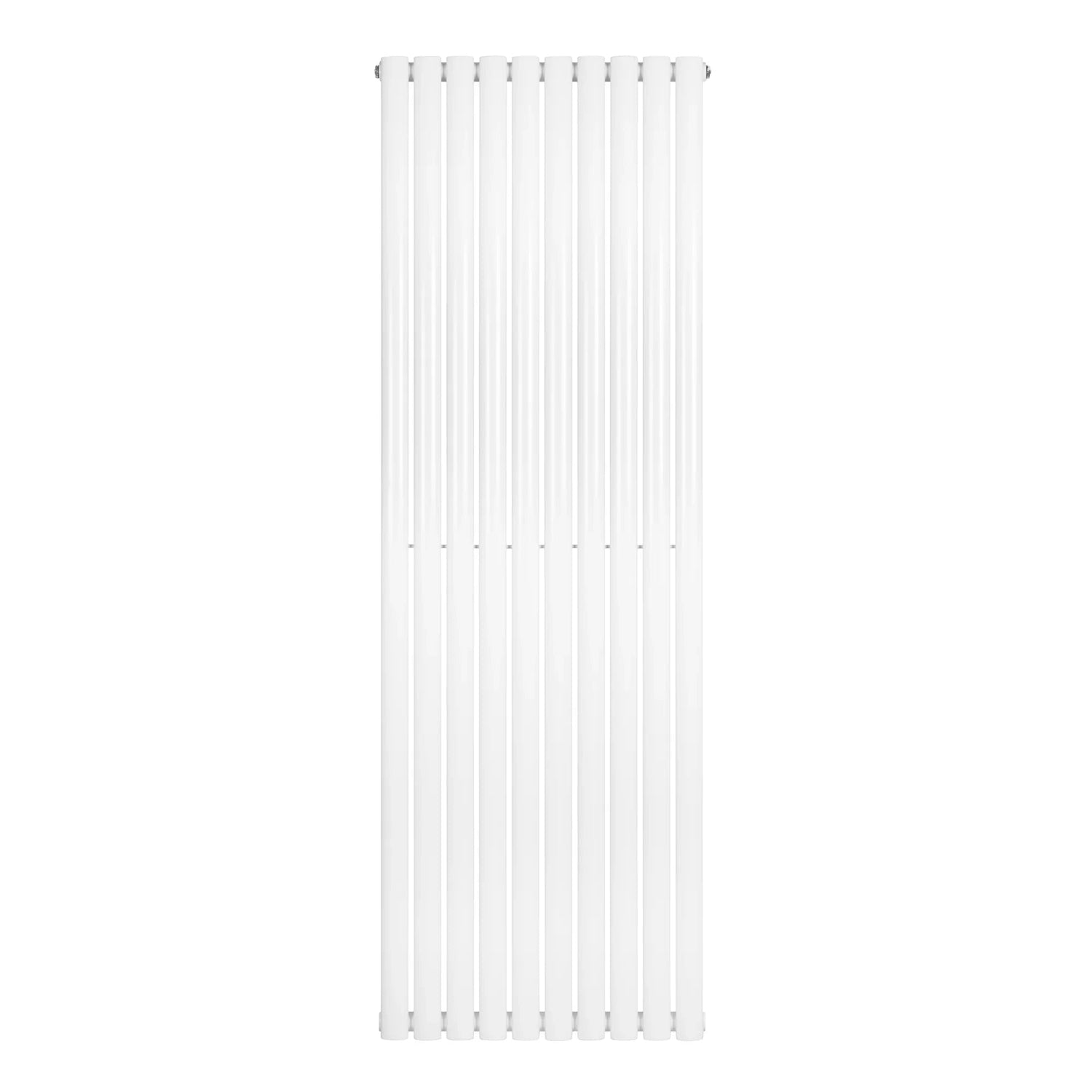

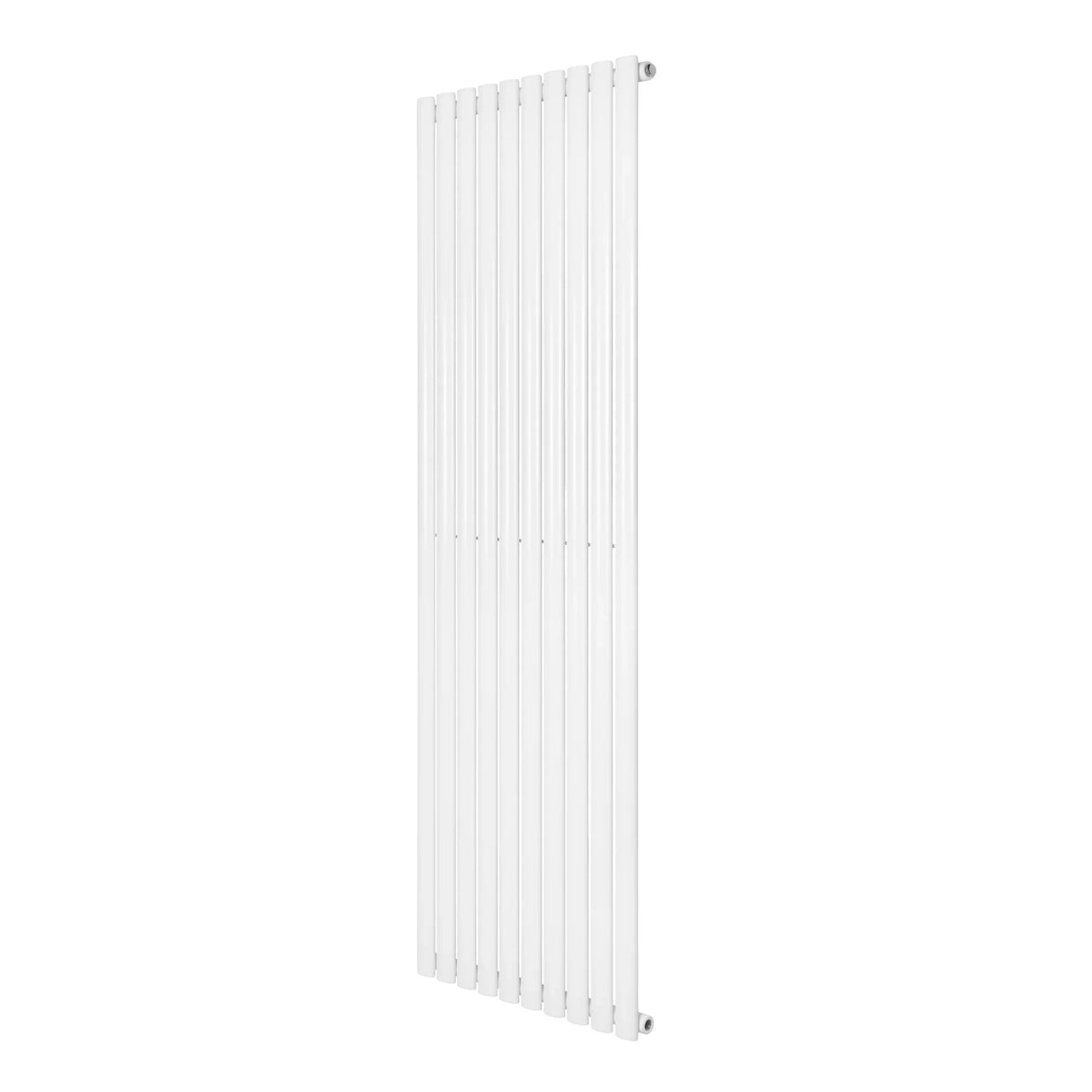

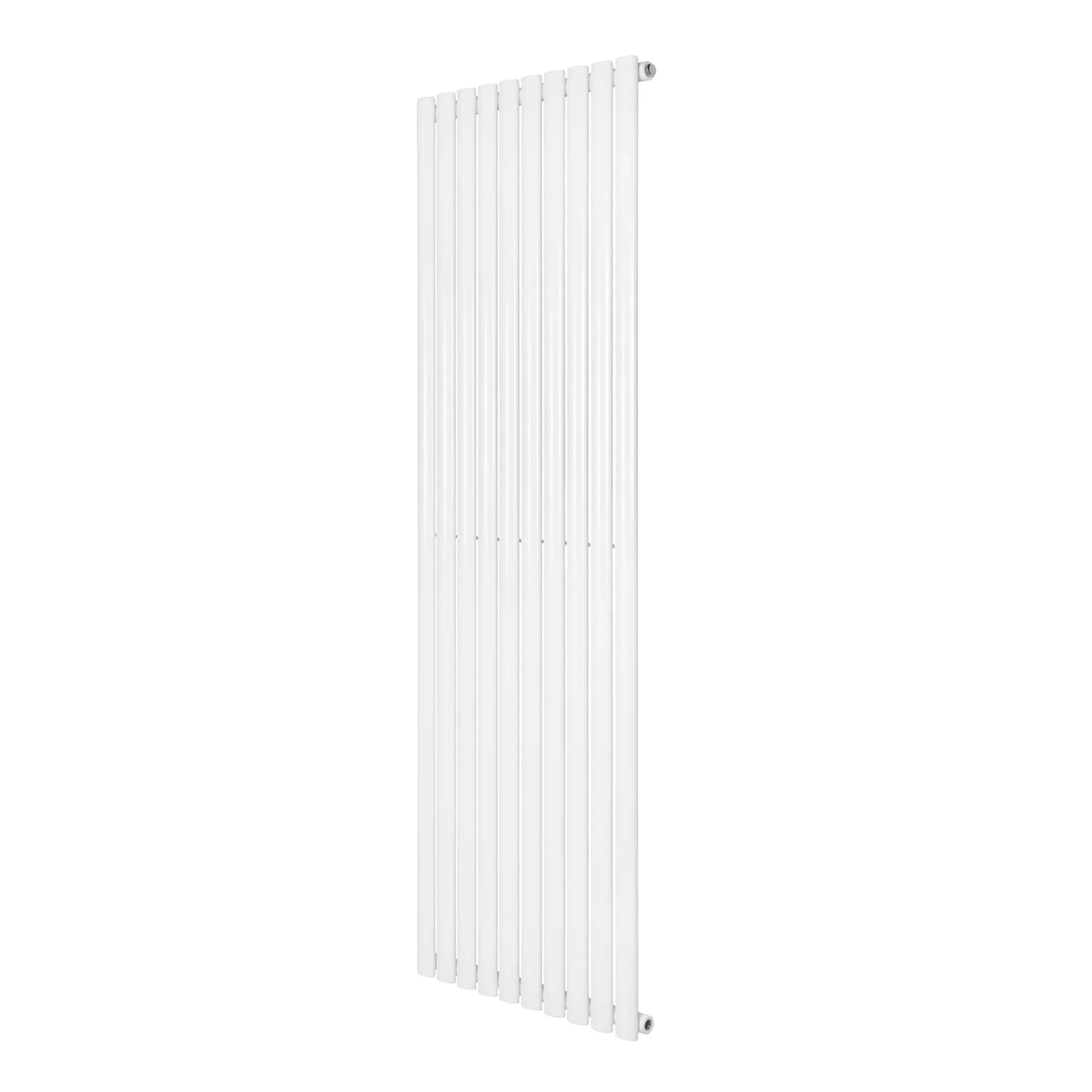

Oval Single Column Radiator 1800 x 600mm, White

About this product

This white oval single column radiator is suited to UK and EU heating systems. It is made from 1.5mm carbon steel and has a triple layered powder-coated finish.

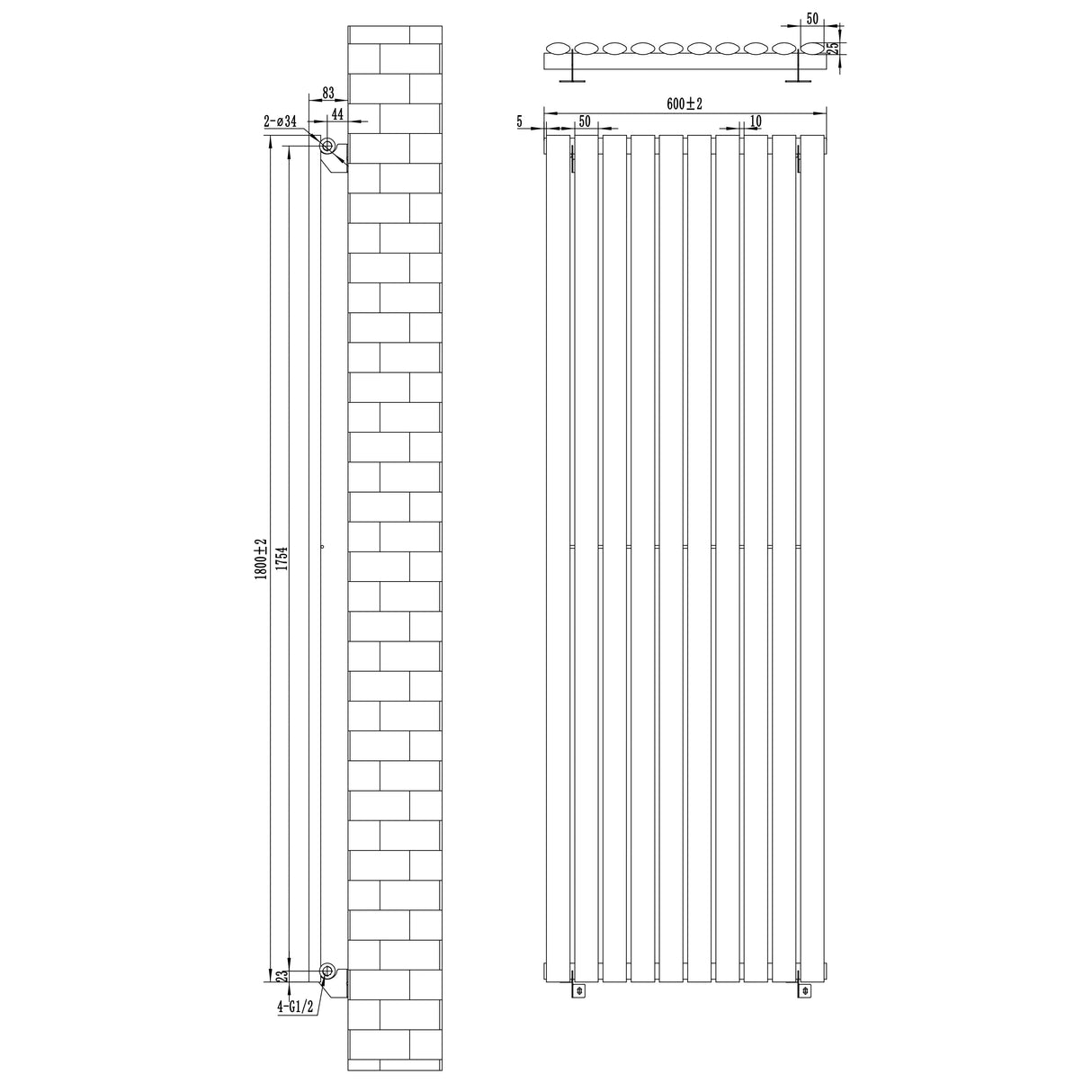

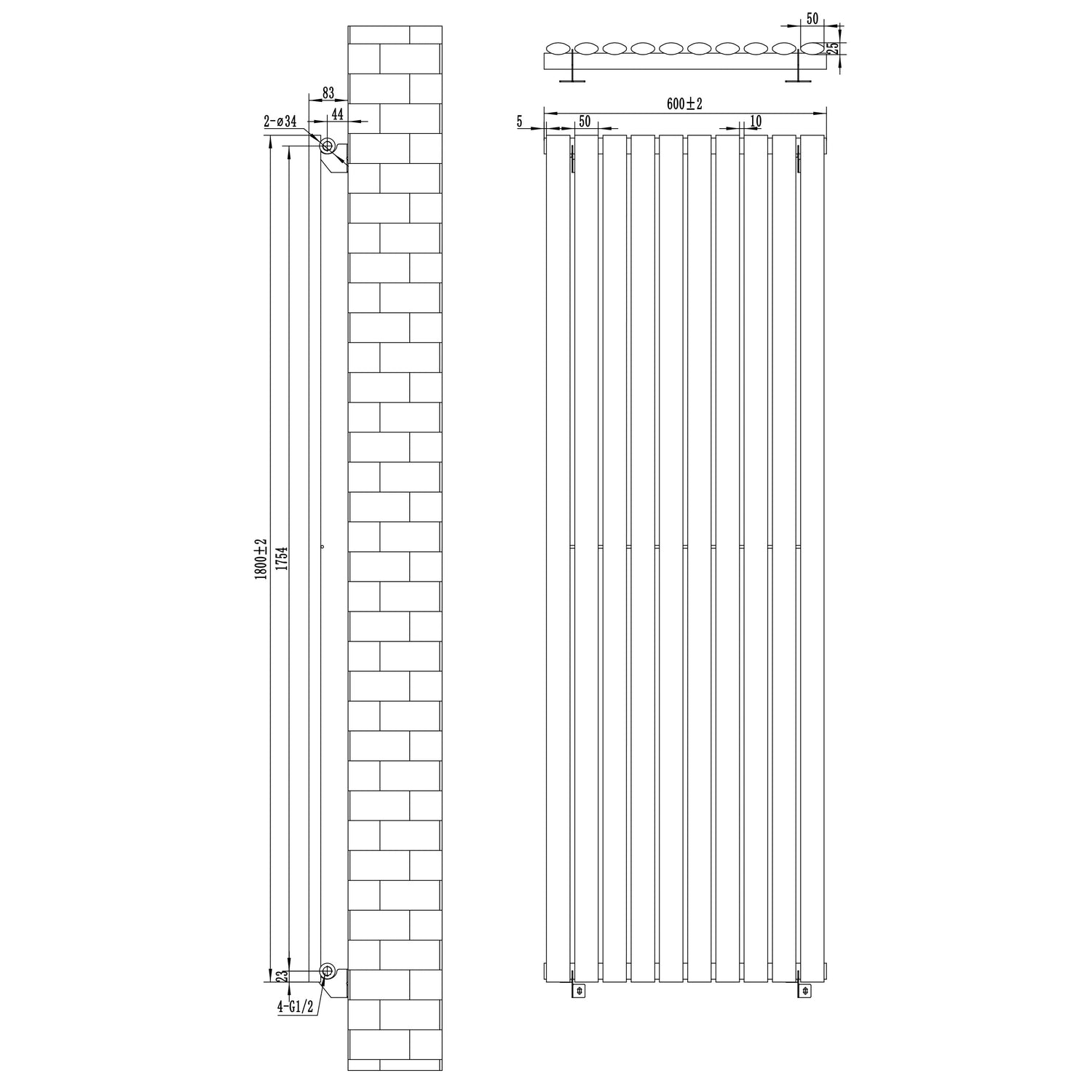

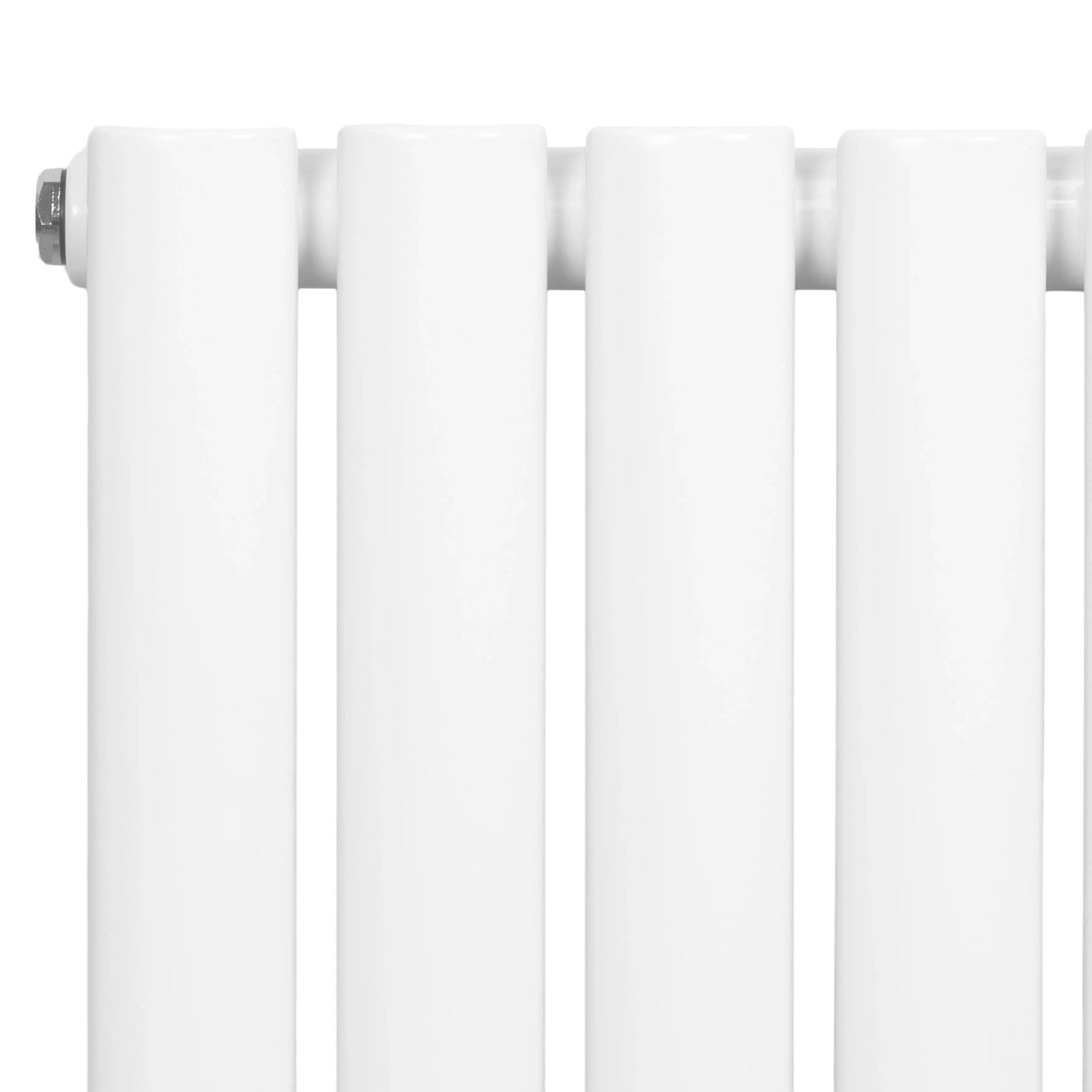

The radiator measures 180cm high, 60cm wide and 5.6cm deep. With the brackets fitted, the overall depth is 8.3cm. It has 10 columns, 1cm gaps between the tubes and oval tubes measuring 50mm x 25mm. The recommended application area is 16m².

It has a maximum working temperature of 95°C, a maximum working pressure of 10 bar and a test pressure of 13 bar. The standard 0.5-inch BSP bore inlet and outlet size allows compatibility with all UK and EU heating systems. The valve-to-valve height is 175.4cm, with 4.4cm from the wall to the centre of the inlet.

The package includes the radiator, four brackets, a fixing kit and a flexible cleaning brush. It has CE and UKCA certification, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee.

Specifications

• Weight: 27.1kg
• Radiator depth: 5.6cm
• Depth with bracket: 8.3cm
• Heat output: 4256 BTU at 50, 5409 BTU at 60
• Watt rating: 1247W at 50, 1585W at 60
• Standard inlet and outlet: 0.5-inch BSP bore

Box contents

• 1 x oval single column radiator
• 4 x secure brackets
• 1 x fixing kit

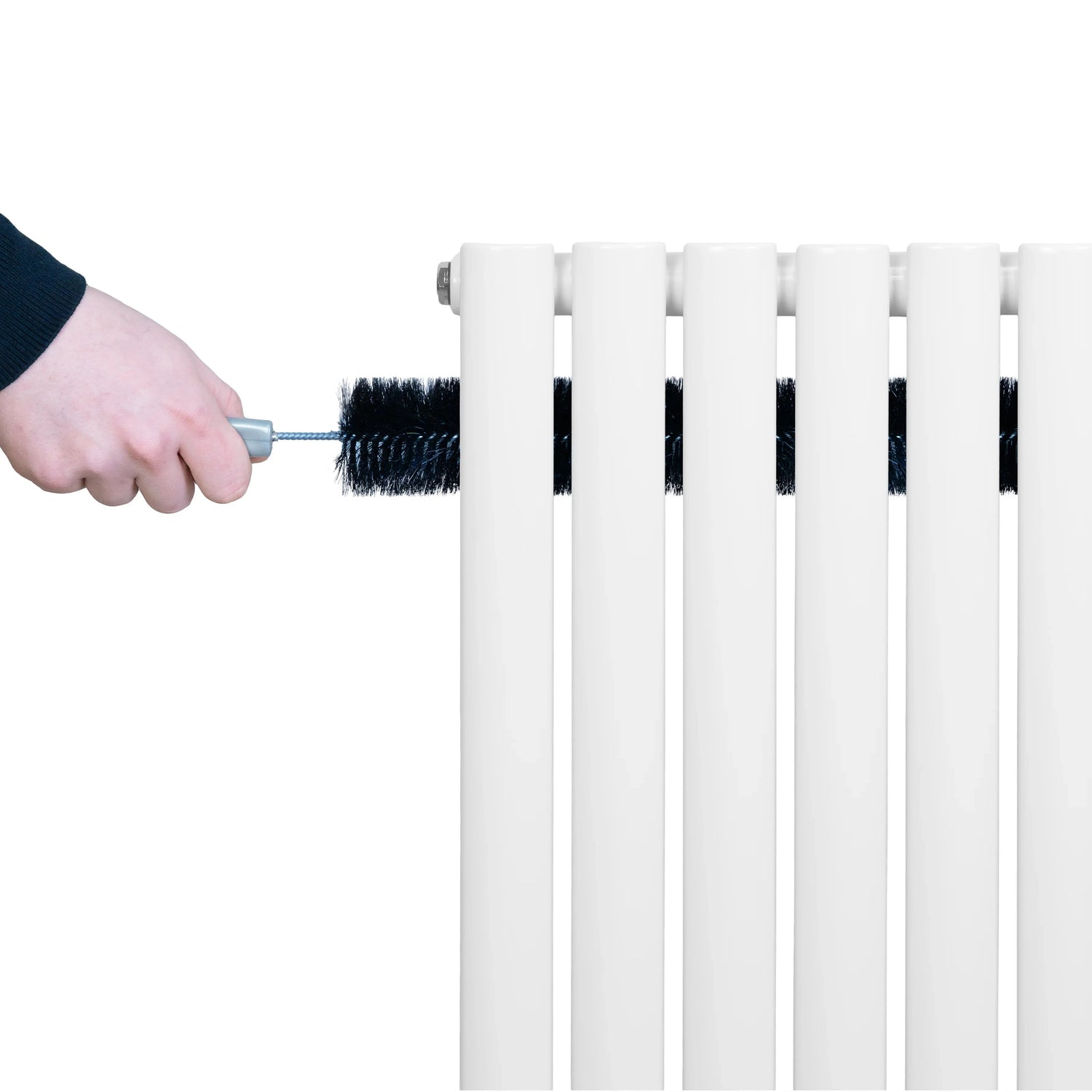

• 1 x flexible cleaning brush
