Oval Single Column Radiator 600 x 1620mm Anthracite Grey

About this product

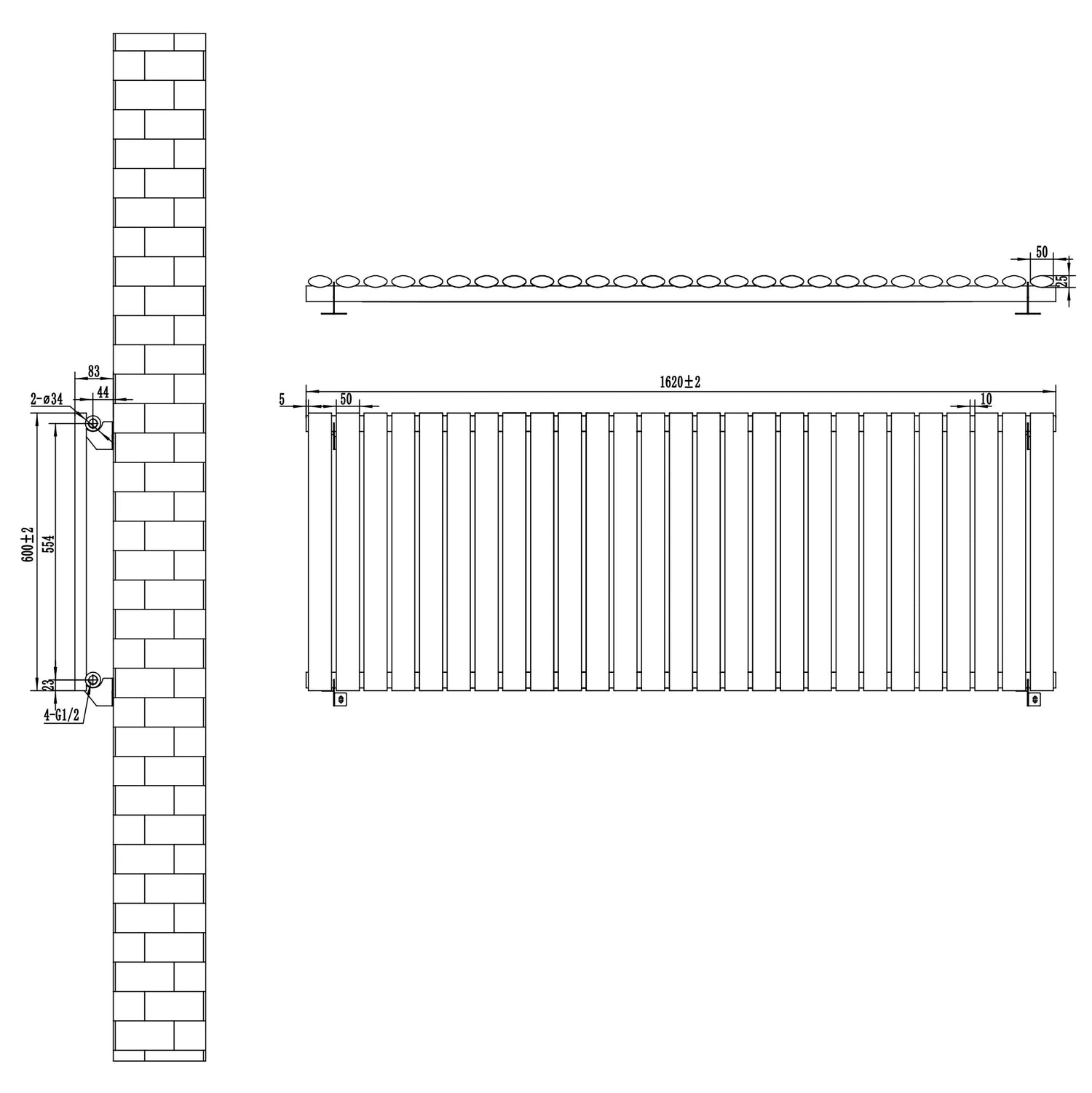

This oval single column radiator is made from 1.5mm carbon steel and finished in anthracite grey with triple-layered powder coating. It measures 60cm high, 162cm wide and 5.6cm deep, or 8.3cm deep with the brackets fitted.

The radiator has 27 columns, with 1cm gaps between the tubes. Each oval tube measures 50mm x 25mm. It is suitable for UK and EU heating systems and uses standard 0.5-inch BSP inlet and outlet bores. The valve-to-valve height is 55.4cm, with 4.4cm from the wall to the centre of the inlet.

The maximum working temperature is 95°C, maximum working pressure is 10 bar and test pressure is 13 bar. The recommended application area is 15m². The stated heat output is 4,171 BTU at 50°C and 5,260 BTU at 60°C, with watt ratings of 1,222W and 1,541W respectively.

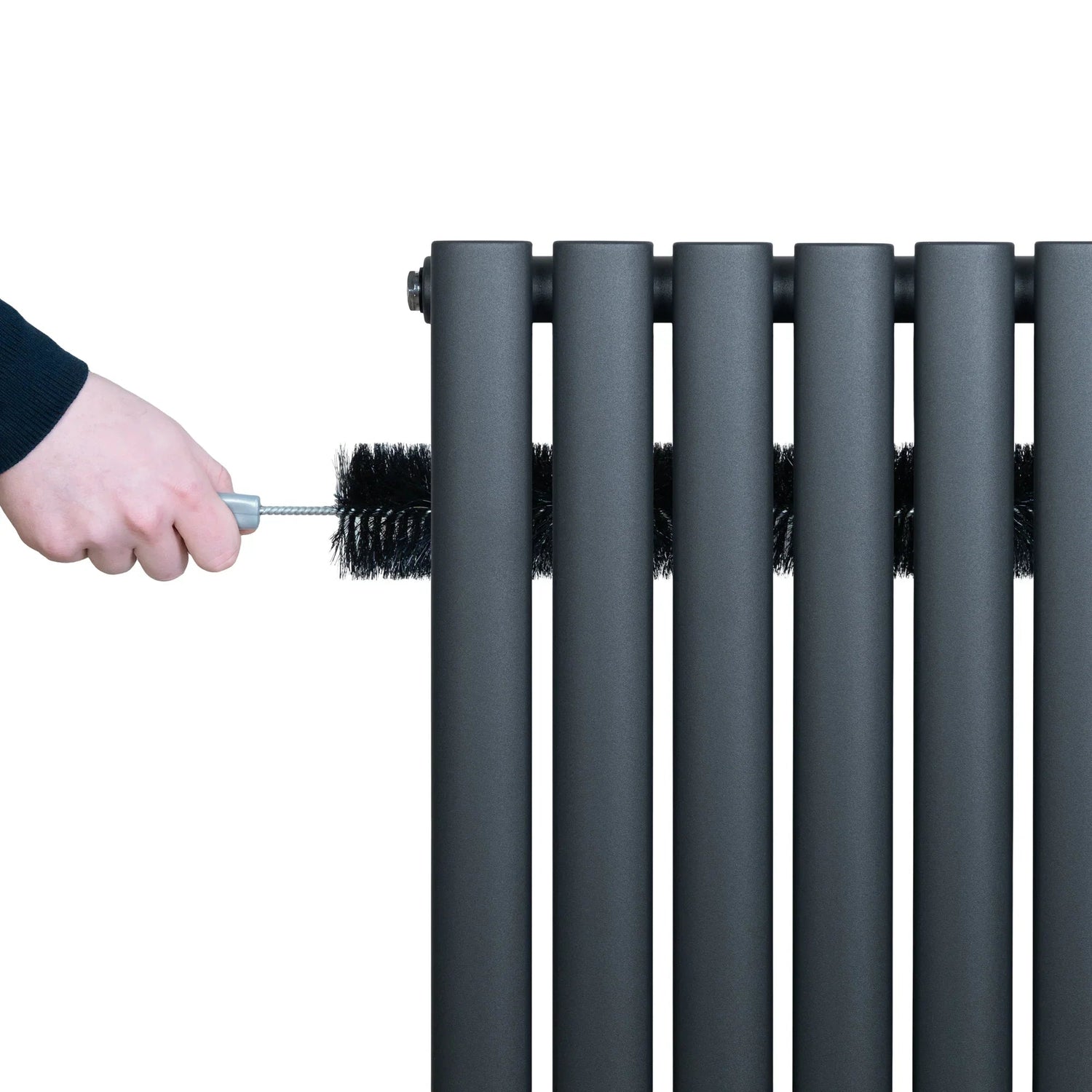

It weighs 26.8kg and comes with four brackets, a fixing kit and a flexible cleaning brush. CE and UKCA approval, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee are included.

Specifications

• Colour: Anthracite grey
• Material: 1.5mm carbon steel
• Dimensions: 60cm high x 162cm wide x 5.6cm deep
• Depth with bracket: 8.3cm
• Number of columns: 27
• Recommended application area: 15m²
• Maximum working temperature: 95°C
• Maximum working pressure: 10 bar

Box contents

• 1 x oval single column radiator
• 4 x brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
