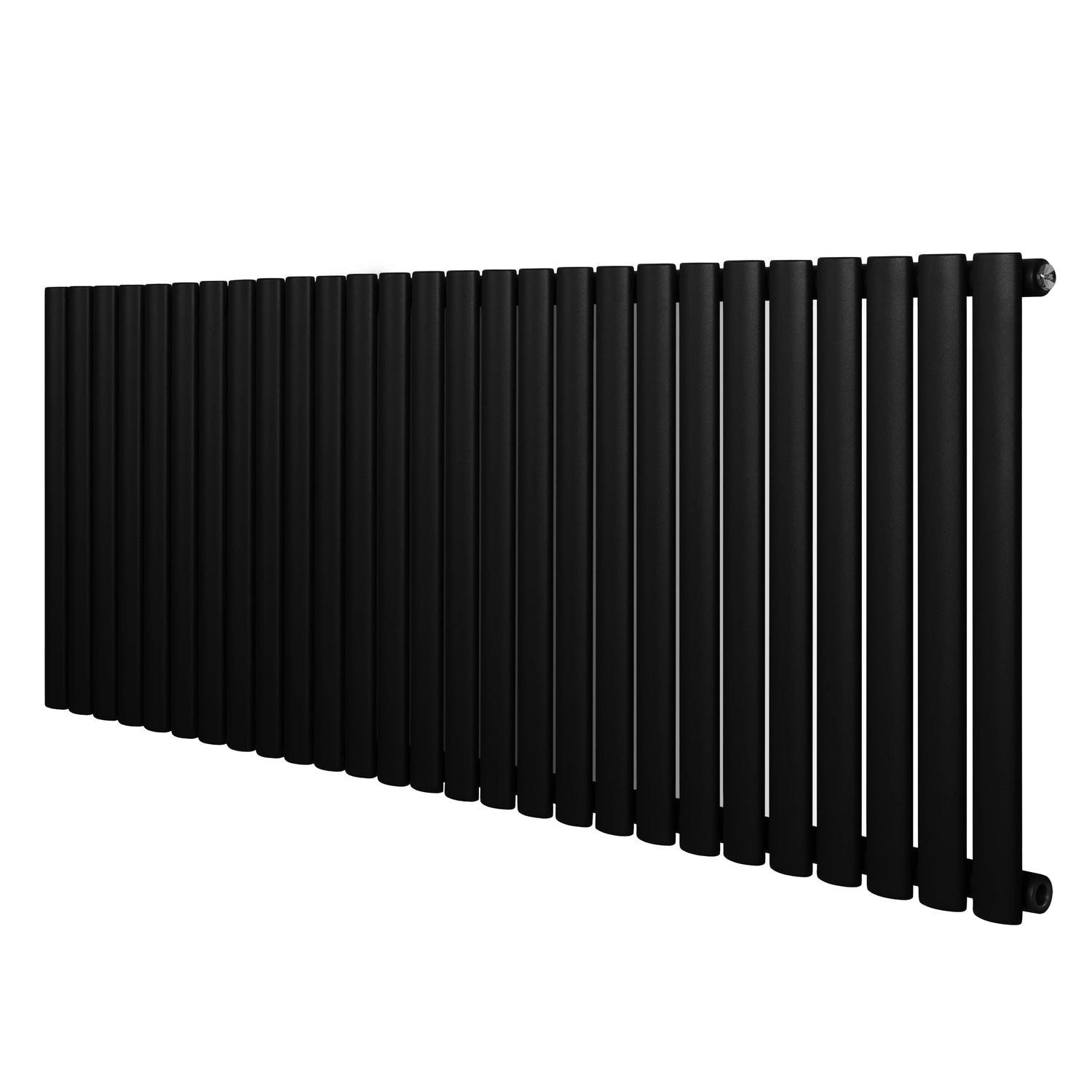

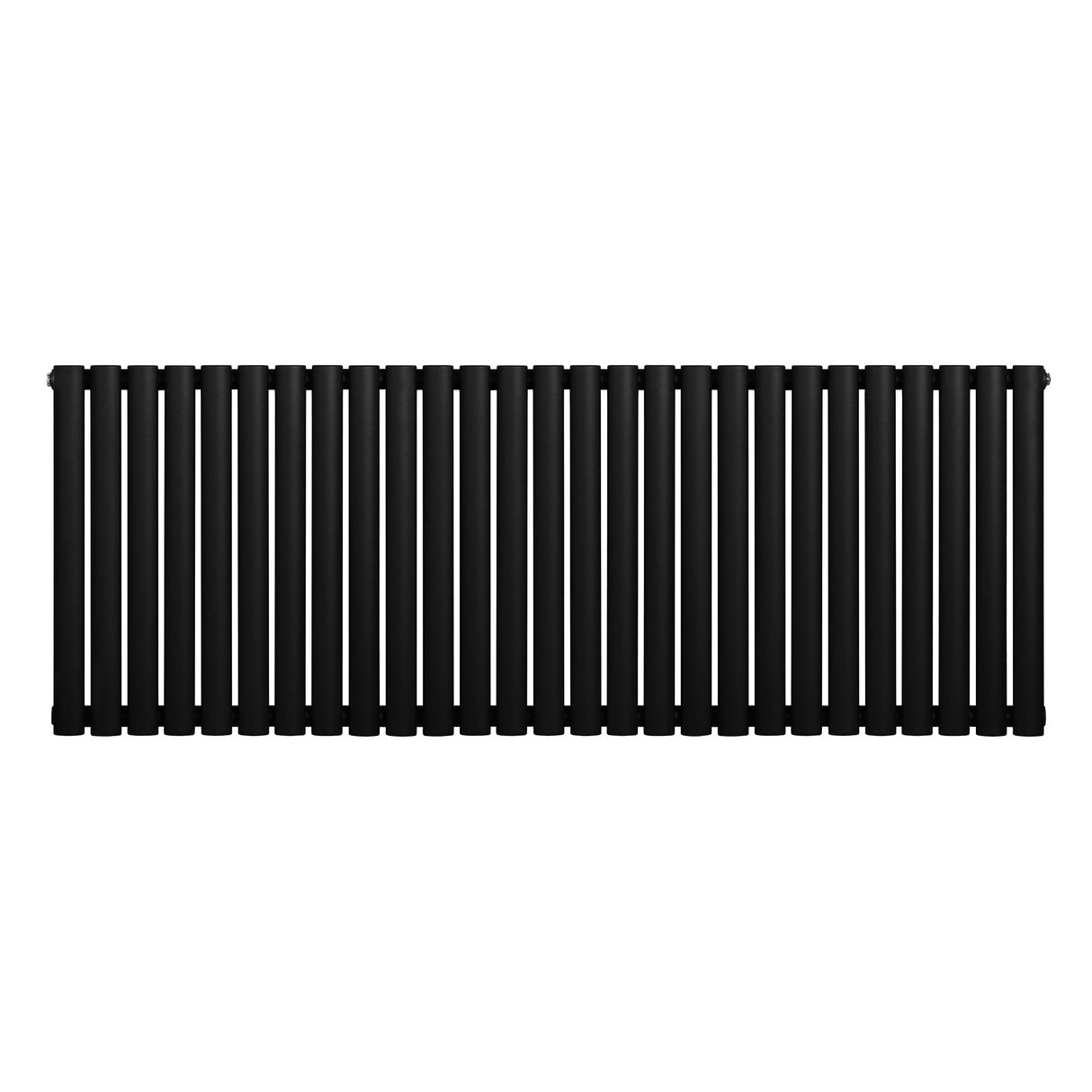

Oval Single Column Radiator 600 x 1620mm, Black

About this product

This black oval single column radiator is made from 1.5mm carbon steel and suits UK and EU heating systems. It has a triple layered powder-coated finish, 27 columns and a recommended application area of 15m².

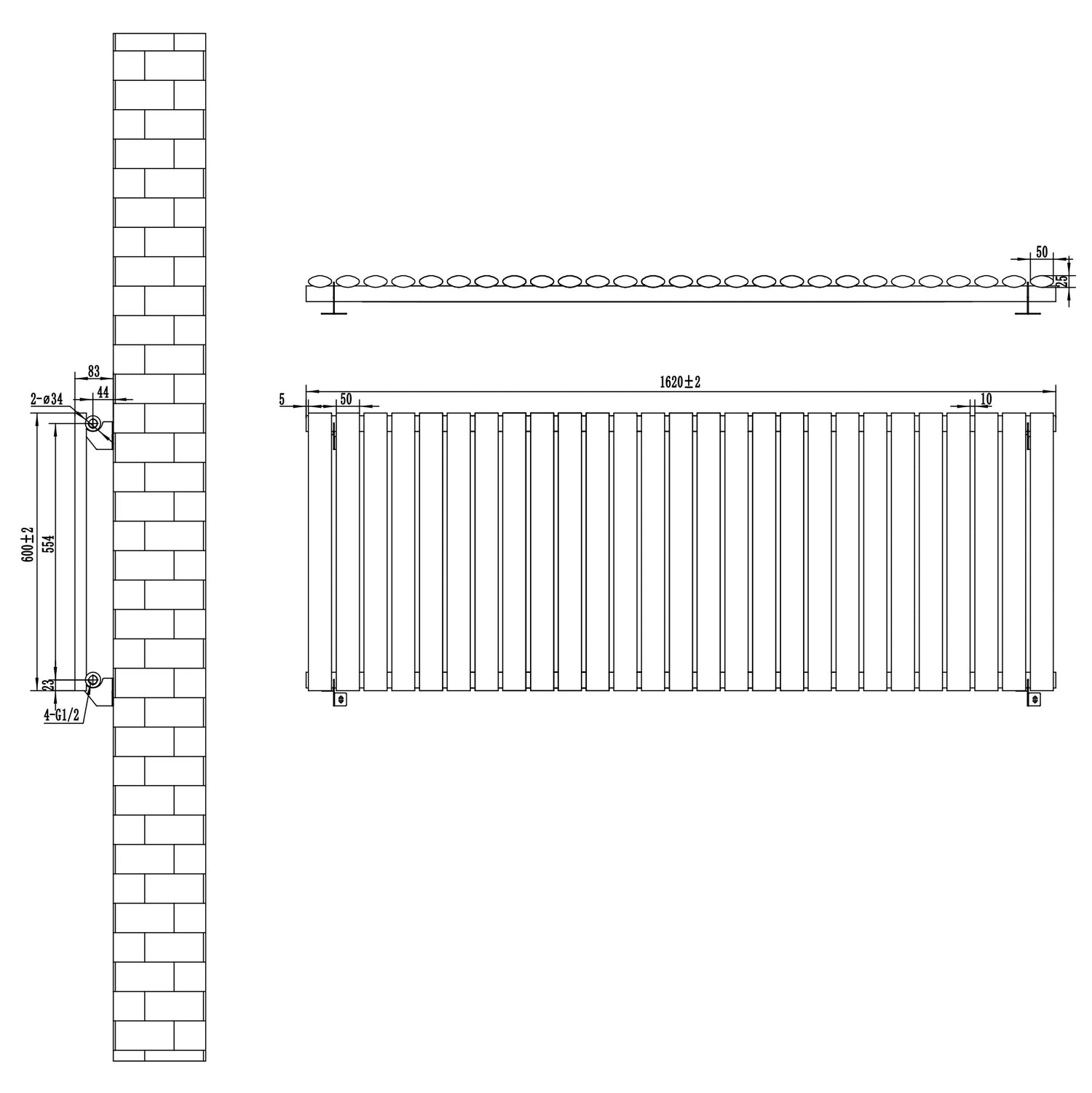

The radiator measures 60cm high, 162cm wide and 5.6cm deep. With the brackets fitted, the depth is 8.3cm. The valve-to-valve height is 55.4cm, and the distance from the wall to the centre of the inlet is 4.4cm. Standard 0.5-inch BSP inlets and outlets are compatible with the included angled thermostatic valve set.

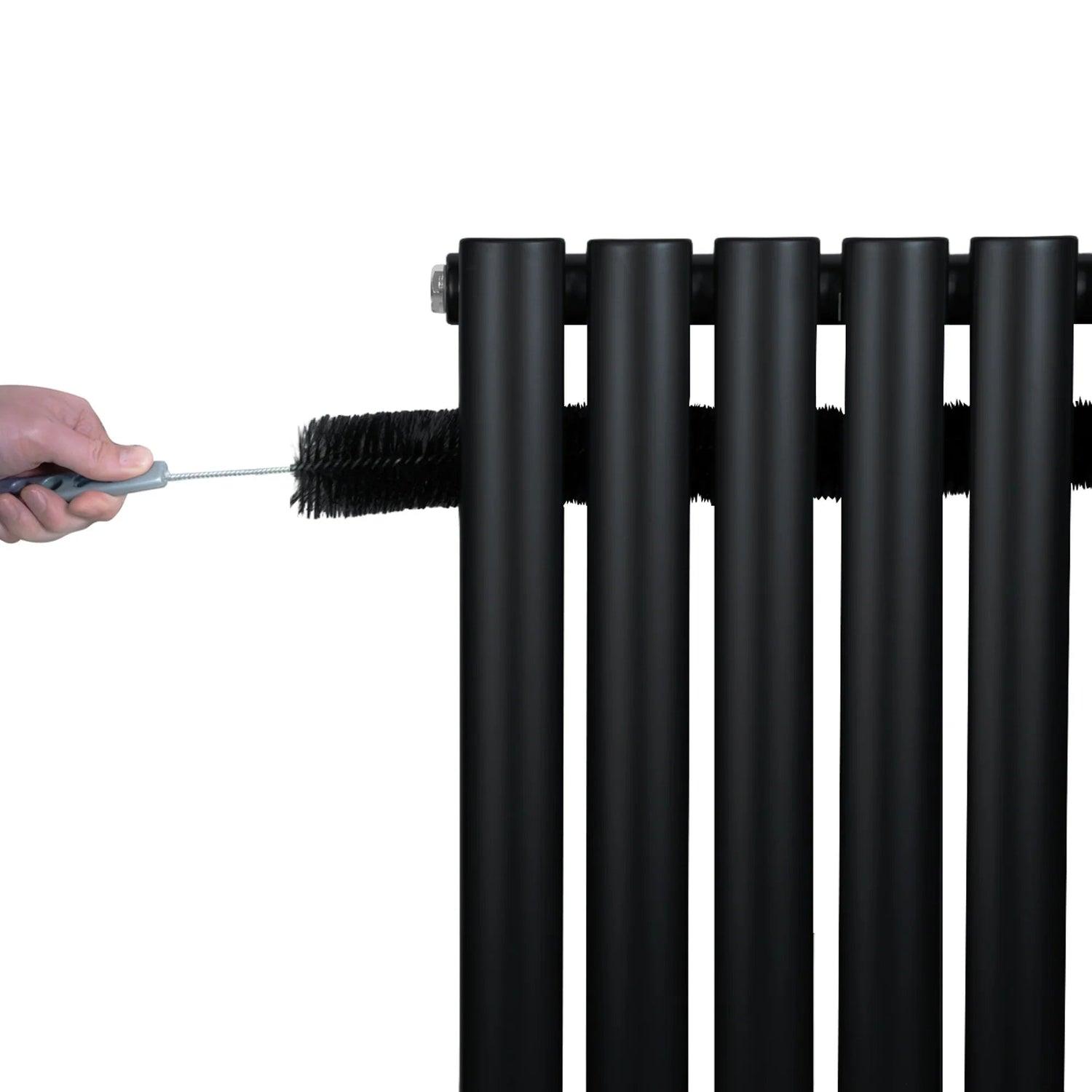

The valves have a polished chrome finish, brass construction, a rotary knob and a temperature range of 6 to 28 degrees. The radiator is supplied with four brackets, a fixing kit, a flexible cleaning brush and the valve set.

Specifications
- Weight: 26.8kg
- Maximum working temperature: 95°C
- Maximum working pressure: 10 bar
- Test pressure: 13 bar
- Radiator output: 4,171 BTU at 50 and 5,260 BTU at 60
- Radiator output: 1,222W at 50 and 1,541W at 60
- Tube gap: 1cm
- Valve maximum pressure: 12 bar
- Valve maximum flow temperature: 100 degrees
- Valve nominal flow rate: 2.8L/min
- Valve connection: 5.08cm x 1.5cm
- Radiator guarantee: 15 years
- Valve guarantee: 10 years
- Testing: BS EN 442 and ISO9001:2015 standards
- Certification: CE and UKCA
