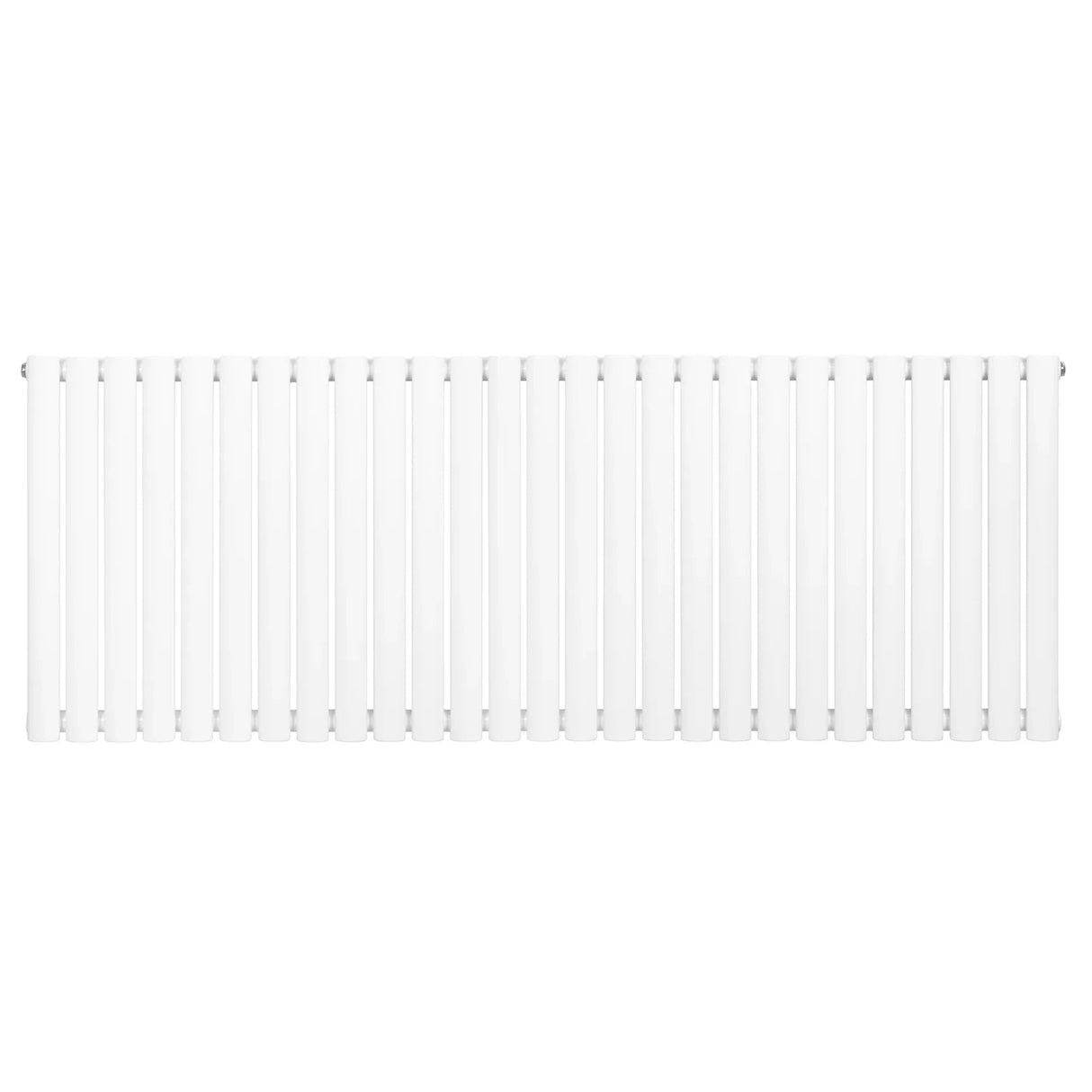

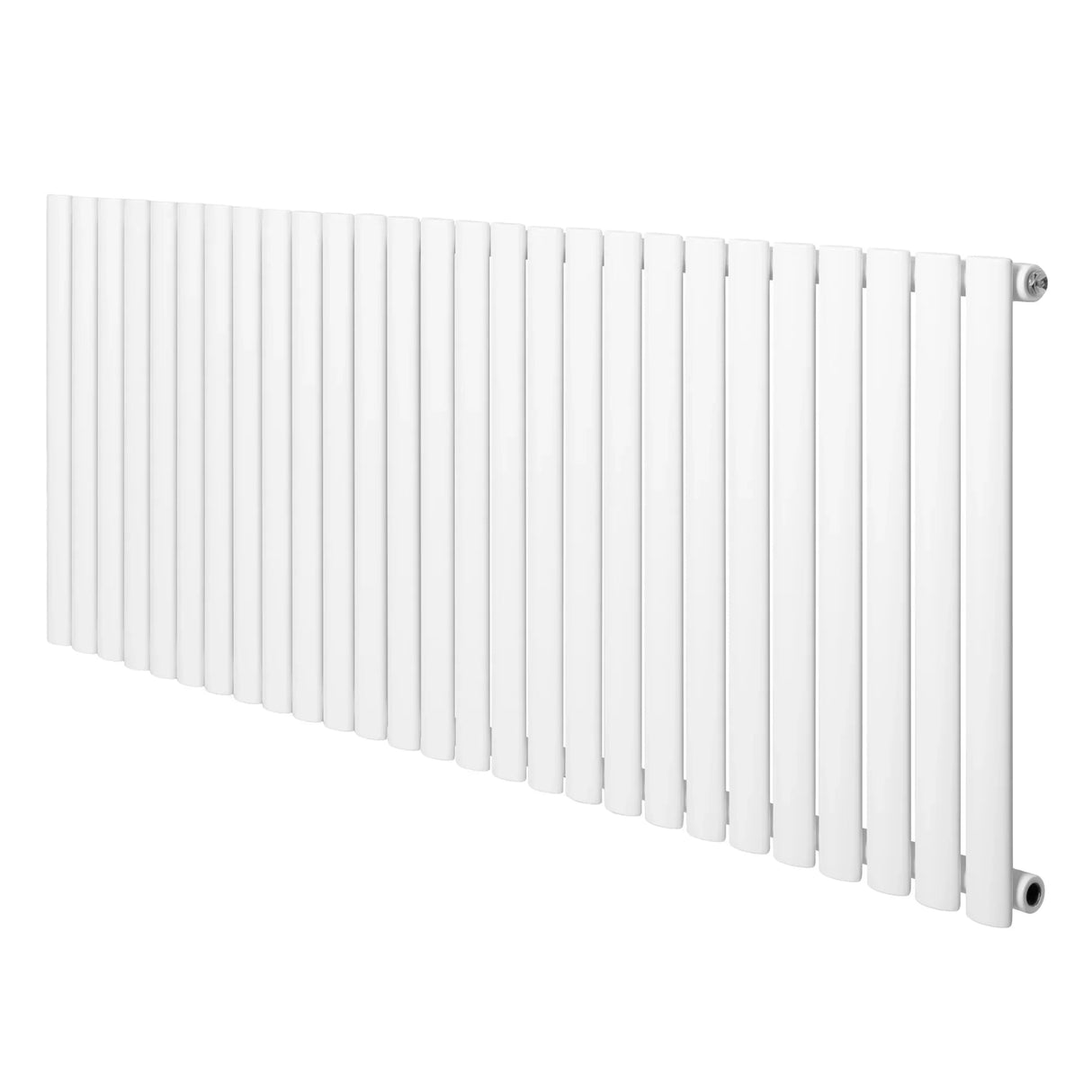

Oval Single Column Radiator 600 x 1620mm White

About this product

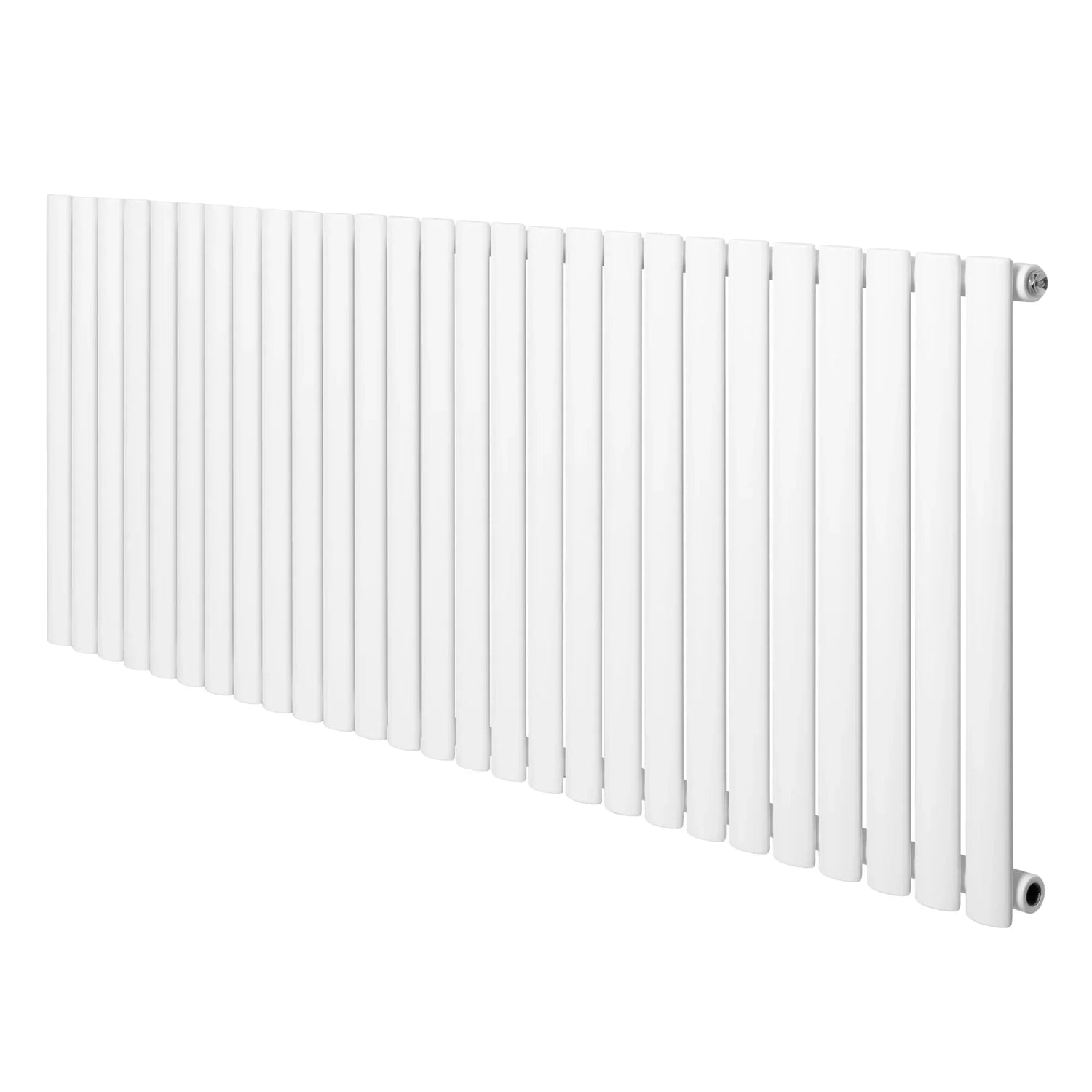

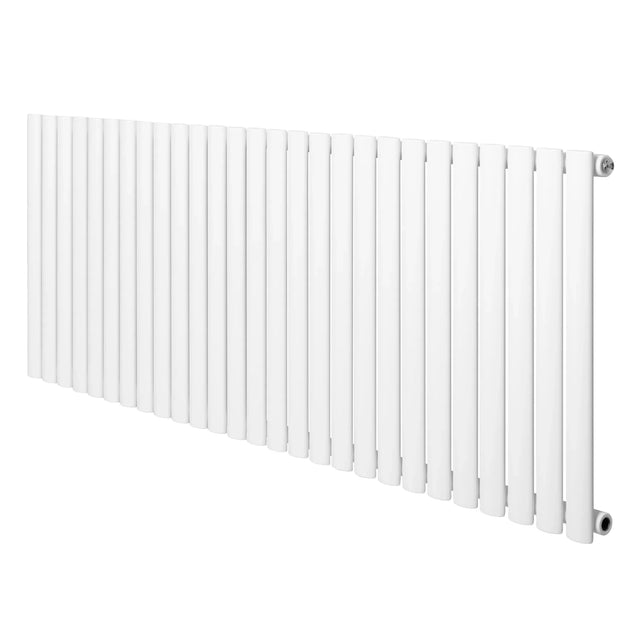

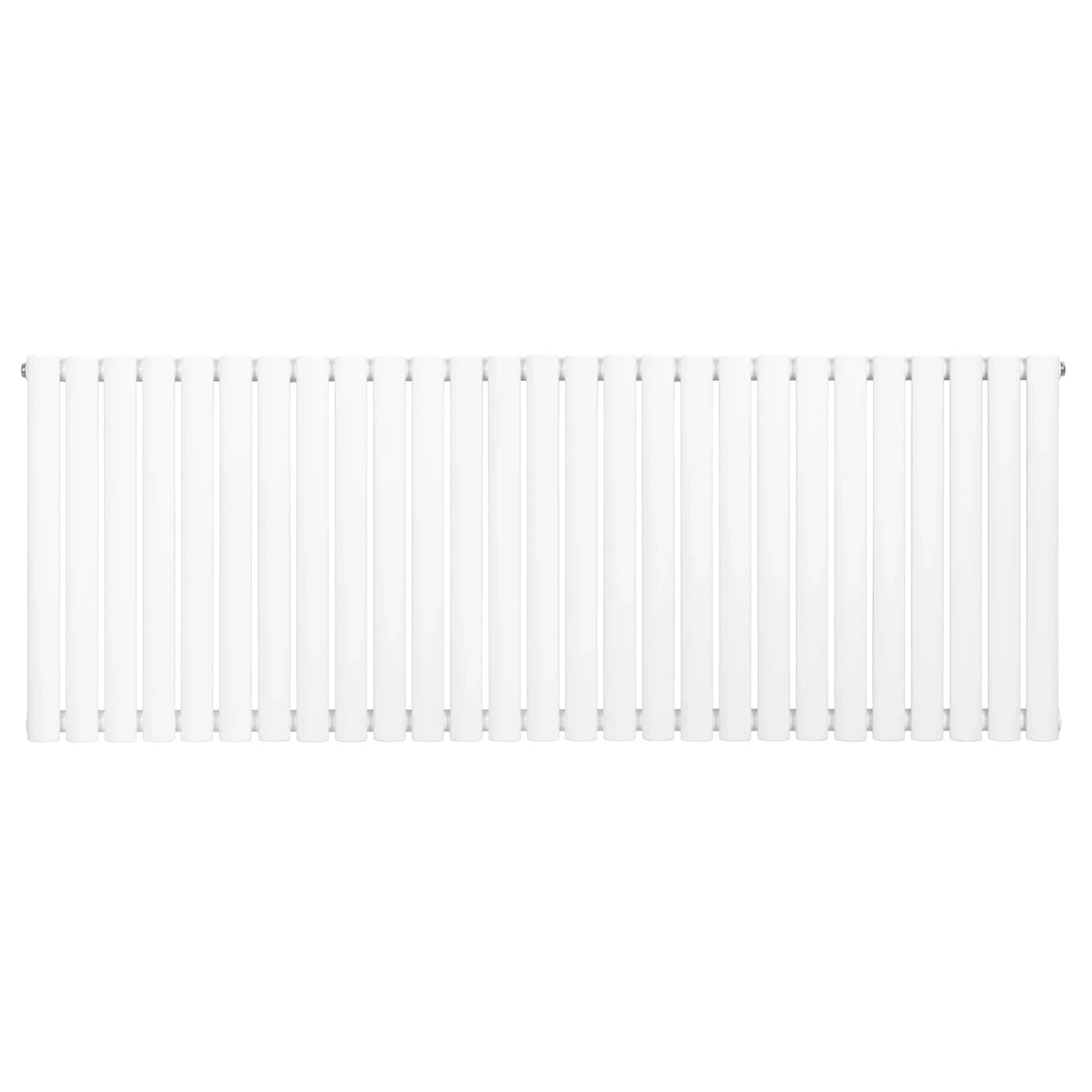

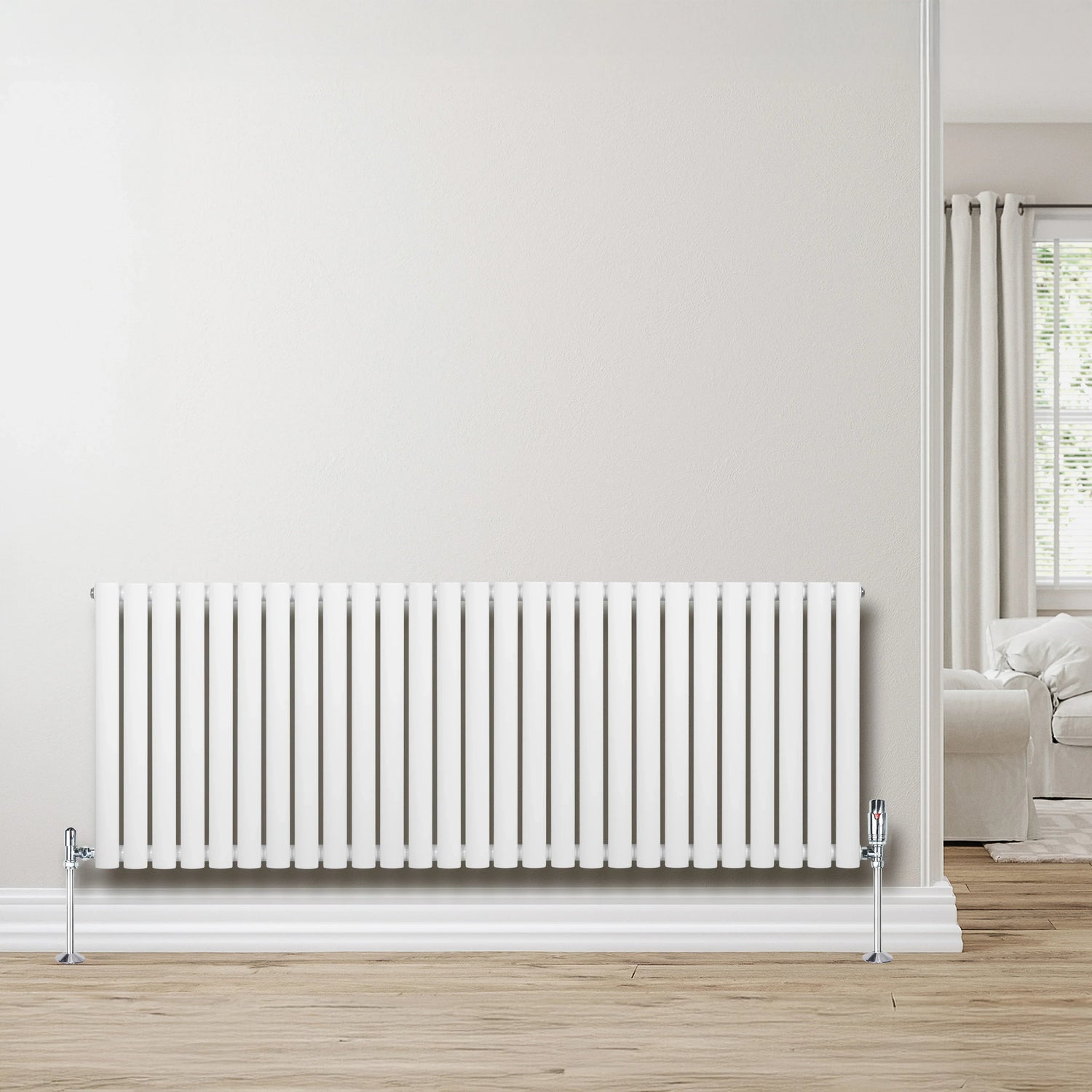

This white oval single column radiator is made from 1.5mm carbon steel and suits UK and EU heating systems. It measures 60cm high and 162cm wide, with a 5.6cm radiator depth and 8.3cm depth including the brackets.

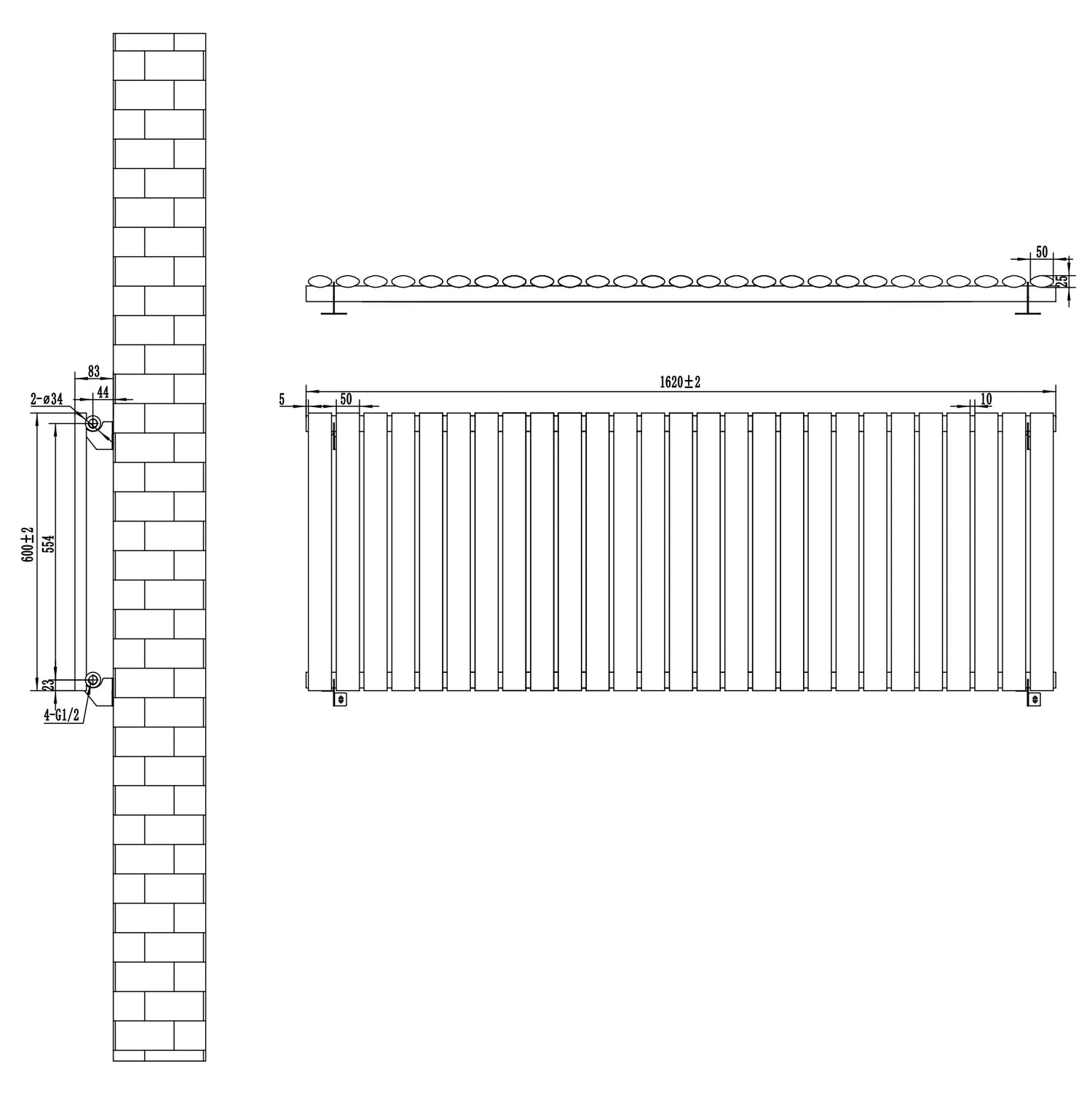

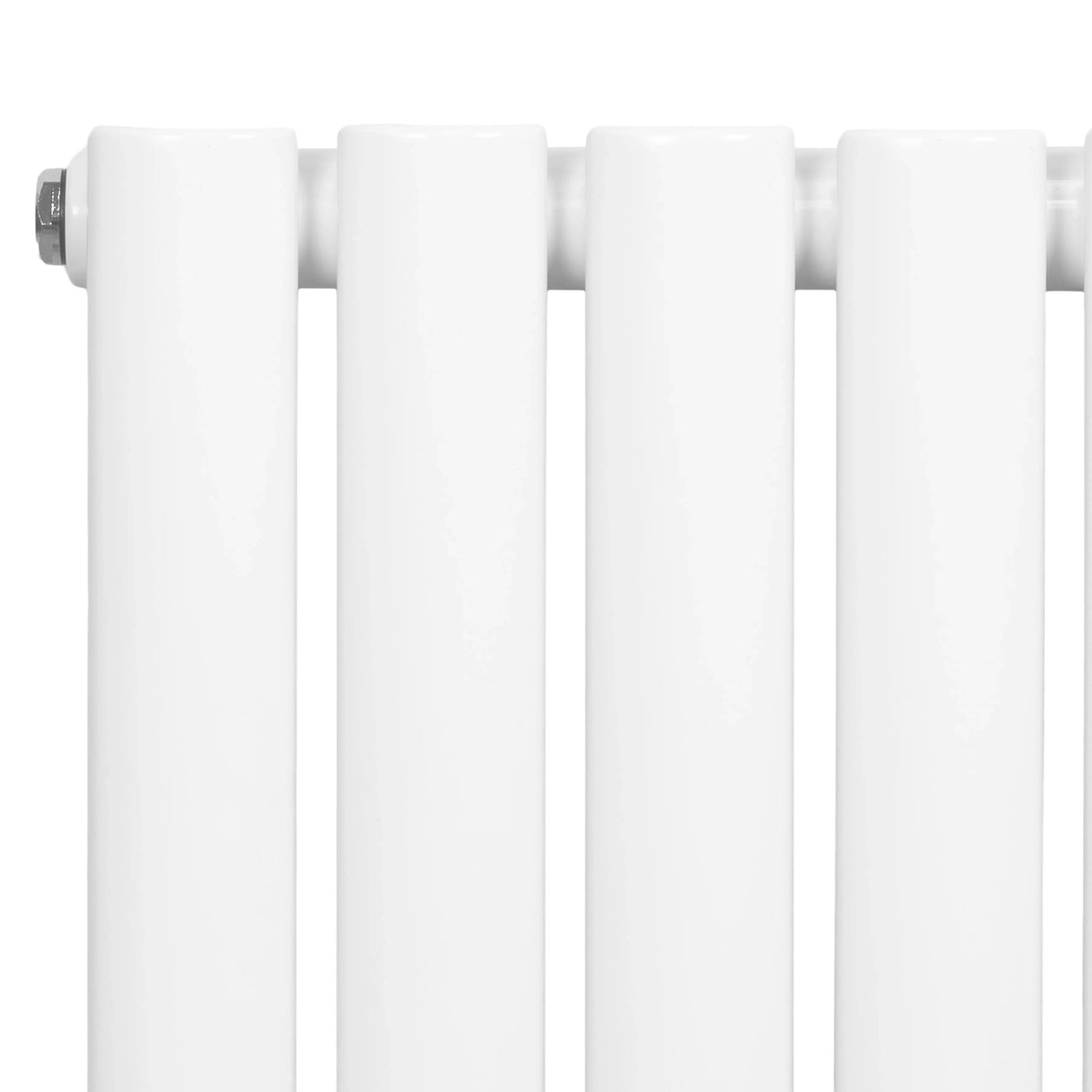

The radiator has a triple layered powder-coated finish, 27 columns and 1cm between the tubes. Its oval tubes measure 50mm x 25mm. Standard 0.5" BSP inlets and outlets allow you to choose suitable valves. The valve-to-valve height is 55.4cm, and the distance from the wall to the centre of the inlet is 4.4cm.

It has a maximum working temperature of 95°C, maximum working pressure of 10 Bar and test pressure of 13 Bar. The recommended application area is 15m². Fixtures and fittings are included, along with four brackets, a fixing kit and a flexible cleaning brush.

The radiator weighs 26.8kg and is tested to BS EN 442 and ISO9001:2015 standards. It has CE and UKCA certification and comes with a 15-year guarantee.

Specifications

• Colour: White
• Material: 1.5mm carbon steel
• Height: 60cm
• Width: 162cm
• Radiator depth: 5.6cm
• Depth with bracket: 8.3cm
• Number of columns: 27
• Recommended application area: 15m²

Box contents

• 1 x oval single column radiator
• 4 x brackets
• 1 x fixing kit

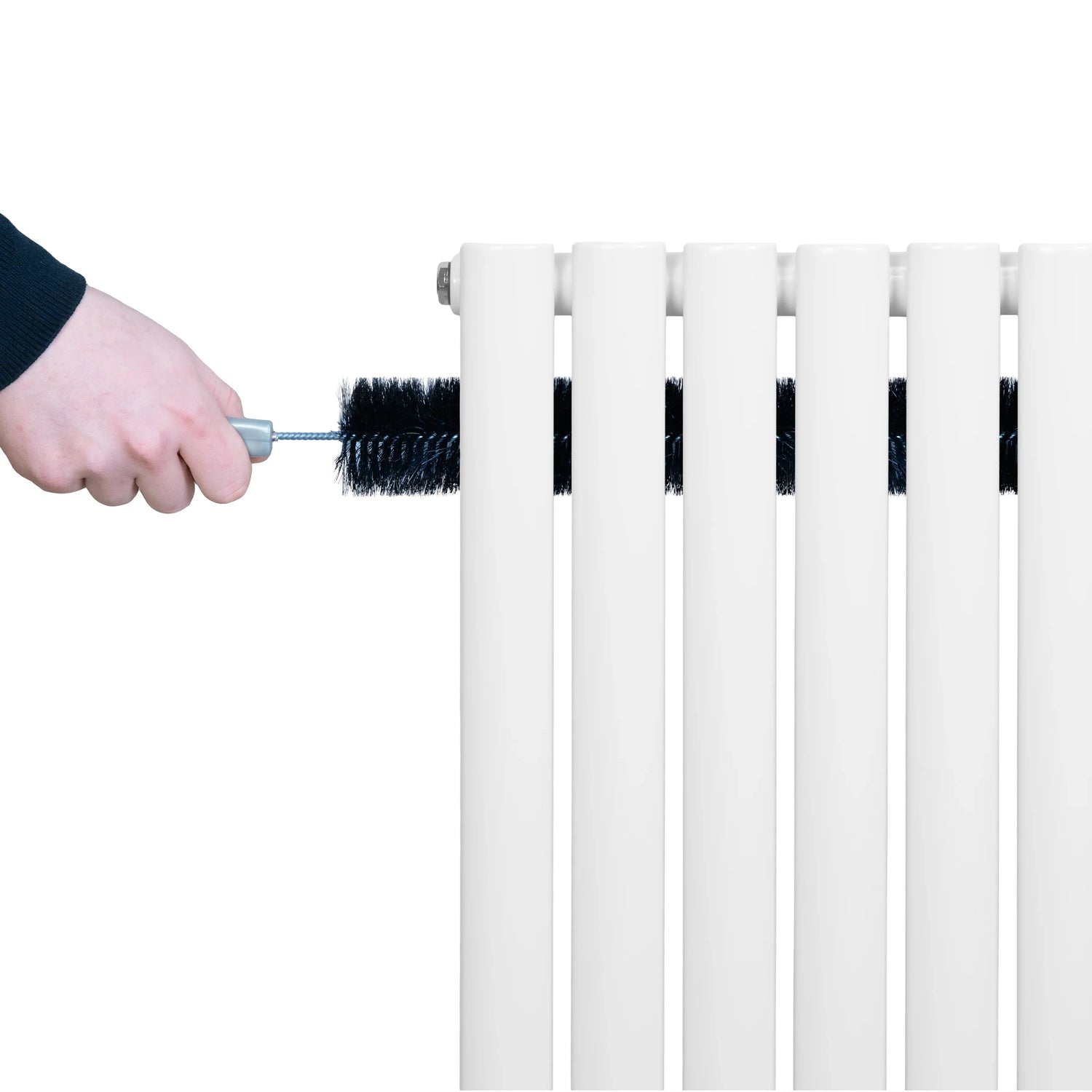

• 1 x flexible cleaning brush
