Oval Single Column Radiator 600 x 600mm Anthracite Grey

About this product

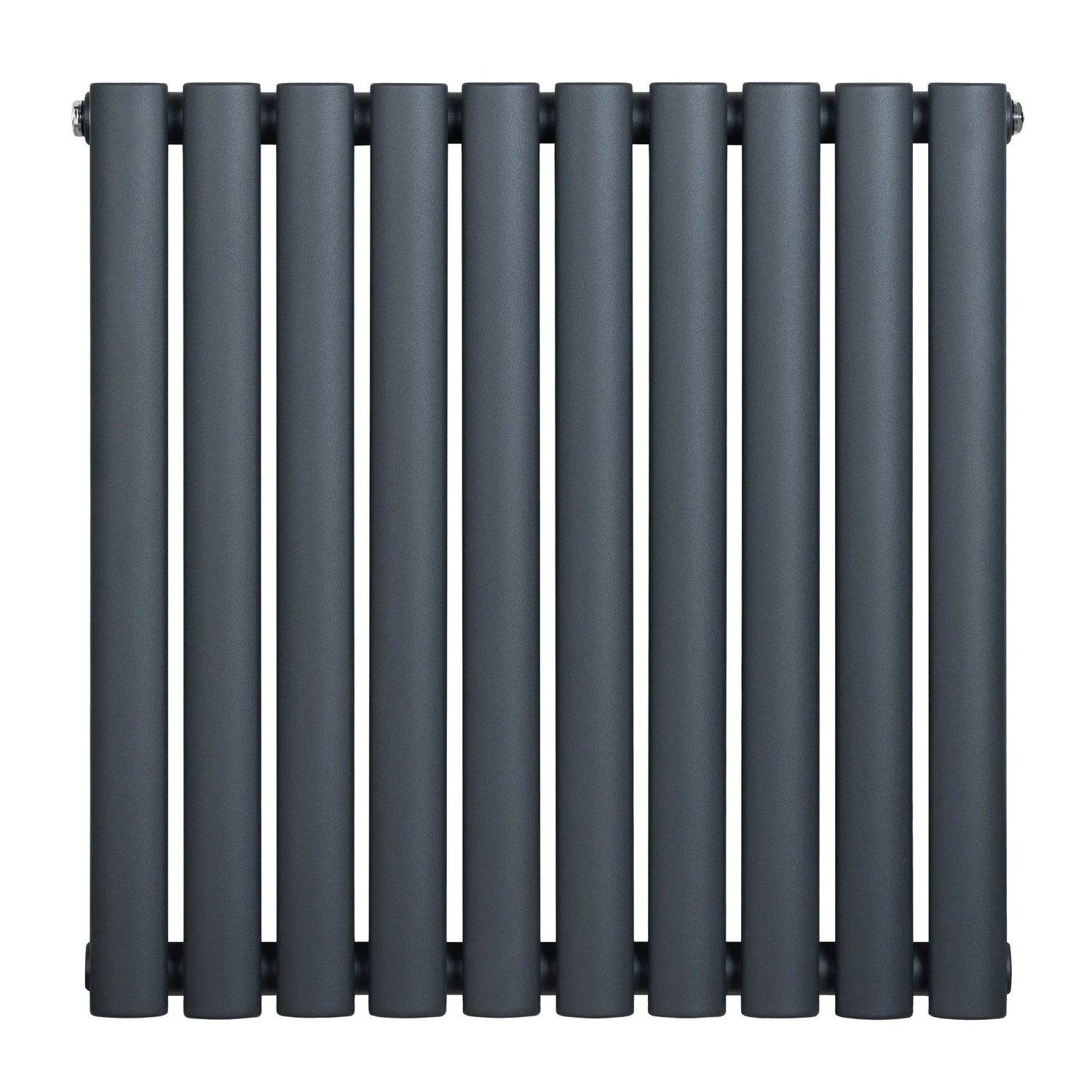

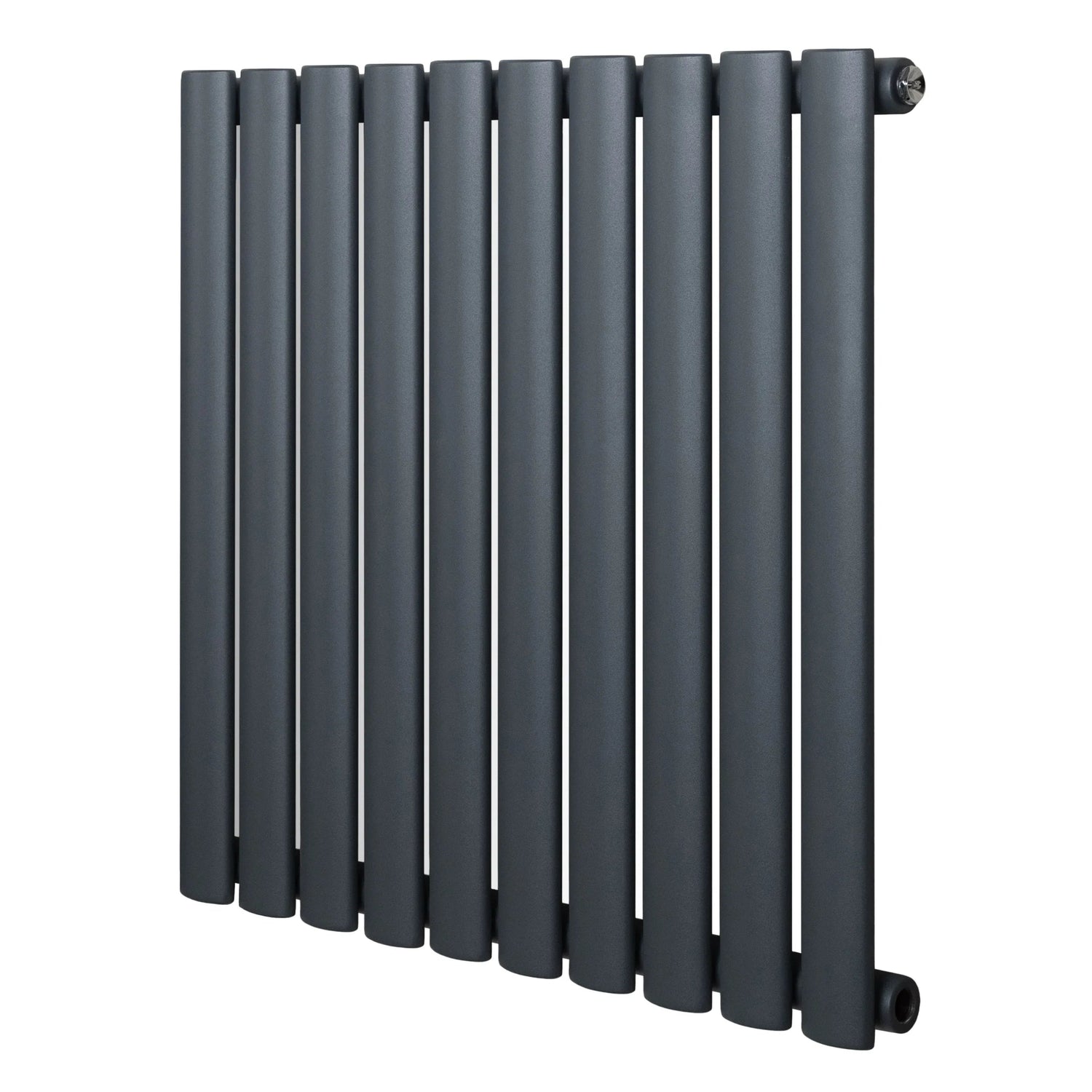

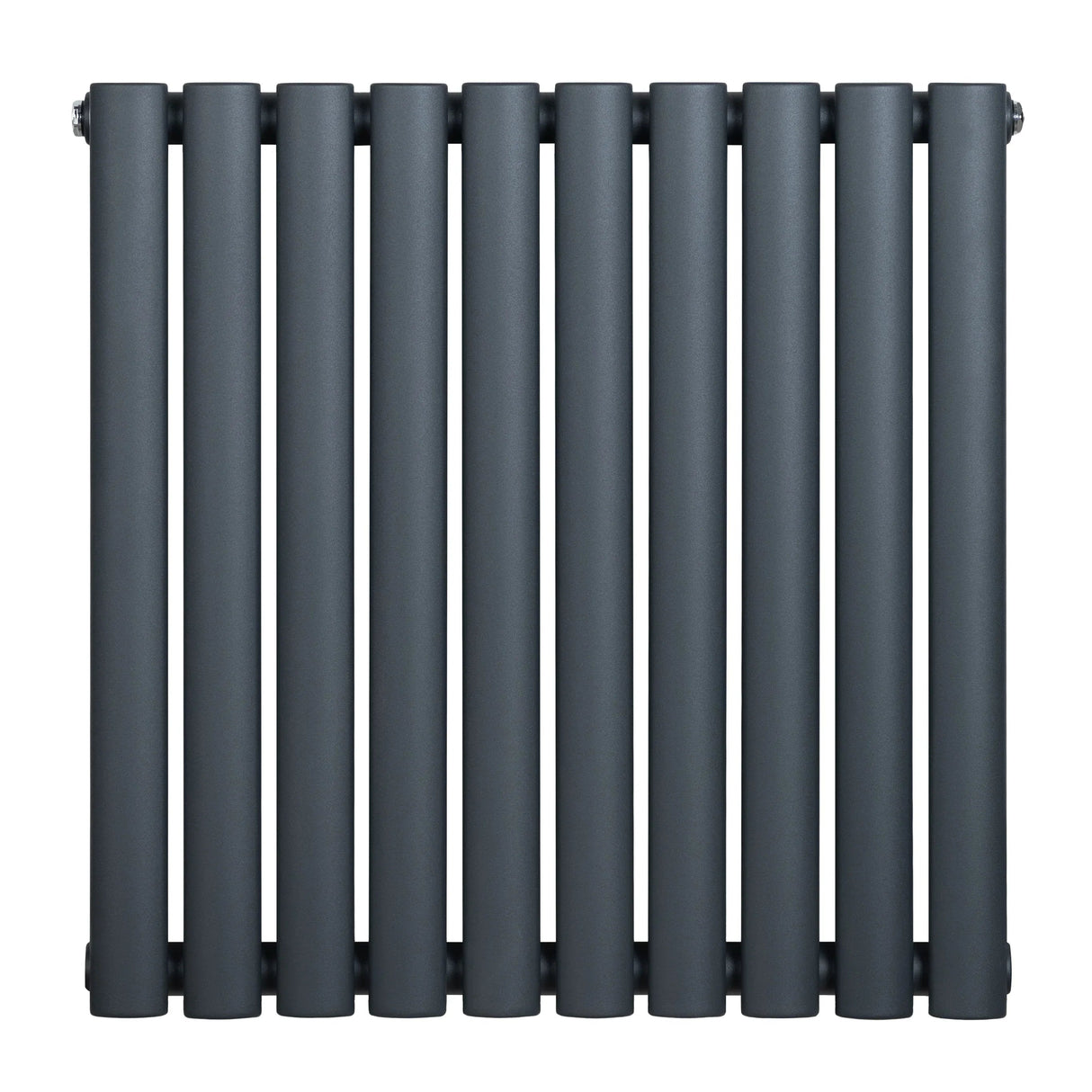

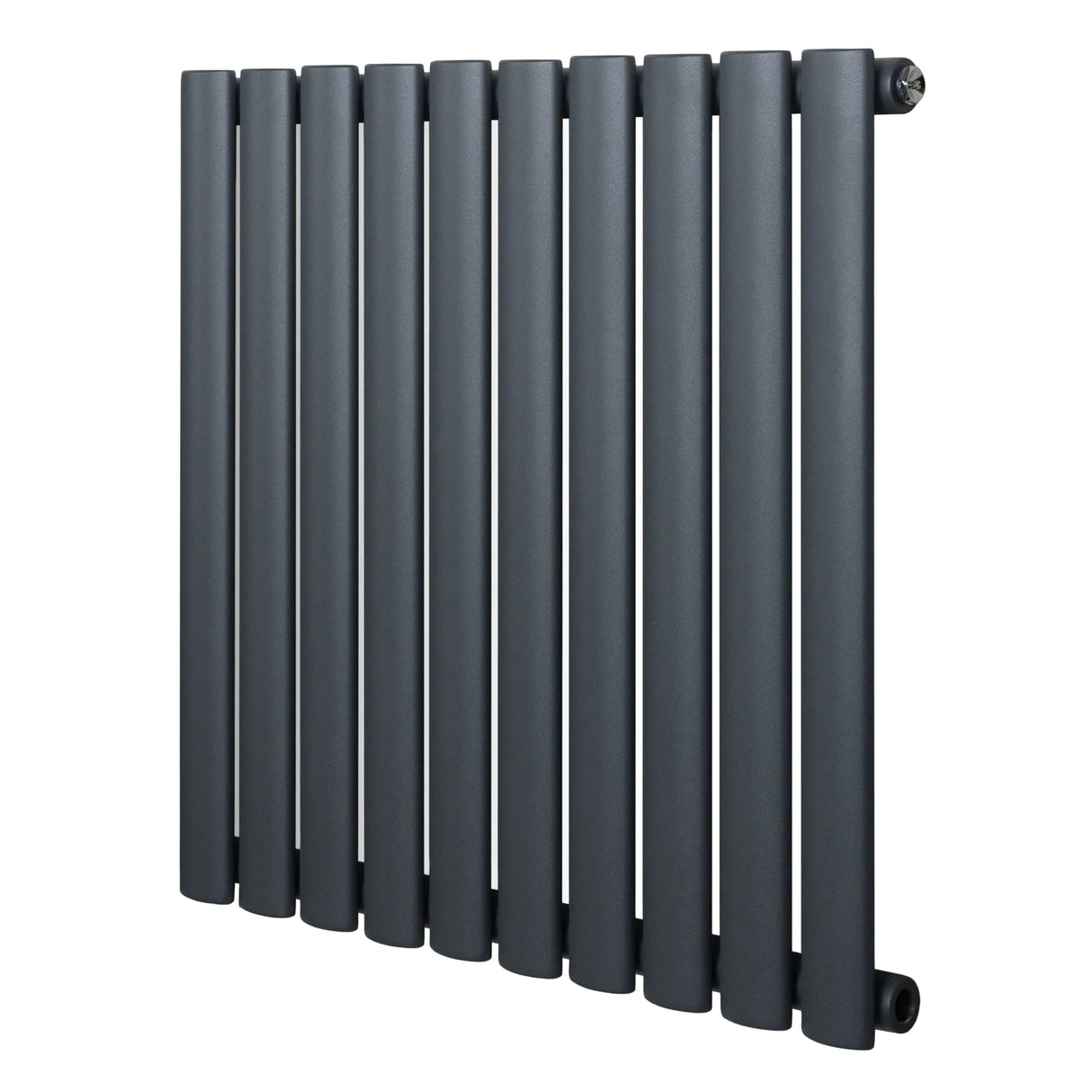

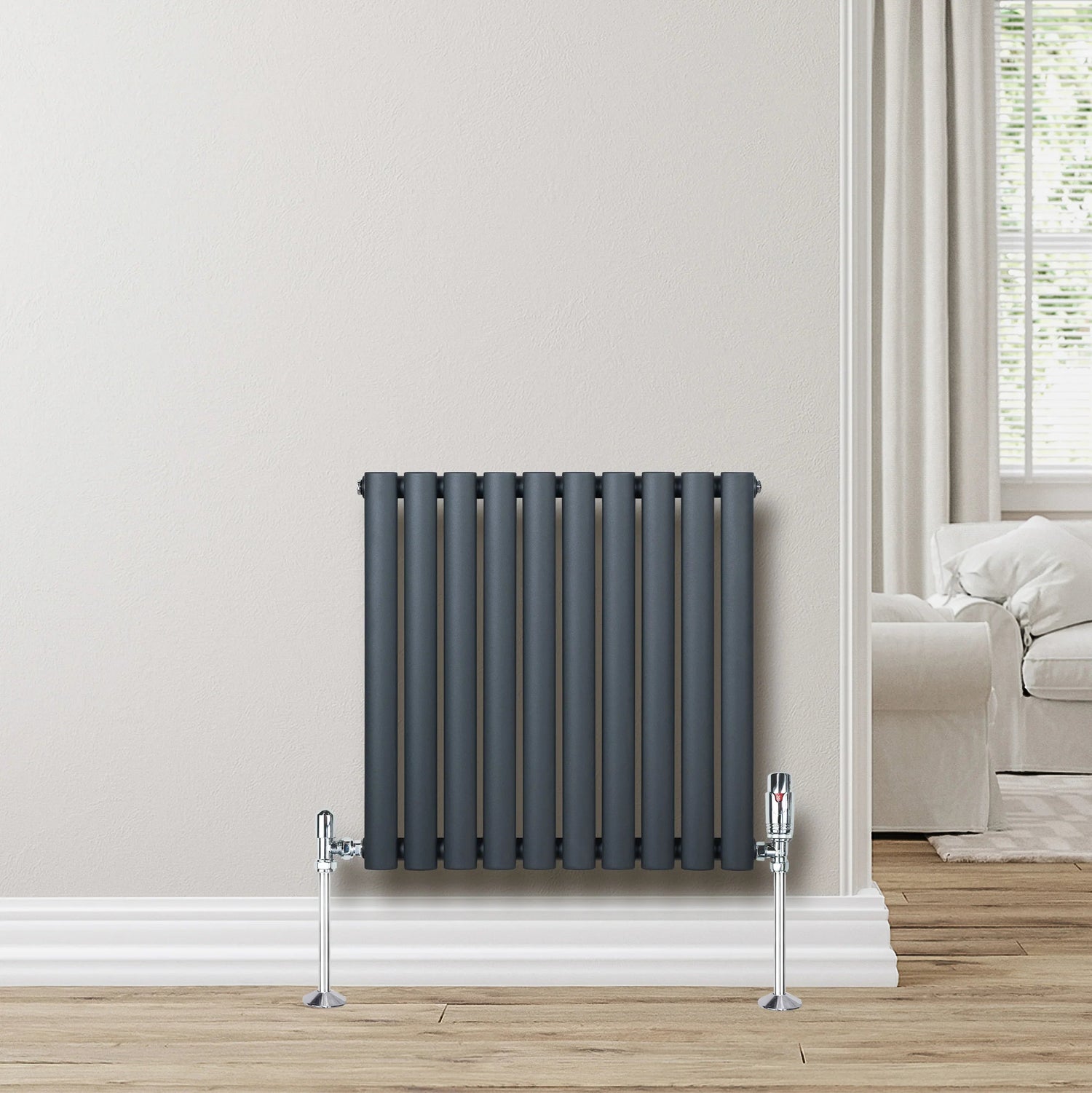

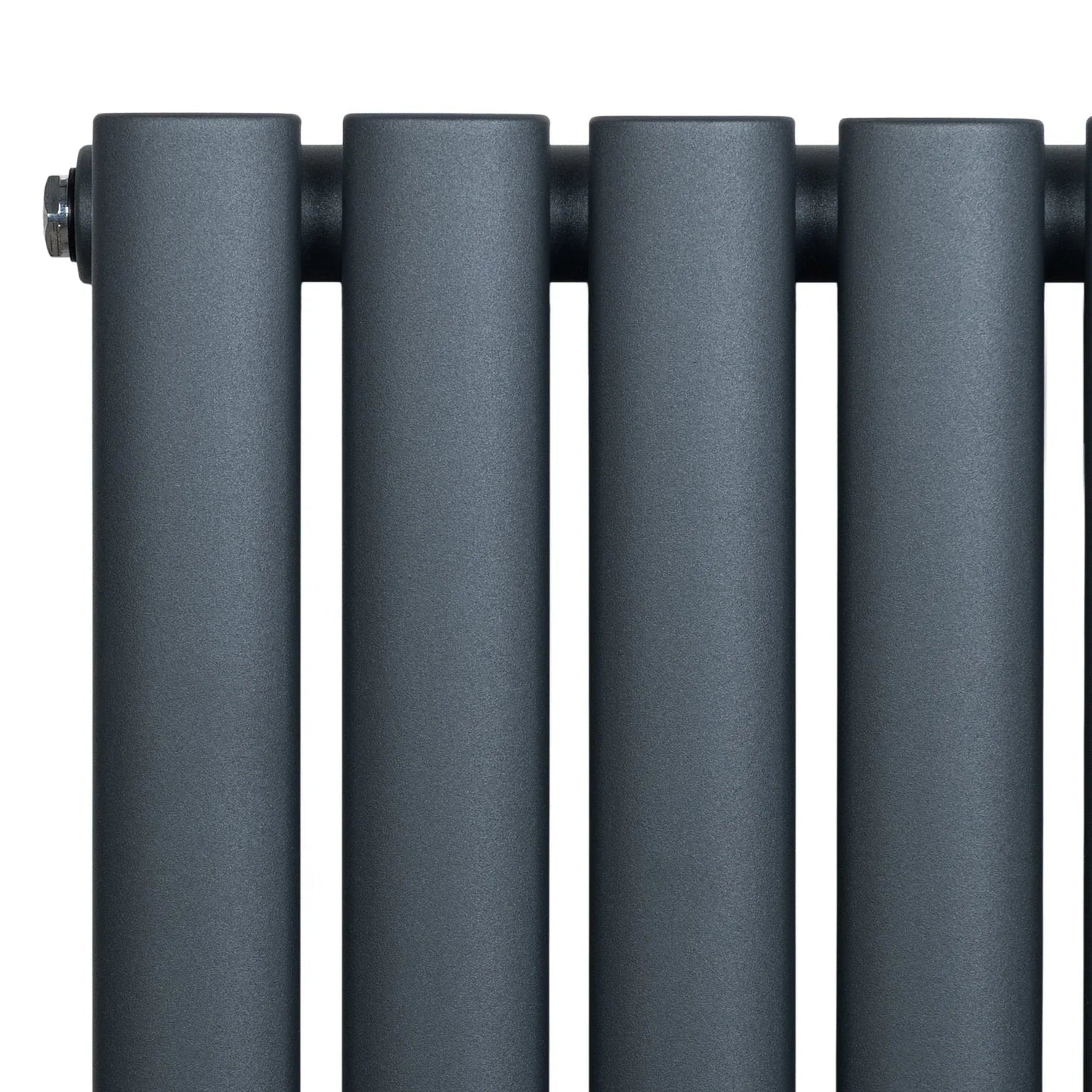

An oval single column radiator for UK and EU heating systems, supplied with an angled chrome thermostatic valve set. It is 600mm high and 600mm wide, with a triple layered powder-coated anthracite grey finish.

The radiator is made from 1.5mm carbon steel and has 10 columns. It measures 56mm deep, or 83mm deep with the supplied brackets. The recommended application area is 6m². Standard 0.5-inch BSP inlets and outlets allow connection to compatible heating systems.

The thermostatic valve set has a rotary control knob and a temperature range of 6 to 28°C. The integrated lockshield valve helps regulate water flow. The valve connection is 1/2 inch x 15mm, with a nominal flow rate of 2.8L/m.

The radiator has a 15-year guarantee. The valve set has a 10-year guarantee. Fixtures and fittings, four brackets, a fixing kit, cleaning brush and thermostatic valve set are included.

Specifications
- Colour: Anthracite grey
- Material: 1.5mm carbon steel
- Finish: Triple layered powder coating
- Dimensions: 600mm high x 600mm wide x 56mm deep
- Depth with bracket: 83mm
- Weight: 10.5kg
- Number of columns: 10
- Recommended application area: 6m²
- Maximum working temperature: 95°C
- Maximum working pressure: 10 bar
- Test pressure: 13 bar

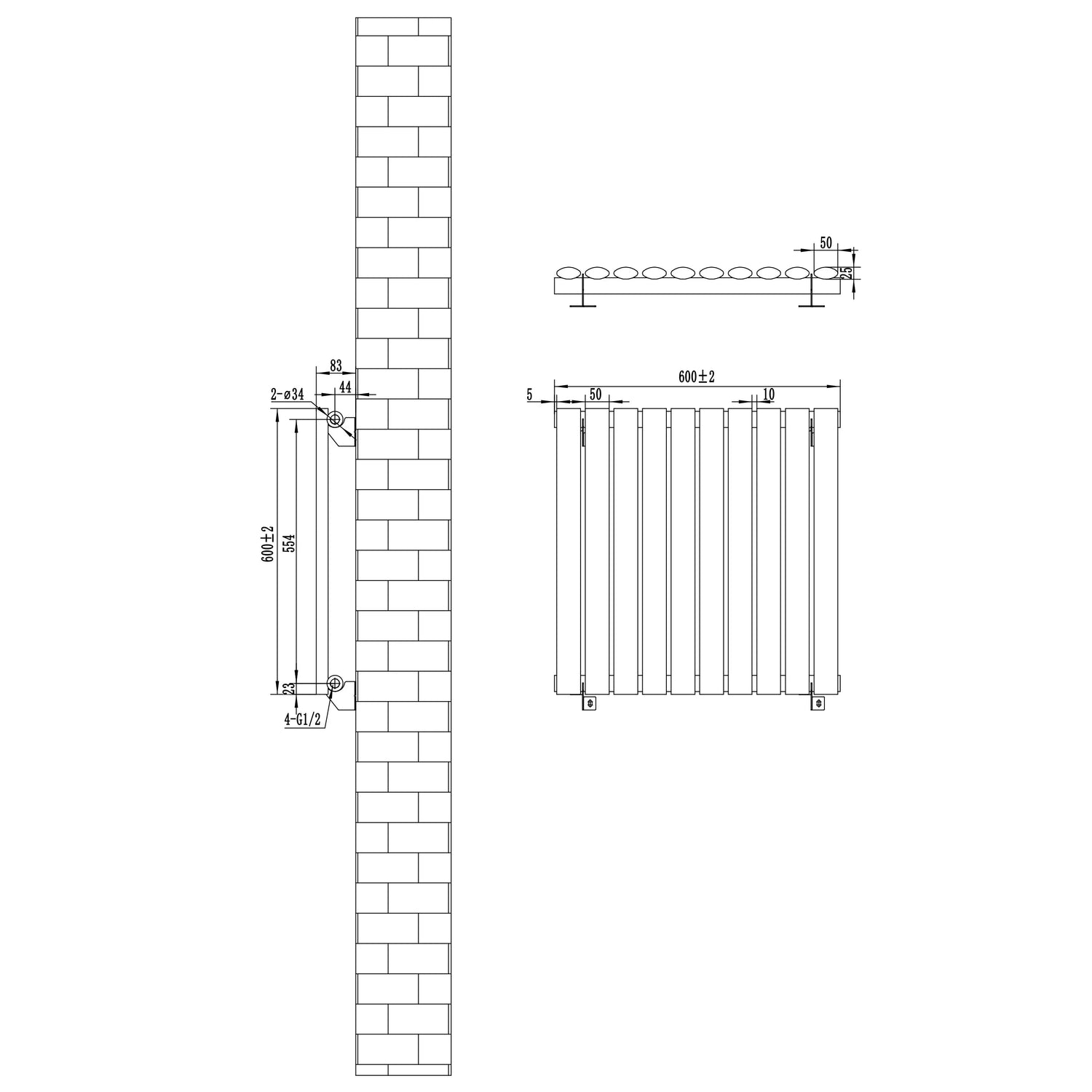

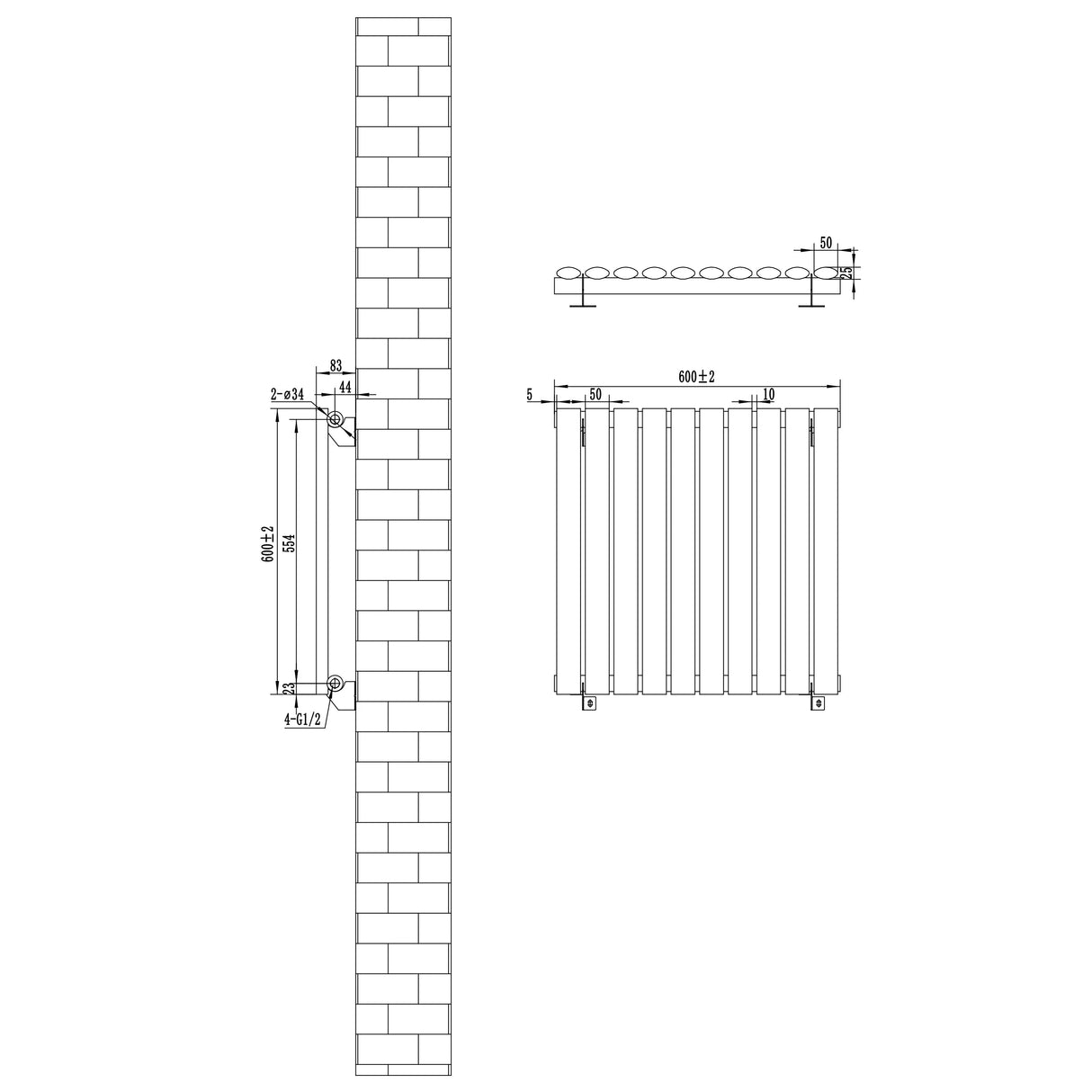

- Valve-to-valve height: 554mm
- Wall to inlet centre: 44mm
- Testing: BS EN 442 and ISO9001:2015
- Certification: CE and UKCA

Box contents
- Oval single column radiator
- Four secure brackets
- Fixing kit

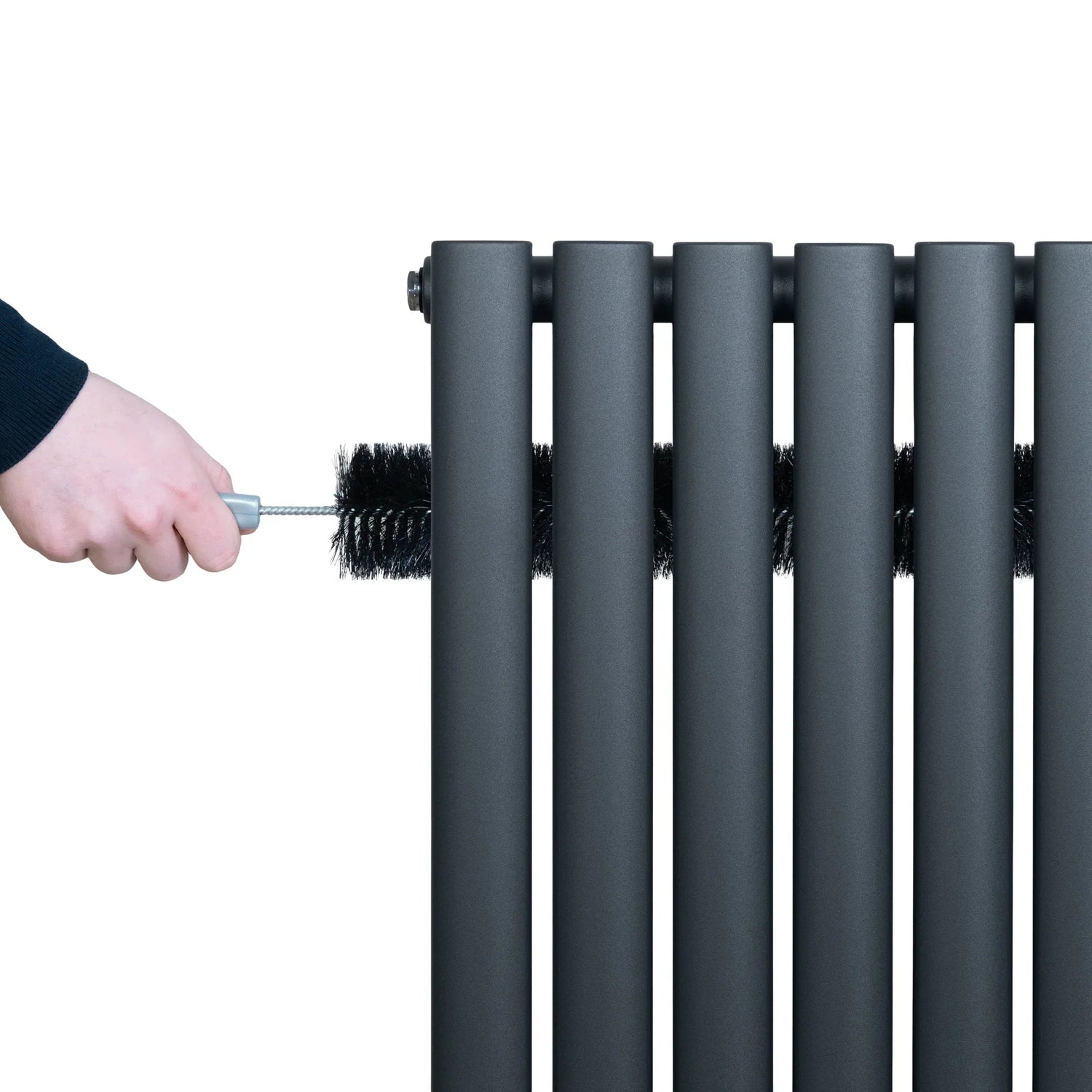

- Flexible cleaning brush
- Thermostatic valve set
