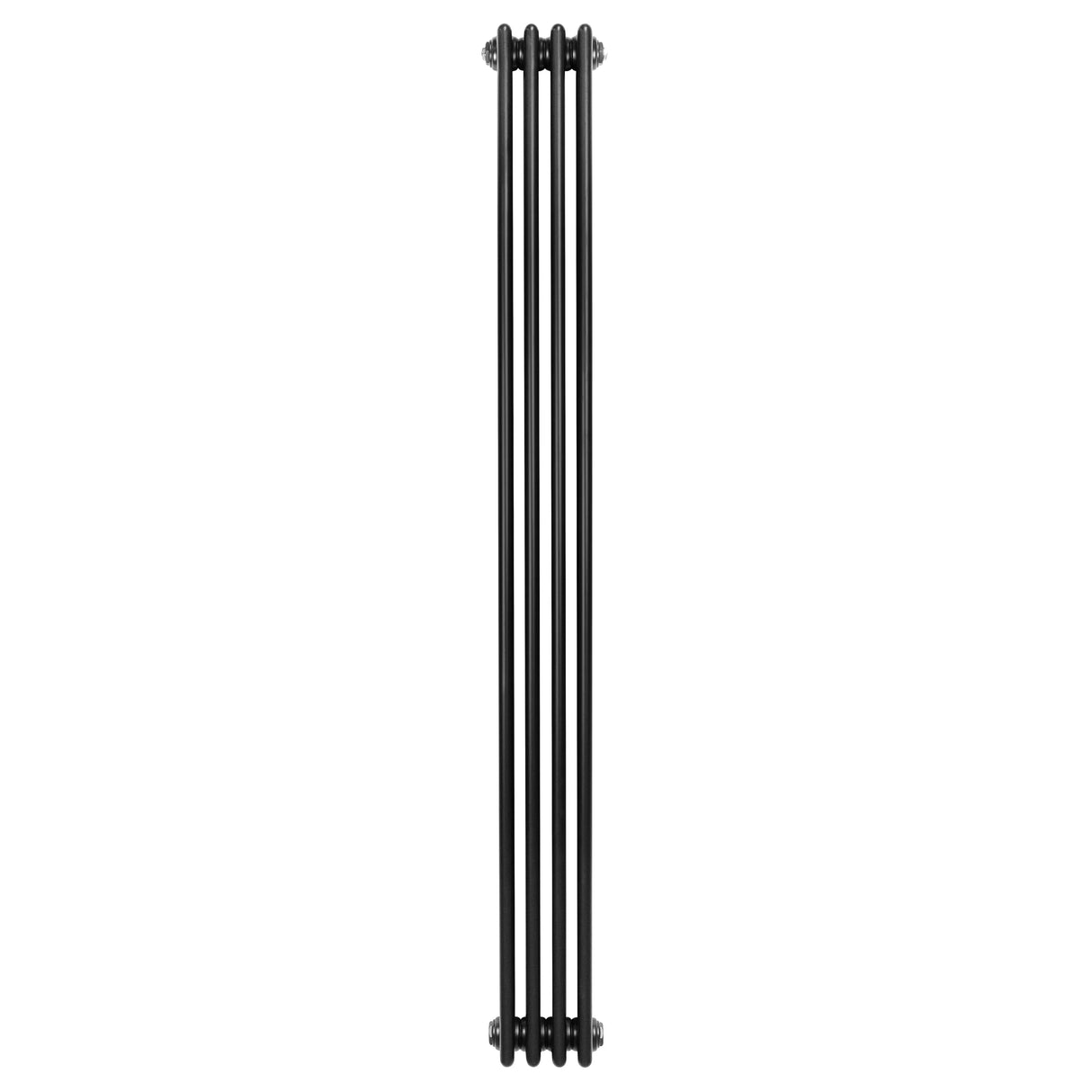

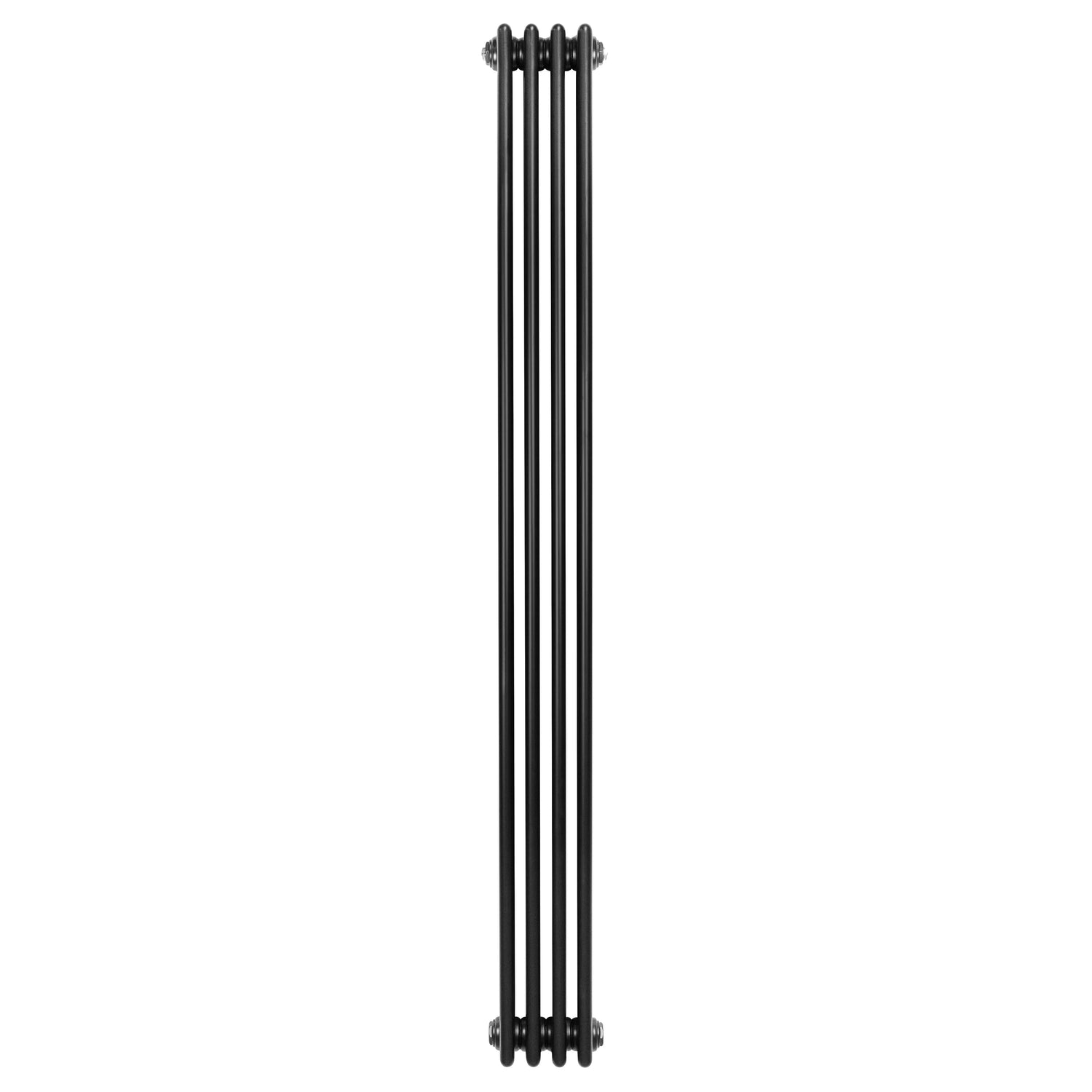

Traditional 4 Column Radiator 1800 x 200mm Black

About this product

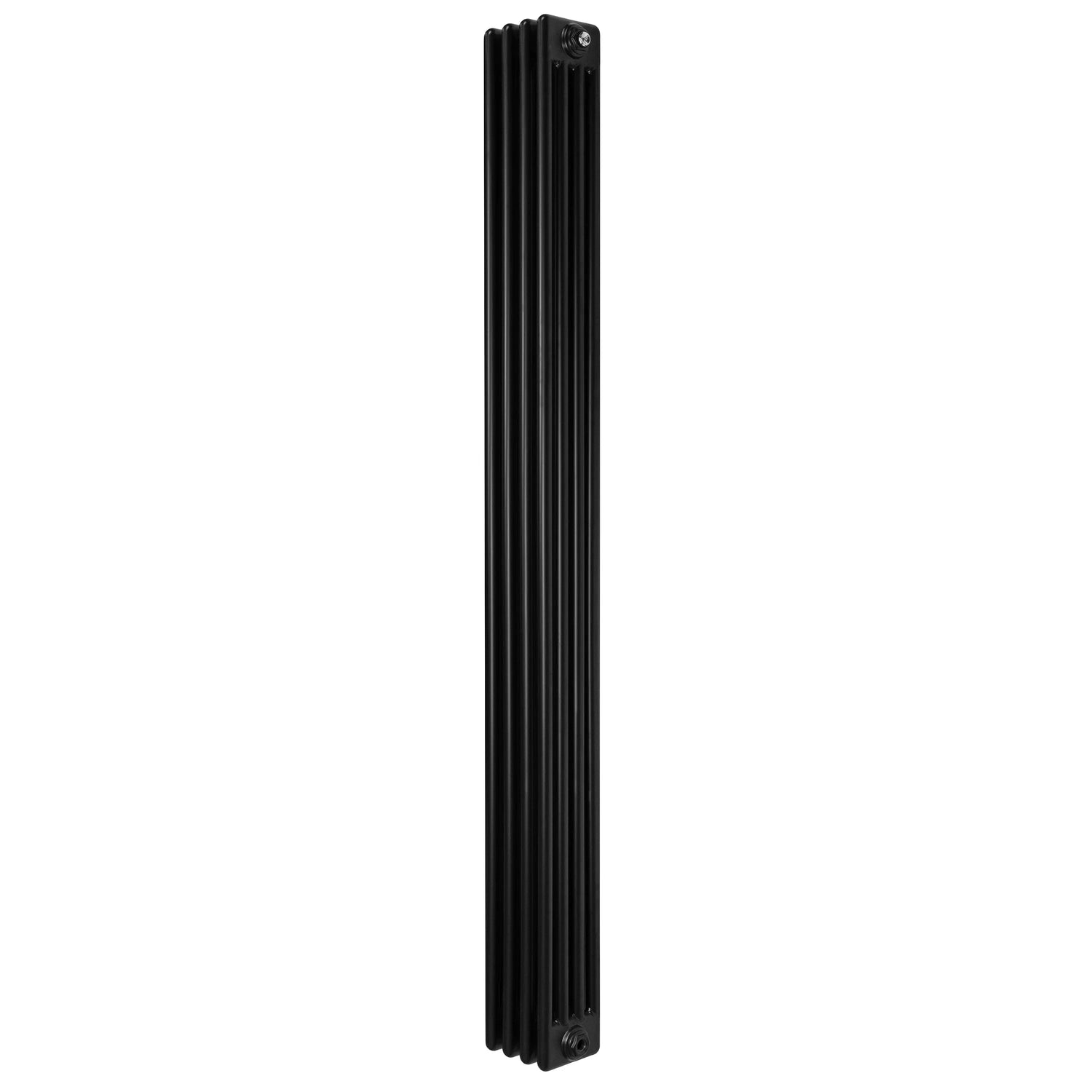

This traditional 4 column radiator is made from 1.5mm carbon steel and finished in black with a triple layered powder coating. It measures 180cm high and 20cm wide, making it suitable for tall, narrow wall spaces in homes with UK or EU heating systems.

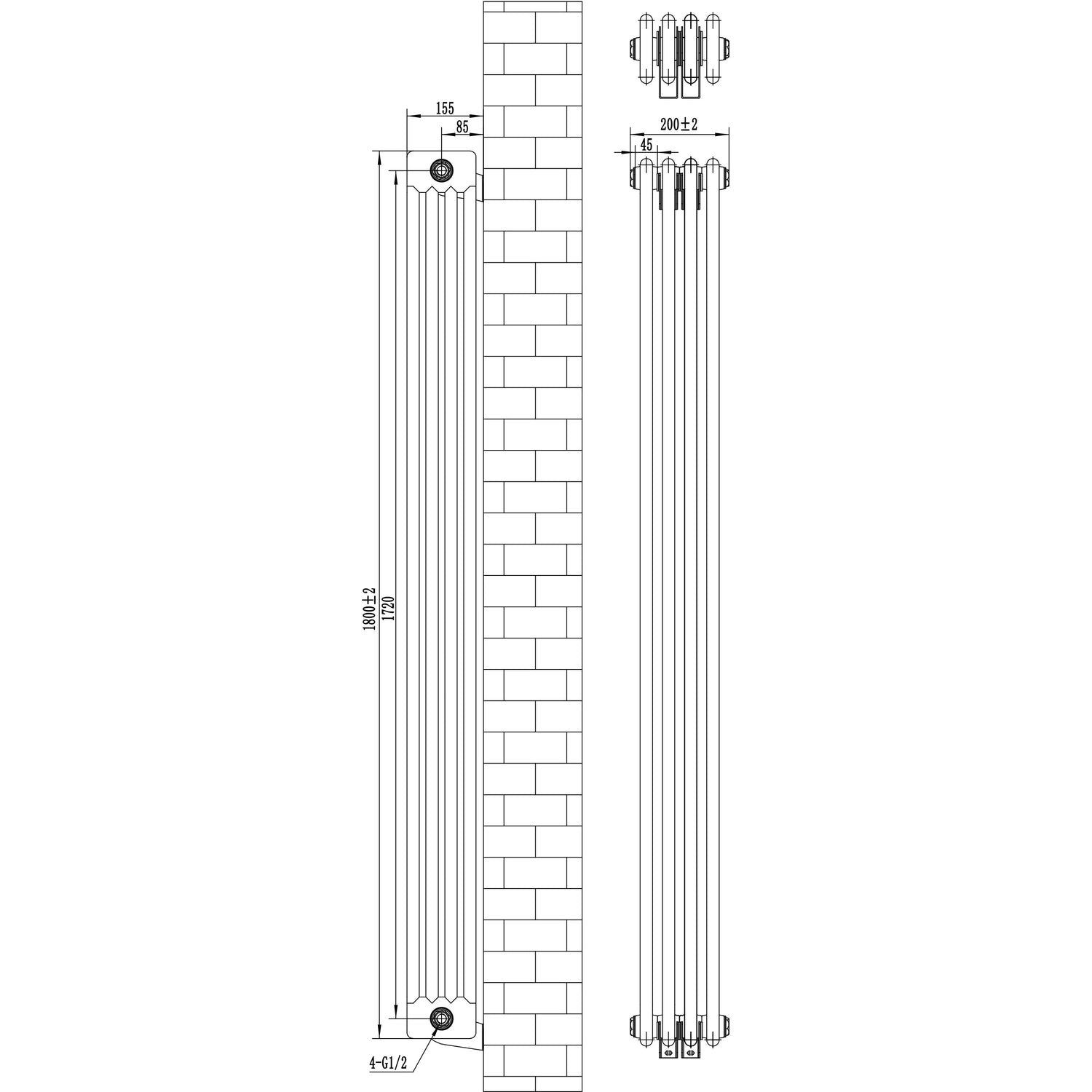

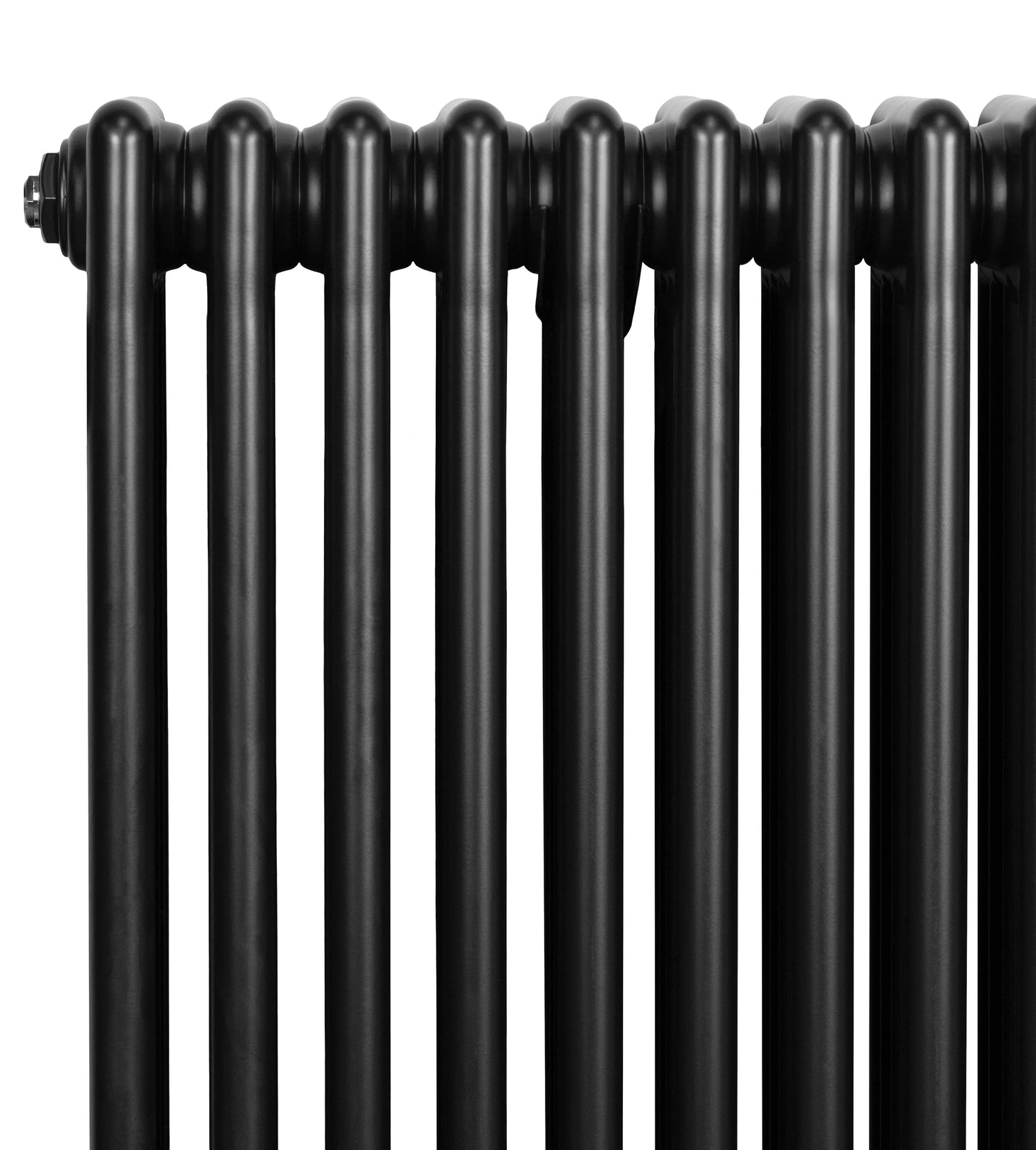

The radiator has 2.5cm steel tubes, 2cm between tubes and a 14cm radiator depth. With the brackets fitted, the total depth is 15.5cm. The valve-to-valve height is 172cm, and the distance from the wall to the centre of the inlet is 8.5cm.

It has standard 0.5 inch BSP inlet and outlet bores. The maximum working temperature is 95°C, with a maximum working pressure of 12 bar and a test pressure of 15.6 bar. The recommended application area is 12m². Heat output is stated as 3,085 BTU at 50 and 3,931 BTU at 60, with power ratings of 904W at 50 and 1,152W at 60.

The package includes four brackets, a fixing kit and a flexible cleaning brush. CE and UKCA approval, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee are included.

Specifications

• Colour: Black
• Weight: 25.9kg
• Number of columns: 4
• Recommended application area: 12m²
• Compatibility: All UK and EU heating systems
• Maximum working temperature: 95°C
• Maximum working pressure: 12 bar
• Test pressure: 15.6 bar

Box contents

• 1 x Traditional 4 column radiator
• 4 x Secure brackets
• 1 x Fixing kit

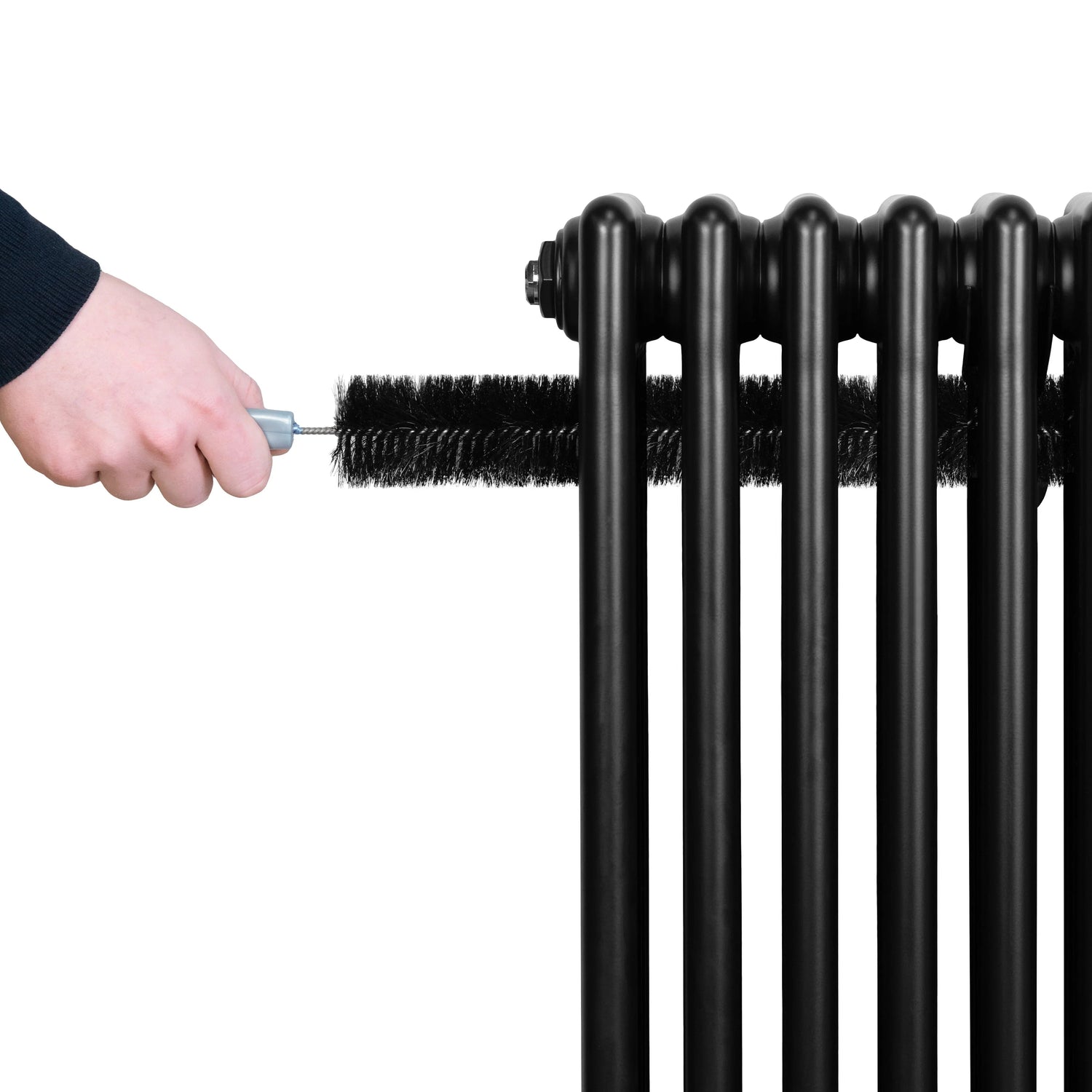

• 1 x Flexible cleaning brush
