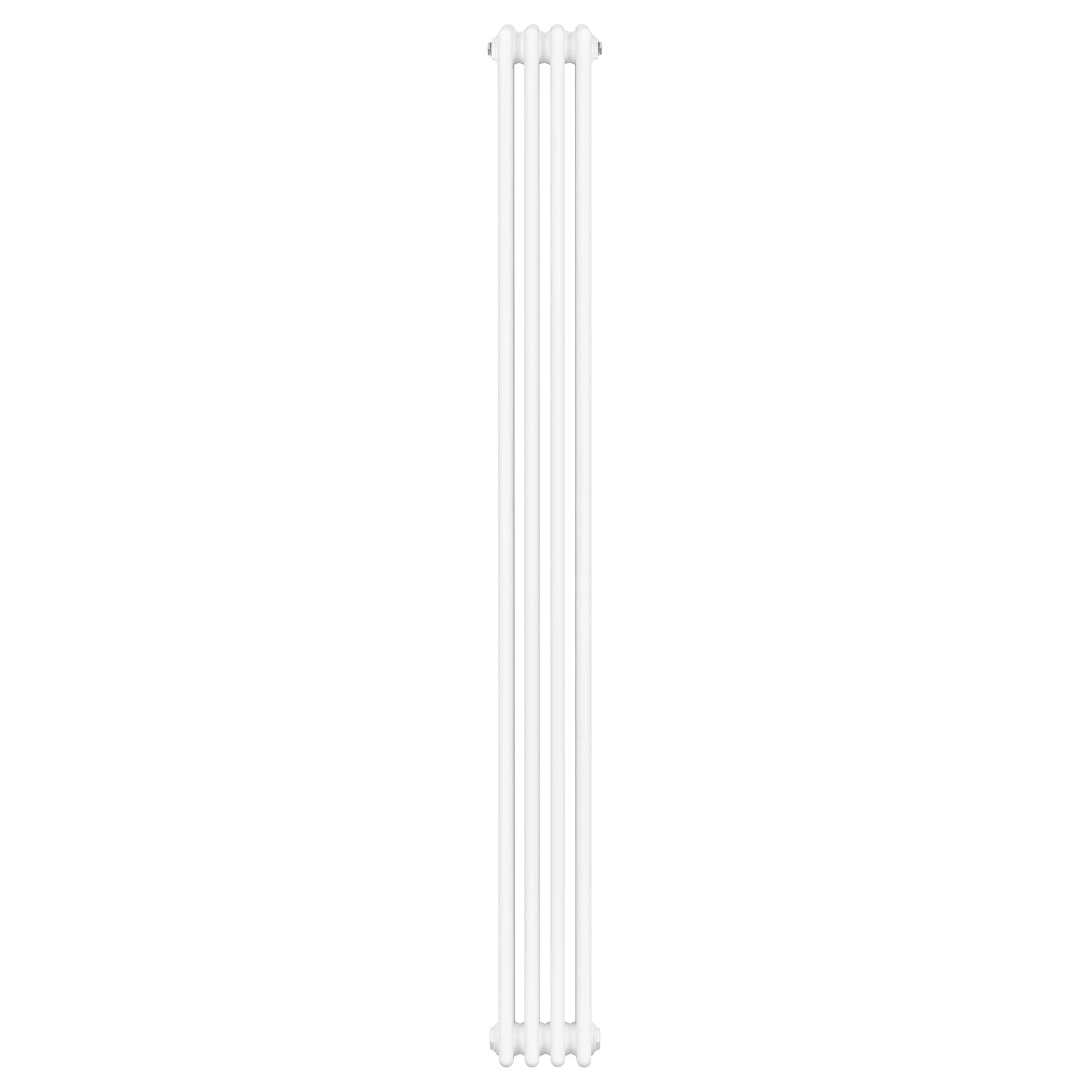

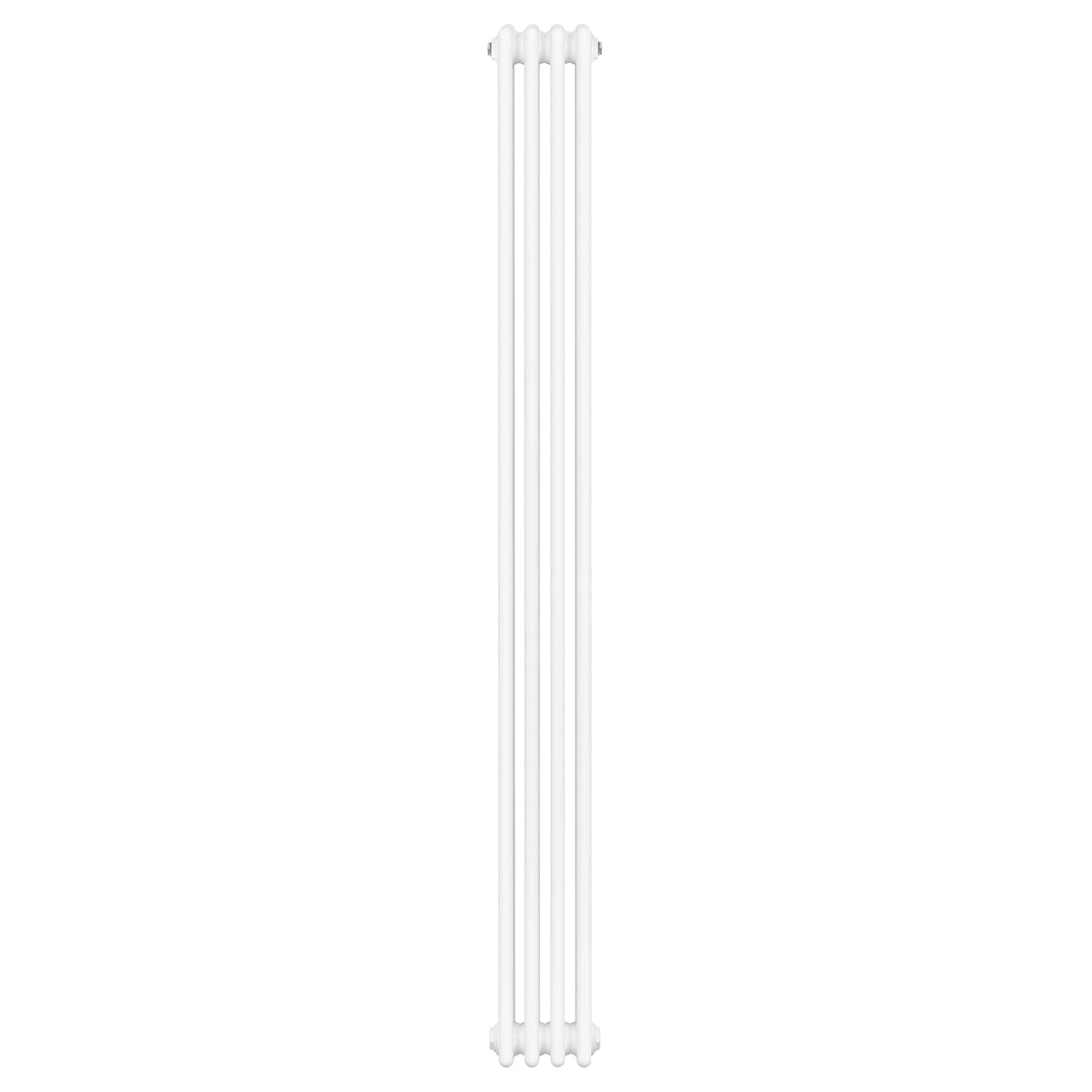

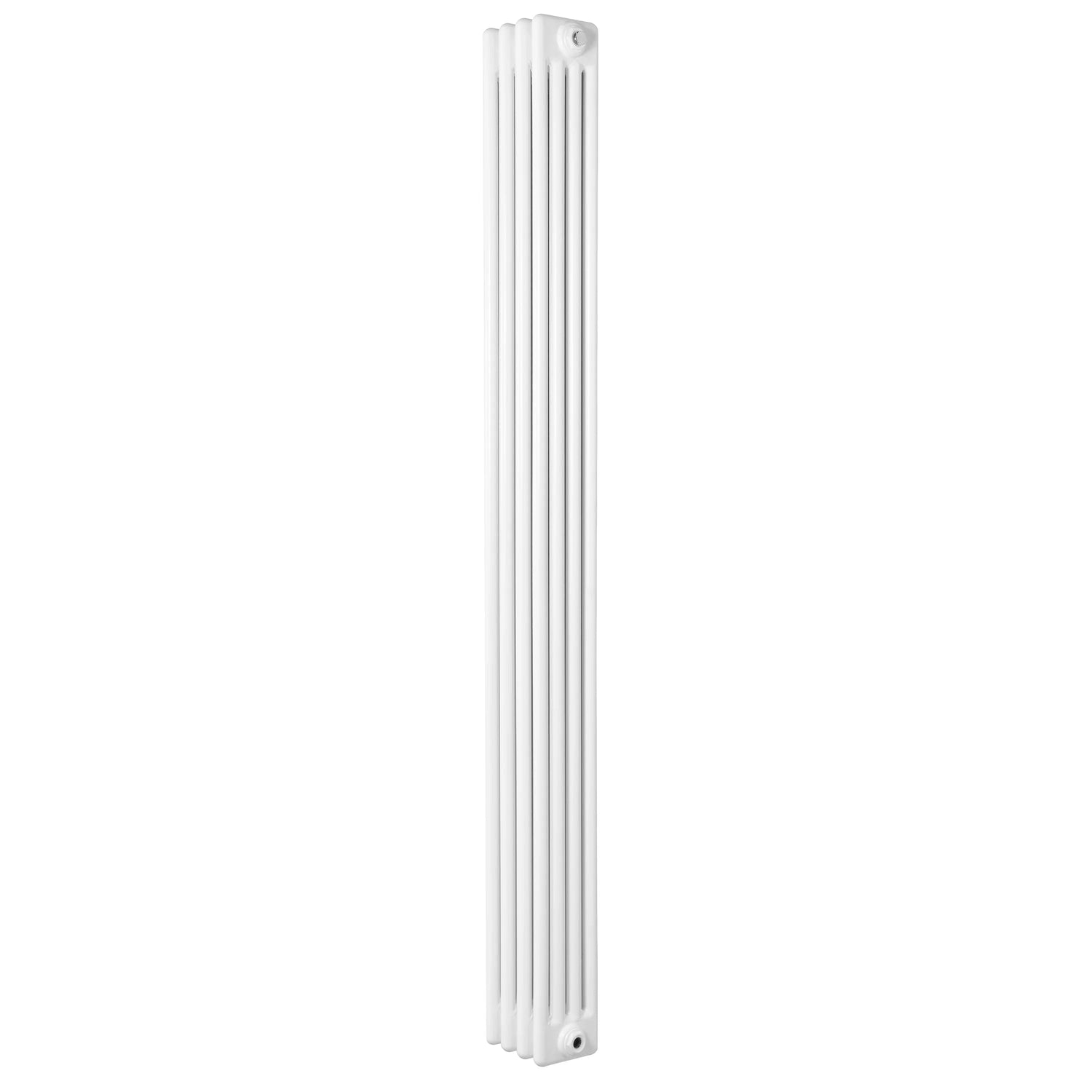

Traditional 4 Column Radiator 1800 x 200mm White

About this product

This traditional 4 column radiator is made from 1.5mm carbon steel and finished in white with triple layered powder coating. It is 180cm high and 20cm wide, making it suitable for rooms where vertical wall space is limited. The radiator is compatible with all UK and EU heating systems.

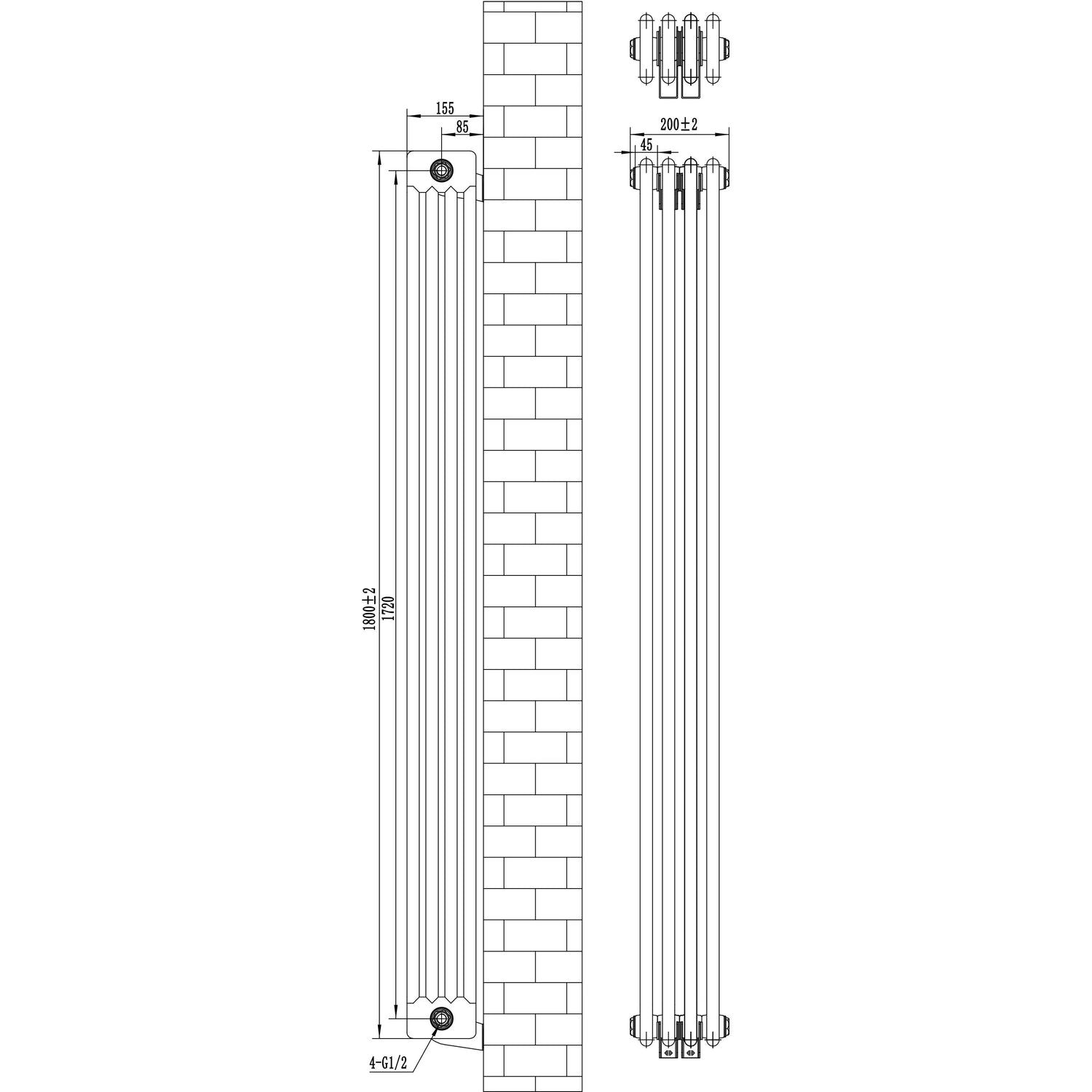

It has a 14cm radiator depth, or 15.5cm including the brackets. The 2.5cm steel tubes are arranged with a 2cm gap between them. Standard 0.5 inch BSP inlet and outlet connections allow you to select suitable valves. The valve-to-valve height is 172cm, and the distance from the wall to the centre of the inlet is 8.5cm.

The radiator has a maximum working temperature of 95°C, a maximum working pressure of 12 bar and a test pressure of 15.6 bar. Its recommended application area is 12m². BS EN 442 and ISO9001:2015 testing standards apply, with CE and UKCA certification.

A 15-year guarantee is included. The box contains the radiator, four brackets, a fixing kit and a flexible cleaning brush.

Specifications

• Weight: 25.9kg
• Finish: Triple layered powder coating
• Number of columns: 4
• Height: 180cm
• Width: 20cm
• Radiator depth: 14cm
• Depth with bracket: 15.5cm
• Maximum working temperature: 95°C
• Recommended application area: 12m²

Box contents

• 1 x Traditional 4 Column Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit

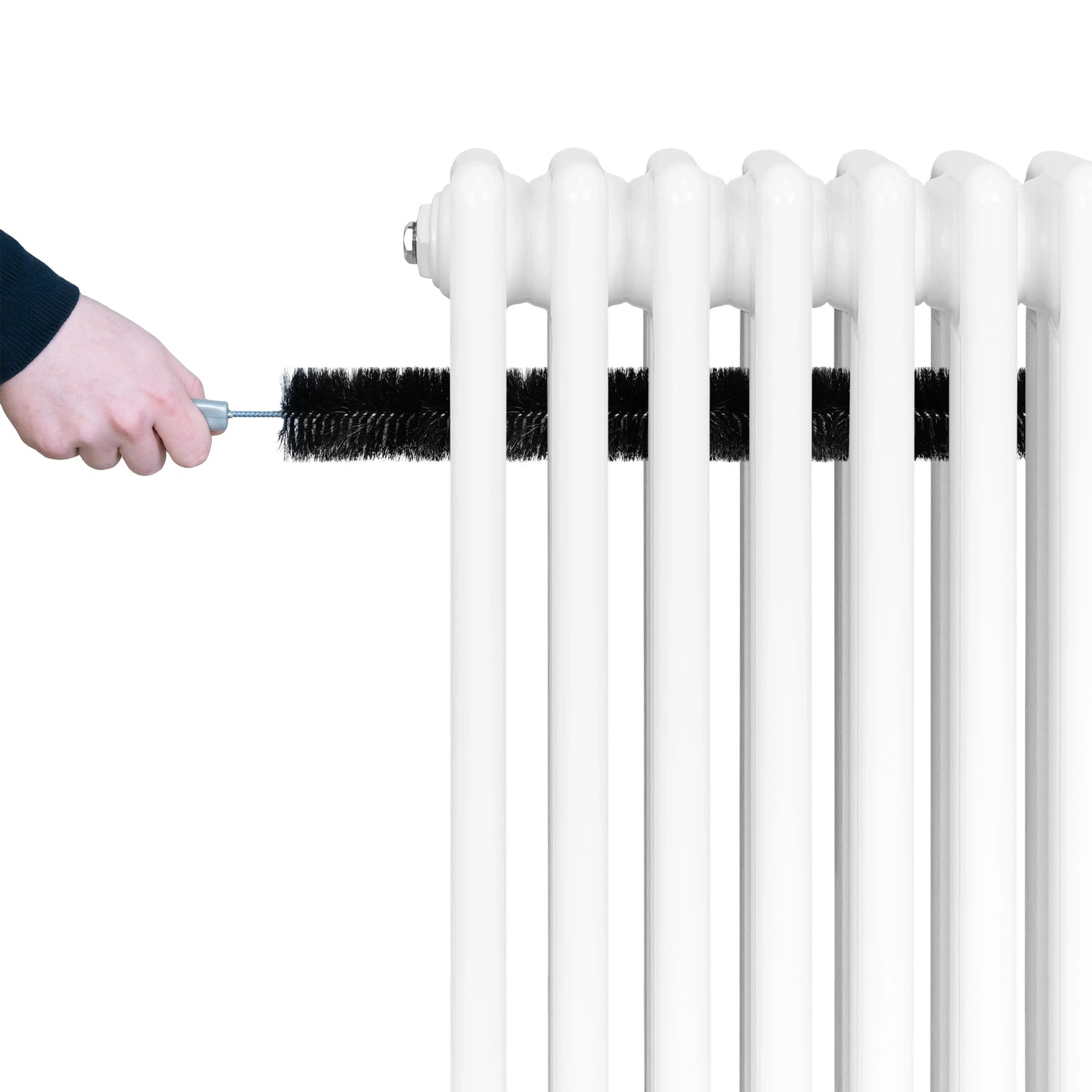

• 1 x Flexible Cleaning Brush
