Traditional 4 Column Radiator 300 x 1010mm White

About this product

This white traditional 4 column radiator is supplied with an angled thermostatic valve set, brackets, fixings and a cleaning brush. It is made from 1.5mm carbon steel with a triple layered powder coated finish and is suitable for all UK and EU heating systems.

The radiator measures 30cm high, 101cm wide and 14cm deep, or 15.5cm deep with the bracket. It has 22 columns, 2cm gaps between the tubes and 2.5cm individual tubes. The radiator has a maximum working temperature of 95°C, a maximum working pressure of 12 bar and a 15.6 bar test pressure. The recommended application area is 11m².

The supplied thermostatic valve set has an angled design, rotary knob control and a temperature range of 6 to 28°C. It includes a lockshield valve. The standard 0.5 inch BSP bore suits the stated UK and EU heating system compatibility.

Specifications
- Colour: White
- Weight: 26.9kg

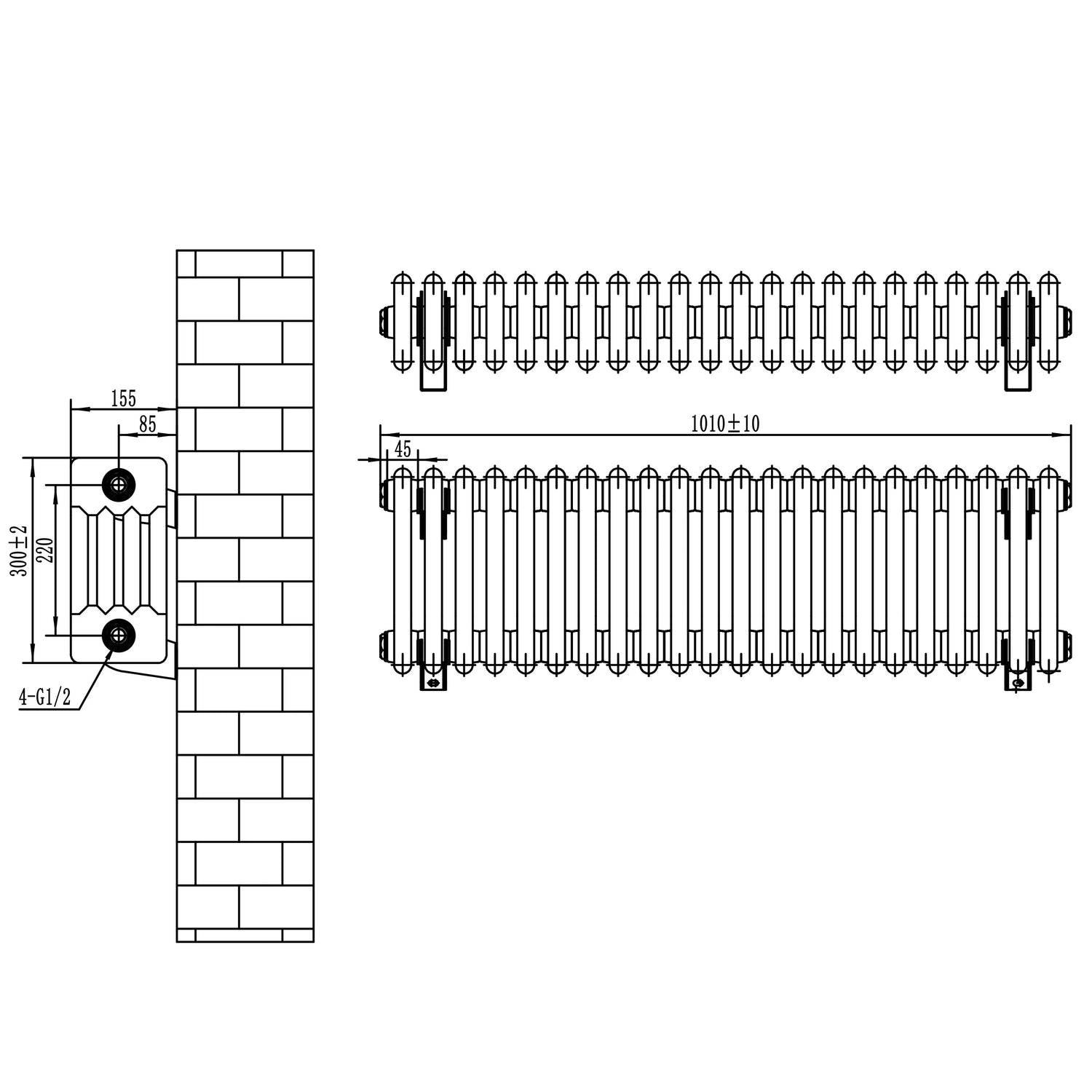

- Radiator dimensions: 30cm H x 101cm W x 14cm D
- Depth with bracket: 15.5cm
- Number of columns: 22
- Valve-to-valve height: 22cm
- Distance from wall to centre of inlet: 8.5cm
- Recommended application area: 11m²
- Testing: BS EN 442 and ISO9001:2015 Standards
- Certification: CE and UKCA

Box contents
- 1 x Traditional 4 Column Radiator
- 4 x Secure Brackets
- 1 x Fixing Kit

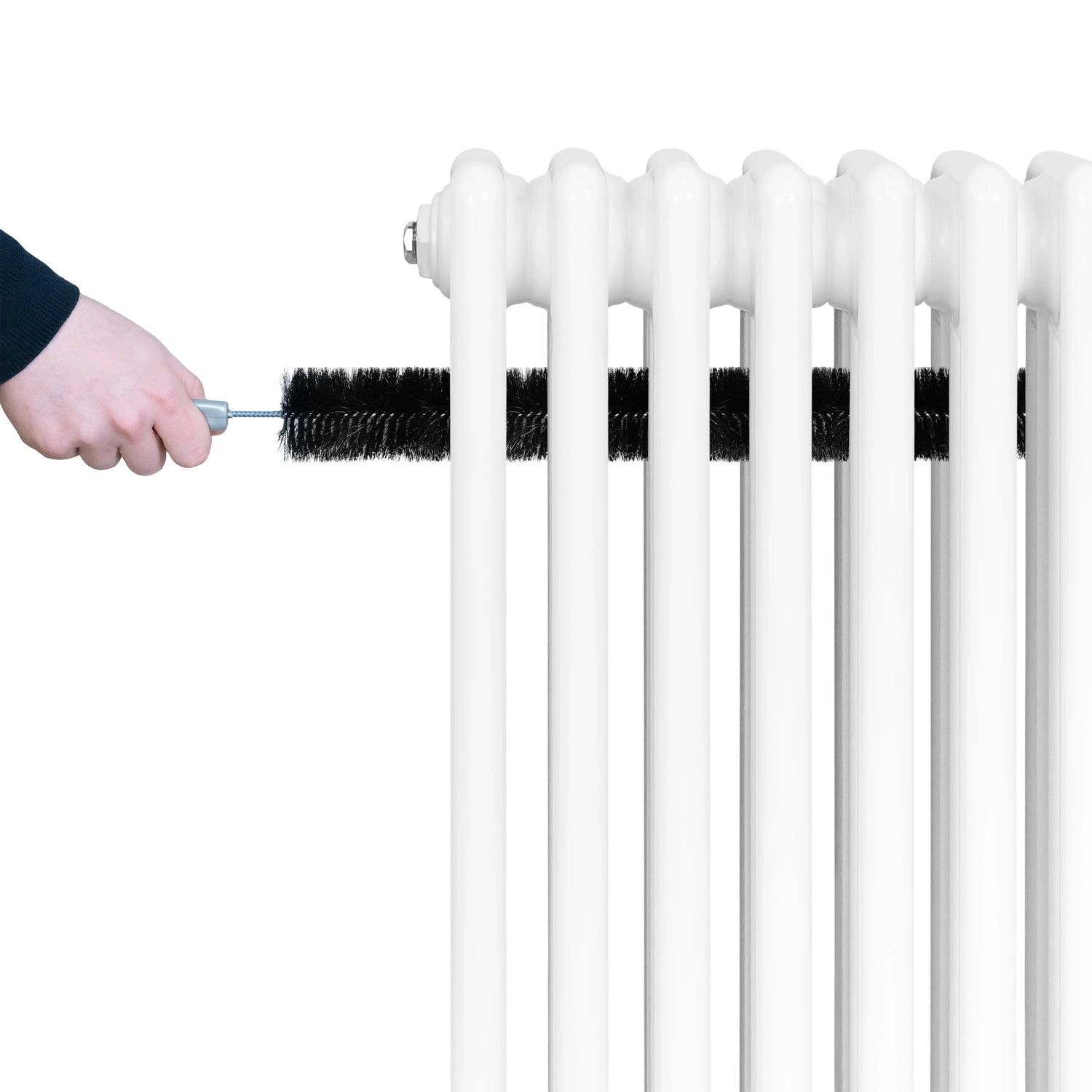

- 1 x Flexible Cleaning Brush
- 1 x Thermostatic Valve Set
