Traditional 4 Column Radiator 600 x 1190mm Black

About this product

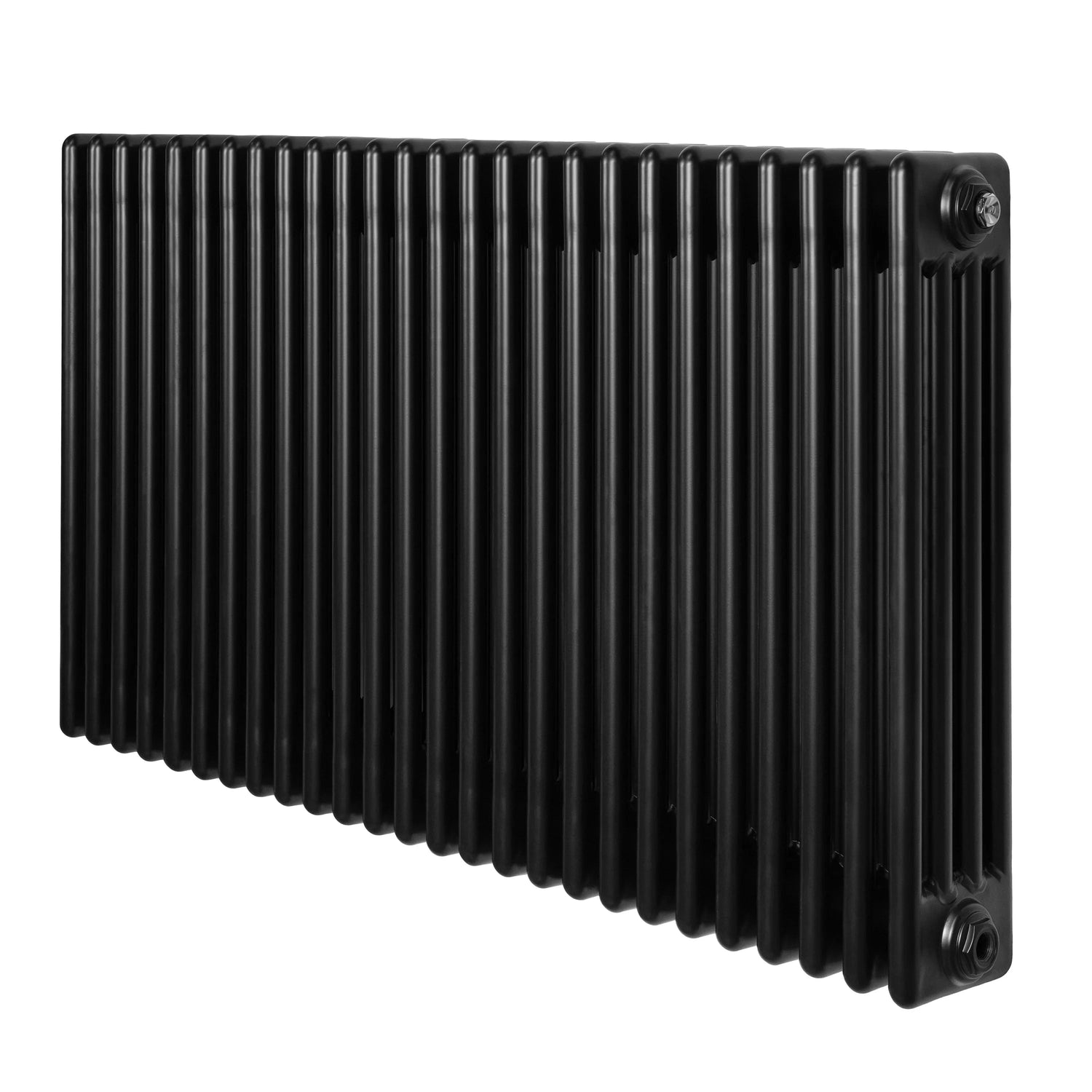

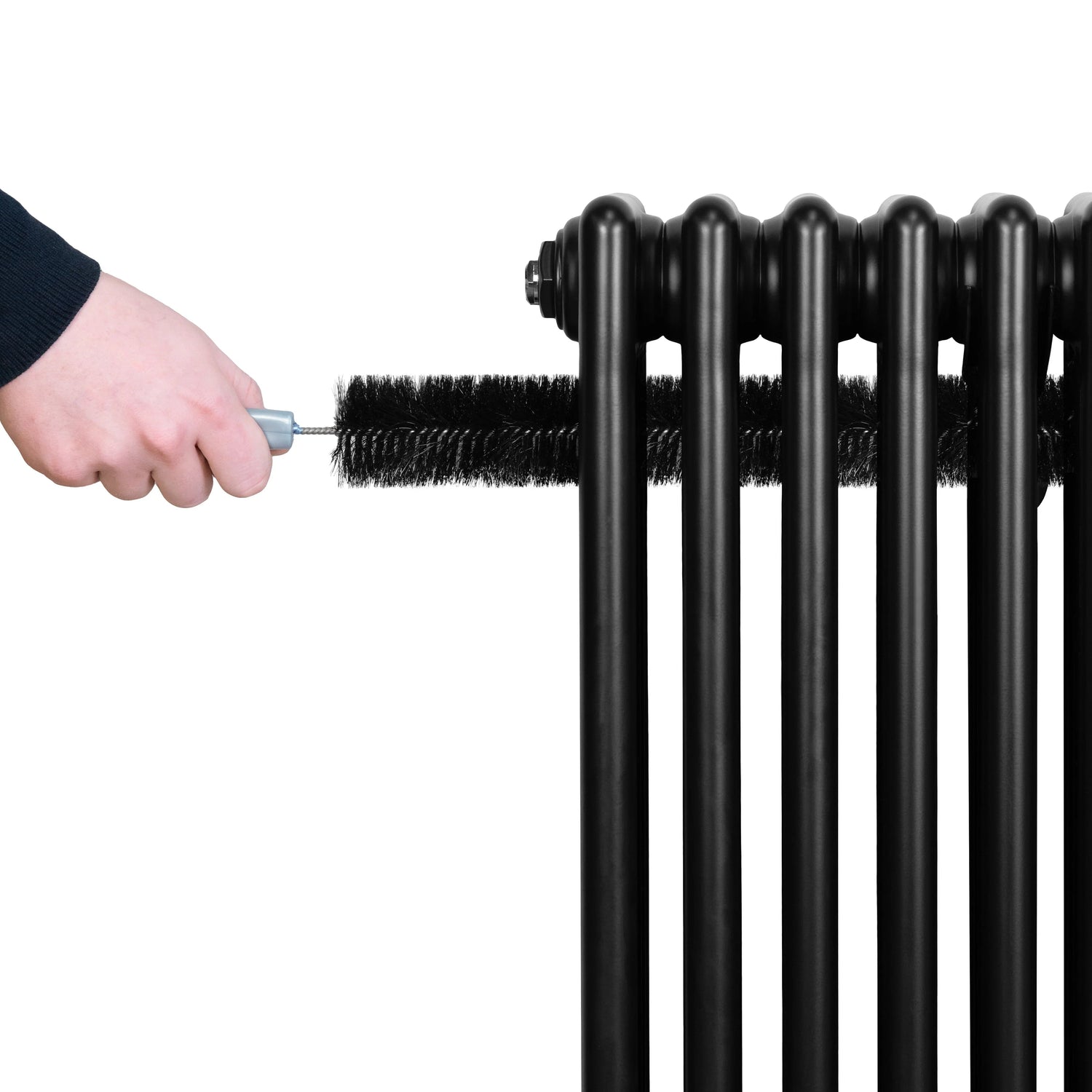

This black traditional column radiator is supplied with an angled thermostatic valve set, brackets, a fixing kit and a flexible cleaning brush. It is intended for use with UK and EU heating systems and has standard 0.5-inch BSP inlet and outlet bores.

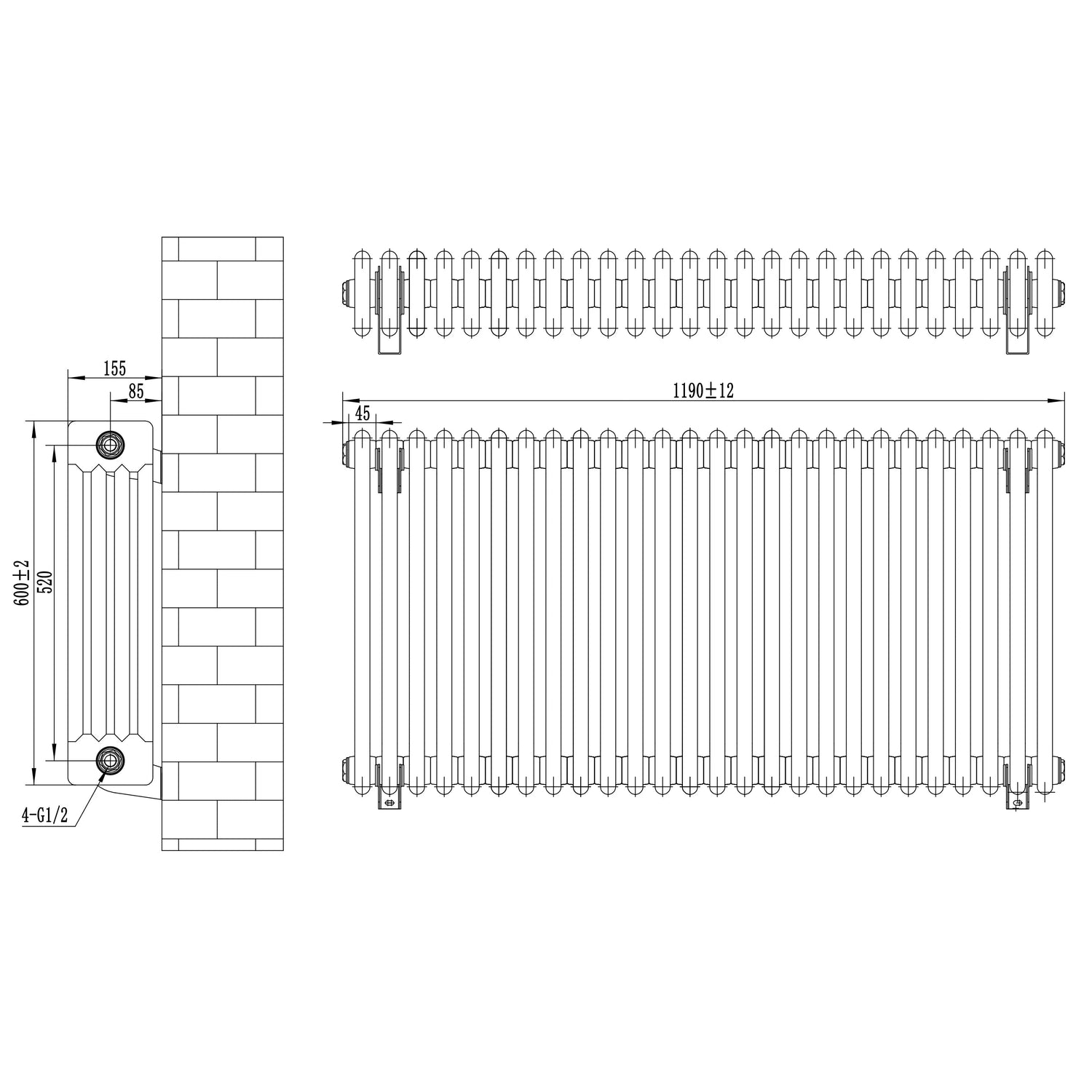

The radiator is made from 1.5mm carbon steel with a triple layered powder-coated finish. It measures 60cm high, 119cm wide and 14cm deep, or 15.5cm deep with the bracket. The stated recommended application area is 15m².

The thermostatic valve uses a rotary knob with a temperature range of 6 to 28°C. The included lockshield valve is 8.7cm high, 7.5cm wide and 3.4cm deep. The valve set has a 10-year guarantee. The radiator is listed with a 15-year guarantee.

Specifications

• Colour: Black
• Weight: 59.1kg
• Material: 1.5mm carbon steel
• Height: 60cm
• Width: 119cm
• Radiator depth: 14cm
• Depth with bracket: 15.5cm
• Gap between tubes: 2cm
• Individual tube size: 2.5cm
• Maximum working temperature: 95°C
• Maximum working pressure: 12 bar
• Test pressure: 15.6 bar
• Valve-to-valve height: 52cm
• Distance from wall to centre of inlet: 8.5cm
• Valve connection: 5.08cm x 1.5cm
• Nominal flow rate: 2.8L
• Testing: BS EN 442 and ISO9001:2015 standards
• Certification: CE and UKCA

Box contents

• 1 x traditional 4 column radiator
• 4 x secure brackets
• 1 x fixing kit
• 1 x flexible cleaning brush
• 1 x thermostatic valve set
