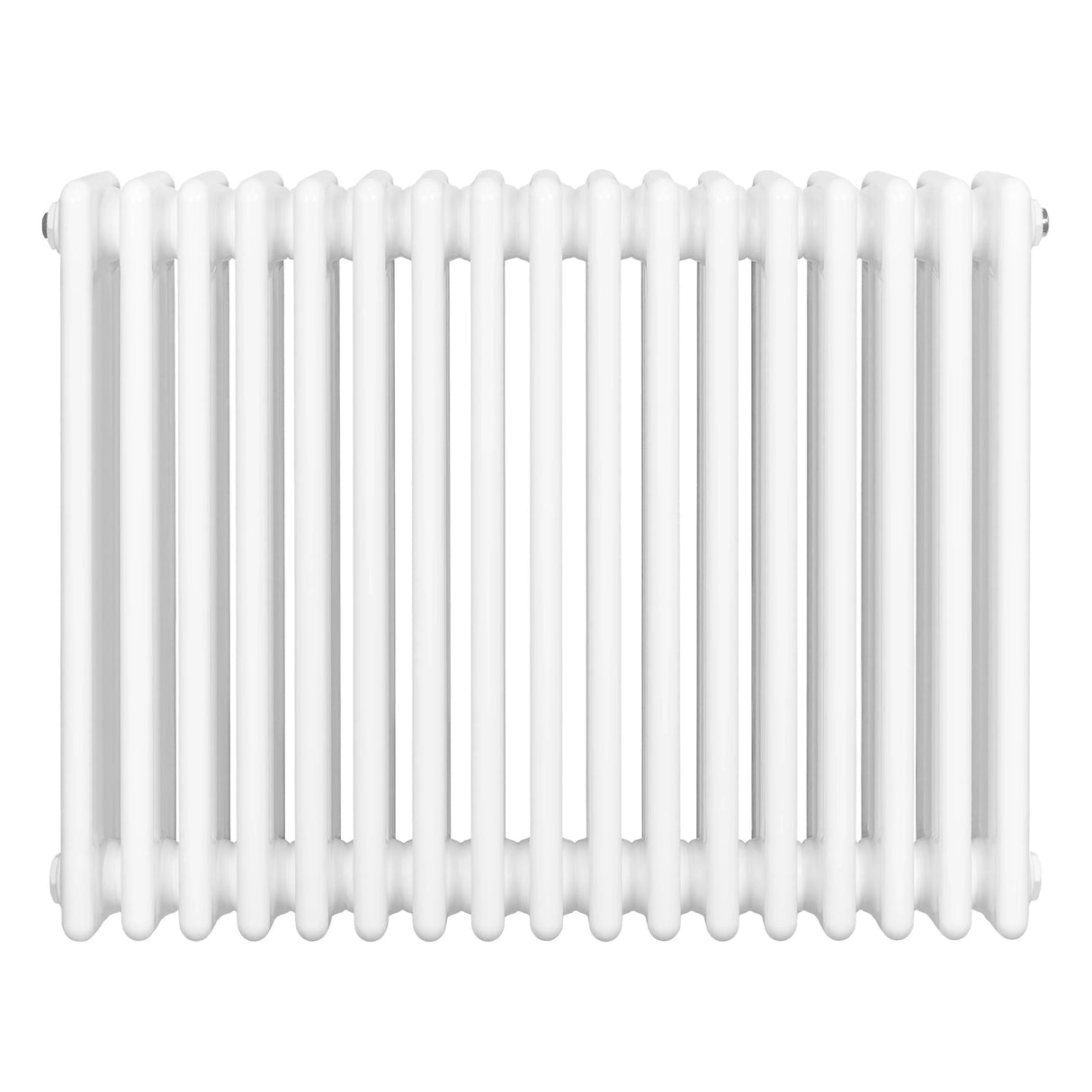

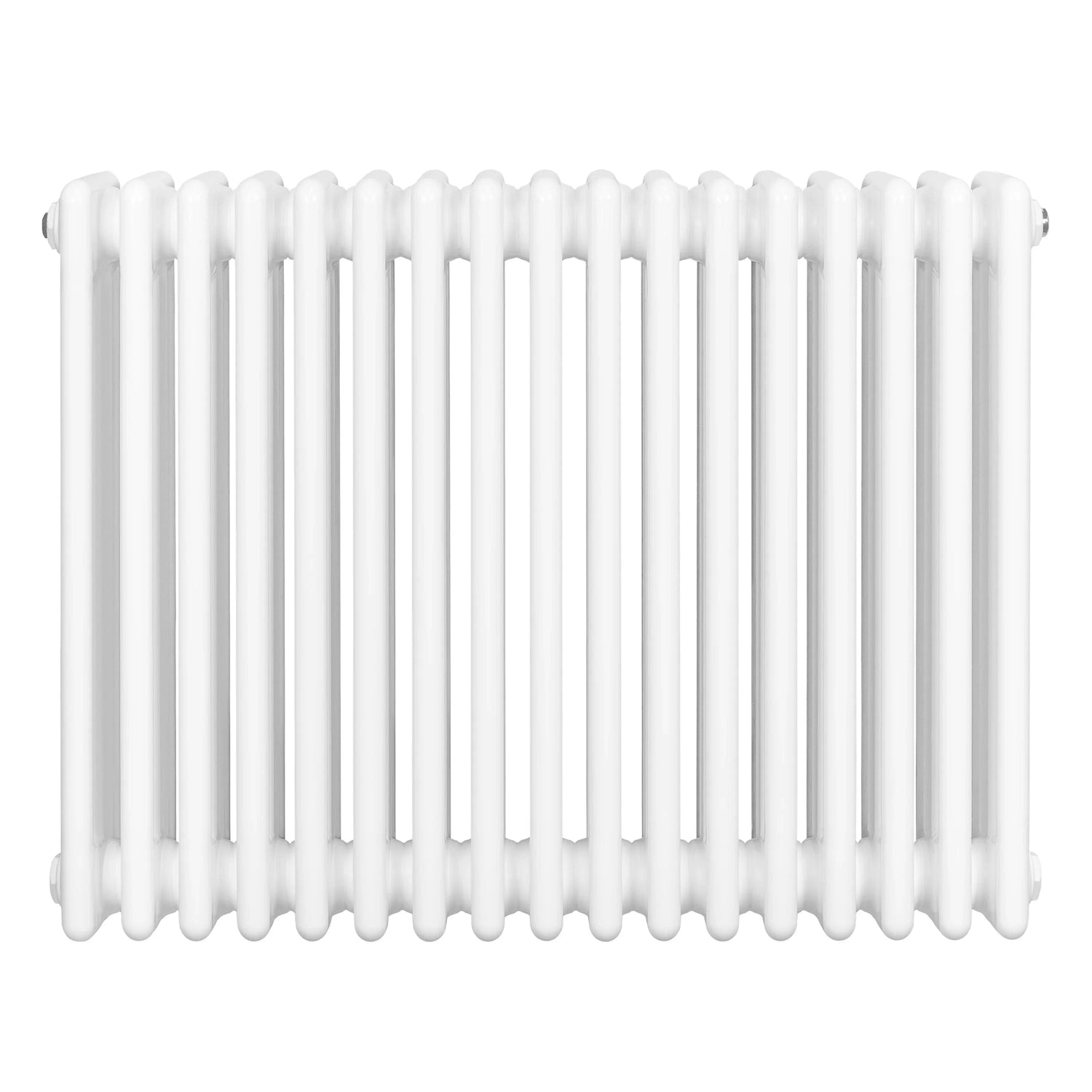

Traditional 4 Column Radiator 600 x 785mm, White

About this product

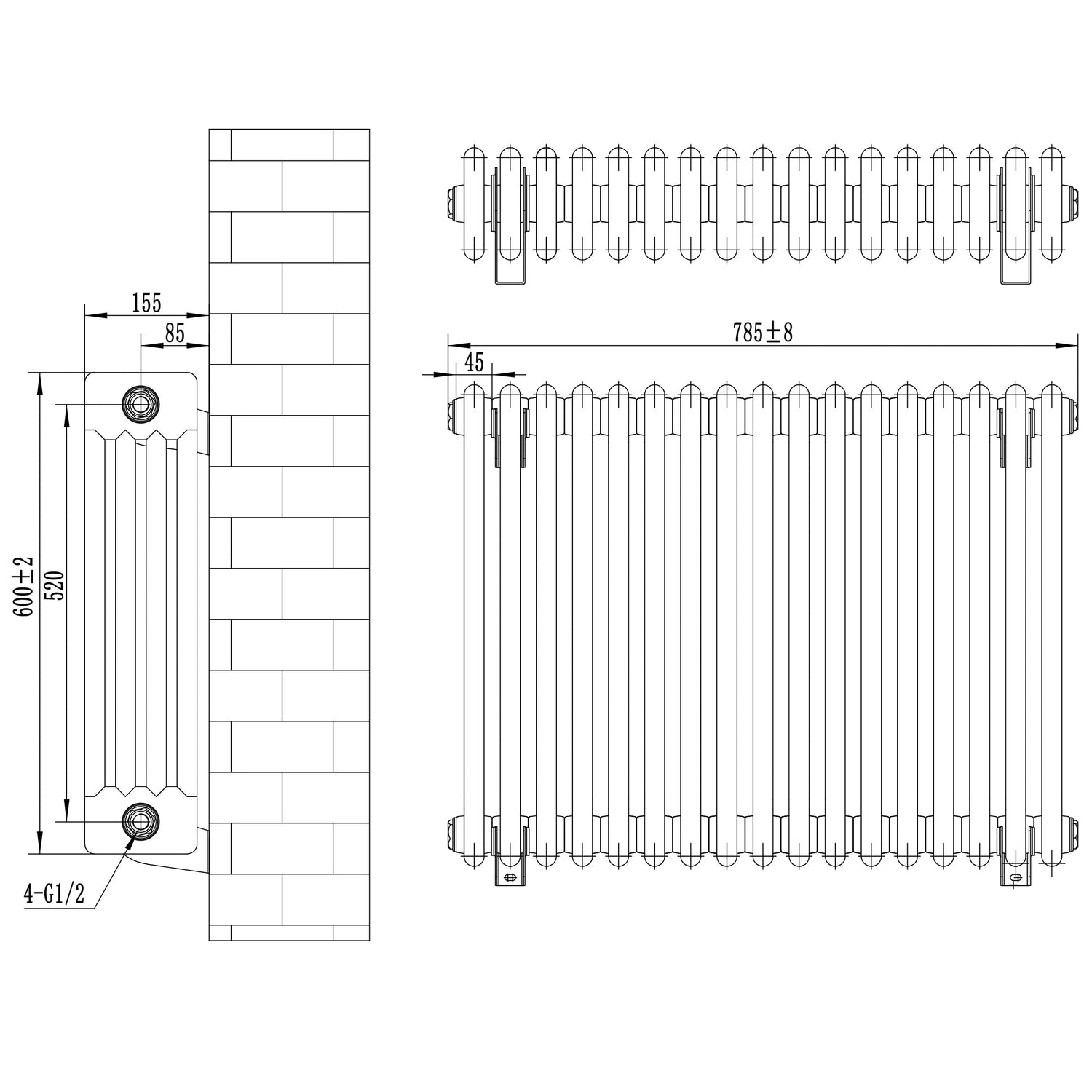

This traditional 4 column radiator is made from 1.5mm carbon steel and finished with triple layered powder coating. It is 60cm high, 78.5cm wide and 14cm deep, with a depth of 15.5cm including the brackets. The white finish suits a range of interior styles and the radiator is compatible with all UK and EU heating systems.

It has a stated heat output of 2,655 BTU at 50 and 3,373 BTU at 60, with watt ratings of 595 at 50 and 756 at 60. The recommended application area is 10m². It uses standard 0.5-inch BSP bore inlets and outlets, with a valve-to-valve height of 52cm and a distance of 8.5cm from the wall to the centre of the inlet.

The radiator has a maximum working temperature of 95°C, a maximum working pressure of 12 bar and a test pressure of 15.6 bar. It weighs 38.6kg and comes with brackets, a fixing kit and a flexible cleaning brush. It has CE and UKCA certification, BS EN 442 and ISO9001:2015 testing, and a 15-year guarantee.

Specifications

• Colour: White
• Material: 1.5mm carbon steel
• Finish: Triple layered powder coating
• Height: 60cm
• Width: 78.5cm
• Radiator depth: 14cm
• Depth with bracket: 15.5cm
• Gap between tubes: 2cm
• Individual tube size: 2.5cm
• Maximum working temperature: 95°C
• Maximum working pressure: 12 bar
• Test pressure: 15.6 bar
• Recommended application area: 10m²

Box contents

• 1 x traditional 4 column radiator
• 4 x brackets
• 1 x fixing kit

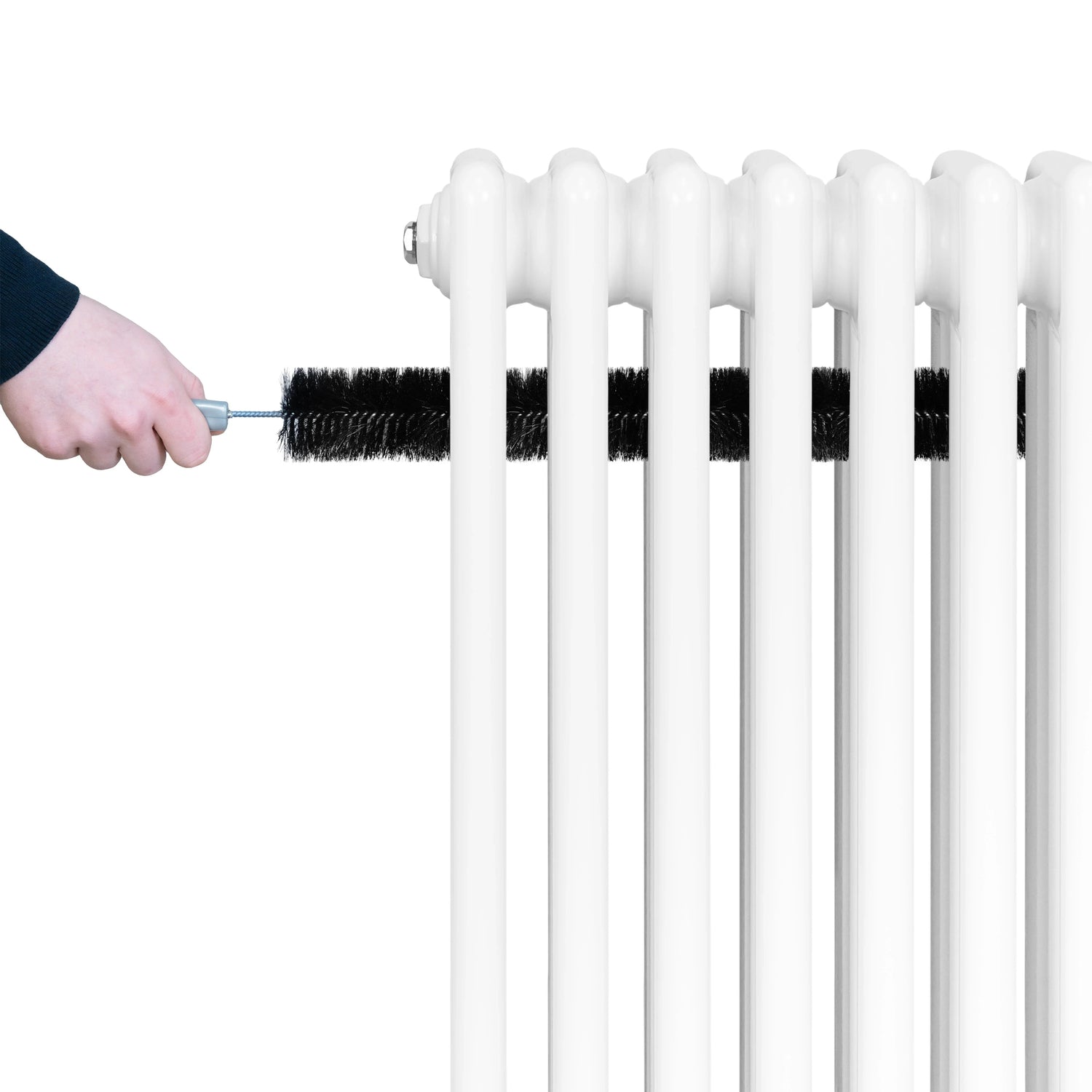

• 1 x flexible cleaning brush
