Hydraulic Shop Press with Gauge, 10 Tonne

About this product

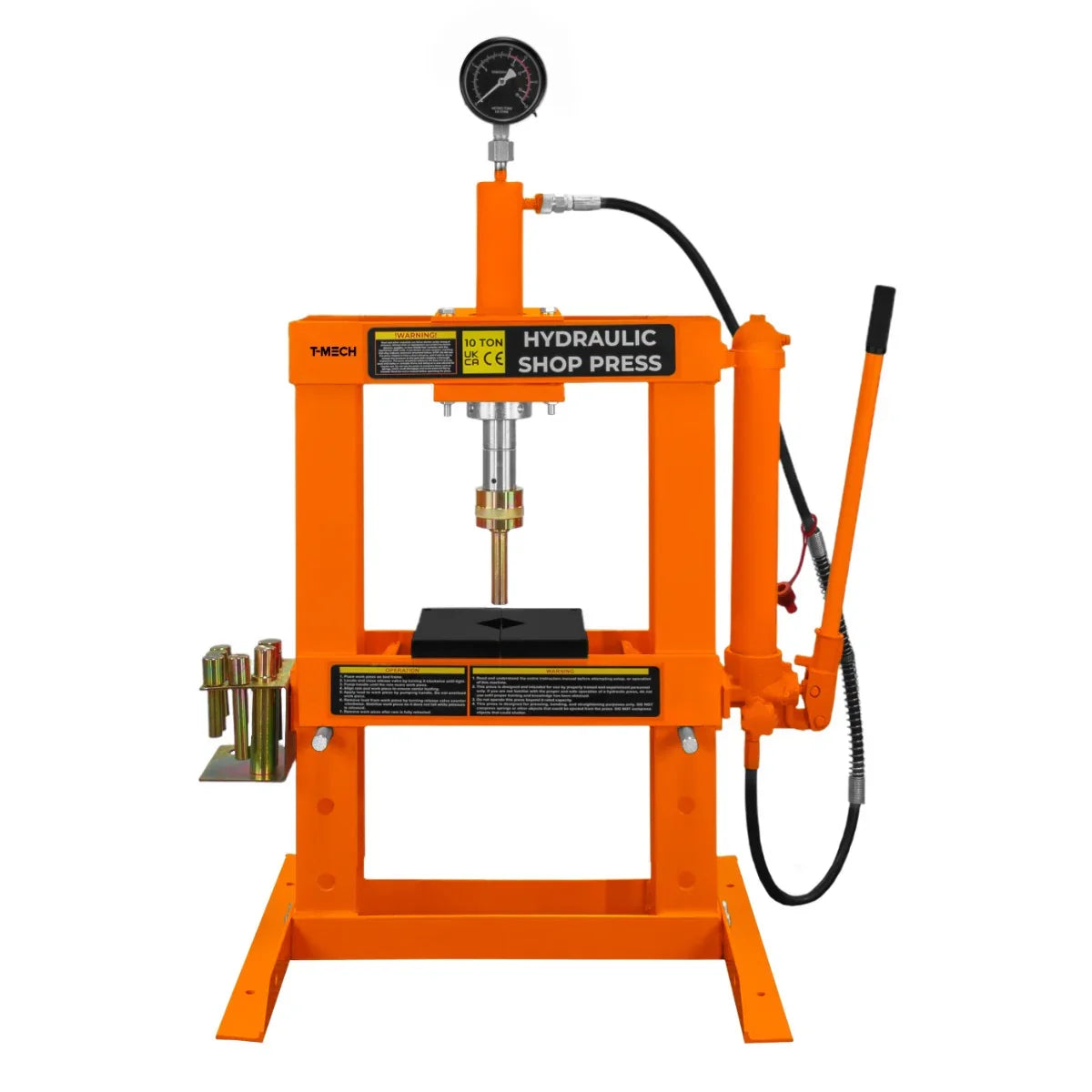

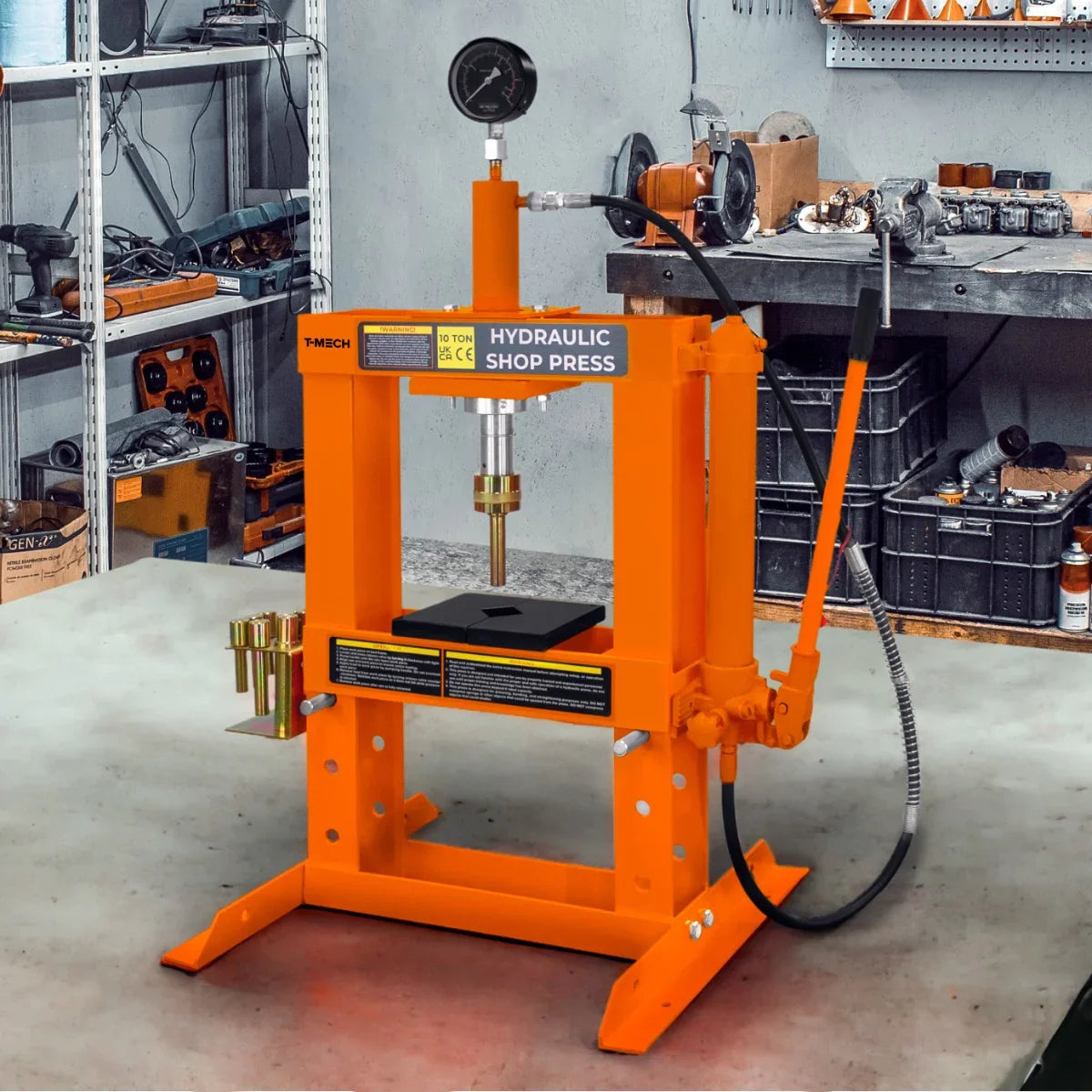

This bench-mounted hydraulic shop press is for garage, workshop and factory work such as installing or removing press-fitted components, and bending or shaping metal parts. It has a hand pump, hydraulic cylinder and pressure gauge for controlled force and pressure monitoring.

The multi-position bed has three working levels at 9 cm increments, with a vertical working area of 180 to 335 mm. The frame is made from powder coated steel and is designed to mount onto a workbench. The pressure gauge and hand pump can be detached for more compact storage.

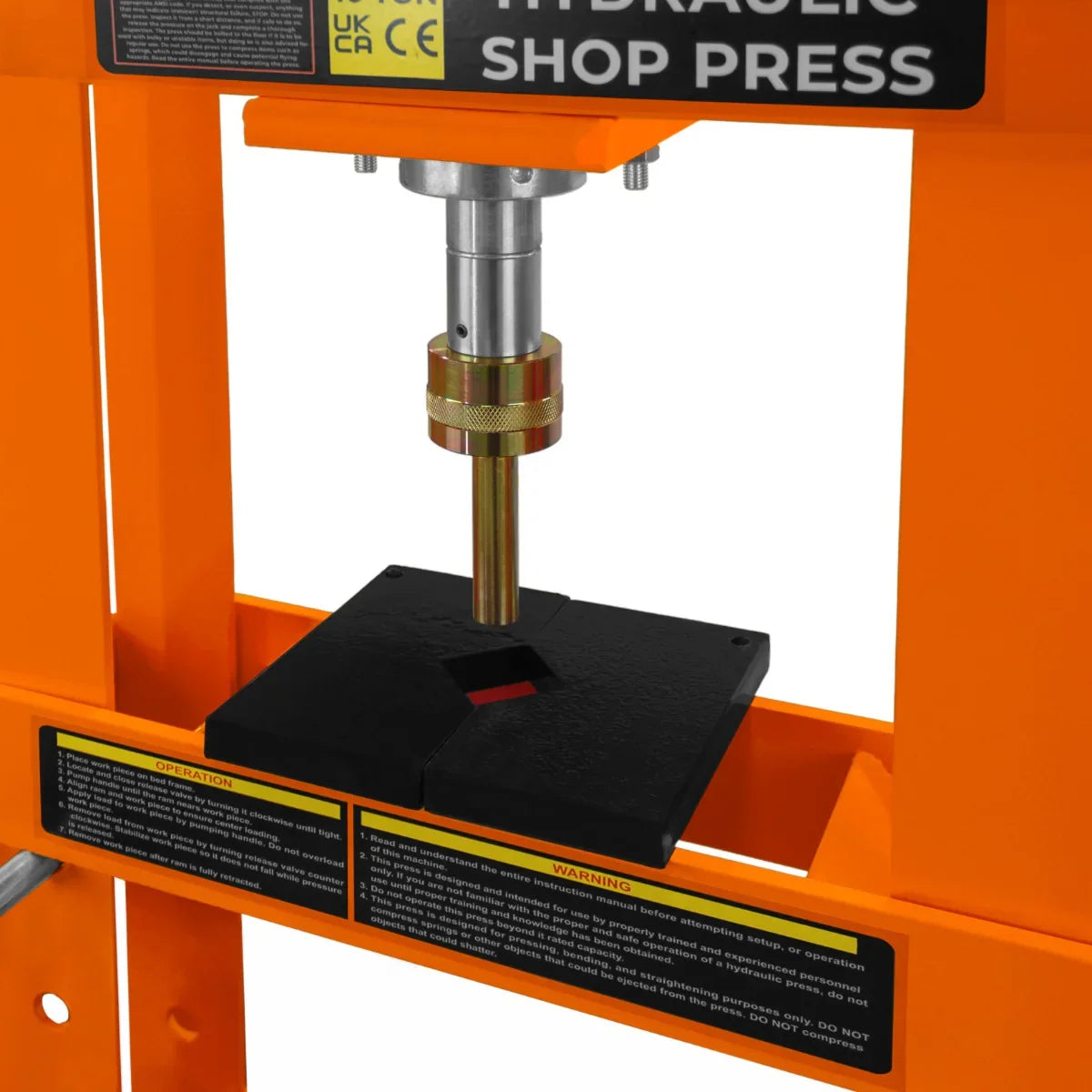

Eight steel mandrels and an adaptor are included. A storage tray in the frame keeps the mandrels close to hand. The mandrels have diameters of 10, 12, 16, 18, 20, 22, 25 and 30 mm, with lengths of 50, 60, 60, 85, 85, 85, 110 and 110 mm.

Specifications

• Colour: Orange
• Material: Powder Coated Steel
• Weight: 48 kg

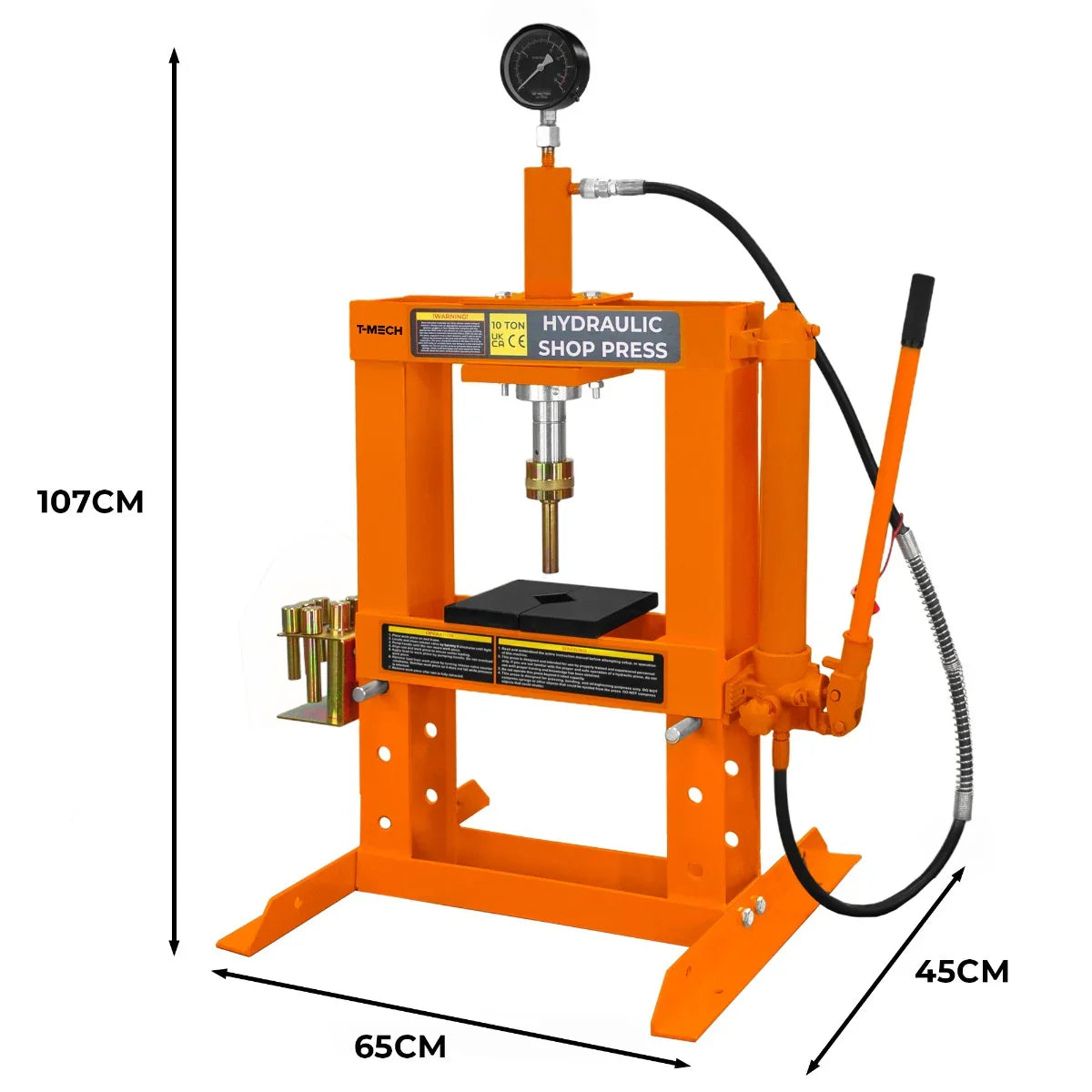

• Dimensions: 107 cm high x 65 cm wide x 45 cm deep
• Capacity: 10 tonne / 10,000 kg
• Working area: 180 to 335 mm
• Working height: 3 levels at 9 cm increments
• Certification: CE and UKCA

Box contents

• 1 x hydraulic shop press
• 8 x steel mandrels
• 1 x mandrel adaptor
